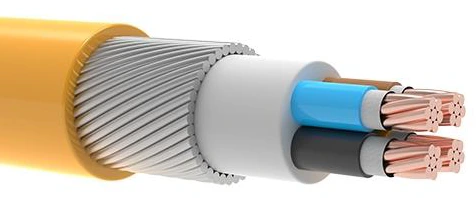

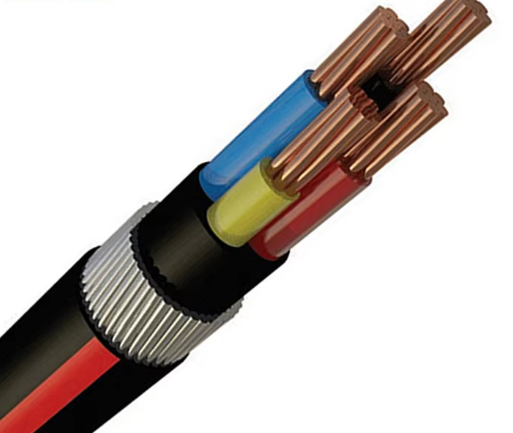

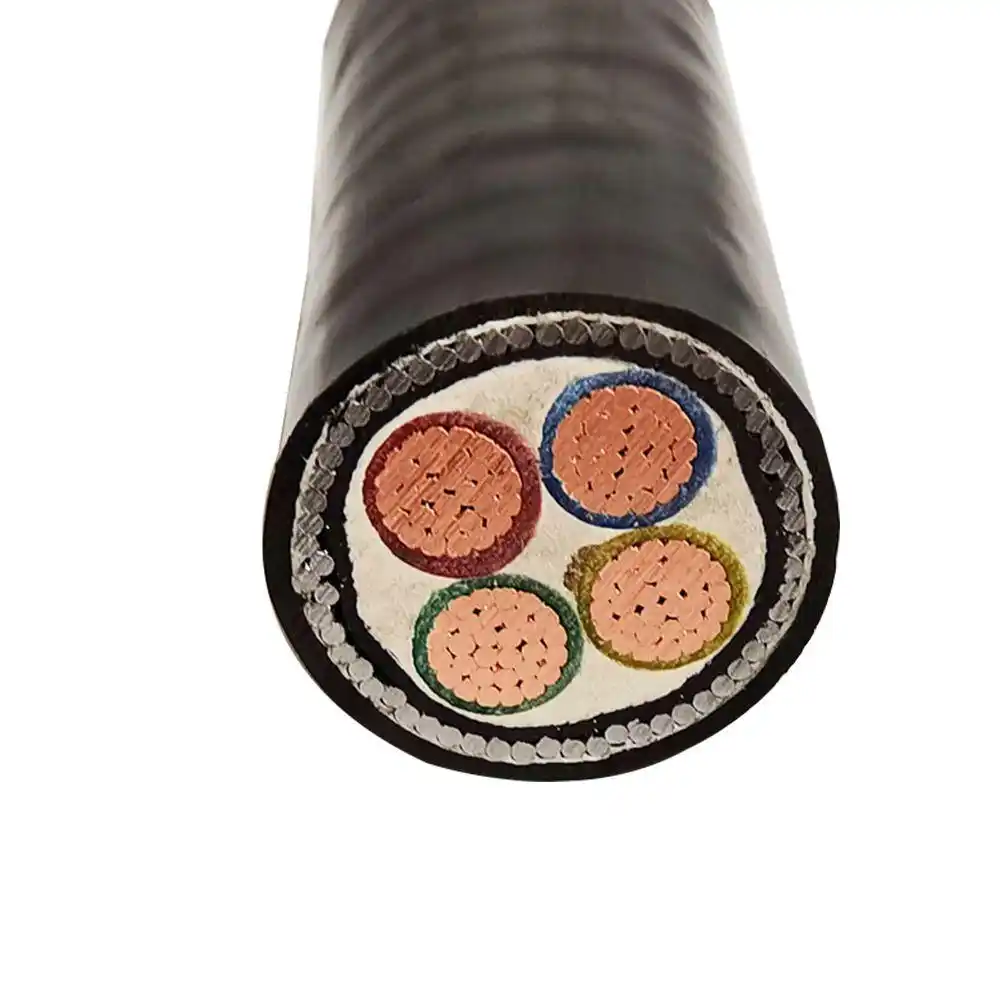

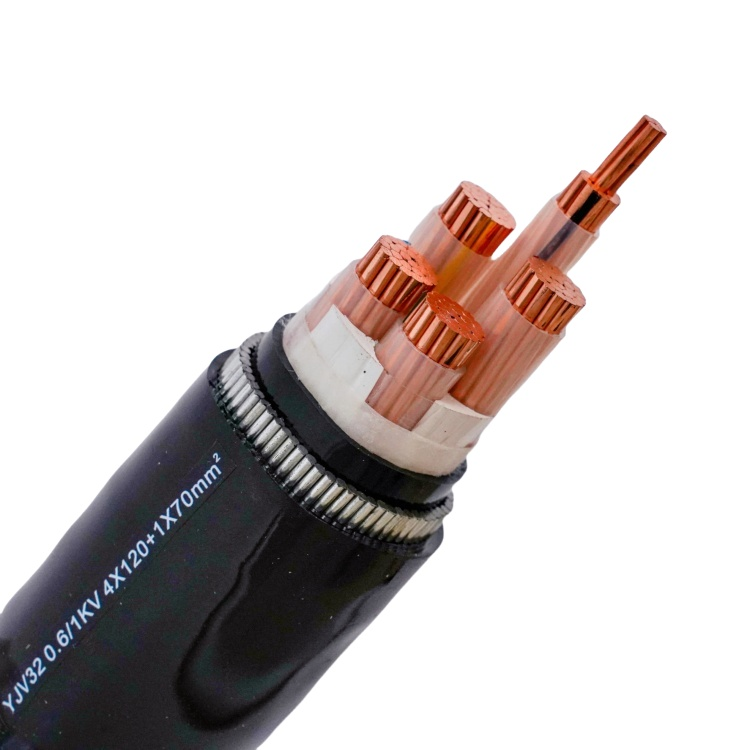

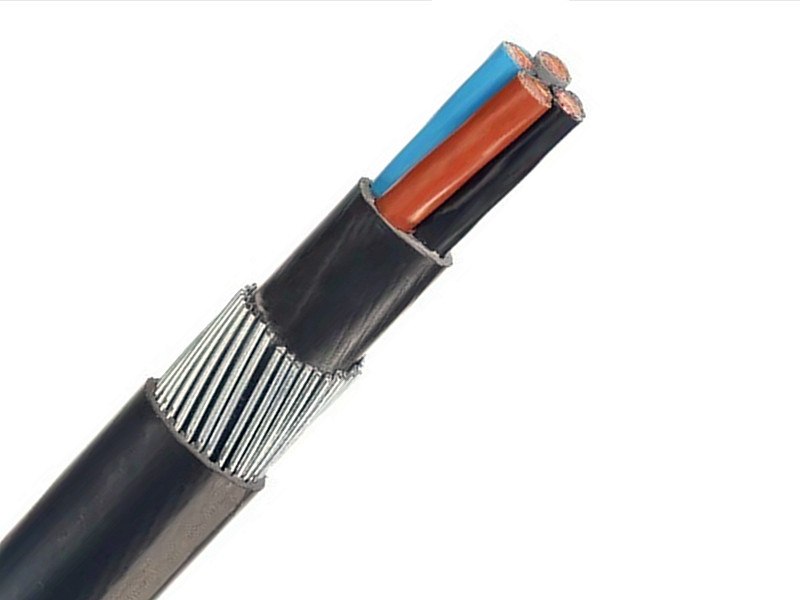

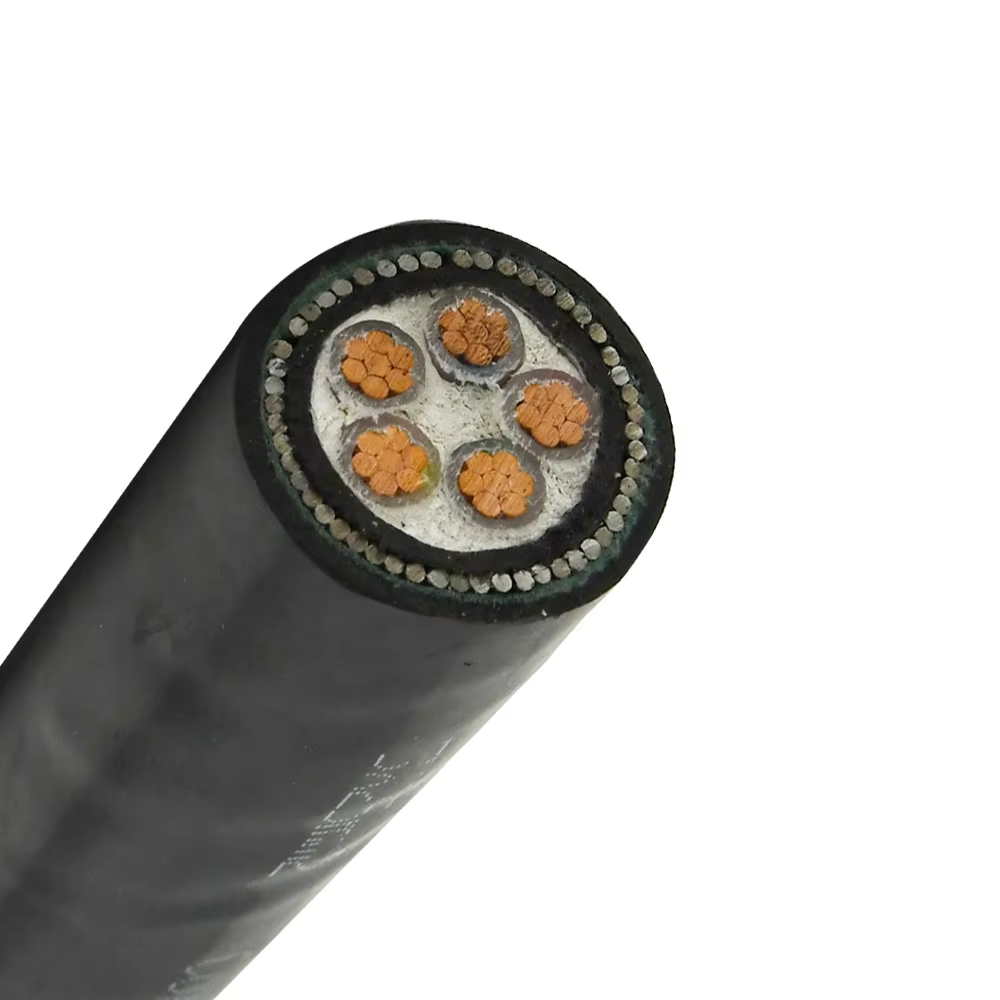

N2XRY N2XRH Cables
Application：
Our N2XRY and N2XRH cables are part of our steel wire armoured low voltage power cable range, offering a copper conductor alternative to NA2XRH and NA2XRY cables. With a voltage rating of 0.6/1kV and a maximum temperature rating of 90℃, these cables provide reliable power distribution for various applications.
Model No.：N2XRY and N2XRH Cable
Voltage：600/1000V
Conductor：Copper
Insulation：XLPE
Inner Sheath:PVC or LSZH
Armor:SWA
Sheath：PVC or LSZH
Brand：KINGYEAR
Standard：IEC/EN 60502-1
Place of Origin：China
Package：Exported Wooden Drum
Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment
Certification：ISO,CE and other certifications.
Production Capacity：30000m/week
The addition of SWA armouring allows for these cables to be direct buried in the ground without additional protection, protecting them from mechanical stresses and the risk of damage from external forces. The black outer sheath offers UV protection in keeping with their use outdoors.
N2XRY is a PVC insulated and sheathed cable, comparable to the British standard cable BS5467. The N2XRH cable uses Low Smoke Zero Halogen compounds (also known as HFFR - halogen free flame retardant) and is comparable to the BS6724 cable.
Voltage Rating Uo/U: 0.6/1kV
Temperature Range: Fixed: -5°C to +90°C
Minimum Bending Radius : 15 x overall diameter
KINGYEAR from 2013-2018 are mainly for domestic trading and processing to some export trading companies. The average sales amount are about RMB 320,000,000 per year. For cables oversea market, From last may till now we have expanded our market to Bolivia, Peru, Dominican, Philippines, Vietnam, Thailand, Iraq, Mongolia, Indonesia and some Africa country. With total sales amount over USD10,000,000.
