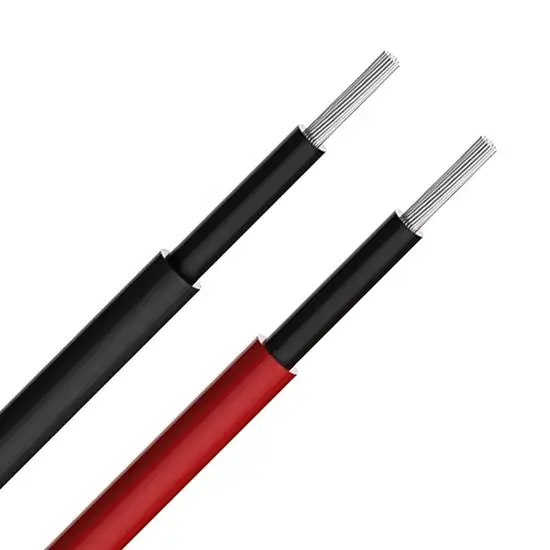

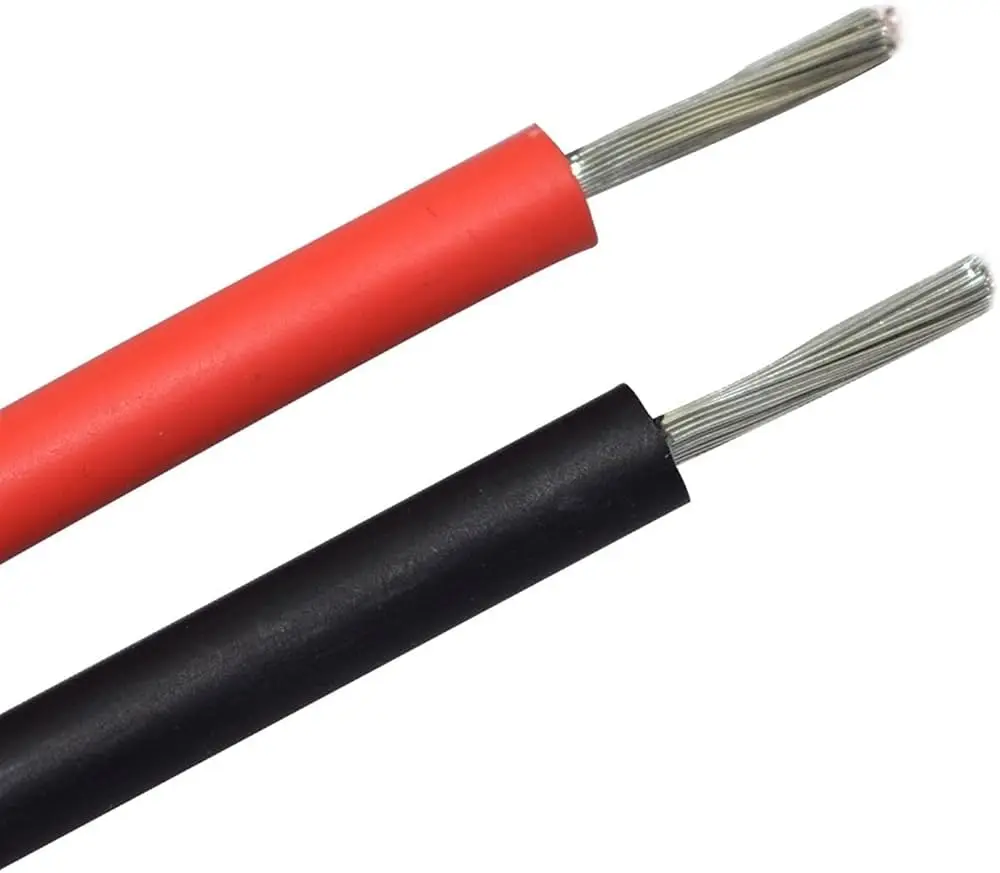

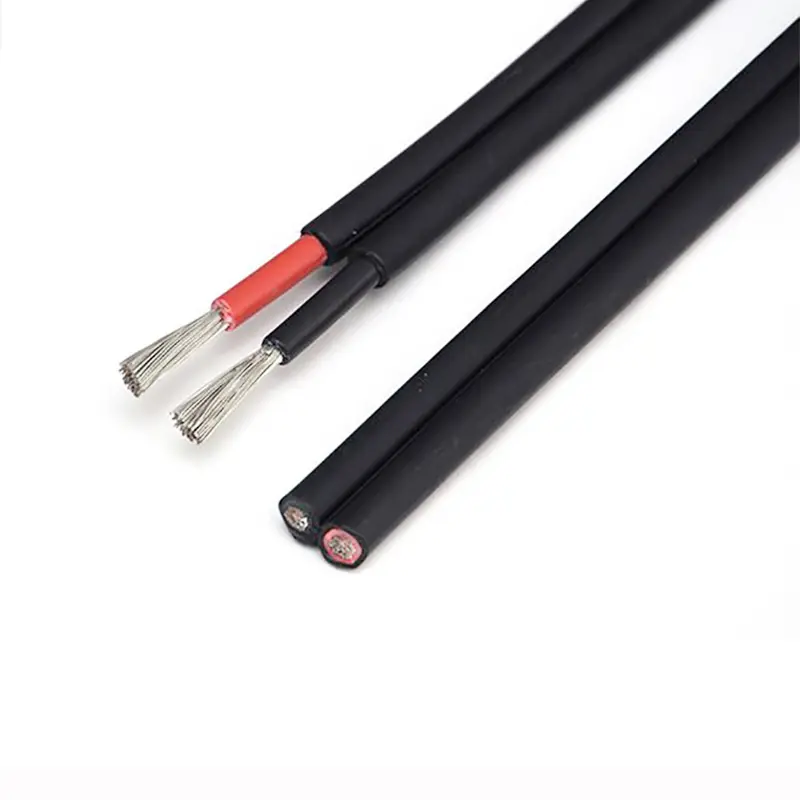

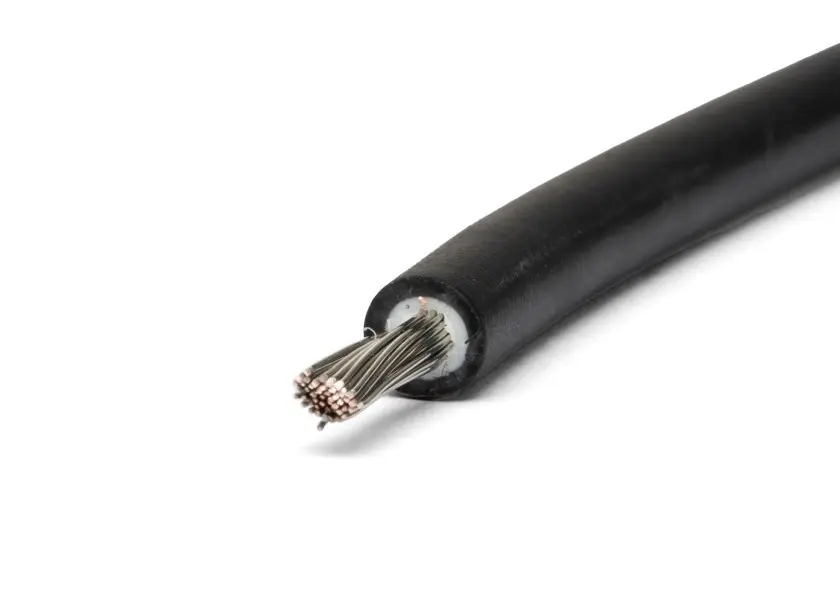

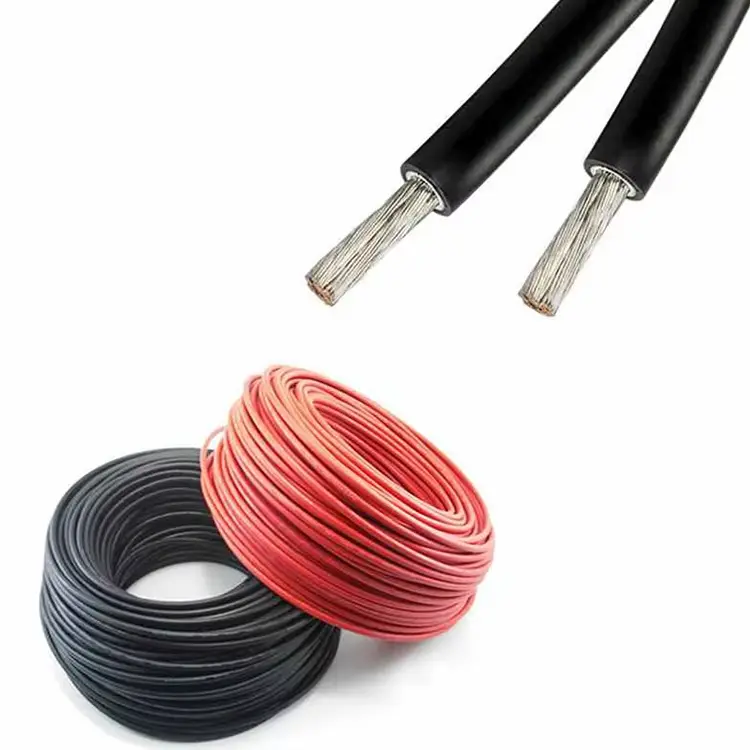

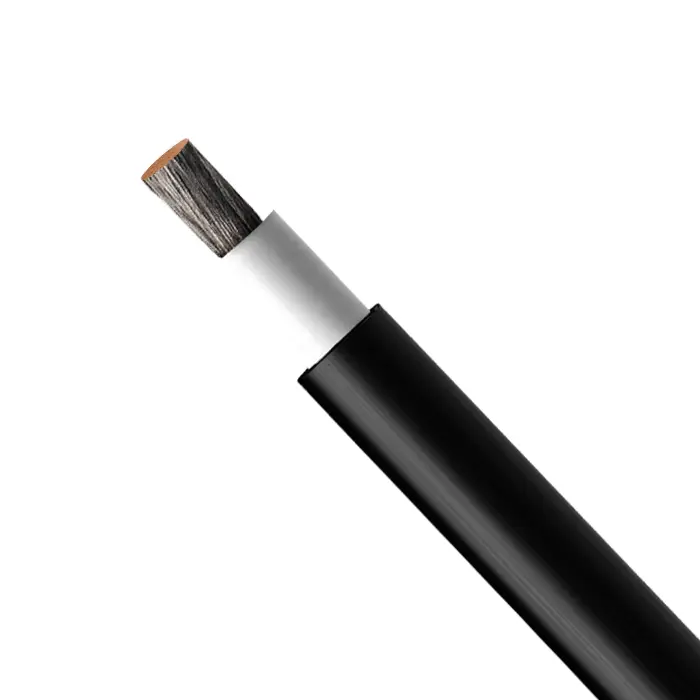

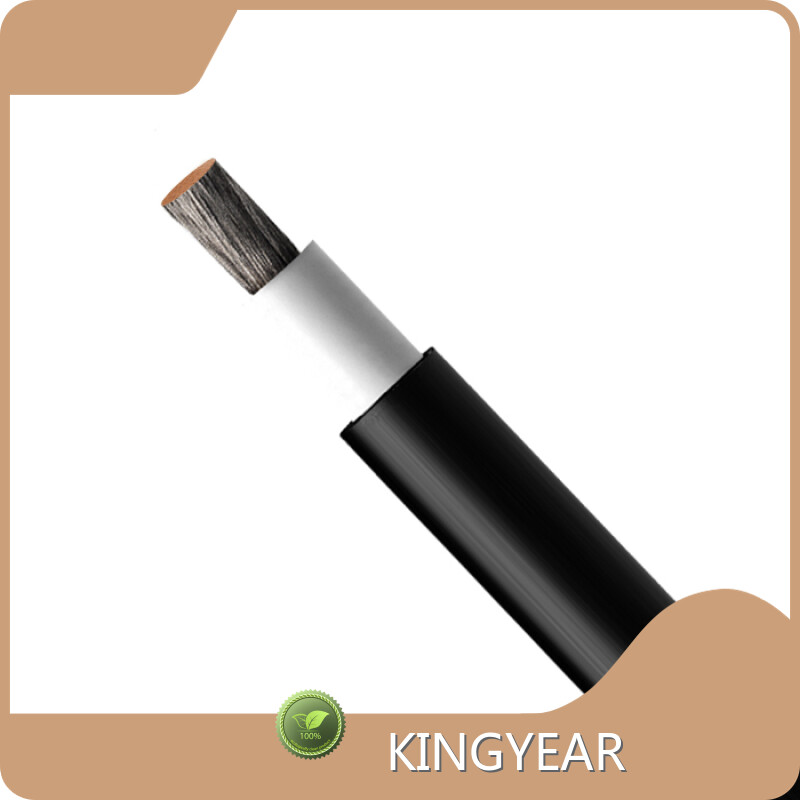

Product details of the 10 awg pv cable
Product Information
Supported by highly proficient workers, KINGYEAR 10 awg pv cable is delicately crafted and has an aesthetically-pleasing appearance. The performance index of this product is in the domestic leading position. HENAN KINGYEAR ALUMINUM INDUSTRIAL CO.,LTD. has formed a network of exclusive partnerships with many 10 awg pv cable brands.
CONSTRUCTION
Conductor : Flexible tinned copper class 5 (K) as per EN 60228
Insulation:Halogen-free cross-linked LS0H-XL compound,Black
Outer sheath: Halogen-free cross-linked LS0H-XL compound,Black or Red
Rated voltage
DC: 1,5/1,5 kV
AC: 1,0/1,0 kV
Max. permissible operating voltage:
AC 1,2/1,2 kV
DC 1,8/1,8 kV
Test voltage
AC: 6,5 kV / DC: 15 kV (5 min)
Minimum bending radius
Fixed installation approx. 4 x outer diameters
Flexing 10 x cable diameter
Temperature range
Operating temperature: -40°C to +90°C
Max. conductor temperature: 120°C
Providing tailored designs to meet specific requirements.
Ensuring continuous support and satisfaction post-purchase.
Committing to prompt and reliable delivery schedules.
Training and Documentation
Providing detailed documentation for easy operation and maintenance.
1
Q:I didn't find the product which I need in this page?
A:If you didn't find the species of the produxts you need, please contact us directly, we will reply you quickly.
2
Q:What's your minimum order quantity?
A:It is not so sure, you can confirm it with us. Normally, it will be 5 tons.
3
Q:What's your delivery time?
A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.
4
Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us, we will send you the free sample, but the freight charge should be paid.
5
Q:What if the product which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include size, color, material, processing requirement etc.
Company Advantage
• KINGYEAR has a development team with many years of technical experience, and the team members have strong industrial logic thinking and industry experience, providing a strong guarantee for our development.
• The condition of our company's geographic position is superior with multi traffic lines. We provide convenience for the outward transportation of various products and guarantee the stable supply of goods.
• Up to now, our products have a wide market and excellent reputation in the country. Besides, they are exported to Europe, America, Southeast Asia, the Middle East and other regions and firmly occupy some foreign market share.
• KINGYEAR, founded in has established a relatively scientific and effective food safety management system with the joint efforts of our employees.
Welcome to KINGYEAR. Please leave your contact information or comments, and we will reply you as soon as possible.
