IEC 60502.2 12.7/22(24)kV Aerial Bundled Cable Medium Voltage(ABC Cable)
Application：
Medium Voltage aerial bundled cable for secondary overhead lines on poles or as feeders to residential premises.
Model No.：IEC 60502.2 12.7/22(24)kV ABC Cable
Voltage：12.7/22(24)kV
Material：Aluminum
Brand：KINGYEAR
Standard：IEC/ASTM/BS/GBT/DIN
Place of Origin：China
Package：Exported Wooden Drum
Range of Application：Overhead Line
Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment
Certification：ISO,CE and other certifications.
Production Capacity：30000m/week
Standards :
AS/NZS 3599.1

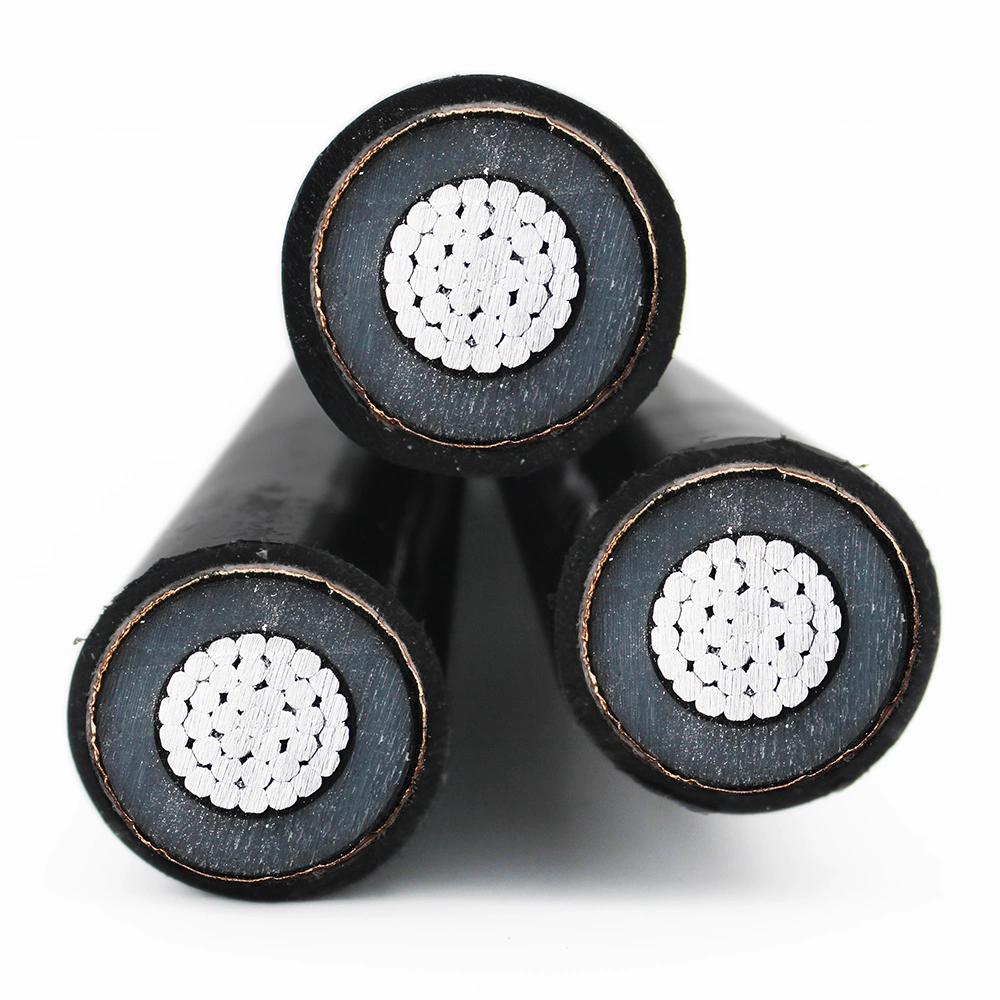

Construction :
Conductor: Class 2 Circular compacted stranded Aluminium
Conductor Screen: Extruded semi-conductive layer
Insulation: XLPE (Cross-linked polyethylene)
Insulation Screen: Extruded semi-conductive
layer Separator: Semi-conductive tape
Outer Sheath: HDPE (High Density polyethylene)
Aerial Bundle Cables, often referred to as Aerial Bundled Conductors or simply ABC Cable, are cables for overhead line power, so called for combining multiple single core cables together. With applications including temporary power distribution to street lighting and secondary pole-to-pole service cables, MV ABC Cable are lightweight stranded aluminium conductors, both single core and multi-cores. Whilst Aerial Bundle Cables are used in rural power distribution in some countries, they are more commonly used in temporary power installations such as on construction sites.
KINGYEAR from 2013-2018 are mainly for domestic trading and processing to some export trading companies. The average sales amount are about RMB 320,000,000 per year. For cables oversea market, From last may till now we have expanded our market to Bolivia, Peru, Dominican, Philippines, Vietnam, Thailand, Iraq, Mongolia, Indonesia and some Africa country. With total sales amount over USD10,000,000.
