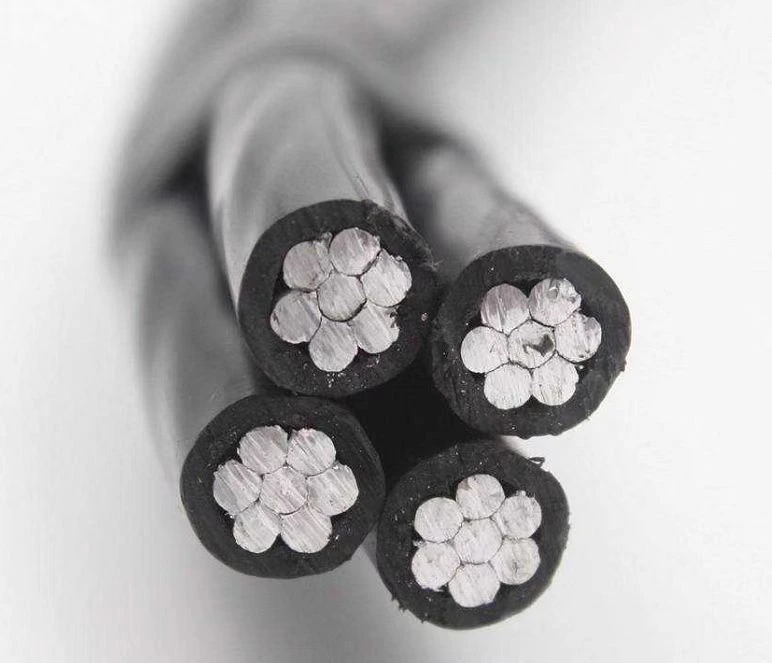

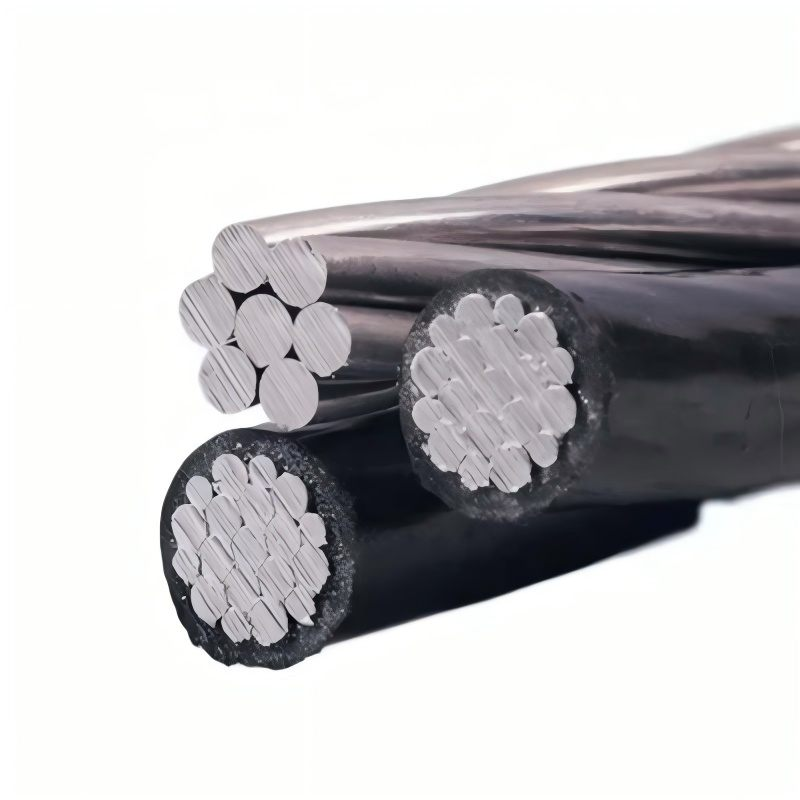

Service Drop Cable (ANSI/ICEA S-76-474)
Application
Primarily used for overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase - to - phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.
Description

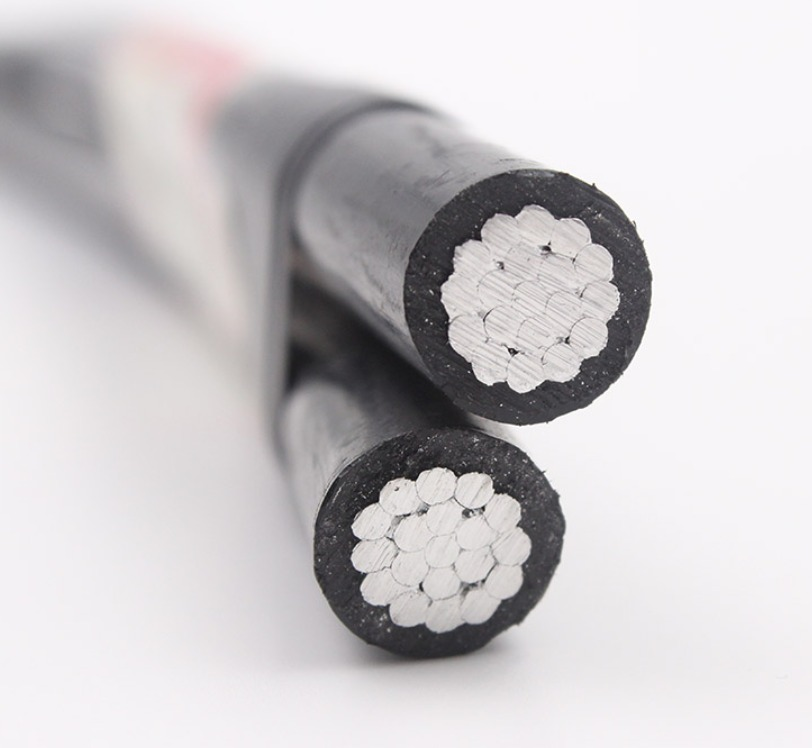

The conductor consists of a phase conductor and a neutral conductor. The material of the phase conductors is Aluminum or copper and may be solid, stranded circular compacted or compressed or uncompressed conductor. The neutral conductors are stranded round circular uncompressed aluminum or copper or aluminum-alloy conductor or ACSR or ACSR/AW etc. And the insulating material is black weather or UV-resistant thermoplastic polyethylene (PE) or cross-linked polyethylene (XLPE).
Note: Neutral conductors can be insulated or non-insulated.
Specifications
● ANSI/ICEA S-76-474 Neutral-Supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600 Volts.
● ASTM B 231 Class AA, A, or B Stranded Aluminum 1350 (Excluding Unilay Compressed)
● ASTM B 400 Compact-Round Stranded Aluminum 1350 Conductors.
● ASTM B 399 Class AA, or A Stranded Aluminum-Alloy 6201 T-81 Conductors.
● ASTM B 232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR)
● ASTM B 549 For Concentric-Lay-Stranded Aluminum Conductors, Aluminum-Clad Steel Reinforced (ACSR/AW)
Primarily used for overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase - to - phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.
Description
The conductor consists of a phase conductor and a neutral conductor. The material of the phase conductors is Aluminum or copper and may be solid, stranded circular compacted or compressed or uncompressed conductor. The neutral conductors are stranded round circular uncompressed aluminum or copper or aluminum-alloy conductor or ACSR or ACSR/AW etc. And the insulating material is black weather or UV-resistant thermoplastic polyethylene (PE) or cross-linked polyethylene (XLPE).
Note: Neutral conductors can be insulated or non-insulated.
Specifications
● ANSI/ICEA S-76-474 Neutral-Supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600 Volts.
● ASTM B 231 Class AA, A, or B Stranded Aluminum 1350 (Excluding Unilay Compressed)
● ASTM B 400 Compact-Round Stranded Aluminum 1350 Conductors.
● ASTM B 399 Class AA, or A Stranded Aluminum-Alloy 6201 T-81 Conductors.
● ASTM B 232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR)
● ASTM B 549 For Concentric-Lay-Stranded Aluminum Conductors, Aluminum-Clad Steel Reinforced (ACSR/AW)
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Phase conductors: Hard drawn aluminum 1350 （AAC）
Insulation: XLPE, UV-resistant.
Neutral-supported: Aluminum alloy-6201 (AAAC)
Street lighting conductor: Hard drawn aluminum 1350 (AAC)
Core identification: Ribs or numbers or colors stripe.
ICEA S-76-474, 2020 Edition, 2020 - Standard for Neutral Supported Power Cable Assemblies with Weather Resistant Extruded Insulation Rated 600 Volts.
This standard applies to the materials, constructions, and testing of assemblies or single conductors intended for field lashing, of extruded dielectric insulated electric current carrying phase conductors and bare or covered neutral electrical conductors used as weather resistant wires and cables suspended from supporting structures for the overhead distribution of electrical energy.
KINGYEAR from 2013-2018 are mainly for domestic trading and processing to some export trading companies. The average sales amount are about RMB 320,000,000 per year. For cables oversea market, From last may till now we have expanded our market to Bolivia, Peru, Dominican, Philippines, Vietnam, Thailand, Iraq, Mongolia, Indonesia and some Africa country. With total sales amount over USD10,000,000.
Advantage
01
Customization
Providing tailored designs to meet specific requirements.
02
After-Sales Service
Ensuring continuous support and satisfaction post-purchase.
03
Timely Delivery
Committing to prompt and reliable delivery schedules.
04
Training and Documentation
Providing detailed documentation for easy operation and maintenance.
FAQ
1
Q:I didn't find the product which I need in this page?
A:If you didn't find the species of the produxts you need, please contact us directly, we will reply you quickly.
2
Q:What's your minimum order quantity?
A:It is not so sure, you can confirm it with us. Normally, it will be 5 tons.
3
Q:What's your delivery time?
A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.
4
Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us, we will send you the free sample, but the freight charge should be paid.
5
Q:What if the product which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include size, color, material, processing requirement etc.
Duplex Service Drop - Aluminum Conductors
| Code Word | Phase Conductor | Bare Neutral Messenger | Approx. Diameter of Cable | Approx. Weight | ||||
| Size | No. of wires | Nominal Insulation Thickness | Size | No. of Wires | Diameter of Wires | |||
| AWG or Kcmil | No. | mm | AWG or Kcmil | No. | mm | mm | kg/km | |
| AAC/XLPE+AAC | ||||||||
| Pekingese | 6 | 1 | 1.14 | 6 | 7 | 1.56 | 11.1 | 92 |
| Collie | 6 | 7 | 1.14 | 6 | 7 | 1.56 | 11.5 | 94 |
| Cocker | 6 | 7 | 1.52 | 6 | 7 | 1.56 | 12.2 | 100 |
| Dachshund | 4 | 1 | 1.14 | 4 | 7 | 1.96 | 13.4 | 140 |
| Spaniel | 4 | 7 | 1.14 | 4 | 7 | 1.96 | 13.9 | 143 |
| Cairn | 4 | 7 | 1.52 | 4 | 7 | 1.96 | 14.6 | 150 |
| Doberman | 2 | 7 | 1.14 | 2 | 7 | 2.47 | 16.9 | 220 |
| Airedale | 1 | 19 | 1.52 | 1 | 7 | 2.78 | 19.6 | 280 |
| Basset | 1/0 | 7 | 1.52 | 1/0 | 7 | 3.12 | 21.8 | 355 |
| Malemute | 1/0 | 19 | 1.52 | 1/0 | 7 | 3.12 | 21.6 | 350 |
| AAC/XLPE+AAAC | ||||||||
| Chihuahua | 6 | 1 | 1.14 | 30.58 | 7 | 1.68 | 11.4 | 98 |
| Vizsla | 6 | 7 | 1.14 | 30.58 | 7 | 1.68 | 11.8 | 100 |
| Harrier | 4 | 1 | 1.14 | 48.69 | 7 | 2.12 | 13.8 | 149 |
| Whippet | 4 | 7 | 1.14 | 48.69 | 7 | 2.12 | 14.4 | 154 |
| Schnauzer | 2 | 7 | 1.14 | 77.47 | 7 | 2.67 | 17.5 | 235 |
| Afghan | 1/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 22.5 | 378 |
| Heeler | 1/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 22.3 | 375 |
| AAC/XLPE+ACSR | ||||||||
| Setter | 6 | 1 | 1.14 | 6 | 6 / 1 | 1.68 | 11.4 | 109 |
| Shepherd | 6 | 7 | 1.14 | 6 | 6 / 1 | 1.68 | 11.8 | 112 |
| Retriever | 6 | 7 | 1.52 | 6 | 6 / 1 | 1.68 | 12.6 | 119 |
| Eskimo | 4 | 1 | 1.14 | 4 | 6 / 1 | 2.12 | 13.8 | 166 |
| Terrier | 4 | 7 | 1.14 | 4 | 6 / 1 | 2.12 | 14.4 | 170 |
| Yorkshire | 4 | 7 | 1.52 | 4 | 6 / 1 | 2.12 | 15.1 | 180 |
| Chow | 2 | 7 | 1.14 | 2 | 6 / 1 | 2.67 | 17.5 | 262 |
| Labrador | 1 | 19 | 1.52 | 1 | 6 / 1 | 3.00 | 20.2 | 339 |
| Bloodhound | 1/0 | 7 | 1.52 | 1/0 | 6 / 1 | 3.37 | 22.5 | 425 |
| Bull | 1/0 | 19 | 1.52 | 1/0 | 6 / 1 | 3.37 | 22.3 | 422 |

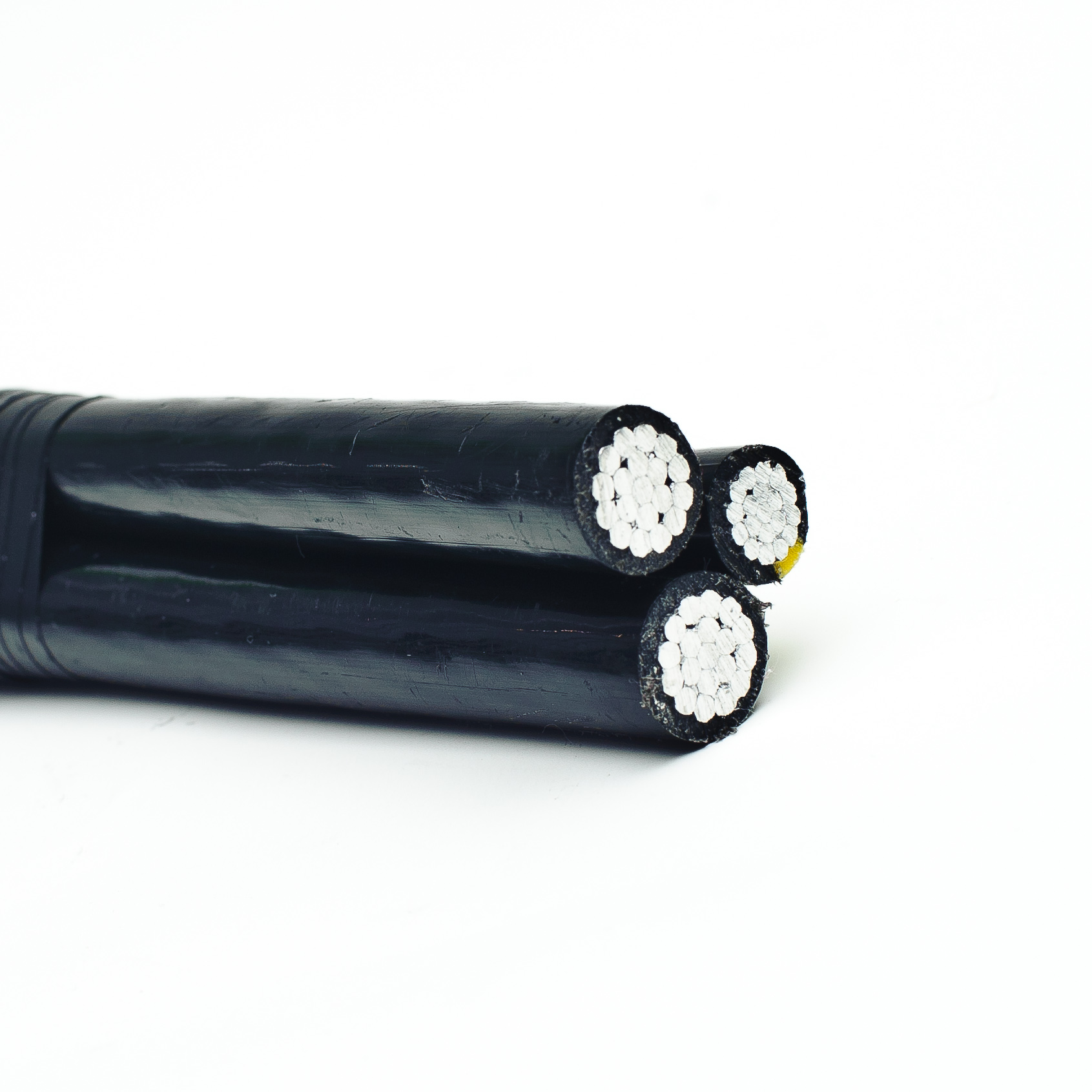

Triplex Service Drop - Aluminum Conductors
| Code Word | Phase Conductor | Bare Neutral Messenger | Approx. Diameter of Cable | Approx. Weight | ||||
| Size | No. of Wires | Nominal Insulation Thickness | Size | No. of Wires | Diameter of Wires | |||
| AWG or Kcmil | No. | mm | AWG or Kcmil | No. | mm | mm | kg/km | |
| AAC/XLPE+AAC | ||||||||
| Haiotis | 6 | 1 | 1.14 | 6 | 7 | 1.56 | 12.6 | 148 |
| Pike | 6 | 7 | 0.76 | 6 | 7 | 1.56 | 12.1 | 139 |
| Patella | 6 | 7 | 1.14 | 6 | 7 | 1.56 | 13.2 | 154 |
| Albus | 6 | 7 | 1.52 | 6 | 7 | 1.56 | 14.3 | 170 |
| Fusus | 4 | 1 | 1.14 | 4 | 7 | 1.96 | 15.0 | 221 |
| Limpet | 4 | 7 | 1.14 | 6 | 7 | 1.56 | 14.9 | 208 |
| Oyster | 4 | 7 | 1.14 | 4 | 7 | 1.96 | 15.8 | 230 |
| Argo | 4 | 7 | 1.52 | 4 | 7 | 1.96 | 16.9 | 249 |
| Clam | 2 | 7 | 1.14 | 2 | 7 | 2.47 | 19.0 | 347 |
| Thia | 2 | 7 | 1.52 | 2 | 7 | 2.47 | 20.1 | 370 |
| Mussel | 2 | 7 | 1.14 | 4 | 7 | 1.96 | 17.9 | 312 |
| Pyrula | 1 | 7 | 1.52 | 1 | 7 | 2.78 | 22.4 | 465 |
| Hyas | 1 | 19 | 1.52 | 1 | 7 | 2.78 | 22.2 | 450 |
| Snail | 1/0 | 7 | 1.52 | 2 | 7 | 2.47 | 23.2 | 517 |
| Murex | 1/0 | 7 | 1.52 | 1/0 | 7 | 3.12 | 24.6 | 572 |
| Purpura | 1/0 | 19 | 1.52 | 1/0 | 7 | 3.12 | 24.4 | 554 |
| Nassa | 2/0 | 7 | 1.52 | 2/0 | 7 | 3.50 | 27.1 | 706 |
| Trophon | 2/0 | 19 | 1.52 | 2/0 | 7 | 3.50 | 26.8 | 684 |
| Quahog | 3/0 | 7 | 2.03 | 3/0 | 7 | 3.93 | 31.3 | 920 |
| Ione | 3/0 | 19 | 2.03 | 3/0 | 7 | 3.93 | 31.0 | 892 |
| Melita | 3/0 | 19 | 1.52 | 3/0 | 19 | 2.39 | 29.7 | 845 |
| Coquina | 4/0 | 7 | 1.52 | 4/0 | 7 | 4.42 | 33.0 | 1082 |
| Tusk | 4/0 | 7 | 2.03 | 4/0 | 7 | 4.42 | 34.5 | 1134 |
| Apus | 4/0 | 19 | 2.03 | 4/0 | 7 | 4.42 | 34.1 | 1098 |
| Portunus | 4/0 | 19 | 2.03 | 4/0 | 19 | 2.68 | 34.2 | 1098 |
| Chiton | 266.8 | 19 | 2.03 | 266.8 | 19 | 3.01 | 38.4 | 1379 |
| Alverno | 300 | 37 | 2.03 | 4/0 | 19 | 2.68 | 37.8 | 1386 |
| Nannynose | 336.4 | 19 | 2.03 | 336.4 | 19 | 3.38 | 42.4 | 1707 |
| AAC/XLPE+AAAC | ||||||||
| Minex | 6 | 1 | 1.14 | 30.58 | 7 | 1.68 | 12.8 | 154 |
| Hippa | 6 | 7 | 1.14 | 30.58 | 7 | 1.68 | 13.4 | 160 |
| Code Word | Phase Conductor | Bare Neutral Messenger | Approx. Diameter of Cable | Approx. Weight | ||||
| Size | No. of Wires | Nominal Insulation Thickness | Size | No. of Wires | Diameter of Wires | |||
| AWG or Kcmil | No. | mm | AWG or Kcmil | No. | mm | mm | kg/km | |
| AAC/XLPE+AAAC | ||||||||
| Artemia | 4 | 1 | 1.14 | 30.58 | 7 | 1.68 | 14.4 | 205 |
| Crad | 4 | 7 | 1.14 | 30.58 | 7 | 1.68 | 15.2 | 214 |
| Prawn | 4 | 1 | 1.14 | 48.69 | 7 | 2.12 | 15.3 | 231 |
| Barnacle | 4 | 7 | 1.14 | 48.69 | 7 | 2.12 | 16.1 | 239 |
| Solaster | 2 | 7 | 1.14 | 48.69 | 7 | 2.12 | 18.2 | 322 |
| Pagurus | 2 | 7 | 1.52 | 48.69 | 7 | 2.12 | 19.3 | 345 |
| Shrimp | 2 | 7 | 1.14 | 77.47 | 7 | 2.67 | 19.4 | 362 |
| Lobster | 2 | 7 | 1.52 | 77.47 | 7 | 2.67 | 20.5 | 385 |
| Sanderab | 1/0 | 7 | 1.52 | 77.47 | 7 | 2.67 | 23.6 | 532 |
| Echinus | 1/0 | 19 | 1.52 | 77.47 | 7 | 2.67 | 23.4 | 514 |
| Gammarus | 1/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 25.1 | 597 |
| Leda | 1/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 24.9 | 579 |
| Crayfish | 2/0 | 7 | 1.52 | 97.65 | 7 | 3.00 | 26.0 | 655 |
| Sipho | 2/0 | 19 | 1.52 | 97.65 | 7 | 3.00 | 25.7 | 633 |
| Abalone | 2/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 26.8 | 691 |
| Spirula | 2/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 26.5 | 669 |
| Dungenese | 2/0 | 7 | 1.52 | 155.4 | 7 | 3.78 | 27.7 | 736 |
| Cyclops | 2/0 | 19 | 1.52 | 155.4 | 7 | 3.78 | 27.4 | 714 |
| Slug | 3/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 28.6 | 809 |
| Fulgur | 3/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 28.4 | 781 |
| Balanus | 3/0 | 19 | 2.03 | 123.3 | 7 | 3.37 | 29.8 | 828 |
| Stonecrab | 3/0 | 7 | 1.52 | 195.7 | 7 | 4.25 | 30.5 | 904 |
| Flustra | 3/0 | 19 | 1.52 | 195.7 | 7 | 4.25 | 30.3 | 884 |
| Crisia | 3/0 | 19 | 2.03 | 195.7 | 7 | 4.25 | 31.7 | 931 |
| Squid | 4/0 | 7 | 1.52 | 155.4 | 7 | 3.78 | 31.6 | 1001 |
| Arca | 4/0 | 19 | 1.52 | 155.4 | 7 | 3.78 | 31.3 | 966 |
| Bugula | 4/0 | 19 | 2.03 | 155.4 | 7 | 3.78 | 32.7 | 1018 |
| Kingcrab | 4/0 | 7 | 1.52 | 246.9 | 7 | 4.77 | 33.8 | 1131 |
| Lepas | 4/0 | 19 | 1.52 | 246.9 | 7 | 4.77 | 33.4 | 1096 |
| Cassis | 4/0 | 19 | 2.03 | 246.9 | 7 | 4.77 | 34.9 | 1147 |
| Cyphoma | 4/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 30.8 | 957 |
| Mitre | 4/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 30.4 | 921 |
| Argonaut | 336.4 | 19 | 2.03 | 246.9 | 7 | 4.77 | 40.5 | 1579 |
| Nautilis | 336.4 | 19 | 2.03 | 394.5 | 19 | 3.66 | 43.4 | 1787 |
| Code Word | Phase Conductor | Bare Neutral Messenger | Approx. Diameter of Cable | Approx. Weight | ||||
| Size | No. of Wires | Nominal Insulation Thickness | Size | No. of wires | Diameter of Wires | |||
| AWG or Kcmil | No. | mm | AWG or Kcmil | No. | mm | mm | kg/km | |
| AAC/XLPE+ACSR | ||||||||
| Paludina | 6 | 1 | 1.14 | 6 | 6 / 1 | 1.68 | 12.8 | 165 |
| Voluta | 6 | 7 | 1.14 | 6 | 6 / 1 | 1.68 | 13.4 | 171 |
| Bolma | 6 | 7 | 1.52 | 6 | 6 / 1 | 1.68 | 14.5 | 188 |
| Scallop | 4 | 1 | 1.14 | 6 | 6 / 1 | 1.68 | 14.4 | 217 |
| Strombus | 4 | 7 | 1.14 | 6 | 6 / 1 | 1.68 | 15.1 | 225 |
| Carnea | 4 | 7 | 1.52 | 6 | 6 / 1 | 1.68 | 16.2 | 244 |
| Whelk | 4 | 1 | 1.14 | 4 | 6 / 1 | 2.12 | 15.3 | 249 |
| Periwinkle | 4 | 7 | 1.14 | 4 | 6 / 1 | 2.12 | 16.1 | 257 |
| Calma | 4 | 7 | 1.52 | 4 | 6 / 1 | 2.12 | 17.2 | 277 |
| Cockle | 2 | 7 | 1.14 | 4 | 6 / 1 | 2.12 | 18.2 | 340 |
| Gebia | 2 | 7 | 1.52 | 4 | 6 / 1 | 2.12 | 19.3 | 363 |
| Conch | 2 | 7 | 1.14 | 2 | 6 / 1 | 2.67 | 19.4 | 391 |
| Uca | 2 | 7 | 1.52 | 2 | 6 / 1 | 2.67 | 20.5 | 414 |
| Vermeths | 1 | 7 | 1.52 | 1 | 6 / 1 | 3.00 | 22.9 | 520 |
| Atya | 1 | 19 | 1.52 | 1 | 6 / 1 | 3.00 | 22.6 | 506 |
| Janthina | 1/0 | 7 | 1.52 | 2 | 6 / 1 | 2.67 | 23.6 | 561 |
| Ranella | 1/0 | 19 | 1.52 | 2 | 6 / 1 | 2.67 | 23.4 | 543 |
| Neritina | 1/0 | 7 | 1.52 | 1/0 | 6 / 1 | 3.37 | 25.1 | 642 |
| Cenia | 1/0 | 19 | 1.52 | 1/0 | 6 / 1 | 3.37 | 24.9 | 624 |
| Cavolinia | 2/0 | 7 | 1.52 | 1 | 6 / 1 | 3.00 | 26.0 | 691 |
| Clio | 2/0 | 19 | 1.52 | 1 | 6 / 1 | 3.00 | 25.7 | 669 |
| Runcina | 2/0 | 7 | 1.52 | 2/0 | 6 / 1 | 3.78 | 27.7 | 794 |
| Triton | 2/0 | 19 | 1.52 | 2/0 | 6 / 1 | 3.78 | 27.4 | 772 |
| Sanddollar | 3/0 | 7 | 1.52 | 1/0 | 6 / 1 | 3.37 | 28.6 | 854 |
| Aega | 3/0 | 19 | 1.52 | 1/0 | 6 / 1 | 3.37 | 28.4 | 827 |
| Pisa | 3/0 | 19 | 2.03 | 1/0 | 6 / 1 | 3.37 | 29.8 | 874 |
| Cherrystone | 3/0 | 7 | 1.52 | 3/0 | 6 / 1 | 4.25 | 30.5 | 983 |
| Mursia | 3/0 | 19 | 1.52 | 3/0 | 6 / 1 | 4.25 | 30.3 | 956 |
| Mysis | 3/0 | 19 | 2.03 | 3/0 | 6 / 1 | 4.25 | 31.7 | 1003 |
| Cuttlefish | 4/0 | 7 | 1.52 | 2/0 | 6 / 1 | 3.78 | 31.7 | 1059 |
| Code Word | Phase Conductor | Bare Neutral Messenger | Approx. Diameter of Cable | Approx. Weight | ||||
| Size | No. of Wires | Nominal Insulation Thickness | Size | No. of wires | Diameter of Wires | |||
| AWG or Kcmil | No. | mm | AWG or Kcmil | No. | mm | mm | kg/km | |
| AAC/XLPE+ACSR | ||||||||
| Cerapus | 4/0 | 19 | 1.52 | 2/0 | 6 / 1 | 3.78 | 31.3 | 1024 |
| Nepatus | 4/0 | 19 | 2.03 | 2/0 | 6 / 1 | 3.78 | 32.7 | 1075 |
| Razor | 4/0 | 7 | 1.52 | 4/0 | 6 / 1 | 4.77 | 33.8 | 1222 |
| Zuzara | 4/0 | 19 | 1.52 | 4/0 | 6 / 1 | 4.77 | 33.4 | 1187 |
| Alima | 4/0 | 19 | 2.03 | 4/0 | 6 / 1 | 4.77 | 34.9 | 1238 |
| Callista | 266.8 | 19 | 2.03 | 3/0 | 6 / 1 | 4.25 | 36.7 | 1350 |
| Dosinia | 266.8 | 19 | 2.03 | 266.8 | 18 / 1 | 3.09 | 38.7 | 1438 |
| Cowry | 336.4 | 19 | 2.03 | 4/0 | 6 / 1 | 4.77 | 40.5 | 1670 |
| Limpet | 336.4 | 19 | 2.03 | 336.4 | 18 / 1 | 3.47 | 42.7 | 1782 |

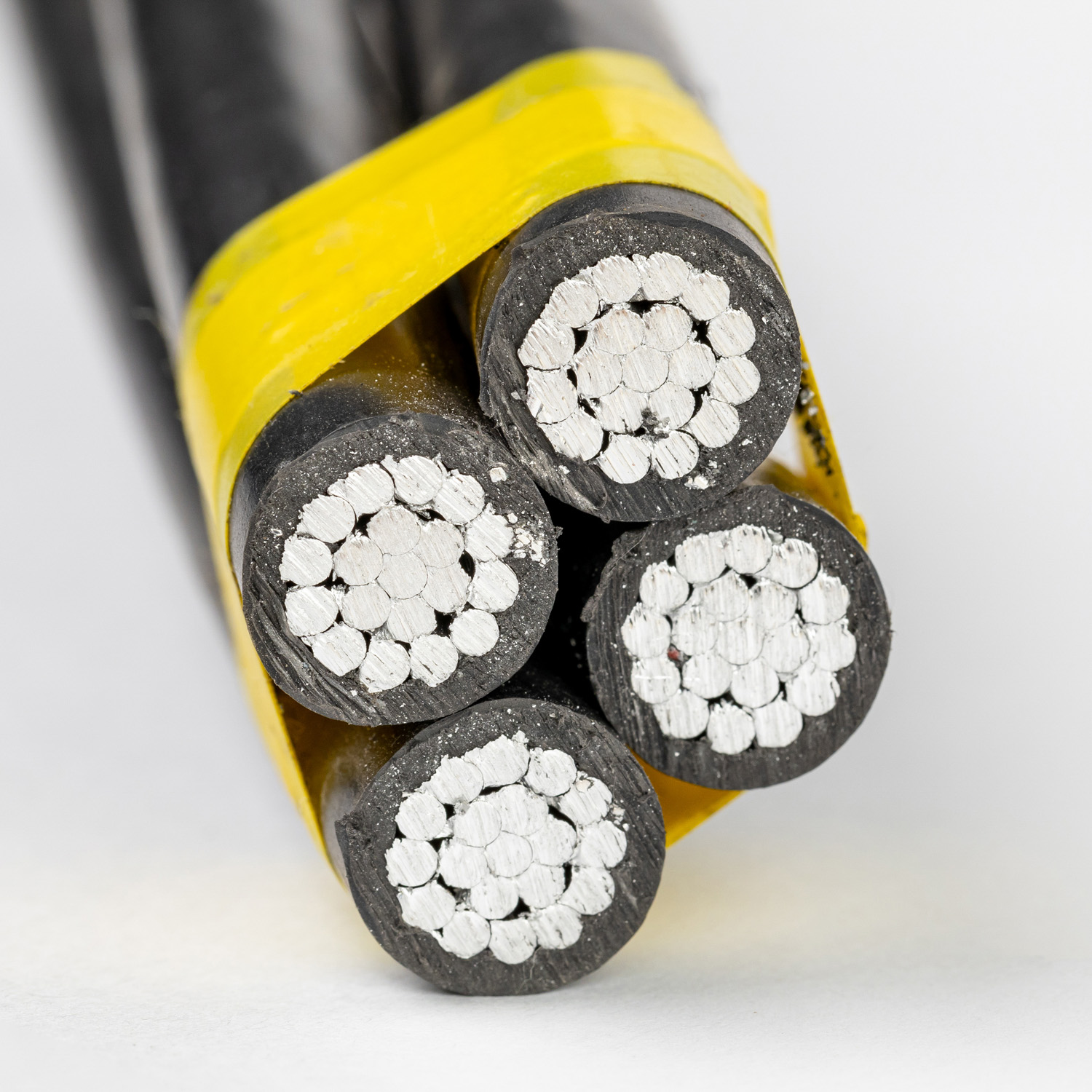

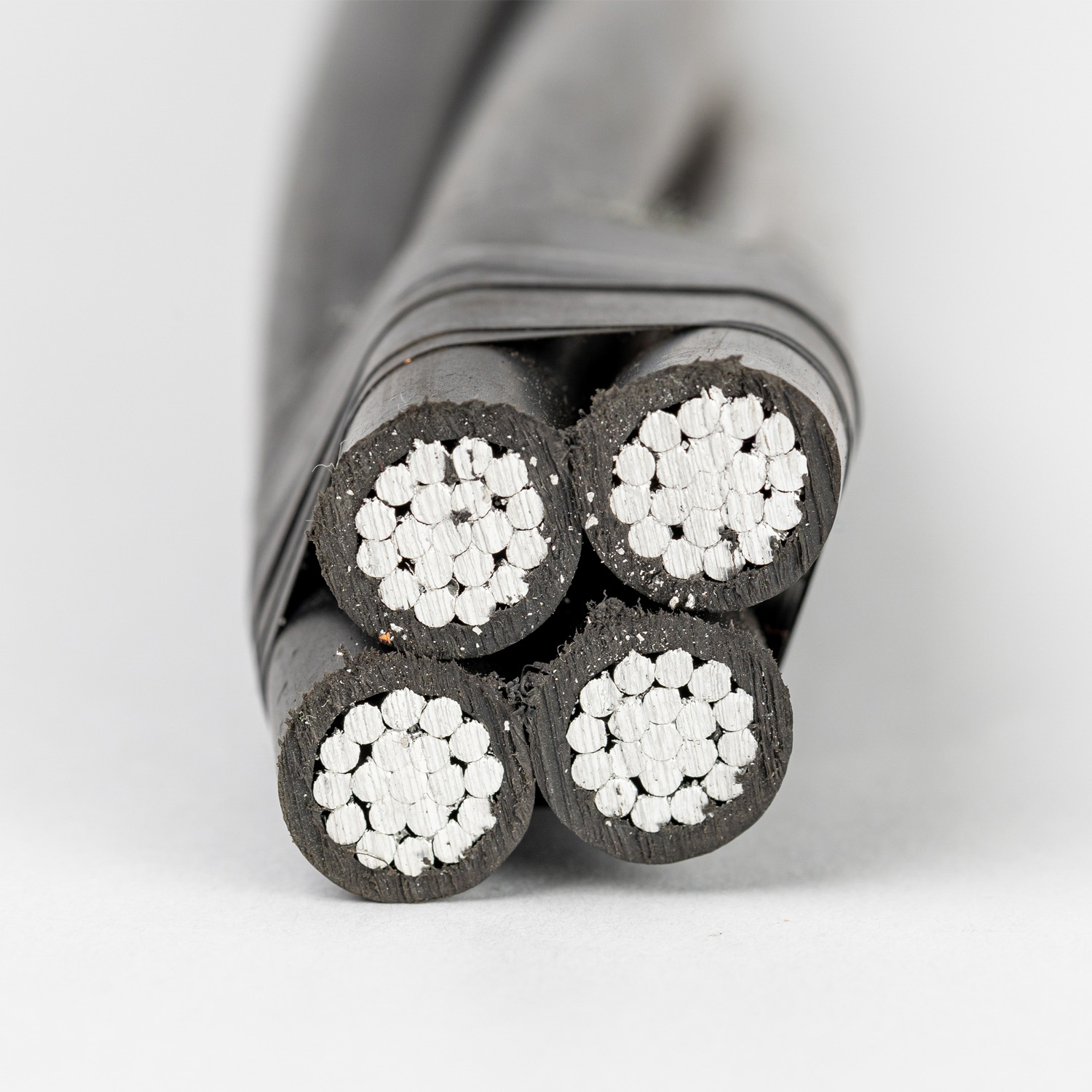

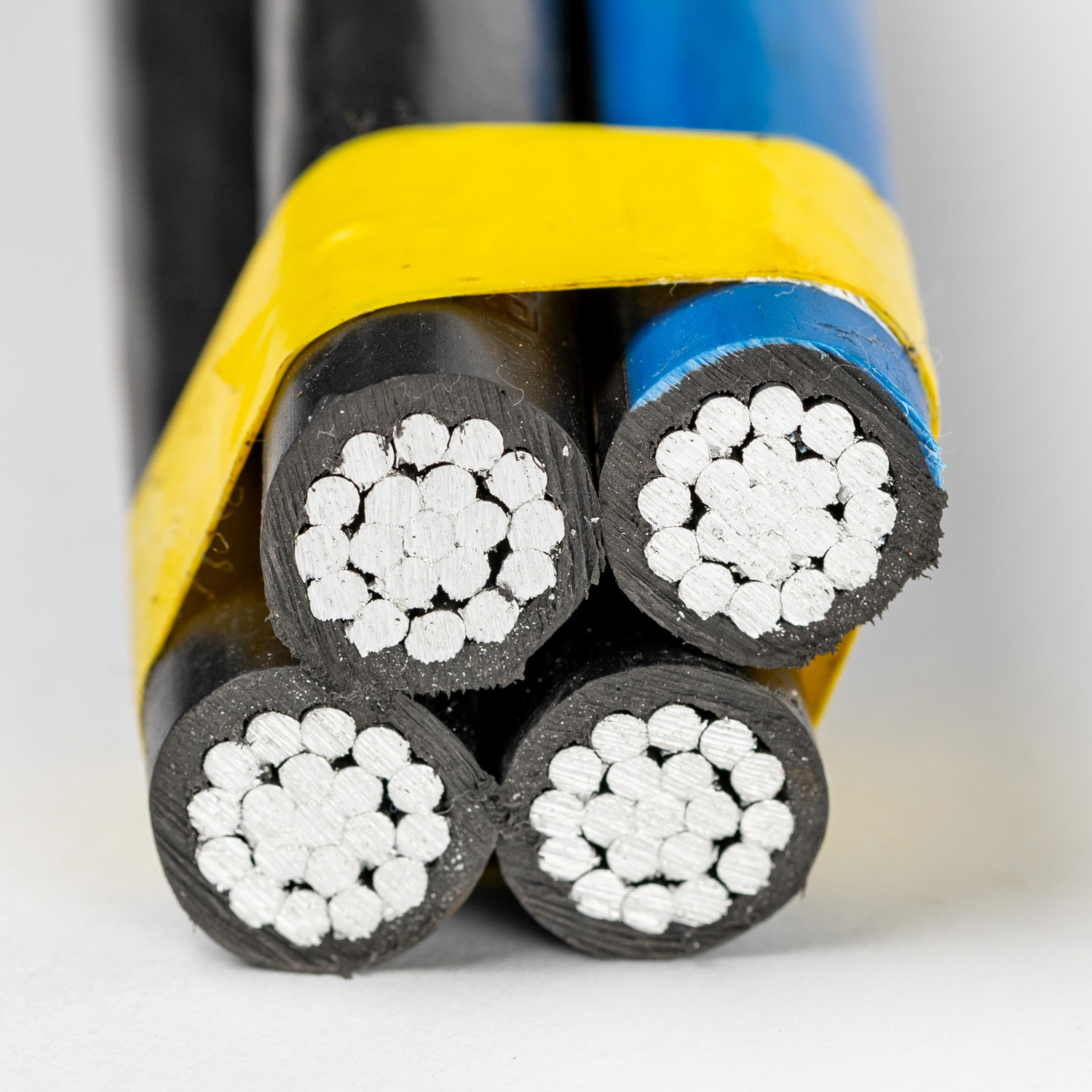

Quadruplex Service Drop - Aluminum Conductors
| Code Word | Phase Conductor | Bare Neutral Messenger | Approx. Diameter of Cable | Approx. Weight | ||||
| Size | No. of Wires | Nominal Insulation Thickness | Size | No. of wires | Diameter of Wires | |||
| AWG or Kcmil | No. | mm | AWG or Kcmil | No. | mm | mm | kg/km | |
| AAC/XLPE+AAC | ||||||||
| Quarter | 6 | 1 | 1.14 | 6 | 7 | 1.56 | 14.4 | 203 |
| Clydesdate | 4 | 1 | 1.14 | 4 | 7 | 1.96 | 17.1 | 302 |
| Pinto | 4 | 7 | 1.14 | 4 | 7 | 1.96 | 18.1 | 315 |
| Mustang | 2 | 7 | 1.14 | 2 | 7 | 2.47 | 21.7 | 474 |
| Shire | 1 | 19 | 1.52 | 1 | 7 | 2.78 | 25.4 | 616 |
| Libyan | 1/0 | 7 | 1.52 | 1/0 | 7 | 3.12 | 28.2 | 784 |
| Criollo | 1/0 | 19 | 1.52 | 1/0 | 7 | 3.12 | 27.9 | 757 |
| Orloff | 2/0 | 7 | 1.52 | 2/0 | 7 | 3.50 | 30.9 | 965 |
| Percheron | 2/0 | 19 | 1.52 | 2/0 | 7 | 3.50 | 30.6 | 931 |
| Mongolian | 3/0 | 7 | 1.52 | 3/0 | 7 | 3.93 | 34.1 | 1190 |
| Hanoverian | 3/0 | 19 | 1.52 | 3/0 | 19 | 2.39 | 33.8 | 1148 |
| Singlefoot | 4/0 | 7 | 1.52 | 4/0 | 7 | 4.42 | 37.6 | 1474 |
| Oldenburg | 4/0 | 19 | 1.52 | 4/0 | 19 | 2.68 | 37.2 | 1421 |
| Lippizaner | 336.4 | 19 | 2.03 | 336.4 | 19 | 3.38 | 48.3 | 2322 |
| AAC/XLPE+AAAC | ||||||||
| Bay | 6 | 1 | 1.14 | 30.58 | 7 | 1.68 | 14.7 | 209 |
| French-Coach | 6 | 7 | 1.14 | 30.58 | 7 | 1.68 | 15.4 | 218 |
| German-Coach | 4 | 1 | 1.14 | 48.69 | 7 | 2.12 | 17.4 | 312 |
| Arabian | 4 | 7 | 1.14 | 48.69 | 7 | 2.12 | 18.4 | 324 |
| Belgian | 2 | 7 | 1.14 | 77.47 | 7 | 2.67 | 22.0 | 489 |
| Viatka | 1/0 | 7 | 1.52 | 77.47 | 7 | 2.67 | 27.4 | 743 |
| Thoroughbred | 2/0 | 19 | 1.52 | 155.4 | 7 | 3.78 | 31.1 | 962 |
| Celtic | 2/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 30.7 | 950 |
| Norman | 2/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 30.3 | 917 |
| Donkey | 3/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 33.0 | 1126 |
| Burro | 3/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 32.7 | 1085 |
| Dobbin | 3/0 | 7 | 1.52 | 195.7 | 7 | 4.25 | 34.6 | 1229 |
| Trotter | 3/0 | 19 | 1.52 | 195.7 | 7 | 4.25 | 34.3 | 1188 |
| Roan | 4/0 | 7 | 1.52 | 123.3 | 7 | 3.37 | 35.7 | 1348 |
| Gotland | 4/0 | 19 | 1.52 | 123.3 | 7 | 3.37 | 35.2 | 1295 |
| Bali | 4/0 | 7 | 1.52 | 155.4 | 7 | 3.78 | 36.5 | 1393 |
| Skyros | 4/0 | 19 | 1.52 | 155.4 | 7 | 3.78 | 36.0 | 1340 |
| Pony | 4/0 | 7 | 1.52 | 246.9 | 7 | 4.77 | 38.3 | 1522 |
| Code Word | Phase Conductor | Bare Neutral Messenger | Approx. Diameter of Cable | Approx. Weight | ||||
| Size | No. of Wires | Nominal Insulation Thickness | Size | No. of Wires | Diameter of Wires | |||
| AWG or Kcmil | No. | mm | AWG or Kcmil | No. | mm | mm | kg/km | |
| AAC/XLPE+AAAC | ||||||||
| Walking | 4/0 | 19 | 1.52 | 246.9 | 7 | 4.77 | 37.8 | 1470 |
| Exmoor | 336.4 | 19 | 2.03 | 246.9 | 19 | 2.89 | 46.8 | 2193 |
| Breton | 336.4 | 19 | 2.03 | 394.5 | 19 | 3.66 | 49.1 | 2402 |
| AAC/XLPE+ACSR | ||||||||
| Morochuca | 6 | 1 | 1.14 | 6 | 6 / 1 | 1.68 | 14.7 | 221 |
| Chola | 6 | 7 | 1.14 | 6 | 6 / 1 | 1.68 | 15.4 | 229 |
| Morgan | 4 | 1 | 1.14 | 4 | 6 / 1 | 2.12 | 17.4 | 330 |
| Hackney | 4 | 7 | 1.14 | 4 | 6 / 1 | 2.12 | 18.4 | 342 |
| Palomino | 2 | 7 | 1.14 | 2 | 6 / 1 | 2.67 | 22.0 | 518 |
| Albino | 1 | 19 | 1.52 | 1 | 6 / 1 | 3.00 | 25.8 | 672 |
| Standardbred | 1/0 | 7 | 1.52 | 1/0 | 6 / 1 | 3.37 | 28.6 | 854 |
| Costena | 1/0 | 19 | 1.52 | 1/0 | 6 / 1 | 3.37 | 28.3 | 827 |
| Chicoteagues | 2/0 | 7 | 1.52 | 2/0 | 6 / 1 | 3.78 | 31.5 | 1053 |
| Grullo | 2/0 | 19 | 1.52 | 2/0 | 6 / 1 | 3.78 | 31.1 | 1022 |
| Mare | 3/0 | 7 | 1.52 | 3/0 | 6 / 1 | 4.25 | 34.6 | 1301 |
| Suffolk | 3/0 | 19 | 1.52 | 3/0 | 6 / 1 | 4.25 | 34.3 | 1260 |
| Stallion | 4/0 | 7 | 1.52 | 4/0 | 6 / 1 | 4.77 | 38.3 | 1614 |
| Appaloosa | 4/0 | 19 | 1.52 | 4/0 | 6 / 1 | 4.77 | 37.8 | 1561 |
| Gelding | 336.4 | 19 | 2.03 | 4/0 | 6 / 1 | 4.77 | 46.7 | 2285 |
| Bronco | 336.4 | 19 | 2.03 | 336.4 | 18 / 1 | 3.47 | 48.6 | 2396 |
{{item.score}} Stars
{{item.pre}}%
{{item.nickname ? (item.nickname.slice(0, 2) + '*****') : item.source === 1 ? 'mall buyer' : '--'}}
{{item.comment_time}}
Review in the {{item.country}}
{{itemAttr.params_key}}: {{itemAttr.params_value}}
Inquiry me now, get the price list.
Just leave your email or phone number in the contact form so we can send you a free quote for our wide range of designs!
Ready to work with us?
Find us here:
The cable factory from 2007-2018 are mainly for domestic trading and processing to some export tradingcompanies. The average sales amount are about RMB 320,000,000 per year. For cables oversea market, From last may till now we have expanded our market to Bolivia, Peru, Dominican, Philippines, Vietnam, Thailand, Iraq, Mongolia, Indonesia and some Africa country.
Copyright © 2026 KINGYEAR |Sitemap丨Privacy Polcy
