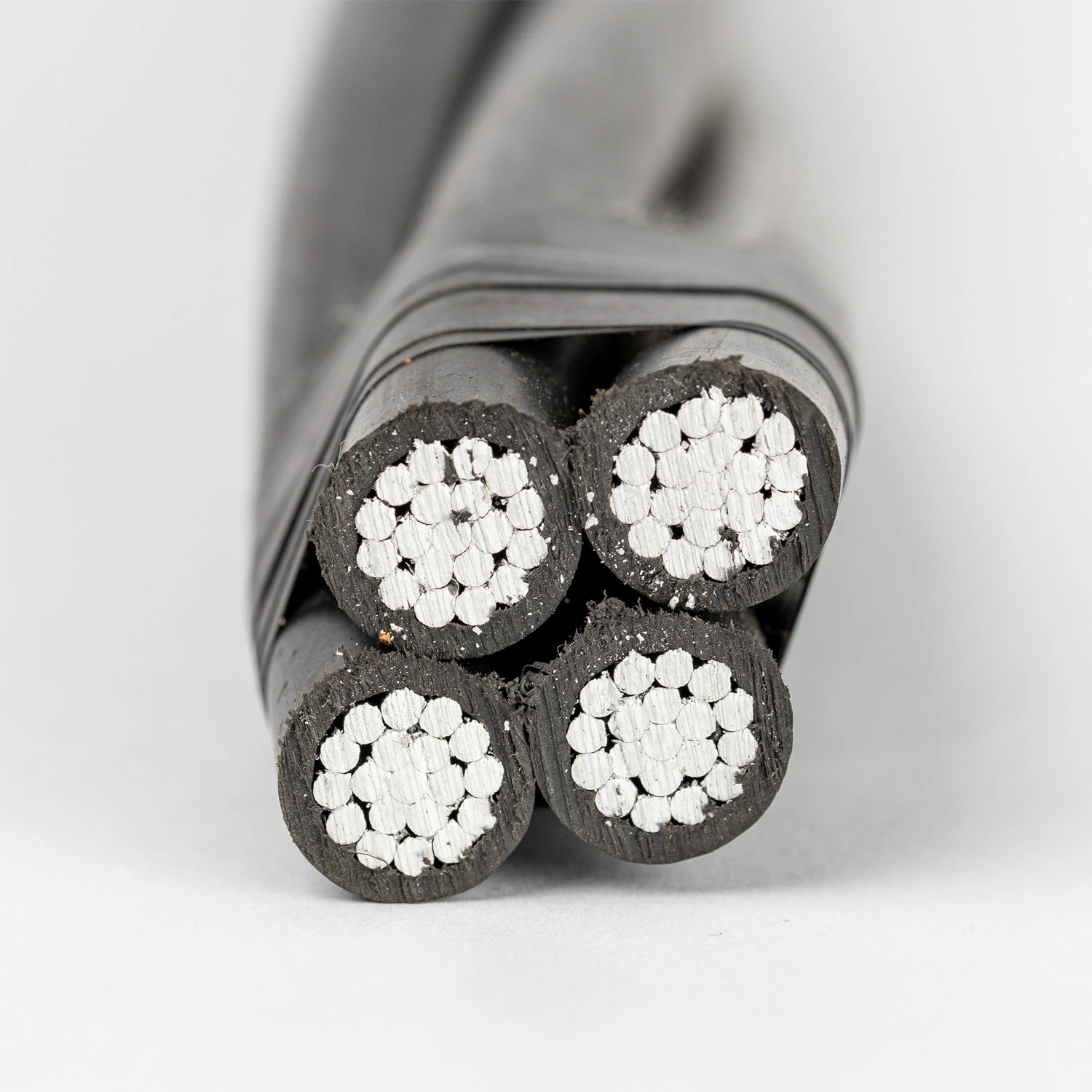

NFA2X Cable 0.6/1kV
Application：
For distributive low overhead network in the city, pros urban and rural areas. For supply of remote facilities and villages of temporary and permanent character. For above-ground house connections.
Model No.：NFA2X Cable
Voltage:0.6/1kV
Phase Conductor：Aluminum
Neutral Conductor：Aluminum
Insulation：XLPE
Brand：KINGYEAR
Standard：ASTM B3/B8,UL 83,UL 1277
Place of Origin：China
Package：Exported Wooden Drum or soft roll
Range of Application：Overheard
Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment
Certification：EN60228
Production Capacity：30000m/week
Construction
Phase onductors: Al, class 2 according to EN 60228
Neutral onductor: Al, class 2 according to EN 60228
Insulation: XLPE compound TIX 2
Technical characteristics
Voltage rating (Uo/U): 0,6/1 kV
Testing voltage: 4 kV
Min. temp. for cable laying: -10°C
Operating temperature: -40°C do 50°C
Max. working temperature: 80°C
Max. short-circuit temperature: 130°C
Min. bending radius: 18D
CPR class: Fca
Abbreviation
N - Standard Cable type
F - Facade Cable
A - Aluminium conductor
2X - XLPE insulation
+N - with 'Messenger' Core
Round stranded Conductor for all sizes connection derived from the distribution system.
operating temperature: -30 °C up to +90 °C
at short circuit of max. 5 s: 250 °C
Nominal voltage: Uο/U = 0,6/1 kV
Test voltage: 3.5 kV
Minimal inner bending radius: 12D
KINGYEAR from 2013-2018 are mainly for domestic trading and processing to some export trading companies. The average sales amount are about RMB 320,000,000 per year. For cables oversea market, From last may till now we have expanded our market to Bolivia, Peru, Dominican, Philippines, Vietnam, Thailand, Iraq, Mongolia, Indonesia and some Africa country. With total sales amount over USD10,000,000.
