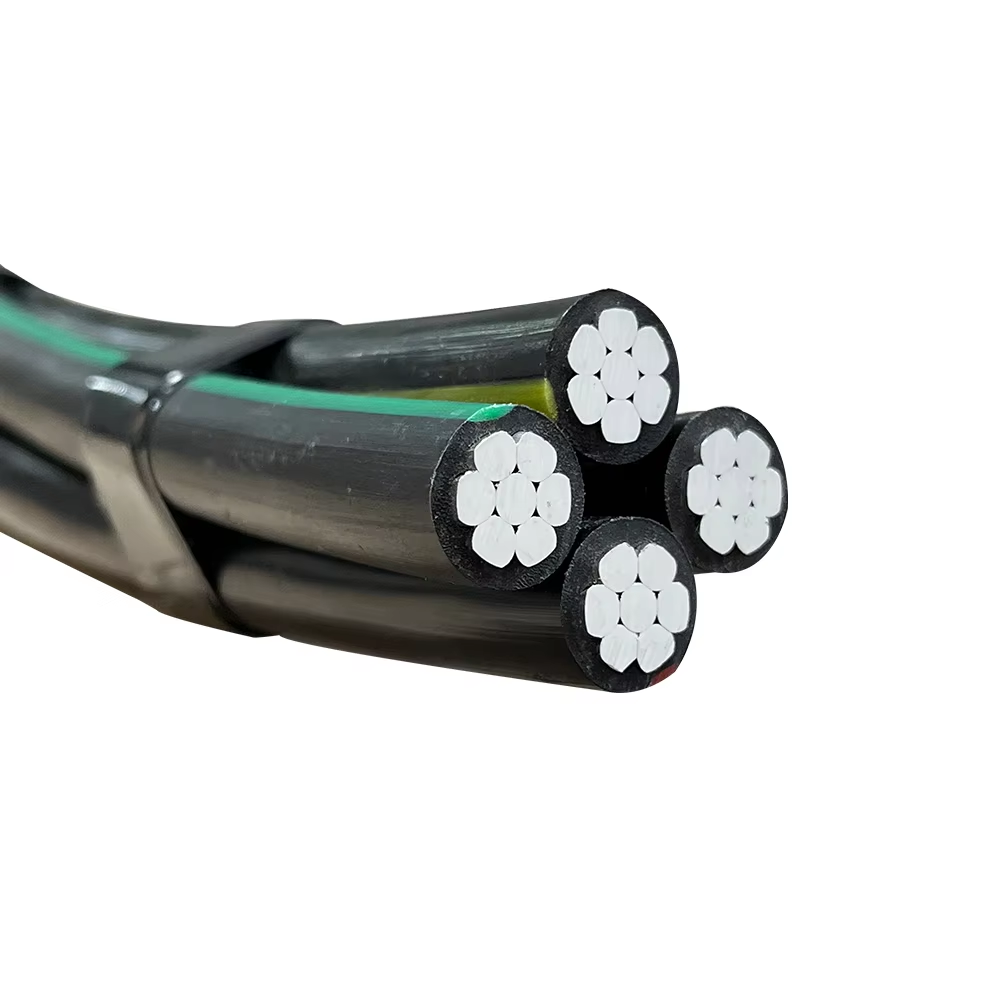

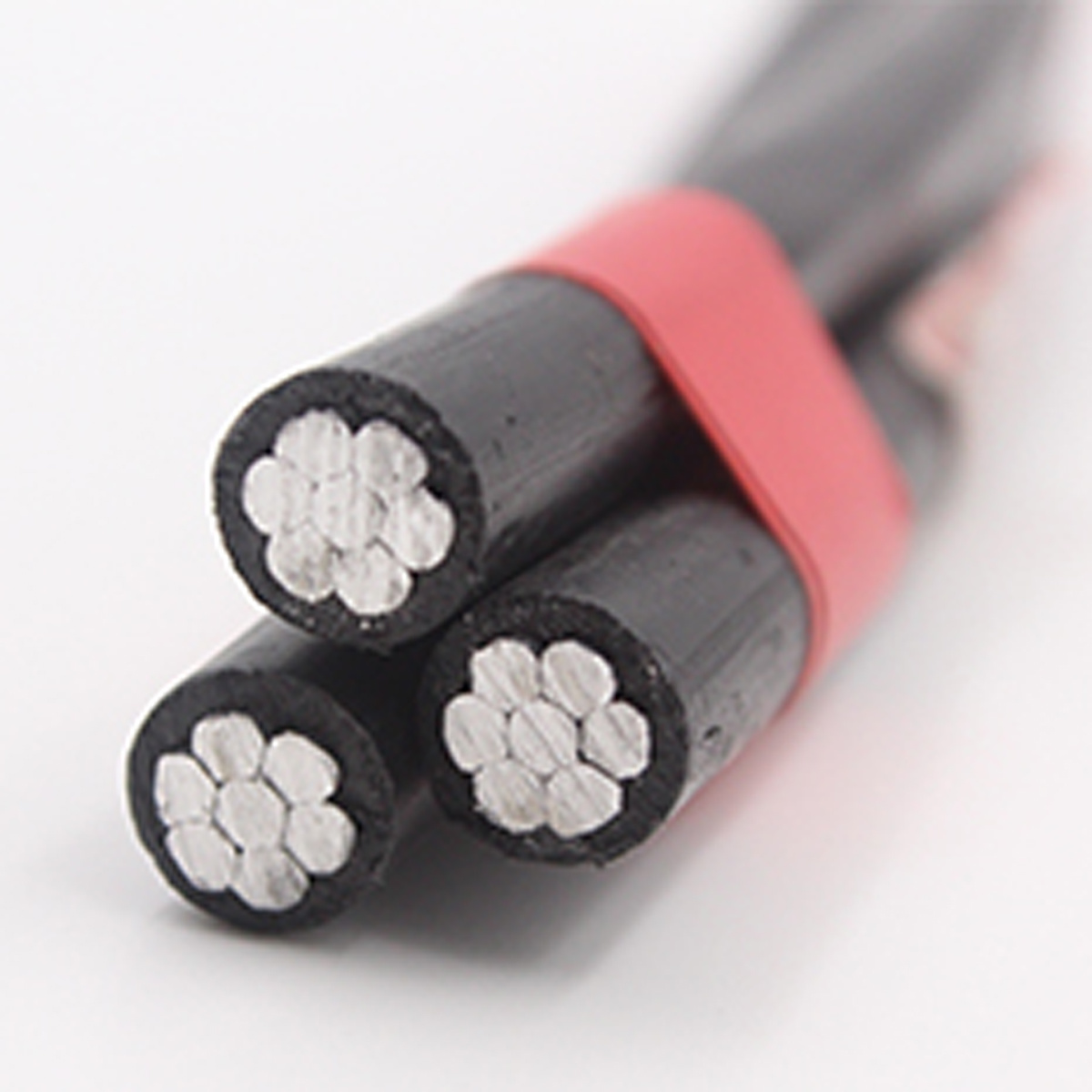

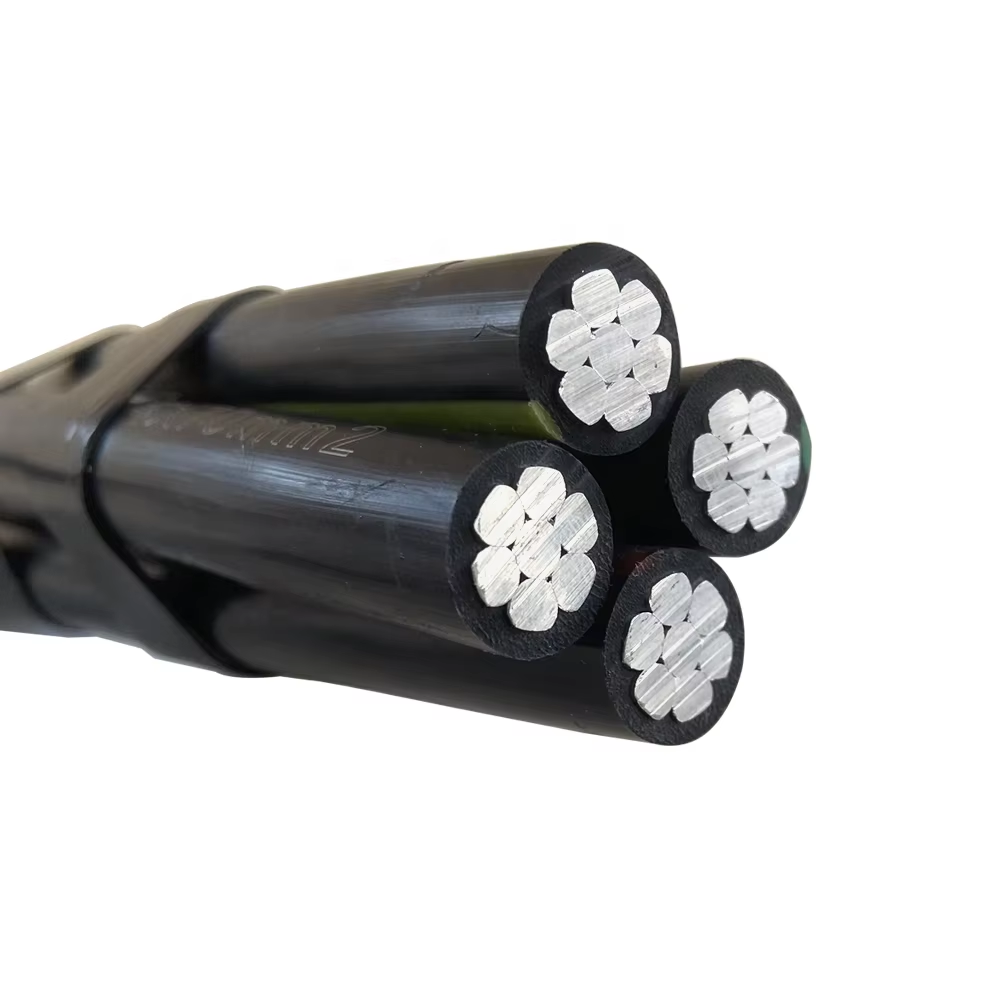

SIP Cable 660/1000V GOST 31946
Application：
Power supply of end consumers (facility, living quarters), as well as lighting of various areas can be carried out using self-supporting insulated wires. One of the types of SIP, which is used for these purposes, is the SIP wire in question. A feature of this type is the absence of a carrier zero core. This type of cable is used to equip branches from overhead power lines to transformer units. They can be used for the construction of lighting power grids or for laying on the walls of construction sites. The main technical properties of insulated electric wires provide the ability to operate in alternating current networks at 1000 Volts and 50 Hz.
Model No.：SIP Cable
Voltage：660/1000V
Material：Aluminum
Brand：KINGYEAR
Standard：IEC/ASTM/BS/GBT/DIN
Place of Origin：China
Package：Exported Wooden Drum
Range of Application：Overhead Line
Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment
Certification：ISO,CE and other certifications.
Production Capacity：30000m/week
Self-supporting Insulated Overhead Wire Cable SIP
Name: Self-supporting Insulated Overhead Wire Cable SIP
Conductor : Aluminum Conductor
Insulation : XLPE
Voltage : 0.6/1kV
Number of cores: 1-5 cores
Package : Export wooden drum & iron wooden drum or as customer require
SIP wire is a self-supporting insulated conductor equipped with high quality aluminum conductive conductors. Light-stabilized cross-linked polyethylene is used as the main insulating layer.

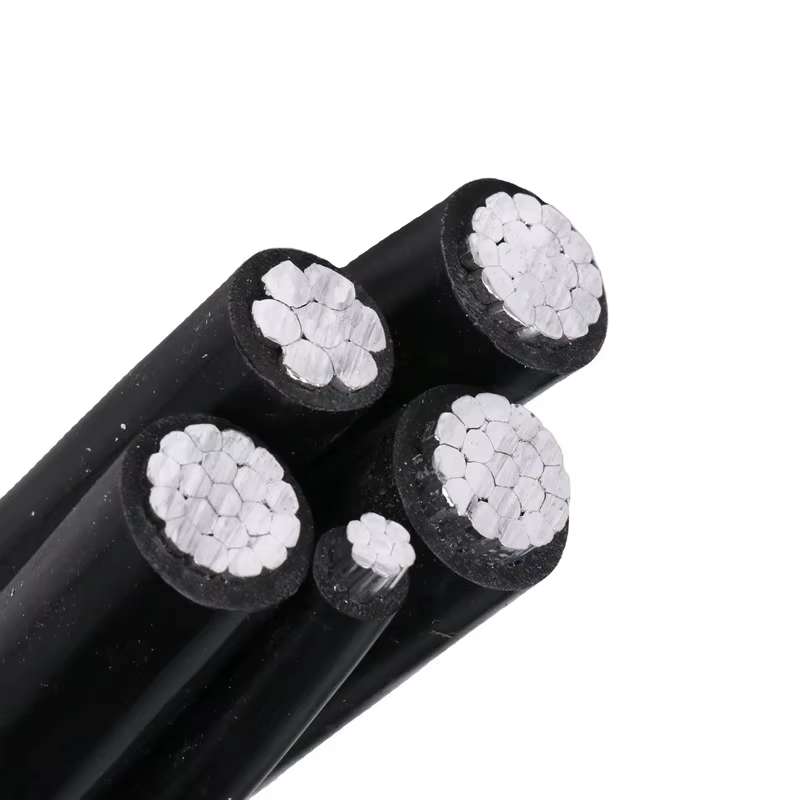

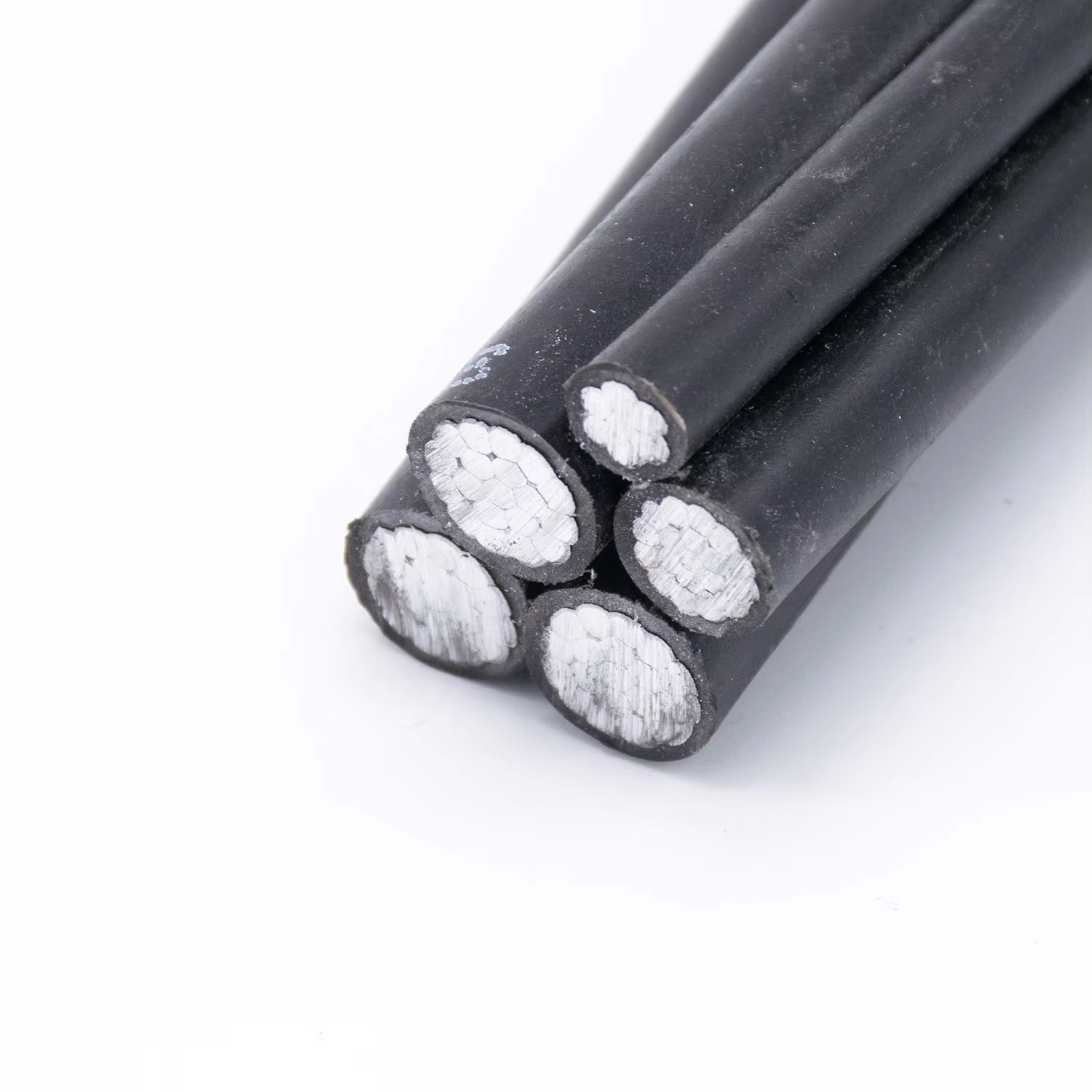

The cross-section of the conductive conductors of this wire can be from 10 to 240 square mm, their number can be in the range from 1 to 5. It is allowed to use auxiliary conductive conductors of a smaller section together with the main ones, the so-called “four plus” wires, for example SIP-4 4×25 + 1×16; 4×35 + 1×25; 4×50 + 1×25; 4×50 + 1×35; 4×70 + 1×25; 4×70 + 1×35; 4×70 + 1×50; 4×95 + 1×50; 4×95 + 1×70; 4×120 + 1×70; 4×120 + 1×95; 4×150 + 1×95; 4×150 + 1×120; 4×185 + 1×120; 4×185 + 1×150; 4×240 + 1×150; 4×240 + 1×185.
KINGYEAR from 2013-2018 are mainly for domestic trading and processing to some export trading companies. The average sales amount are about RMB 320,000,000 per year. For cables oversea market, From last may till now we have expanded our market to Bolivia, Peru, Dominican, Philippines, Vietnam, Thailand, Iraq, Mongolia, Indonesia and some Africa country. With total sales amount over USD10,000,000.
