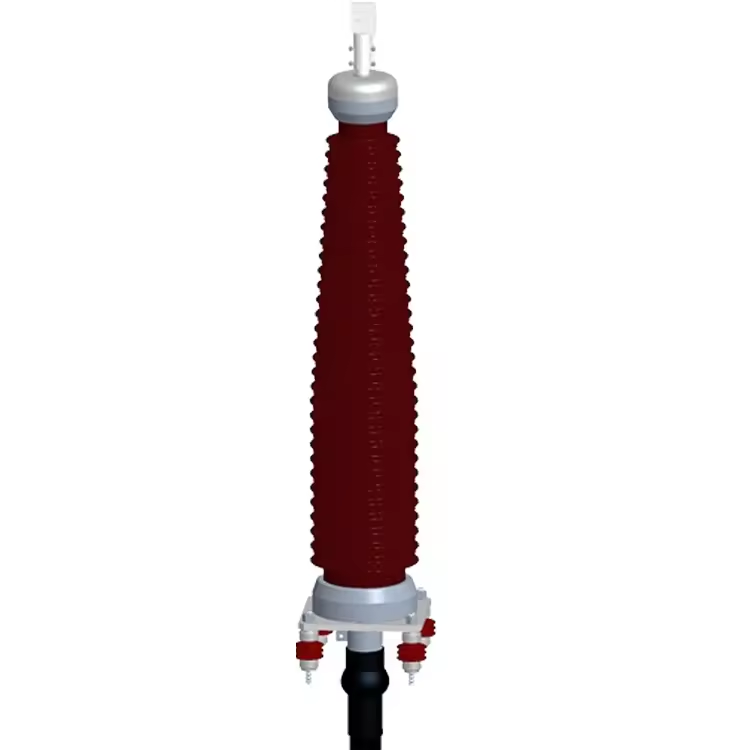

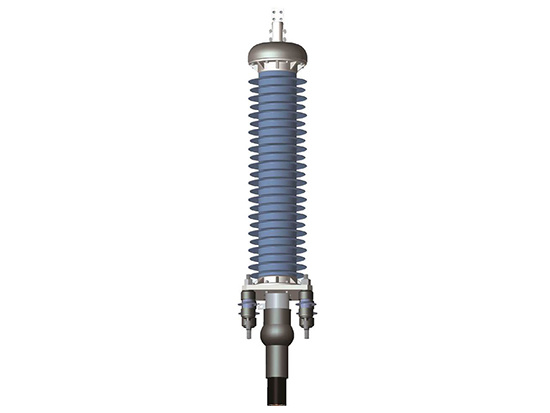

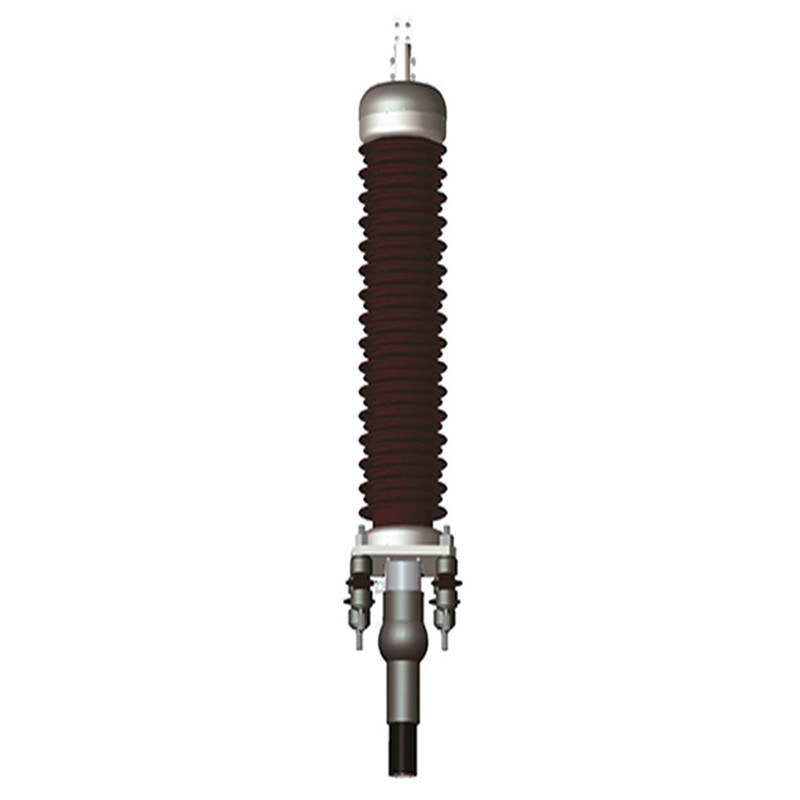

220kV Porcelain Sleeve Type Outdoor Terminal
Application：
Porcelain set using isostatic pressing molding process as awhole a molding, high mechanical strength, resistance to leak-age mark, electrical erosion resistance,insulation resistanceand self-cleaning performance is good, not easy ageing, earth-quake resistant level is high, especially suitable for coastaland bad natural environment area.
Structure of large and small umbrella skirt and white, provedits excellent resistance to fouling characteristics.
Stress cone using imported high elastic liquid silicone rubber,and carry on fnite element optimization design, effectivelysolve the problem of electric feld stress concentration.
Adopts multi-layer sealing structure, sealed performance isgood,to eliminate the phenomenon of porcelain sets appearfooding, such as oil, improve the service life of the terminal.
Main insulation parts has been stipulated in the standard aftertesting in the factory.
Model No.：220kV Porcelain Sleeve Type Outdoor Terminal
Material：Organic Insulation
Brand：KINGYEAR
Standard：IEC
Place of Origin：China
Package：Exported Package
Range of Application：Cable
Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment
Certification：ISO,CE and other certifications.
Production Capacity：3000piece/week
GB/T 18890.3-2015 Power cables with cross-linked polyeth-ylene insulation and their accessories for rated voltage of 220kV(Um=252kV).Part 3:Accessories
IEC 62067-2011 Power cables with extruded insulation andtheir accessories for rated voltages above 150 kV (Um = 170 kV)up to 500 kV (Um=550 kV).Test methods and reguirements
