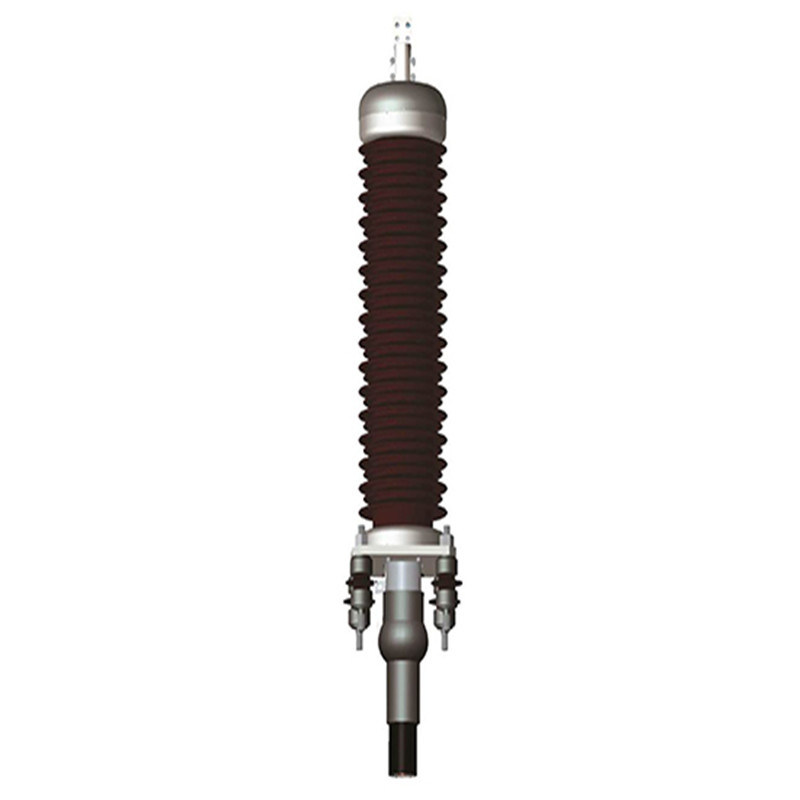

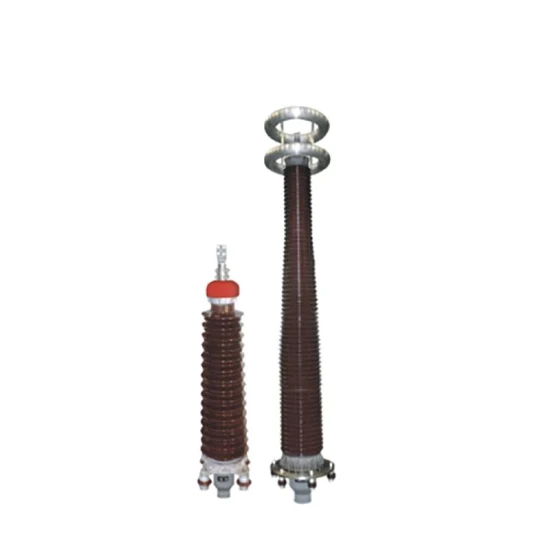

66/110kV Porcelain Sleeve Type Outdoor Terminal
Application：
High strength porcelain bushing, high mechanical strength,good stability,not aging, especially suitable for coastal and badnaturalenvironment area.
Use a umbrella skirt size and structure, proved its excellent resis-tance to fouling.
Special seal structure design, sealed performance is good, put anend to the possible defects such as flooding, the oil spill.
Porcelain: there are two kinds of size 1280 mm high, the creep-age distance is 3150 mm, used in level lll polluted area: 3906mm,1400 mm high, its creepagedistance is suitable for the levelIV polluted area;
Main insulation parts in the factory according to the regulationsof the standard after testing.
Model No.：66~110kV Porcelain Sleeve Type Outdoor Terminal
Material：Organic Insulation
Brand：KINGYEAR
Standard：IEC
Place of Origin：China
Package：Exported Package
Range of Application：Cable
Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment
Certification：ISO,CE and other certifications.
Production Capacity：3000piece/week
High strength porcelain bushing, high mechanical strength,good stability, not aging, especially suitable for coastal and badnaturalenvironment area.
Use a umbrella skirt size and structure, proved its excellent resis-tance to fouling.
Special seal structure design, sealed performance is good, put anend to the possible defects such as flooding, the oil spill.
Porcelain: there are two kinds of size 1280 mm high, the creep-age distance is 3150 mm, used in level lll polluted area; 3906mm, 1400 mm high, its creepagedistance is suitable for the levelIV polluted area;
Main insulation parts in the factory according to the regulationsof the standard after testing.
GB/T 11017.3-2014 Power cables with cross-linked polyethyleneinsulation and their accessories for rated voltage of 110 kV (Um=126kV).Part 3:Accessories
IEC 60840-2011 Power cables with extruded insulation and theiraccessories for rated voltages above 30 kV (Um = 36 kV) up to 150kV (Um = 170 kV).Test methods and requirements
