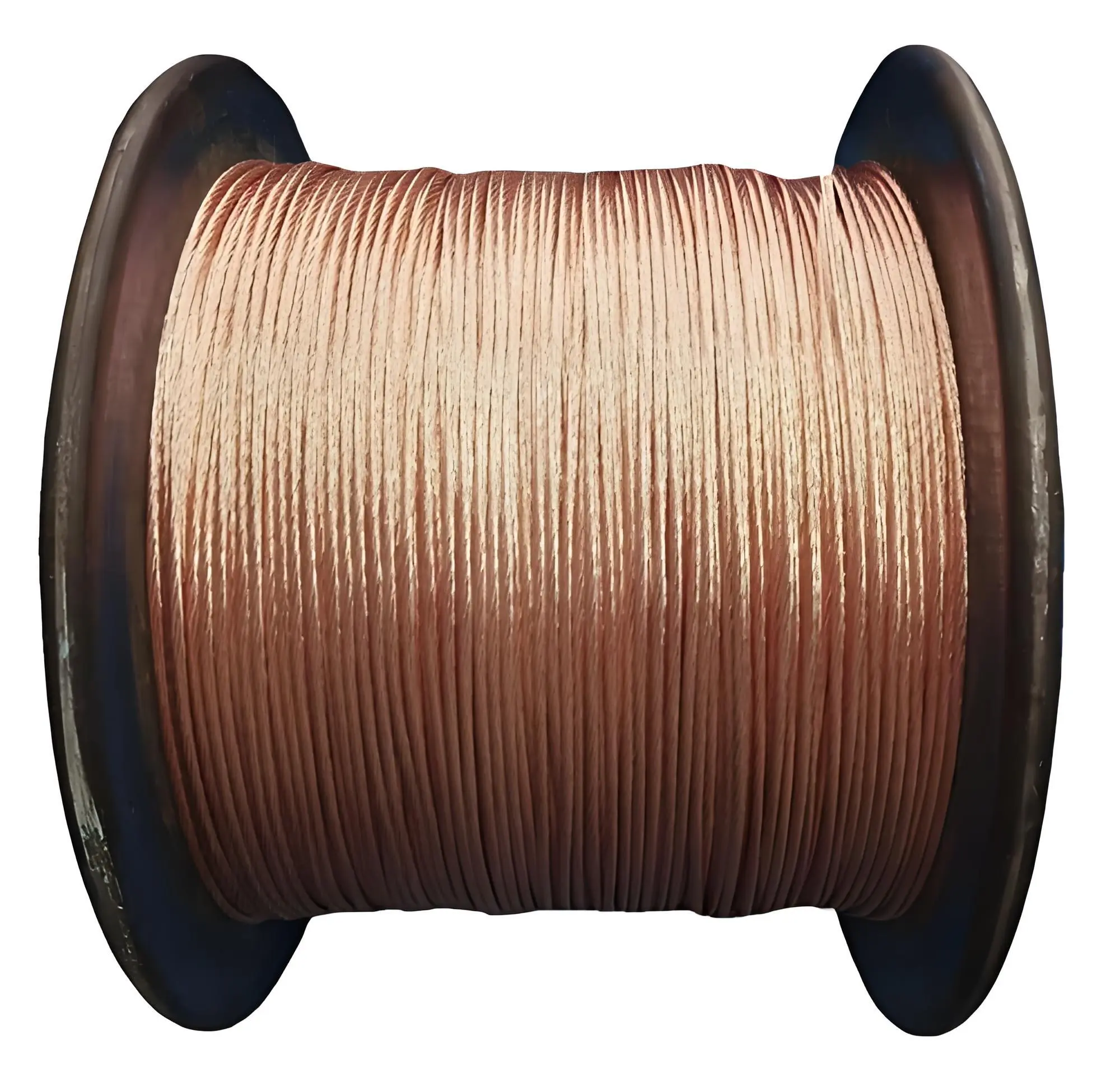

Bare Copper Stranded Conducor ASTM B8/etc
Application:
Bare copper cable offers a low impedance and is the essential component of a grounding system. Its applications are wide, it is often used in excavations as an earth electrode, or buried in concrete foundation in civil engineering.
Model No.: Bare Copper
Material: Copper
Brand: KINGYEAR
Standard: ASTM B8/etc.
Place of Origin: China
Package: Exported Wooden Drum
Range of Application: Overhead Line
Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment
Certification: ISO,CE and other certifications.
Production Capacity: 30000m/week
Product details
Our bare copper conductors are principally used in energy transmission installations to maximise thermal and electrical conductivity, and to transmit energy with optimal efficiency. This uninsulated wire can be used as an earthing cable. The copper also offers natural resistance against environmental stresses such as wet, humid, and saline climates.
1. Highly conductive soft or hard drawn stranded copper cable
2. Tinned soft drawn stranded copper cable available on request
3. Bare stranded copper cable supplied unbranded
Solid and stranded (classes AA and A) bare copper are suitable for overhead transmission and distribution applications. Stranded conductor of greater flexibility (classes B and C) are suitable for uninsulated hook up, jumpers, and grounds in electrical construction. Soft Drawn copper is unilay construction.
Our technical engineers have vast experience of providing support with the selection of the optimum bare copper conductor. We also offer innovative logistics solutions to help improve supply chain efficiency. Please call us to discuss your specific requirements.
KINGYEAR from 2013-2018 are mainly for domestic trading and processing to some export trading companies. The average sales amount are about RMB 320,000,000 per year. For cables oversea market, From last may till now we have expanded our market to Bolivia, Peru, Dominican, Philippines, Vietnam, Thailand, Iraq, Mongolia, Indonesia and some Africa country. With total sales amount over USD10,000,000.
Specifications
ASTM B8
|
Size |
Nominal cross section |
Overall diameter |
Linear weight |
Calculated breaking load |
Max.DC resistance of conductor at 20ºC |
|
AWG |
mm2 |
mm |
Kg/km |
kN |
Ohm/km |
|
1 |
42.4 |
7.35 |
377 |
16.3 |
0.423 |
|
2 |
33.6 |
6.54 |
299 |
13.3 |
0.533 |
|
4 |
21.2 |
5.19 |
188 |
8.8 |
0.848 |
|
6 |
13.3 |
4.12 |
118 |
5.7 |
1.349 |
|
8 |
8.4 |
3.26 |
74 |
3.7 |
2.143 |
|
10 |
5.3 |
2.59 |
47 |
2.3 |
3.409 |
|
12 |
3.3 |
2.05 |
29 |
1.5 |
5.419 |
|
14 |
2.1 |
1.63 |
19 |
0.9 |
8.61 |
|
16 |
1.3 |
1.29 |
12 |
0.6 |
13.715 |
|
18 |
0.8 |
1.02 |
7 |
0.4 |
21.843 |
BS 7884
|
Nominal cross section |
No./dia of wire |
Overall diameter |
Linear weight |
Calculated breaking load |
Max.DC resistance of conductor at 20ºC |
|
mm2 |
No./mm |
mm |
Kg/km |
daN |
Ohm/km |
|
10 |
7/1.35 |
4.05 |
89.82 |
3752 |
1.829 |
|
14 |
7/1.60 |
4.80 |
126.2 |
5267 |
1.303 |
|
16 |
7/1.7 |
5.10 |
142.4 |
5946 |
1.154 |
|
25 |
7/2.1 |
6.3 |
217.3 |
9073 |
0.7563 |
|
35 |
7/2.5 |
7.5 |
308 |
12860 |
0.5337 |
|
50 |
7/3.0 |
9.0 |
435.8 |
17700 |
0.3706 |
|
70 |
19/2.1 |
10.5 |
593.2 |
25930 |
0.2808 |
|
95 |
19/2.50 |
12.50 |
840.7 |
34140 |
0.198 |
|
120 |
19/2.80 |
14.0 |
1055 |
42830 |
0.1578 |
|
150 |
19/3.20 |
18.0 |
1377 |
55940 |
0.1208 |
