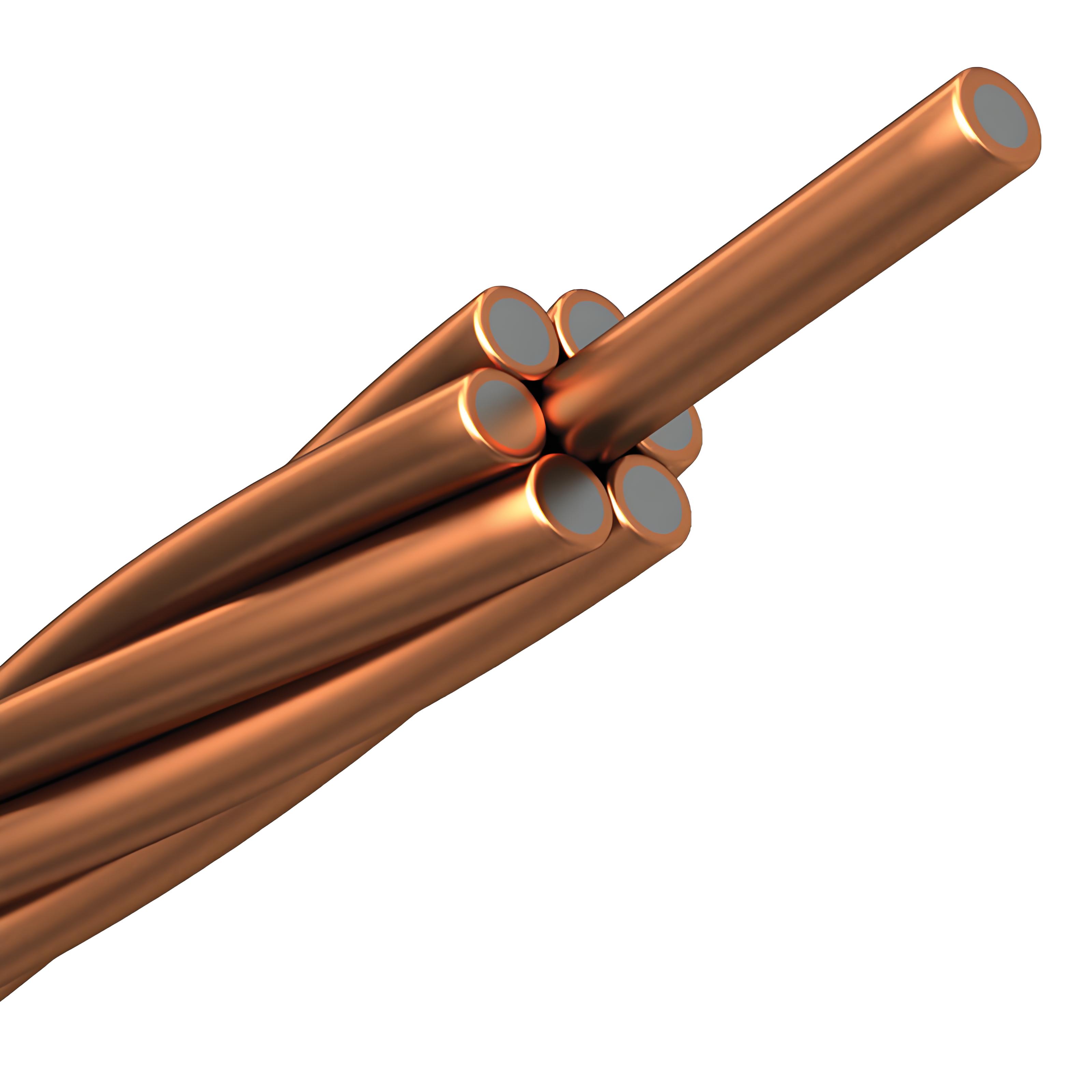

CCS-Cooper Clad Steel CCS conductor ASTM B228/etc 2

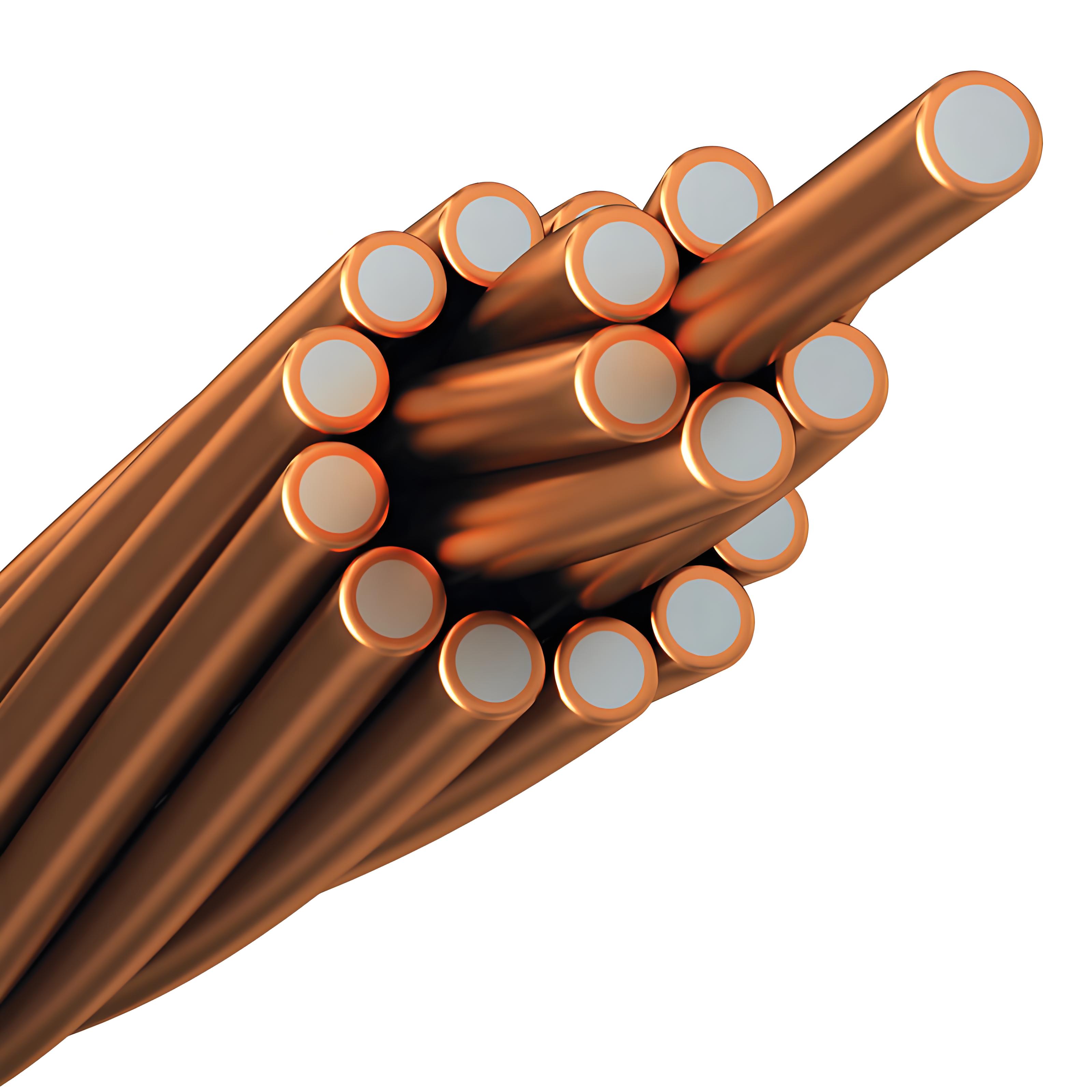

CCS-Cooper Clad Steel CCS conductor ASTM B228/etc 3

CCS-Cooper Clad Steel CCS conductor ASTM B228/etc 4

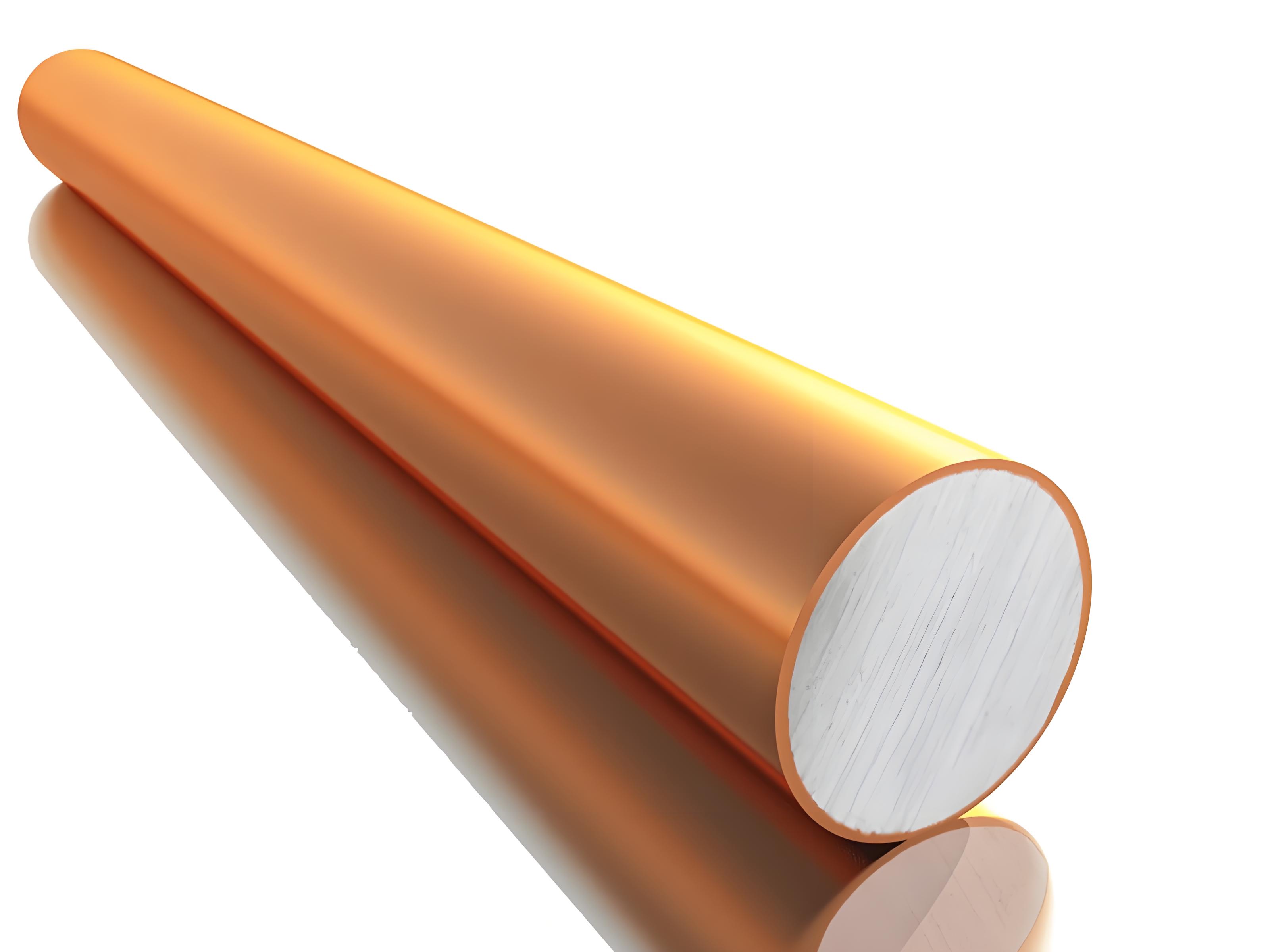

CCS-Cooper Clad Steel CCS conductor ASTM B228/etc 5

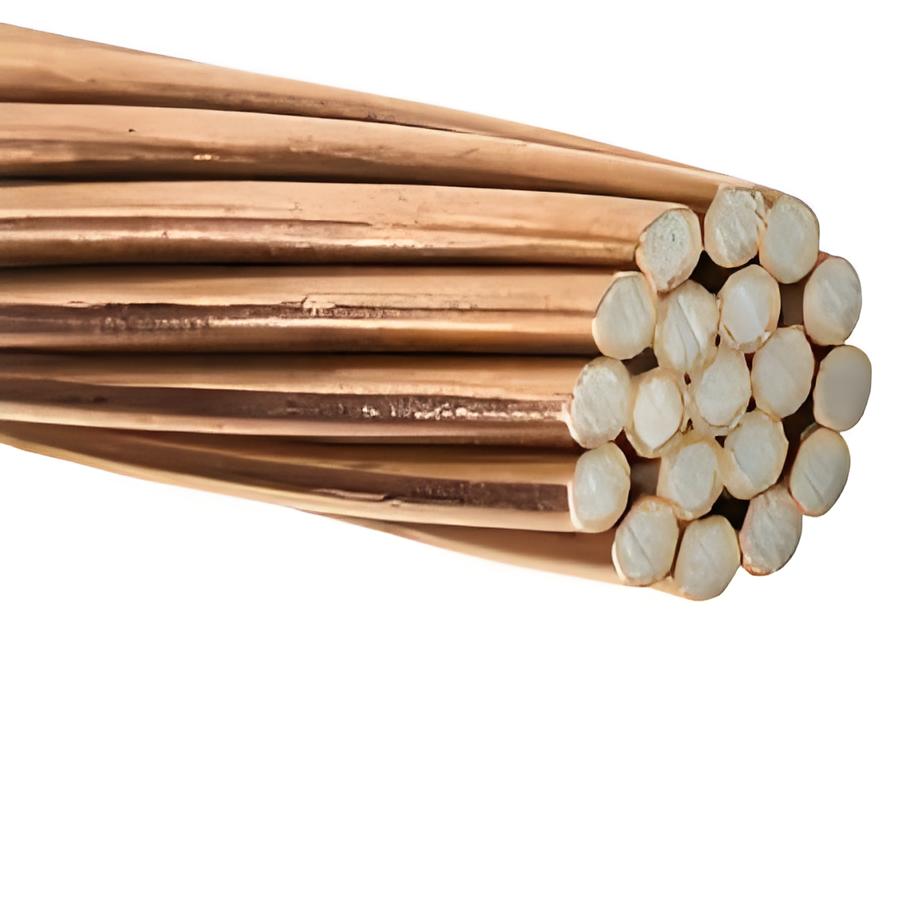

CCS-Cooper Clad Steel CCS conductor ASTM B228/etc 6

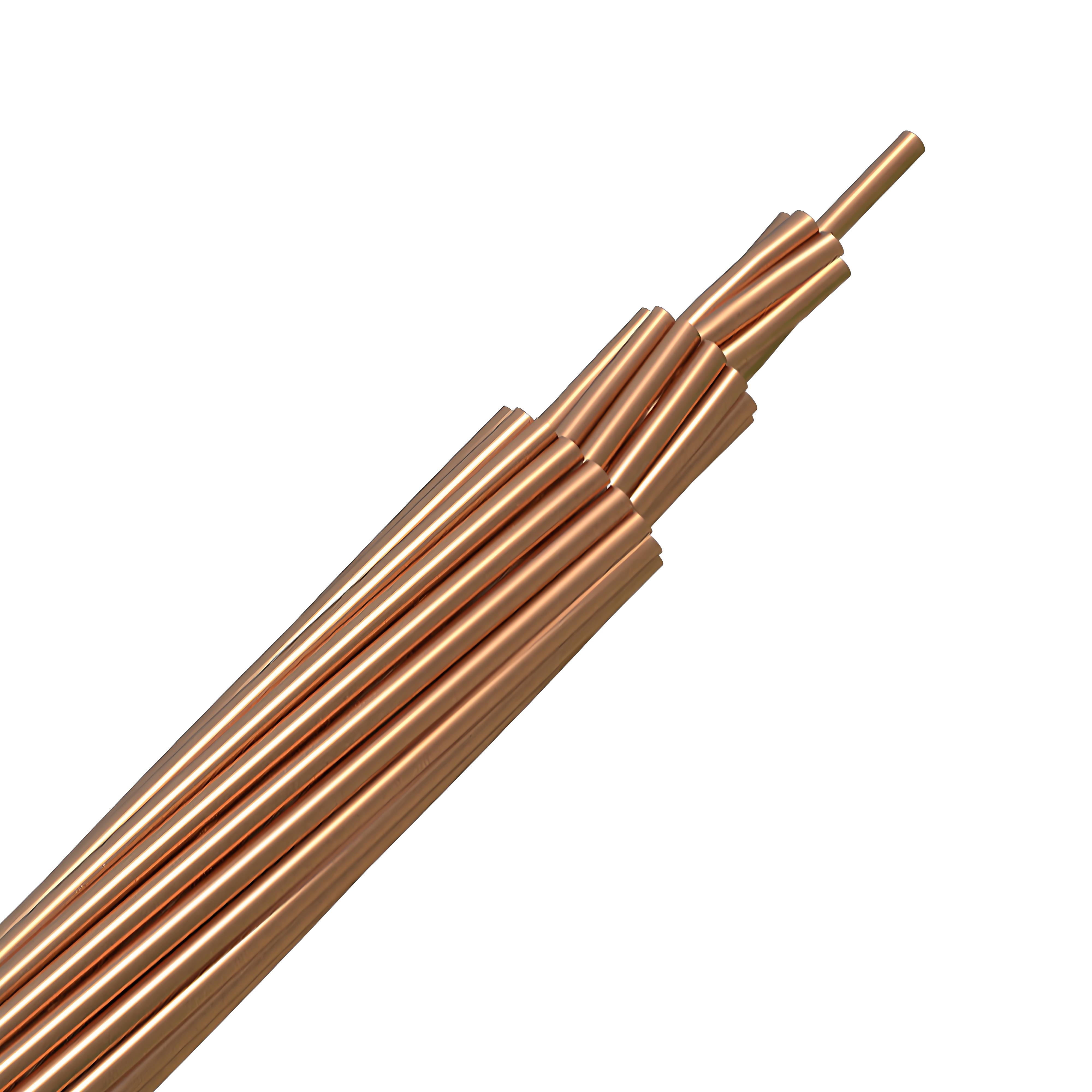

CCS-Cooper Clad Steel CCS conductor ASTM B228/etc 7

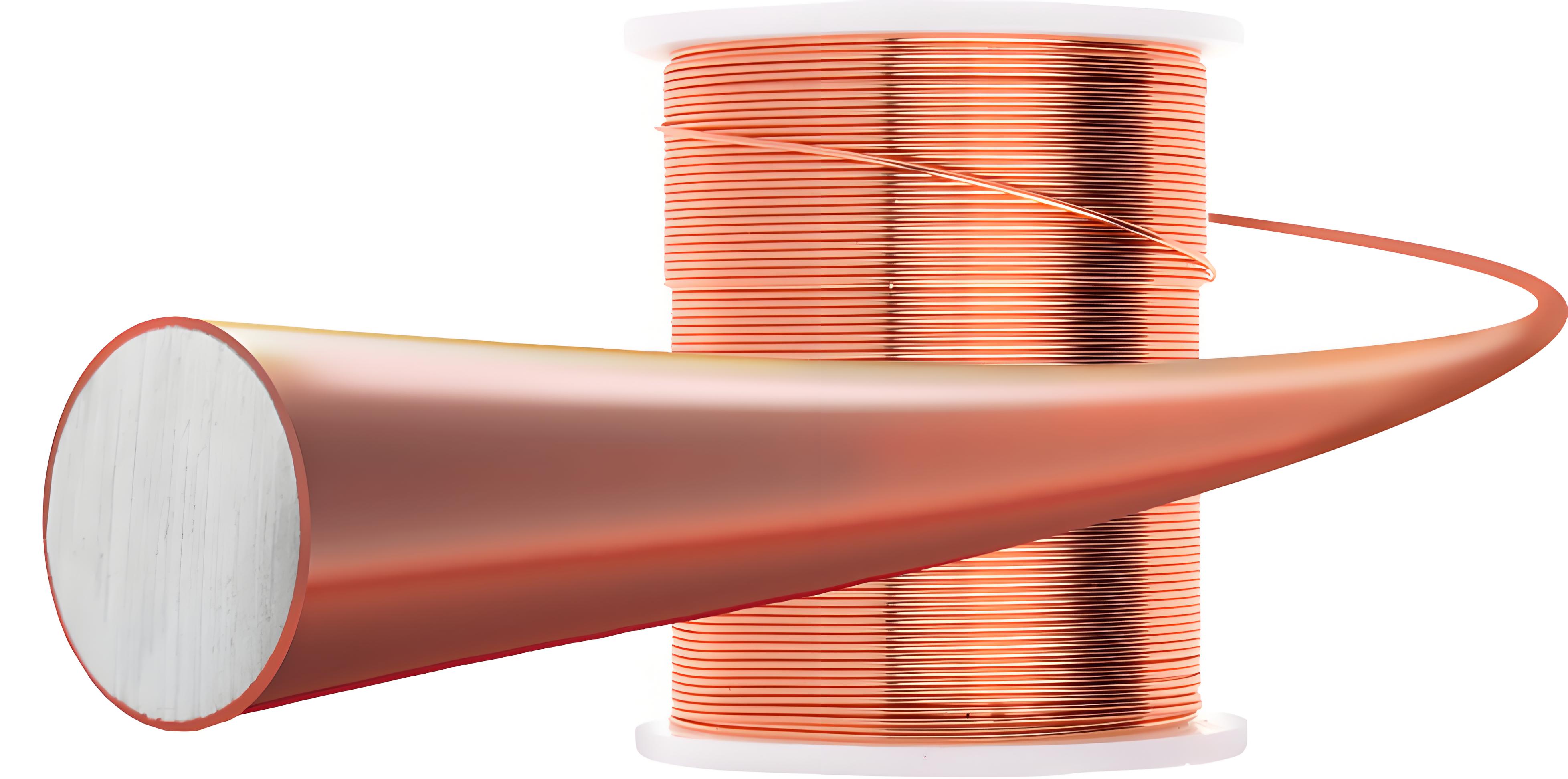

CCS-Cooper Clad Steel CCS conductor ASTM B228/etc 8

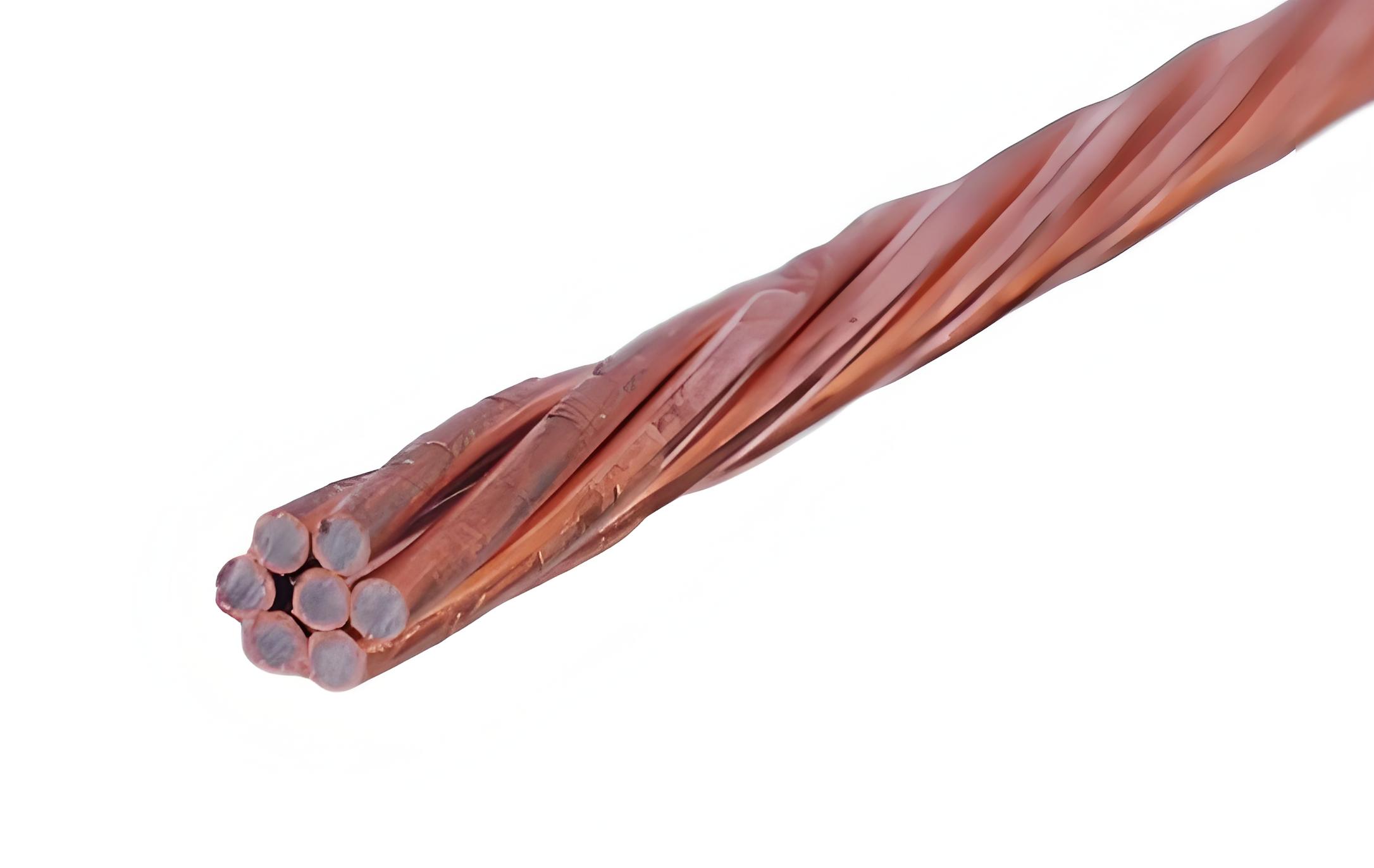

CCS-Cooper Clad Steel CCS conductor ASTM B228/etc 9

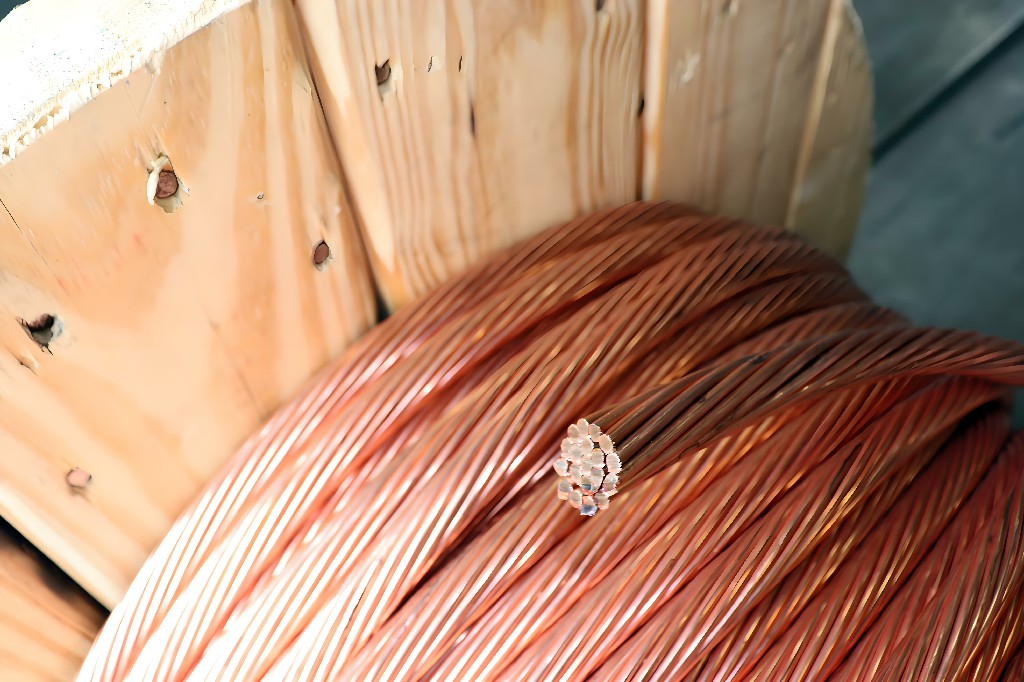

CCS-Cooper Clad Steel CCS conductor ASTM B228/etc 10

CCS-Cooper Clad Steel CCS conductor ASTM B228/etc

Application:

To be used in overhead electrical transmission and distribution for grounding electrical systems where high conductivity and flexibility is required. Suitable for numerous other applications.

Model No.: CCS

Material: Copper and Steel

Brand: KINGYEAR

Standard: ASTM B452/etc.

Place of Origin: China

Package: Exported Wooden Drum

Range of Application: Overhead Line

Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment

Certification: ISO,CE and other certifications.

Production Capacity: 30000m/week

Inquiry

Write a Review

Product details

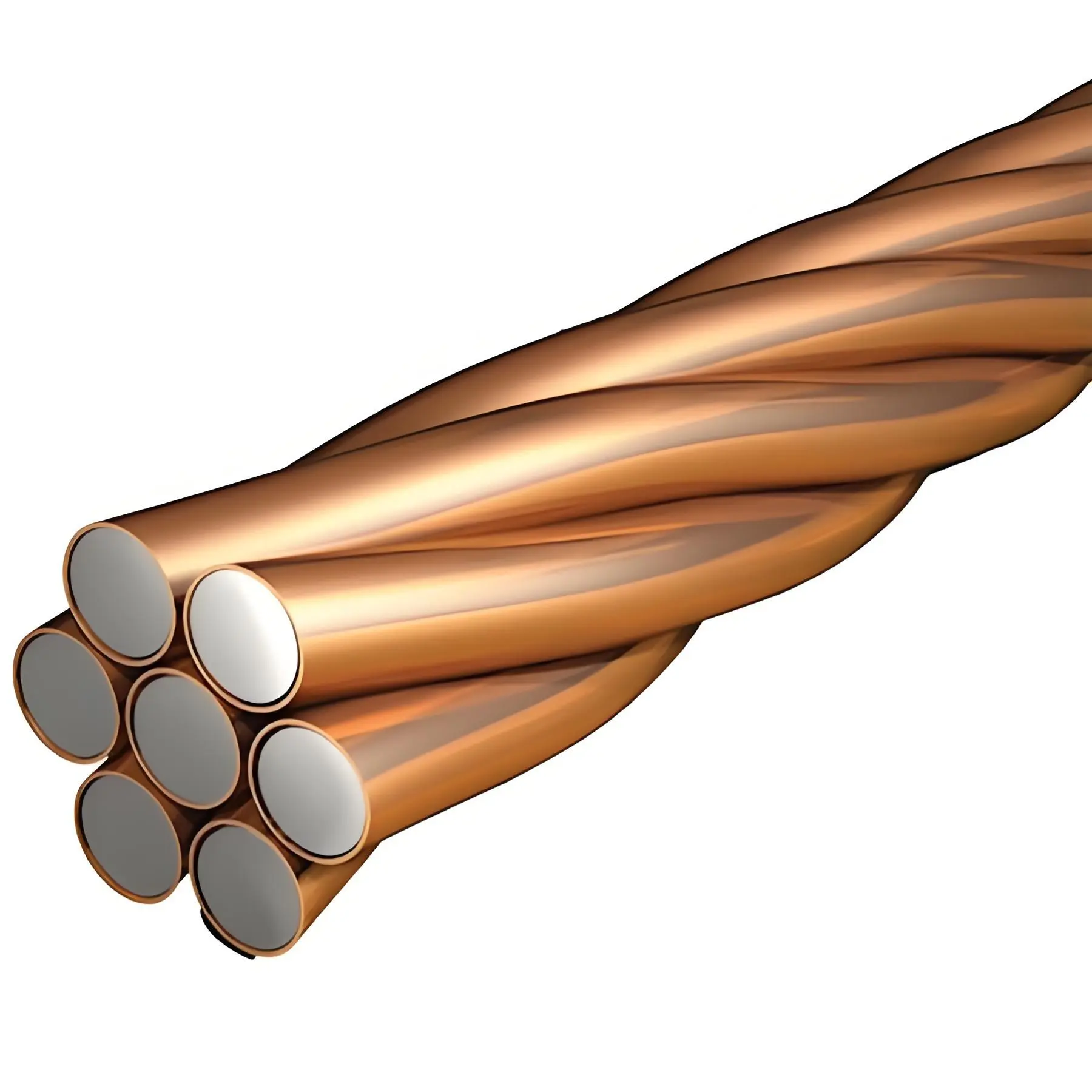

CCS cable is composed of copper clad steel. Solid or Concentric-lay-stranded conductors of copper-clad steel wires. A high strength steel wire with a 25% thick cross-section ratio of Copper cladding creating a high electrical conductivity, highly corrosive resistant and a thermal stability for high temperature operation and all with a lighter weight.

CCS (copper clad steel) is similar to CCA in that a steel conductor is thinly coated with a layer of copper. Steel gives higher mechanical strength than aluminium but is heavier and less flexible. It is of course also less conductive than copper. It’s manufactured in the same way as CCA, whereby the applied copper is drawn down to smaller diameters through rollers and dies.

The higher mechanical strength makes for a robust alternative to copper which minimises physical damage during installation compared to aluminium. Problems arise when both CCA and CCS are passed off as pure copper cables. Neither are suitable for applications where pure copper has been specified and can cause long term problems which can be costly to rectify once the cable has been installed.

Copper Clad Steel Wire pure electrolytic copper cable conductors for a variety of applications

Stranded grounded conductor cut into standard lengths for easy field installation Optimized sizes to the most efficient electrical conductivity Good conductivity, and long use life.

KINGYEAR from 2013-2018 are mainly for domestic trading and processing to some export trading companies. The average sales amount are about RMB 320,000,000 per year. For cables oversea market, From last may till now we have expanded our market to Bolivia, Peru, Dominican, Philippines, Vietnam, Thailand, Iraq, Mongolia, Indonesia and some Africa country. With total sales amount over USD10,000,000.

Specifications

Size Designation		Conductor Dia.	Rated Breaking Strength. Min. Lb.			Conductor Area		30% Density Mass 30%		40% Density Mass 40%		Resistance, max, Ω/1000ft
Inch	AWG	Conductor Dia.	Grade 40 HS	Grade 30 HS	Grade 30 EHS	Cmils	In²	Lb/ 1000ft	Lb/ mile	Lb/ 1000ft	Lb/ mile	Grade 40	Grade 30
7/8	19 No.5	0.910	50240	55570	66910	628900	0.4940	1770	9344	1788	9442	0.04264	0.05685
13/16	19 No.6	0.810	41600	45830	55530	498800	0.3917	1403	7409	1418	7487	0.05377	0.07168
23/32	19 No.7	0.721	34390	37740	45850	395500	0.3107	1113	5877	1125	5939	0.06780	0.09039
21/32	19 No.8	0.642	28380	31040	37690	313700	0.2464	882.7	4660	892.0	4710	0.08550	0.1140
9/16	19 No.9	0.572	23390	25500	30610	248800	0.1954	700.0	3696	707.3	3735	0.1078	0.1437
5/8	7 No.4	0.613	22310	24780	29430	292200	0.2295	818.9	4324	827.5	4369	0.09143	0.1219
9/16	7 No.5	0.546	18510	20470	24650	231700	0.1820	649.4	3429	656.2	3465	0.1153	0.1537
1/2	7 No.6	0.486	15330	16890	20460	183800	0.1443	514.9	2719	520.3	2747	0.1454	0.1938
7/16	7 No.7	0.433	12670	13910	16890	145700	0.1145	408.6	2157	412.9	2180	0.1833	0.2444
3/8	7 No.8	0.385	10460	11440	13890	115600	0.09077	323.9	1710	327.3	1728	0.2312	0.3081
11/32	7 No.9	0.343	8616	9393	11280	91650	0.07198	256.8	1356	259.5	1370	0.2915	0.3886
5/16	7 No.10	0.306	7121	7758	9196	72680	0.05708	203.7	1075	205.8	1087	0.3676	0.4900
-	3 No.5	0.392	8373	9262	11860	99310	0.07800	277.8	1467	280.7	1482	0.2685	0.3579
-	3 No.6	0.349	6934	7639	9754	78750	0.06185	220.3	1163	222.6	1175	0.3385	0.4513
-	3 No.7	0.311	5732	6291	7922	62450	0.04905	174.7	922.3	176.5	932.0	0.4269	0.5691
-	3 No.8	0.277	4730	5174	6282	49530	0.03890	138.5	731.4	140.0	739.1	0.5383	0.7176
-	3 No.9	0.247	3898	4250	5129	39280	0.03085	109.9	580.1	111.0	586.2	0.6788	0.9049
-	3 No.10	0.220	3221	3509	4160	31150	0.02446	87.10	459.9	88.02	464.7	0.8559	1.141
-	3 No.12	0.174	1715	-	-	19590	0.01539	54.80	289.4	55.38	292.4	1.361	-
