H05VV-F EN 50525-2-1
Application:
Applicable to the cables and wires of rated voltage 450/750V and less than 450/750V AC for power plant, household electrical appliance, instrument and telecommunication equipment.
Model No.: H05VV-F
Conductor Material: Copper
Brand: KINGYEAR
Standard: DIN VDE 0281
Place of Origin: China
Package: Export Packaging
Range of Application: Construction
Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment
Certification: ISO,CE and other certifications.
Production Capacity: 30000m/week
Product details

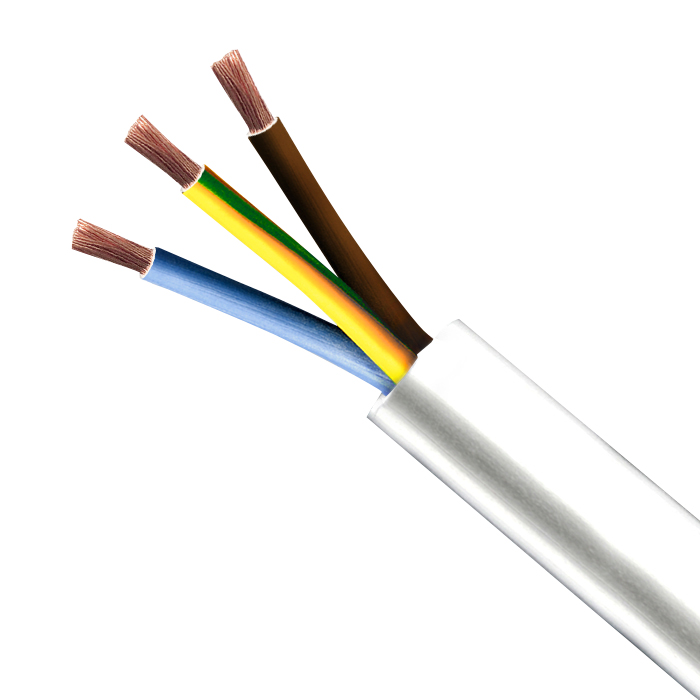

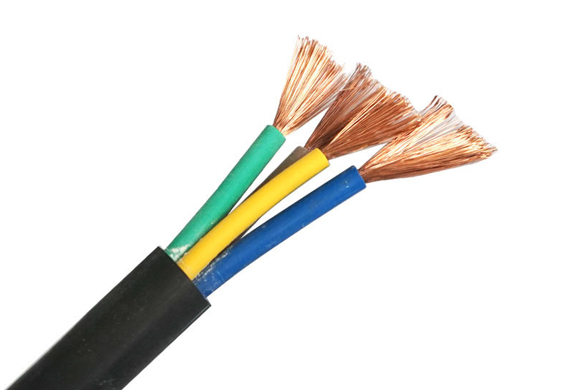

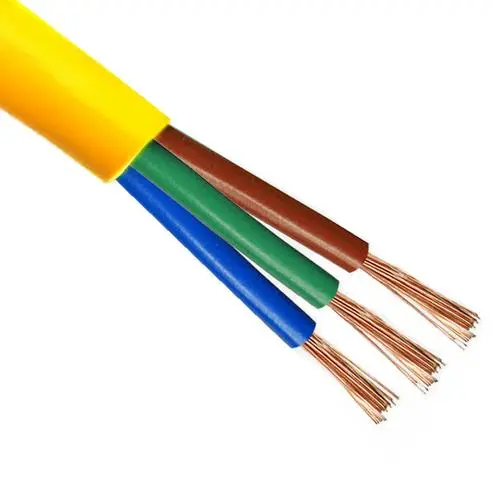

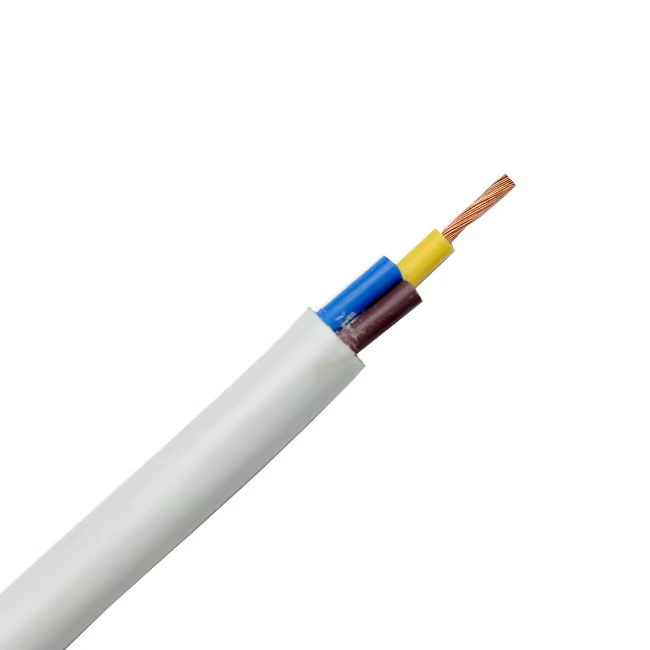

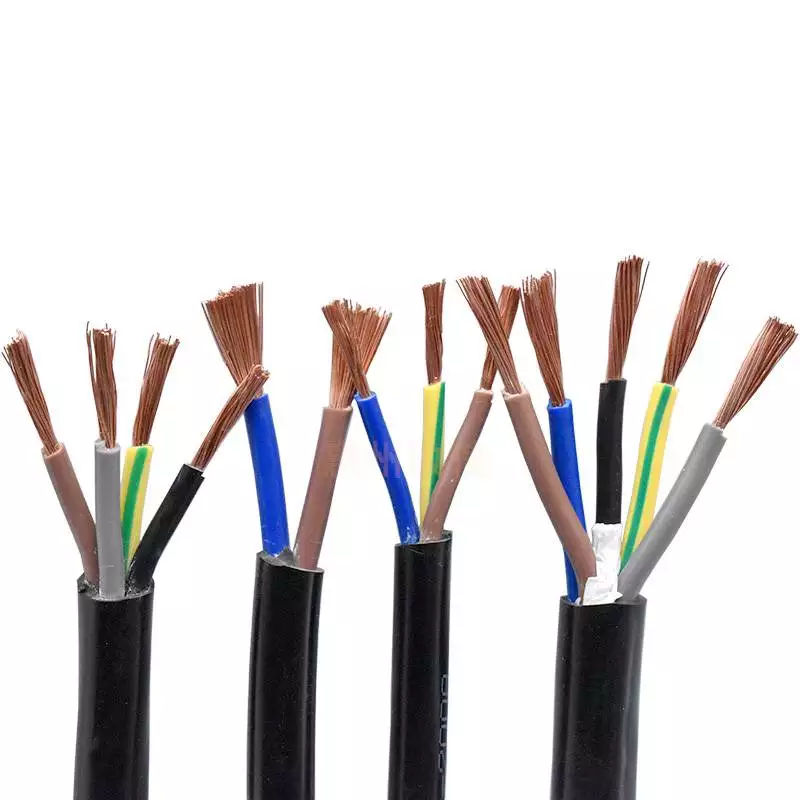

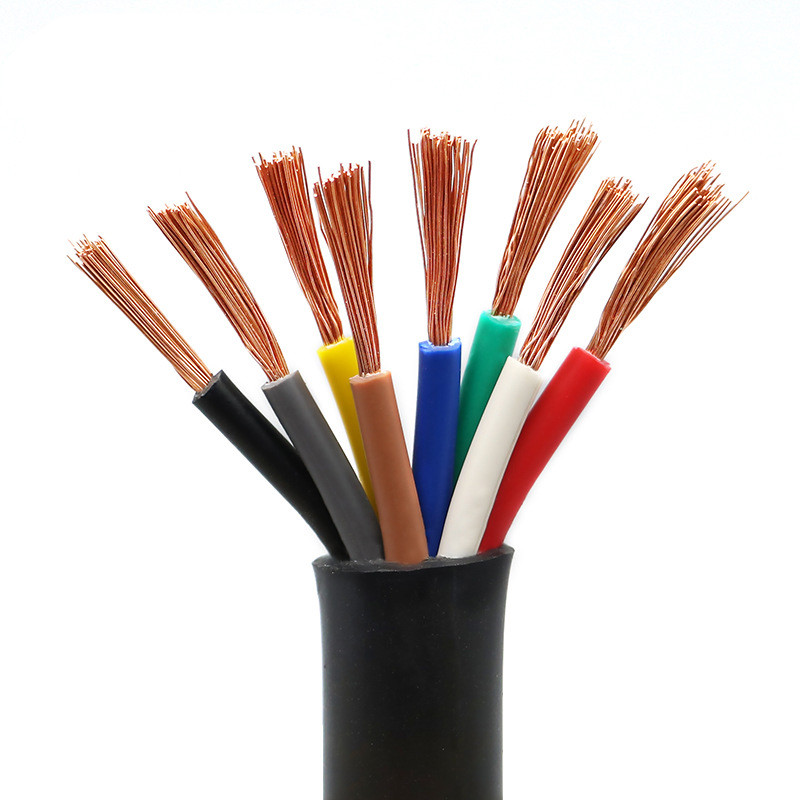

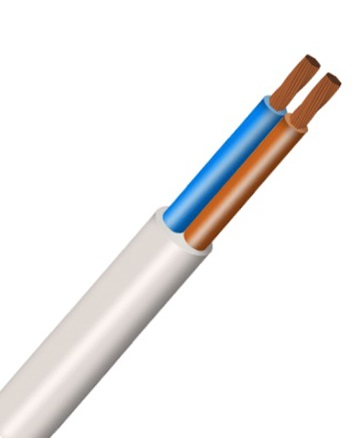

H05VV-F is a harmonized, light duty, oil-resistant, flexible, PVC multi-conductor 500-volt European cord. Recommended for use in connecting small electrical appliances under medium mechanical stress environments as in offices, kitchens and households. It can commonly be found in connections in damp and wet areas as in refrigerators, washing machines and spin-dryers.
These cables are suitable to be used in cooking and heating apparatus if there is no actual direct contact with the hot parts or other heat influences. These cables are also suitable for fixed applications in furniture, wall partitions, decoration coverings and in hollow spaces of prefabricated building parts. Available in black, white or gray jacket. Max operating voltage in single or three phase system is Uo/U 318/550 volts. In a direct system, max operating voltage is Uo/U 413/825 volts. Outdoor installation is not permitted.
KINGYEAR from 2013-2018 are mainly for domestic trading and processing to some export trading companies. The average sales amount are about RMB 320,000,000 per year. For cables oversea market, From last may till now we have expanded our market to Bolivia, Peru, Dominican, Philippines, Vietnam, Thailand, Iraq, Mongolia, Indonesia and some Africa country. With total sales amount over USD10,000,000.
Specifications
|
H05VV-F Cable |
||||
|
Section |
Approx. Cable Diameter |
Approx. Cable Weight |
Max. Conductor DC Resistance at 20℃ |
Perm. current rating in open air |
|
mm2 |
mm |
kg/km |
Ω/km |
A |
|
2 x 0.75 |
6.1 |
50 |
26 |
6 |
|
2 x 1 |
6.5 |
60 |
19.5 |
10 |
|
2 x 1.5 |
7.5 |
80 |
13.3 |
16 |
|
2 x 2.5 |
9.3 |
130 |
7.98 |
25 |
|
3x 0.75 |
6.5 |
60 |
26 |
6 |
|
3x 1 |
6.9 |
70 |
19.5 |
10 |
|
3x1.5 |
8.2 |
100 |
13.3 |
16 |
|
3x 2.5 |
10 |
160 |
7.98 |
20 |
|
3x 4 |
13 |
260 |
4.95 |
25 |
|
4x 0.75 |
7.1 |
75 |
26 |
6 |
|
4x 1 |
7.8 |
90 |
19.5 |
10 |
|
4x 1.5 |
9.2 |
130 |
13.3 |
16 |
|
4x 2.5 |
11 |
200 |
7.98 |
20 |
|
4x4 |
14 |
320 |
4.95 |
25 |
|
5x 0.75 |
8 |
95 |
26 |
6 |
|
5x1 |
8.5 |
110 |
19.5 |
10 |
|
5x 1.5 |
10 |
160 |
13.3 |
16 |
|
5x2.5 |
12 |
240 |
7.98 |
20 |
|
5x4 |
16 |
400 |
4.95 |
25 |
