RRU Cable D-Type or TFL-Type

Application：

The RRU Cable D-Type or TFL-Type is a 600V outdoor black sheath power cable designed for telecommunication equipment, specifically for use in 4G and 5G networks. With a low smoke, halogen-free design and UL certificate, this cable is suitable for use in telecommunication central office environments, with a temperature rating of 75 or 90 ºC dry and optionally 60, 75 or 90 ºC wet.

Model No.：RRU Cable D-Type or TFL-Type

Voltage: 600V

Conductor： Class 5 Copper

Insulation： LSZH/XLPE/PVC

Screen：copper braid

Sheath：LSZH/PVC

Brand：KINGYEAR

Standard：ASTM B3/B8,UL 83,UL 1277

Place of Origin：China

Package：Exported Wooden Drum or soft roll

Range of Application：Communication Cable

Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment

Production Capacity：30000m/week

Inquiry

Write a Review

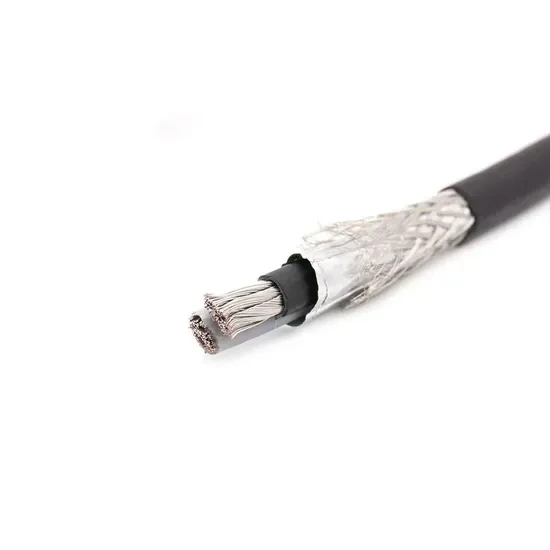

Conductor
Stranded, tinned, annealed copper, IEC 60228 class 5. Three parallel cores to form a flat conductor.

Insulation
Flame retardant polyolefin black and grey.

Shield
Inner: aluminum polyester shield 100% coverage
Outer: Tinned copper Clad aluminum or tinned copper wire braid

Sheath
Flame retardant polyolefin , grey or black

Operating voltage: Max. 90 ºC,dry

Fire resistance IEC 60332-3 cat C UL 1685, Vertical tray

Standard:

UL2731, Telecommunication Central Office Power, Battery, and Distribution Cables

KINGYEAR from 2013-2018 are mainly for domestic trading and processing to some export trading companies. The average sales amount are about RMB 320,000,000 per year. For cables oversea market, From last may till now we have expanded our market to Bolivia, Peru, Dominican, Philippines, Vietnam, Thailand, Iraq, Mongolia, Indonesia and some Africa country. With total sales amount over USD10,000,000.

Advantage

Customization

Providing tailored designs to meet specific requirements.

After-Sales Service

Ensuring continuous support and satisfaction post-purchase.

Timely Delivery

Committing to prompt and reliable delivery schedules.

Training and Documentation

Providing detailed documentation for easy operation and maintenance.

FAQ

Q:I didn't find the product which I need in this page?

A:If you didn't find the species of the produxts you need, please contact us directly, we will reply you quickly.

Q:What's your minimum order quantity?

A:It is not so sure, you can confirm it with us. Normally, it will be 5 tons.

Q:What's your delivery time?

A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.

Q:How can I get a sample from your company? Is the sample free?

A:If you need the sample to check the quality, please contact us, we will send you the free sample, but the freight charge should be paid.

Q:What if the product which we need have some differences on specifications from yours?

A: Any difference, we can design and produce according to your requests, which include size, color, material, processing requirement etc.

Based on Station Cable technology, the remote radio unit (RRU) is designed to supply 48V DC power in outdoor or indoor settings. The RRU cable is specifically engineered for communication purposes and is utilized in a radio base station. The connection between the RRU and the controller is typically optical. The braided shielding serves to safeguard the signal from interference during the transmission of data in 3G, 4G, 5G, and 5.5G networks.
