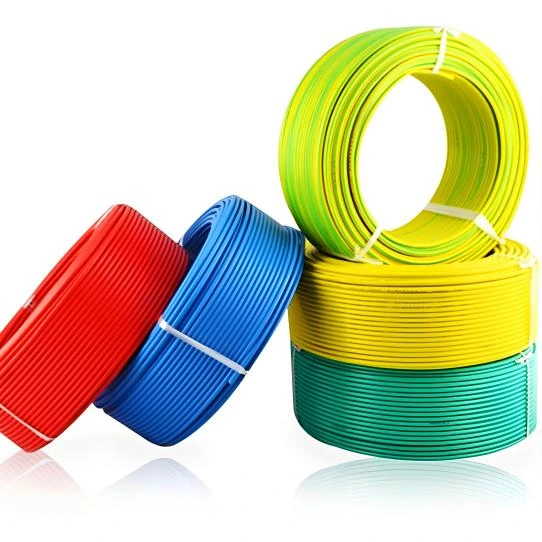

H05VV-U electric wire
Application:
Soft and solid conductor is made out of annealed copper wire. Copper core is PVC-sheathed.
Model No.: H05VV-U
Conductor Material: Copper
Brand: KINGYEAR
Standard: IEC 60227, GB/T5023, VDE0281, BS6004
Place of Origin: China
Package: Export Packaging
Range of Application: Construction
Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment
Certification: ISO,CE and other certifications.
Production Capacity: 30000m/week
Product details
HO5VV-U HO5VV-R NYM Multi-Cores PVC insulated by electrical wires, 300/500v meet to IEC 60227, GB/T 5023-2008, JB/T 8734-2016.300/500V. The multi-cores BVV cable can be used for general purpose or installation in raceway and shall be protected water into raceway but do not install in duct in ground or direct burial in ground. The BVV cable has add one layer of insulation base on BV cable, it can better protect conductor and insulating material. wear resistance, oil resistance, acid resistance and alkali resistance.
KINGYEAR from 2013-2018 are mainly for domestic trading and processing to some export trading companies. The average sales amount are about RMB 320,000,000 per year. For cables oversea market, From last may till now we have expanded our market to Bolivia, Peru, Dominican, Philippines, Vietnam, Thailand, Iraq, Mongolia, Indonesia and some Africa country. With total sales amount over USD10,000,000.
Specifications
|
H05VV-U Cable |
|||||
|
Section |
Conductor Number |
Insulation Thickness |
Approx. Cable Diameter |
Approx. Cable Weight |
Max. Conductor DC Resistance at 20℃ |
|
mm2 |
No. |
mm |
mm |
kg/km |
Ω/km |
|
2 x 1.5 |
1 |
0.7 |
8.8 |
93 |
12.1 |
|
2 x 2.5 |
1 |
0.8 |
10 |
125 |
7.41 |
|
2 x 4 |
1 |
0.8 |
11 |
162 |
4.61 |
|
2 x 6 |
1 |
0,8 |
12 |
210 |
3.08 |
|
3×1.5 |
1 |
0.7 |
9.2 |
116 |
12.1 |
|
3×2.5 |
1 |
0.8 |
10.5 |
161 |
7.41 |
|
3×4 |
1 |
0.8 |
11.5 |
213 |
4.61 |
|
3×6 |
1 |
0.8 |
13 |
292 |
3.08 |
|
4×1.5 |
1 |
0.7 |
10 |
142 |
12.1 |
|
4×2.5 |
1 |
0.8 |
11.5 |
200 |
7.41 |
|
4×4 |
1 |
0.8 |
13 |
280 |
4.61 |
|
4×6 |
1 |
0.8 |
15 |
380 |
3.08 |
|
5×1.5 |
1 |
0.7 |
11 |
167 |
12.1 |
|
5×2.5 |
1 |
0.8 |
13 |
267 |
7.41 |
|
5×4 |
1 |
0.8 |
15 |
250 |
4.61 |
|
5×6 |
1 |
0.8 |
16 |
460 |
3.08 |
