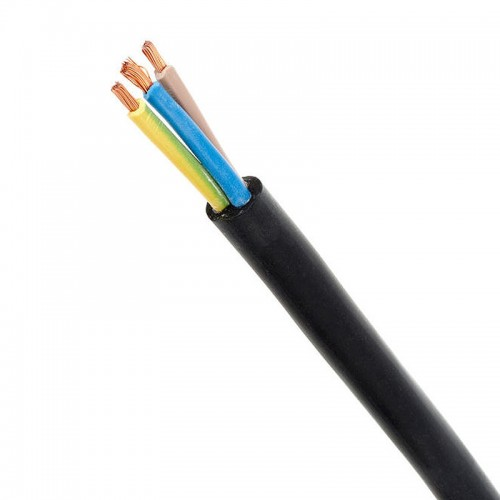

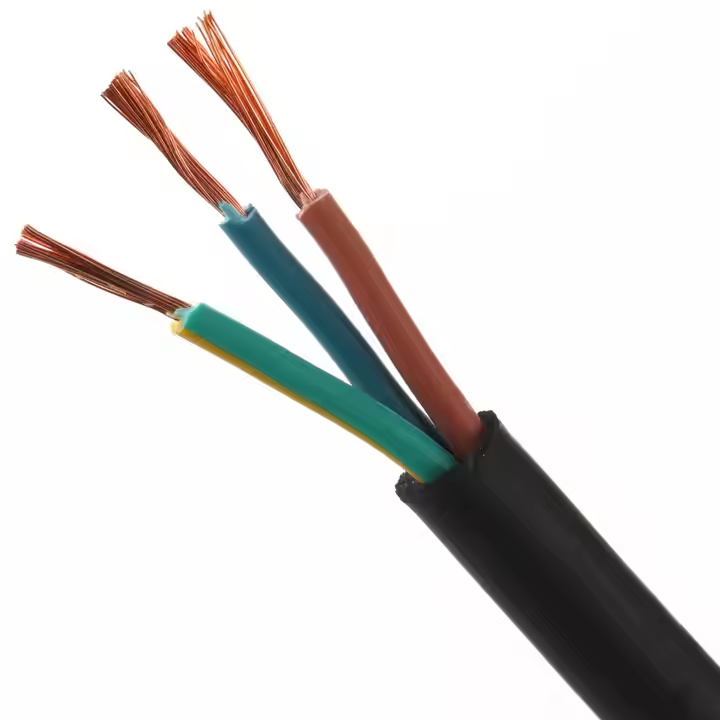

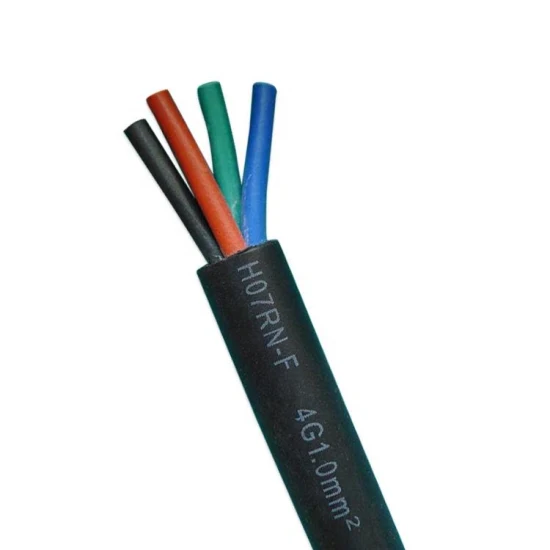

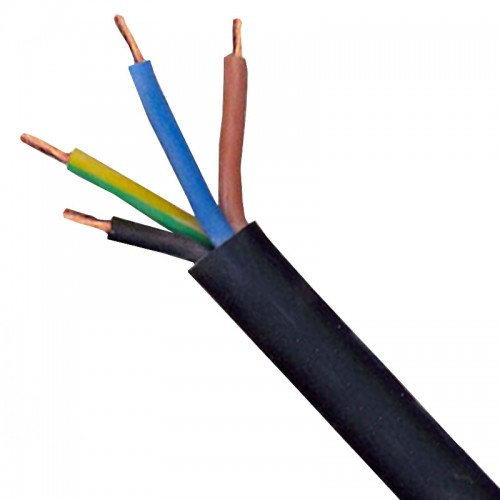

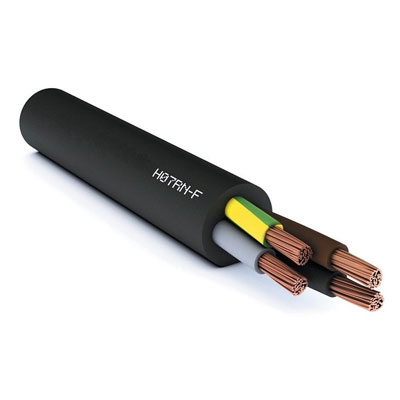

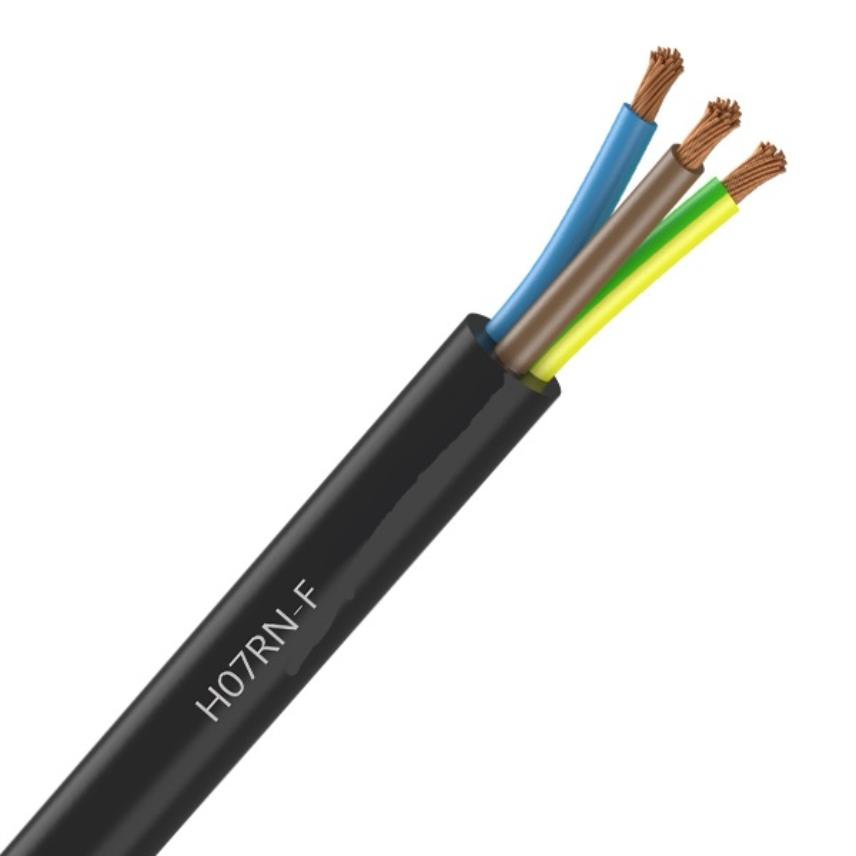

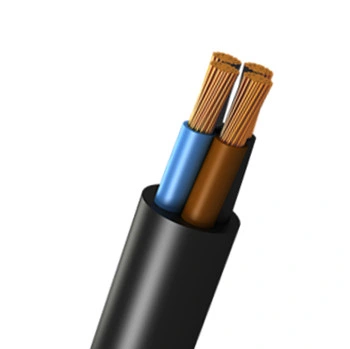

H07RN-F Rubber Cable
Application：
The H07RN-F trailing duty cable has with a low voltage rating of 450/750V designed to withstand chemical, mechanical and thermal stresses. It is suitable for applications such as handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. As part of Eland Cables' portfolio of rubber flexible cables, the tough rubber sheath also makes this cable suitable for use in drainage and water treatment, cold or refrigerated environments, and severe industrial and agricultural environments.
Model No.：H07RN-F
Voltage：450/750V
Material：Copper
Brand：KINGYEAR
Standard：IEC/ASTM/BS/GBT/DIN
Place of Origin：China
Package：Exported Wooden Drum
Range of Application：Rubber Cable
Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment
Certification：ISO,CE and other certifications.
Production Capacity：30000m/week
These cables are designed to provide high flexibility and have the capacity to withstand weather, oil/grease, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environments. AD8 rated and suitable for installation in buried ducts.
Voltage Rating : U/Uo 450/750V Suitable for 1kV in fixed application.
Conductor : Class 5 flexible copper conductor
Insulation : EPR (Ethylene Propylene Rubber)
Sheath : PCP (Polychloroprene)
Standard : EN 50525-2-21
KINGYEAR from 2013-2018 are mainly for domestic trading and processing to some export trading companies. The average sales amount are about RMB 320,000,000 per year. For cables oversea market, From last may till now we have expanded our market to Bolivia, Peru, Dominican, Philippines, Vietnam, Thailand, Iraq, Mongolia, Indonesia and some Africa country. With total sales amount over USD10,000,000.
Specifications
NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
mm² | mm | mm | kg/km | |
1 | 1.5 | 0.8 | 5.8 | 52 |
1 | 2.5 | 0.9 | 6.5 | 67 |
1 | 4 | 1 | 7.4 | 92 |
1 | 6 | 1 | 8.1 | 119 |
1 | 10 | 1.2 | 9.8 | 185 |
1 | 16 | 1.2 | 11.35 | 258 |
1 | 25 | 1.4 | 13.3 | 375 |
1 | 35 | 1.4 | 14.6 | 485 |
1 | 50 | 1.6 | 17.2 | 669 |
1 | 70 | 1.6 | 19.35 | 892 |
1 | 95 | 1.8 | 22.2 | 1160 |
1 | 120 | 1.8 | 24.3 | 1436 |
1 | 150 | 2 | 25.9 | 1748 |
1 | 185 | 2.2 | 29.7 | 2142 |
1 | 240 | 2.4 | 31.5 | 2698 |
1 | 300 | 2.6 | 36.5 | 3348 |
1 | 400 | 2.8 | 40.4 | 4293 |
1 | 500 | 3 | 42.6 | 5262 |
1 | 630 | 3 | 47.2 | 6790 |
2 | 1 | 0.8 | 8.1 | 94 |
2 | 1.5 | 0.8 | 9 | 120 |
2 | 2.5 | 0.9 | 10.7 | 173 |
2 | 4 | 1 | 12.3 | 239 |
2 | 6 | 1 | 13.8 | 313 |
2 | 10 | 1.2 | 18.6 | 563 |
2 | 16 | 1.2 | 21.7 | 830 |
2 | 25 | 1.4 | 25.8 | 1211 |
