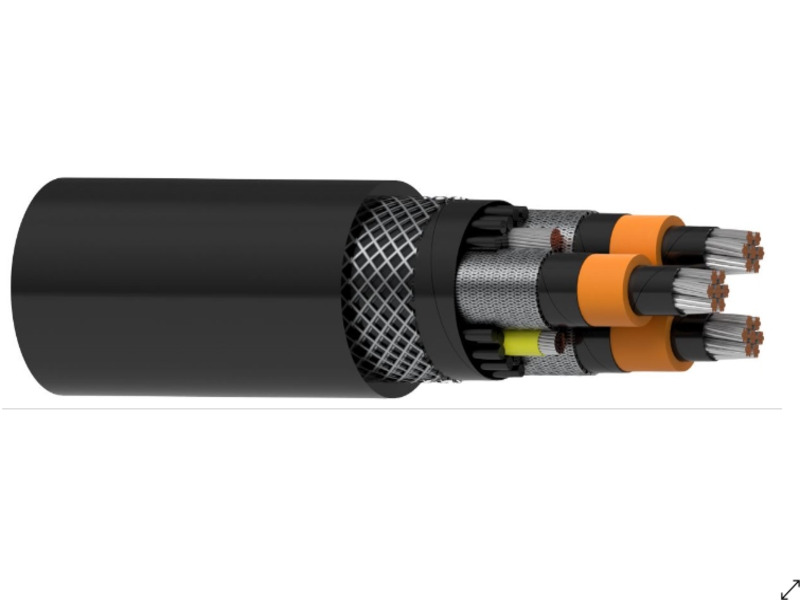

Type SHD-GC Mining Cable EPR/CPE 5-25 KV
Application：
The Type SHD-GC Mining Cable EPR/CPE 5-25 KV is designed for use on AC off-track equipment in industrial and mining applications. It features grounding and ground check conductors, as well as metallic shielding, and can resist temperatures up to 90°C for continuous use.
Model No.：Type SHD-GC Mining Cable EPR/CPE 5-25 KV
Voltage：5-25kV
Conductor： 6 AWG thru 500 kcmil coated annealed copper, bunched wires, rope-lay-stranded per ASTM B172.
Extruded thermosetting semi-conducting stress control layer over conductor.
Insulation：Ethylene Propylene Rubber (EPR) insulation.
Insulation Shield：A flexible coated copper/textile braid shield is applied over a non-conducting overlapped tape.
Ground-Check Conductor:Annealed copper, rope-lay-stranded per ASTM B172, insulated with high-strength yellow polypropylene.
Grounding Conductors：Coated copper, rope-lay-stranded per ASTM B172.Two conductors in contact with the flexible copper braid shield.
Separator：Polyamide open braid applied overall.
Sheath：Extra-heavy-duty, lead-cured Chlorinated Polyethylene (CPE).
Brand：KINGYEAR
Standard：ICEA S-75-381 Portable and Power Feeder Cables for use in mines and similar applications.
Place of Origin：China
Package：Exported Wooden Drum
Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment
Certification：ISO,CE and other certifications.
Production Capacity：30000m/week
Trailing cable on ac mining equipment where service conditions are severe and maximum safety is mandatory; such as power shovels and drag lines in open-pit mines, quarries, gantry cranes and slag reclaiming. Used for high voltage distribution in underground mines where frequent relocation is necessary or where extra flexibility and toughness is desired.
Standards
ICEA S-75-381/NEMA WC-58 Portable and Power Feeder Cables for Use in Mines and Similar Applications. CFR Title 30 Federal Regulations, Part 7, Subpart K. MSHA 7K-228057
