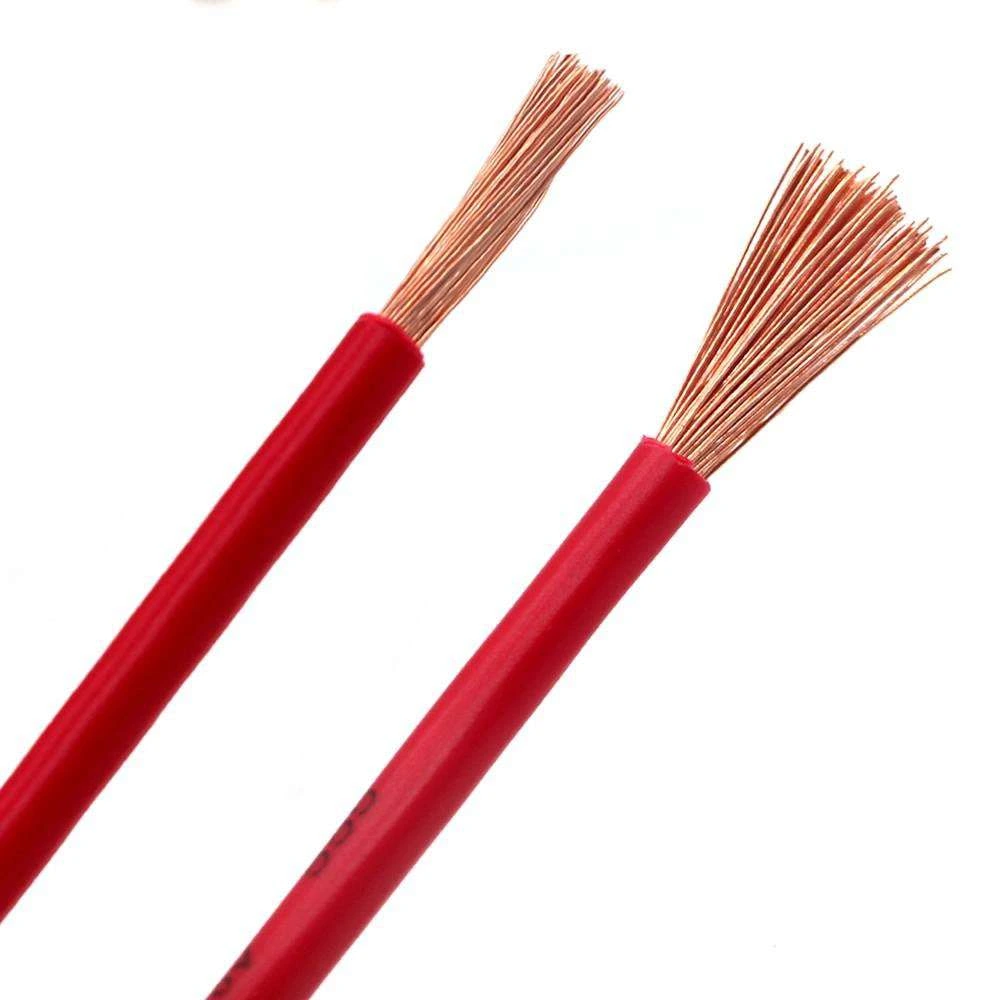

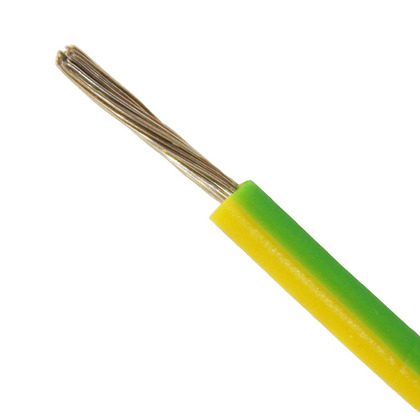

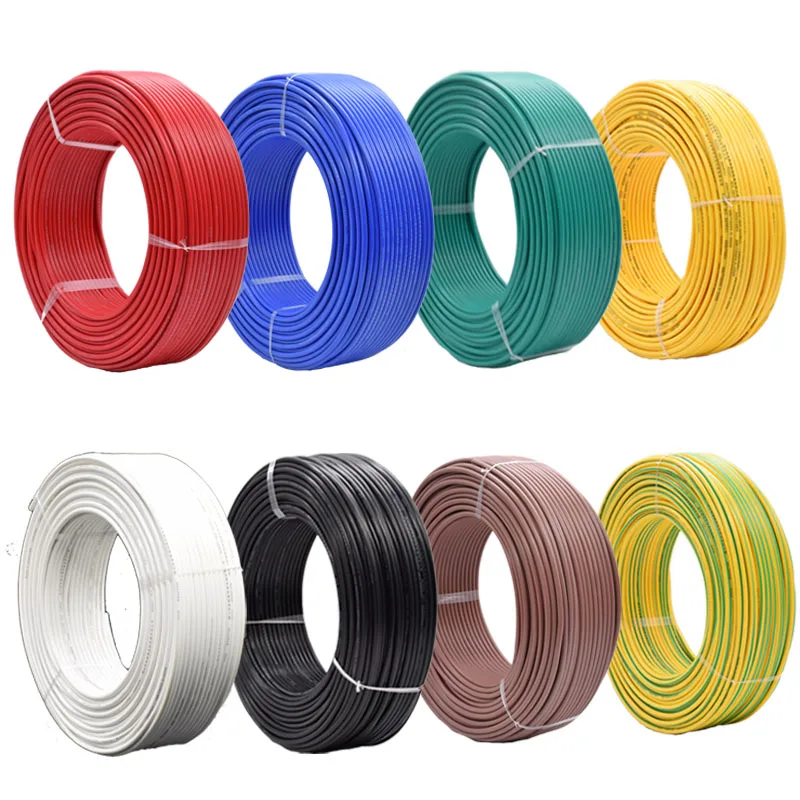

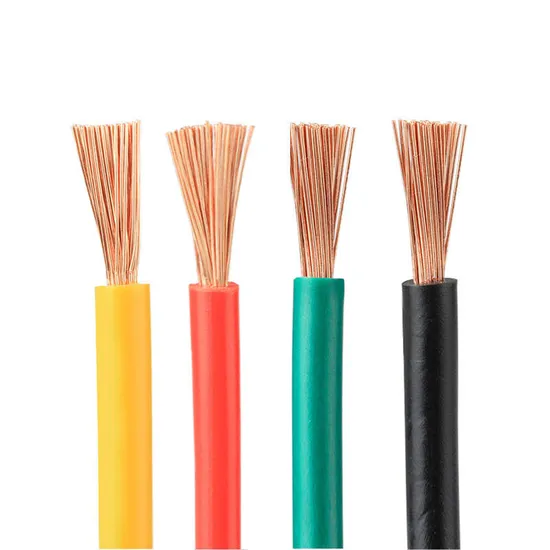

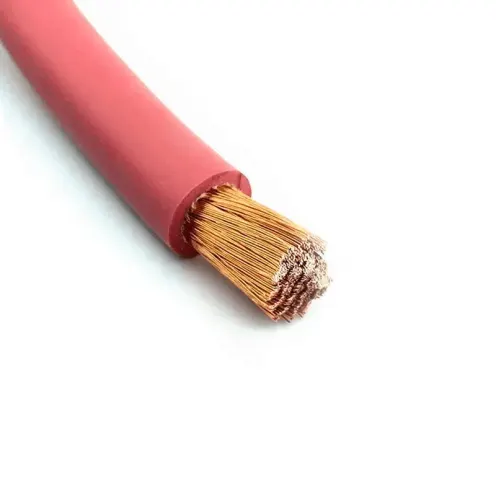

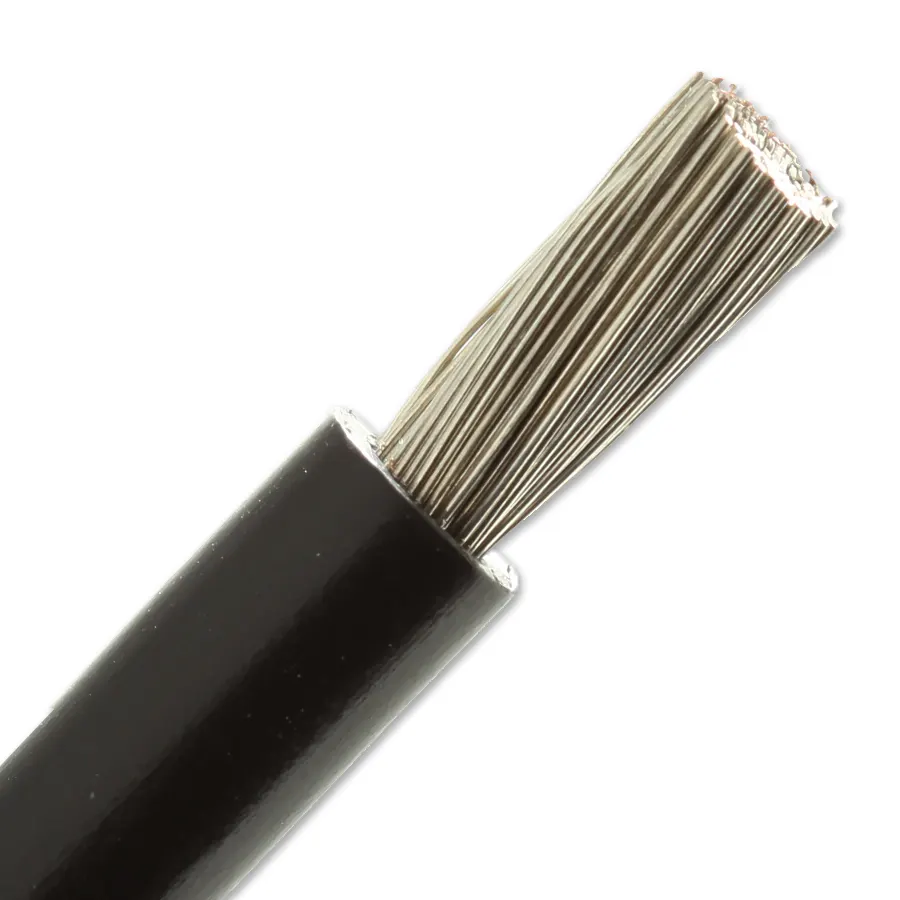

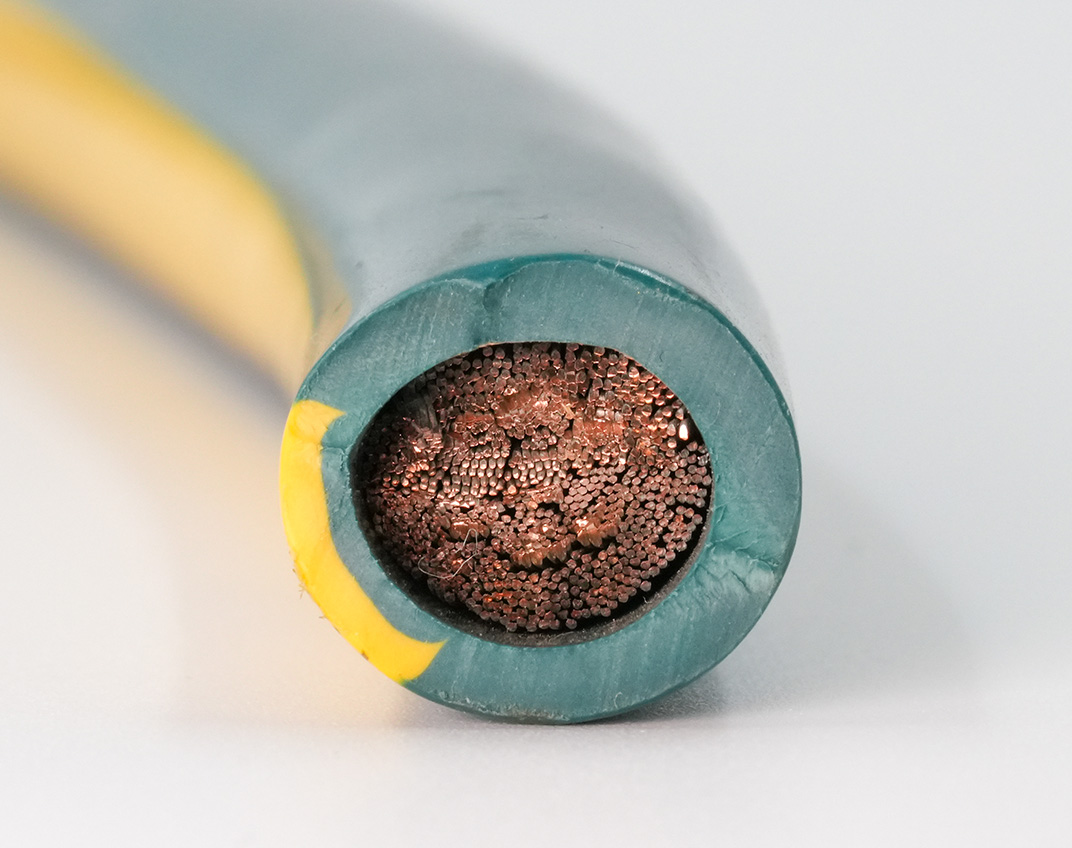

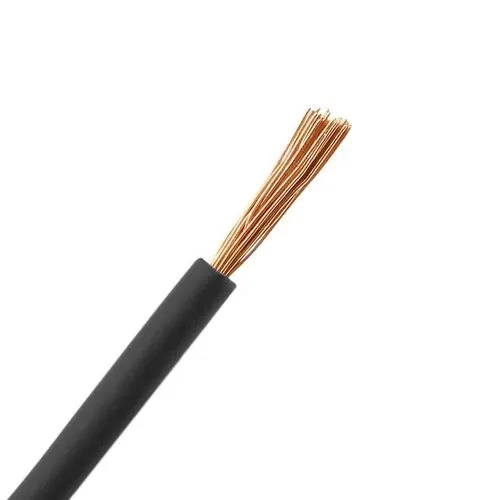

High-Quality MTW/TEW Cable for Industrial Applications
Application：
Our high-quality MTW/TEW cables are designed to meet the rigorous standards of the National Electric Code, making them perfect for industrial applications. Featuring a bare copper conductor in TEW and a tinned copper conductor in MTW, these premium hook-up wires offer exceptional durability and conductivity for wiring in switchboards, appliances, electronic circuits, control cabinets, and machine tools.
Model No.：MTW/TEW Cable
Voltage: 600V
Conductor：Stranded copper or tinned copper conductors
Insulation：Extruded PVC
Brand：KINGYEAR
Standard：ASTM B3/B8,UL 83,UL 1277
Place of Origin：China
Package：Exported Wooden Drum or soft roll
Range of Application：Electrical wire
Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment
Production Capacity：30000m/week
AWC stocks three types of machine tool wire, which are UL1028, UL1283, and UL1284.
UL1028 MTW: These hook-up wires use a relatively thin PVC insulation that’s between 0.045 inches and 0.060 inches thick. The number of strands varies from 19 strands up to 168. Wires with 19 strands are relatively stiff and hold their shape when bent, whereas those with higher strands are flexible. The AWC part number indicates the number of wire strands. UL1028 wires also conform to U1032, UL1231, and UL1344.
UL1283 MTW: This UL1283 standard covers wire sizes between 8 AWG and 2 AWG. These wires have an insulation thickness of 0.06 inches. Users can choose between stiff varieties with 19 strands and highly flexible options with up to 665 wire strands. UL1283 wires also conform to UL1232, UL1346, and UL10269 standards. Some sizes have the BC-5W2 marine rating and SAE J1127 Type SGT certification.
UL1284 MTW: These flexible wires cover a range of sizes from 8 AWG to 1000 MCM and have stranded copper or tinned copper conductors. Sizes are from 6 AWG and 750 MCM. Many UL1284 wires also have BC-5W2 marine rating and SAE J1127 Type SGT certification.
General Specifications for MTW/TEW
- Conductors: Stranded copper or tinned copper conductors
- Insulation: Extruded PVC
- AWG sizes: From 8 AWG to 750 MCM
- Maximum voltage rating: 600 volts
- Maximum temperature rating in dry locations (TEW): 105°C
- Maximum temperature rating in dry locations (MTW): 90°C
- Maximum temperature rating in wet locations: 60°C
KINGYEAR from 2013-2018 are mainly for domestic trading and processing to some export trading companies. The average sales amount are about RMB 320,000,000 per year. For cables oversea market, From last may till now we have expanded our market to Bolivia, Peru, Dominican, Philippines, Vietnam, Thailand, Iraq, Mongolia, Indonesia and some Africa country. With total sales amount over USD10,000,000.
