MCMK/XCMK-HF 0.6/1kV

Application：

The MCMK/XCMK-HF 0.6/1kV cable is suitable for indoor and outdoor fixed installations on walls and metallic structures. It is also approved for direct burial in soil, as long as national installation regulations are followed. The halogen-free design is recommended for situations where it is crucial to minimize the production of thick smoke and corrosive gases in the event of fire or overheating.

Model No.：MCMK/XCMK-HF

Voltage：0.6/1kV

Conductor：Copper

Insulation：XPLE compound (Cross-Linked Polyethylene)

Filler：HFFR compound (Halogen free flame retardant) or tape

Screen:Copper wires and copper tape

Sheath:Halogen free polyolefin

Brand：KINGYEAR

Standard：NTP 370.254,ICEA S-76-474

Place of Origin：China

Package：Exported Wooden Drum

Range of Application：Power Cable

Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment

Certification：ISO,CE and other certifications.

Production Capacity：30000m/week

Inquiry

Write a Review

Cables according to this standard are halogen free and flame retardant. In the case of fire, only smoke free of corrosive gases with low smoke density are emitted. Intended for permanent installation in- and outdoors, in ground, in water and in pipes. Caution shall be taken into account if plowing.
The cable may be used for fixed installation indoors and outdoors in air, ground and water.

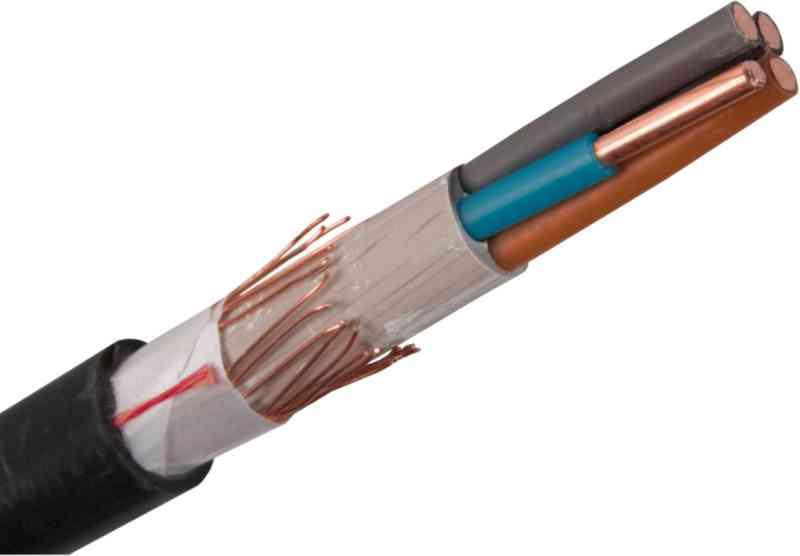

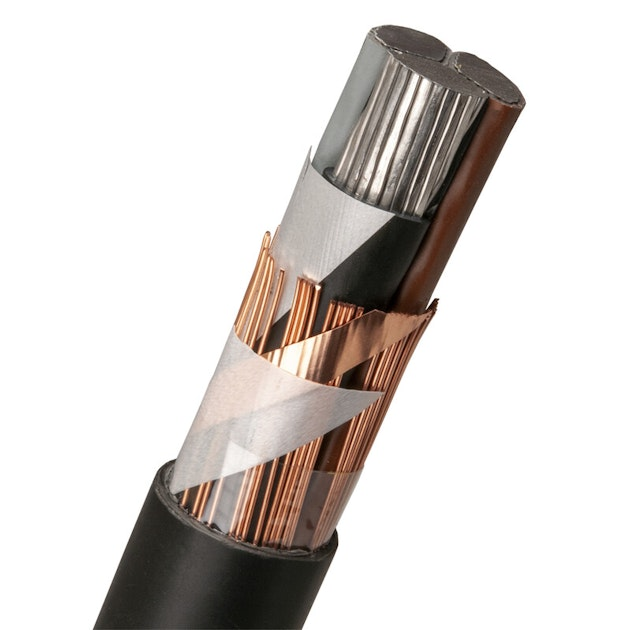

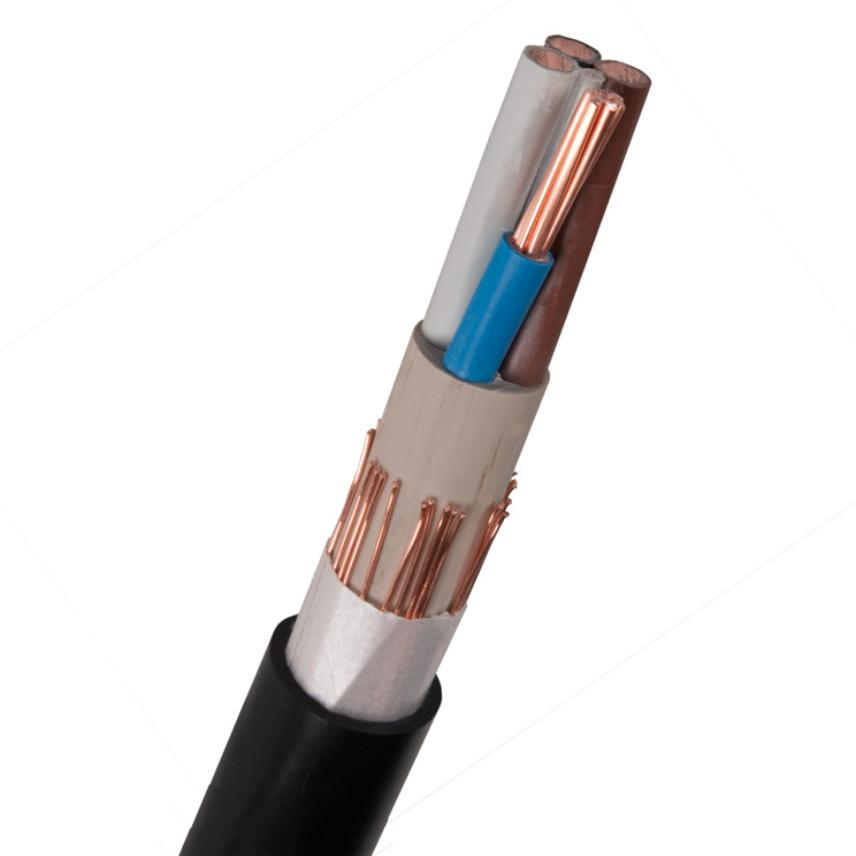

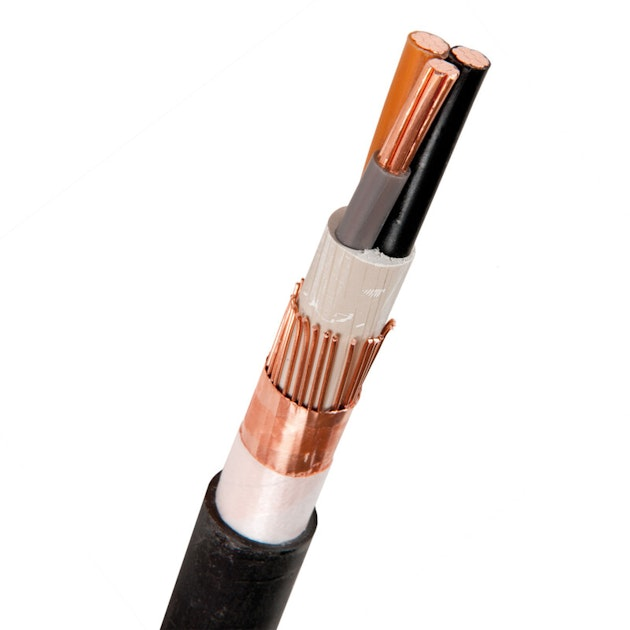

XCMK/MCMK-HF is a halogen free, XLPE-insulated, HFFR-sheathed cable with circular, stranded copper conductors. The cable has a screen of annealed copper wires with opposite open helix of copper. XCMK/MCMK-HF is designed in applicable parts according to HD 603. The conductors have resistance and number of wires according to IEC 60228 class 2. The cores are identified by colours according to HD 308. The cable has an extruded filler. The sheath is marked type/manufacturer/year+month/metre marking. XCMK/MCMK-HF meets the requirements for fire classification Dcas2d2a2 according to CPR.
