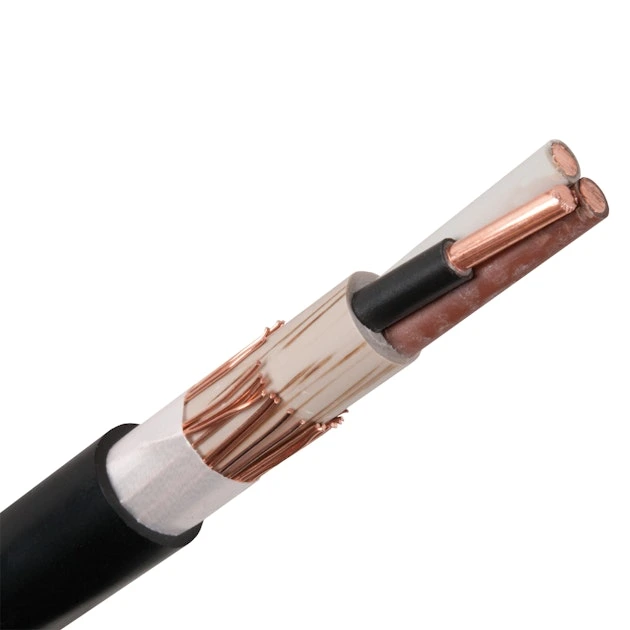

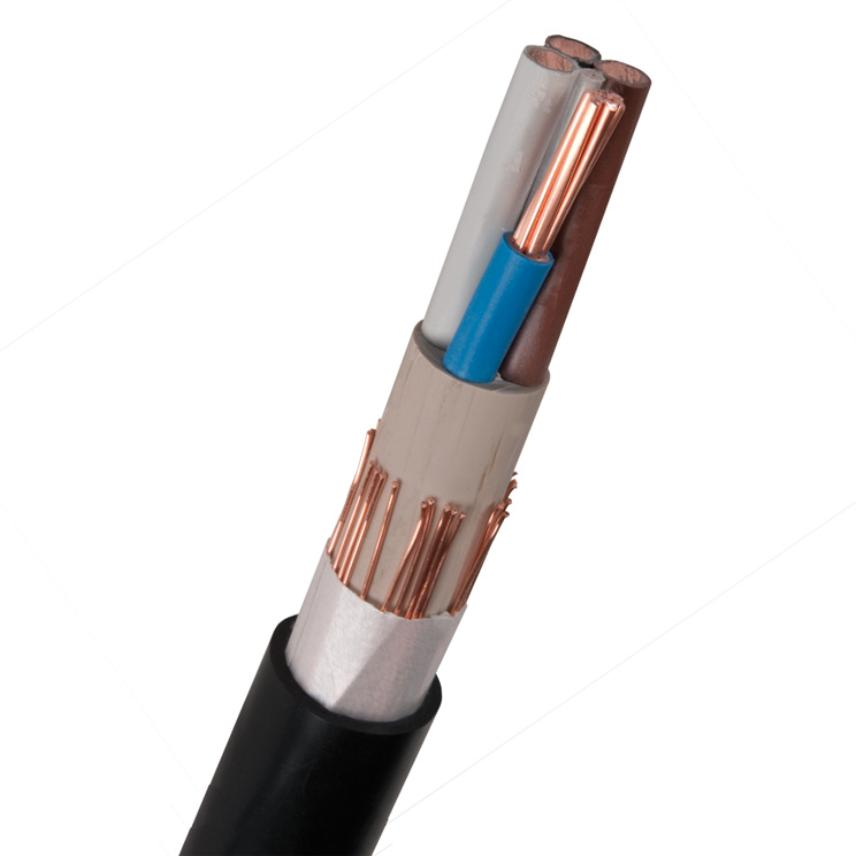

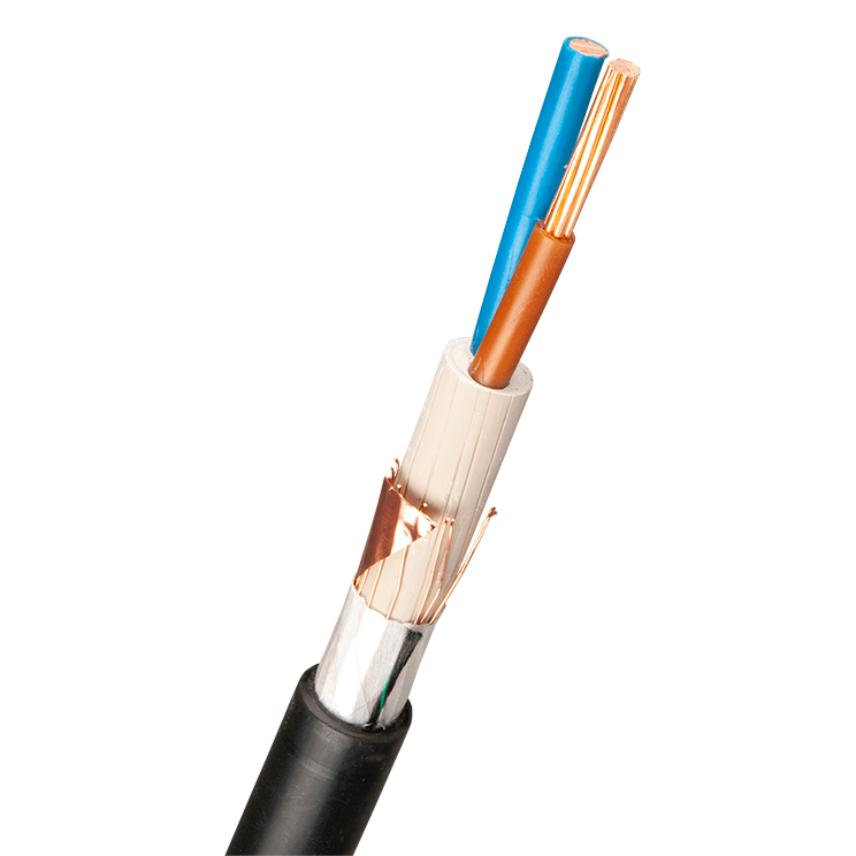

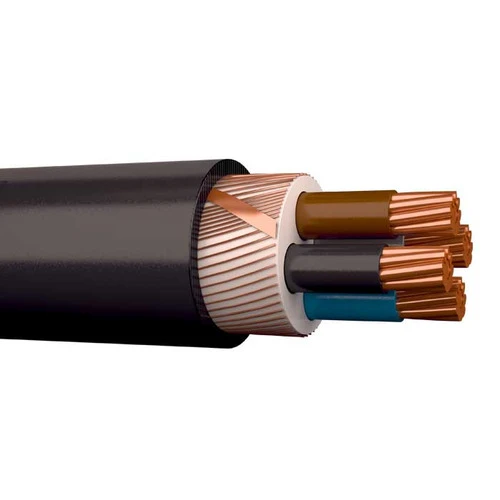

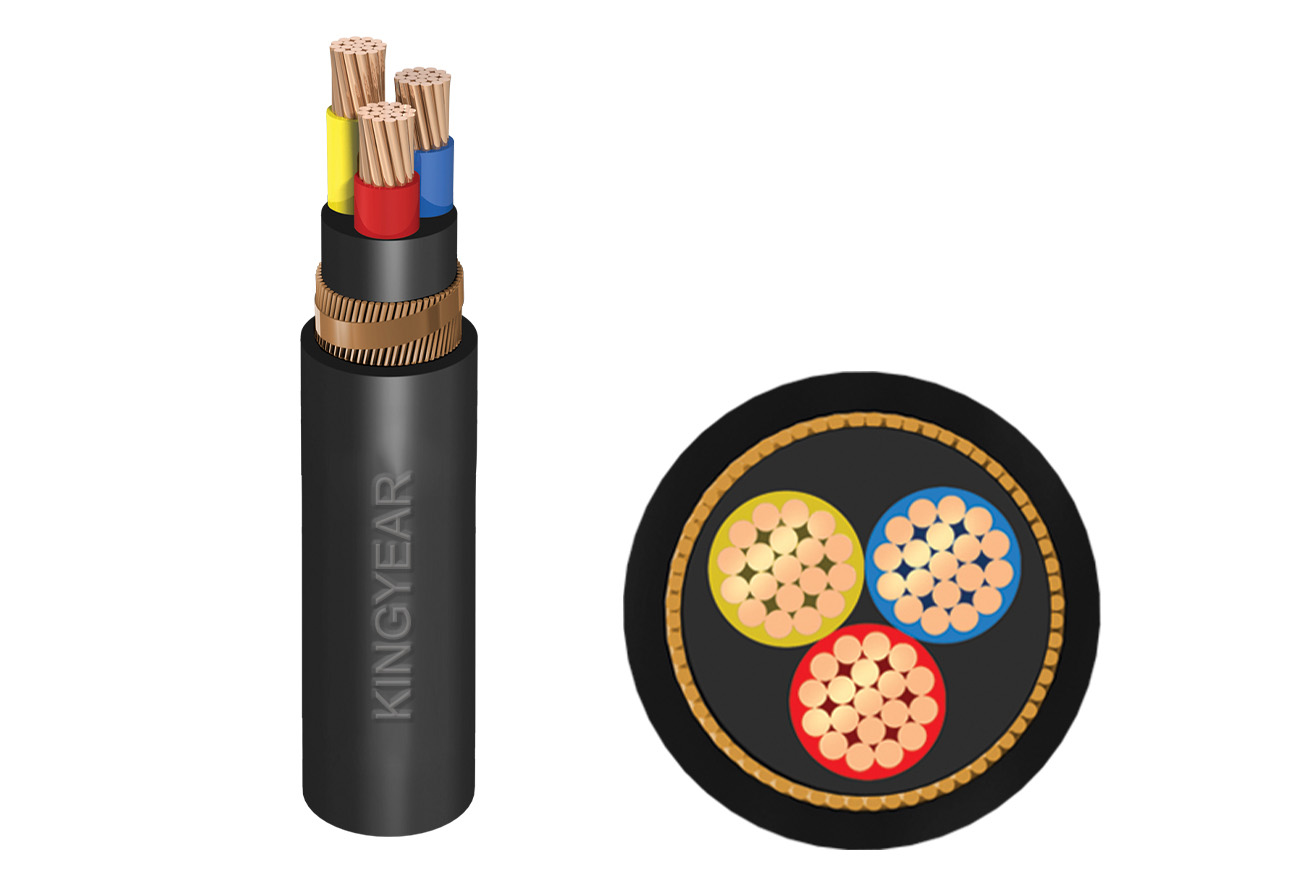

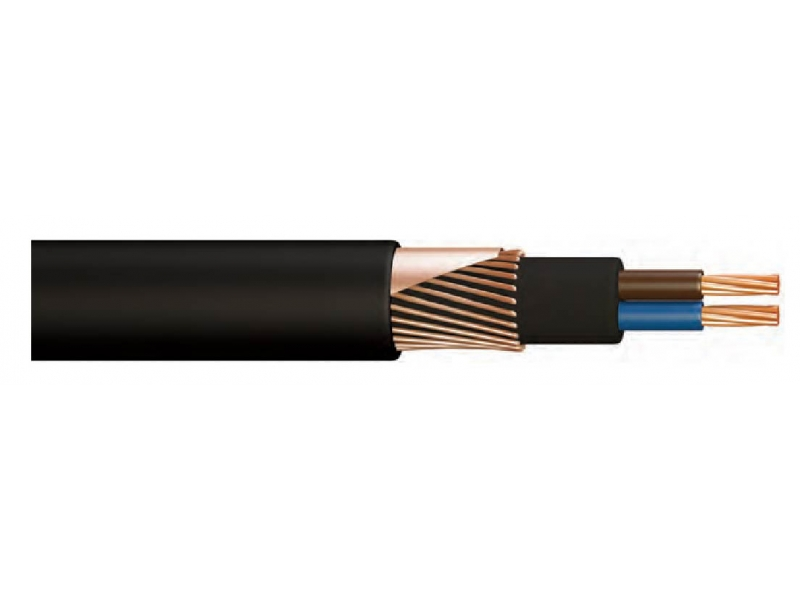

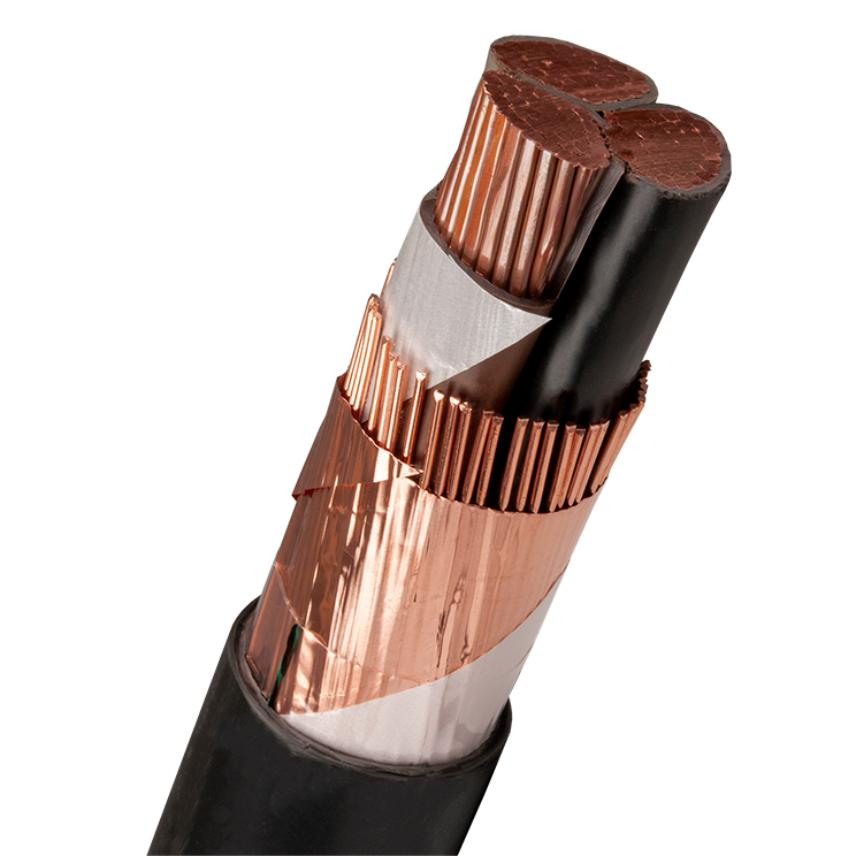

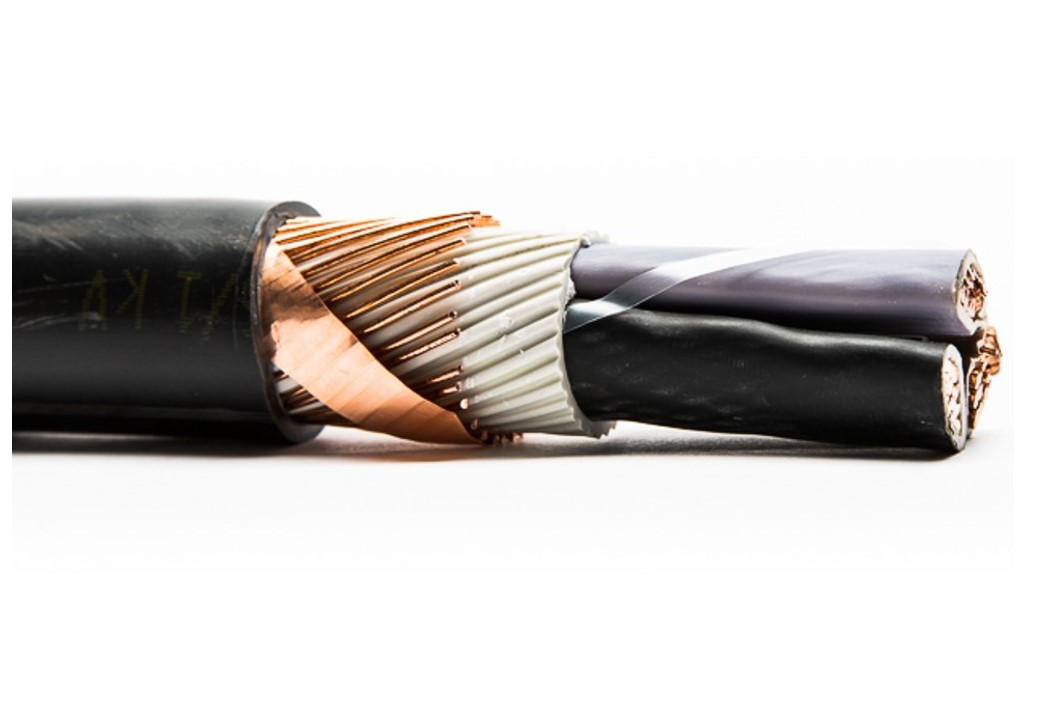

N2XCY Cable
Application：
The N2XCY cable is a versatile option for power distribution in various settings, such as industrial applications, urban networks, and household feeders. It is designed for installation in ground, indoors, cable trunking, and outdoors, making it a reliable choice for a range of scenarios.
Model No.：N2XCY Cable
Voltage：0.6/1kV
Conductor： Class 2 Stranded copper.
Insulation：XLPE (Cross-Linked Polyethylene).
Filler：PVC (Polyvinyl chloride).
Concentric Conductor：Copper.
Sheath：PVC (Polyvinyl chloride).
Brand：KINGYEAR
Standard：ASTM B-3, UL 44, UL 1650, CSA C22.2 No.96-17.
Place of Origin：China
Package：Exported Wooden Drum
Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment
Certification：ISO,CE and other certifications.
Production Capacity：30000m/week
Power distribution cables for industrial applications and switching systems, power stations, residental connections and street lighting, as well as control cables for transmitting control pulses and measurements. Wherever increased electrical and mechanical protection are required. For installation in underground, in water, outdoors, in concrete and cable ducts. Respecting the permissible operating temperature at the conductor of +90°C permits a higher current carrying capacity than PVC insulated power distribution cables. The concentric conductor (C) may be used as PE, PEN conductor or as a shield according to national regulations.
single wire acc. to DIN VDE 0295 cl.1 / IEC 60228 cl.1
multi wire acc. to DIN VDE 0295 cl.2 / IEC 60228 cl.2
Core insulation: cross linked polyethylene (XLPE), compound type DIX3 acc. to HD 603 S1
Core identification acc. to DIN VDE 0293-308
Cores stranded in concentric layers
Filling compound
Concentric conductor
inner layer of round bare copper wires,
outer layer of copper tape as counter helix
Outer sheath: PVC, compound type DMV6 acc. to HD 603 S1
Sheath colour: black
