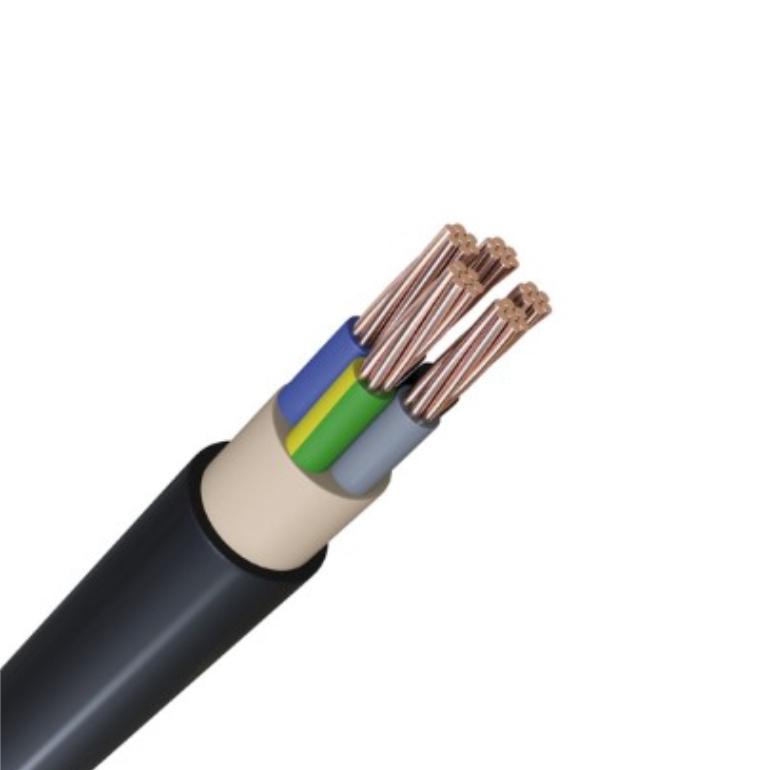

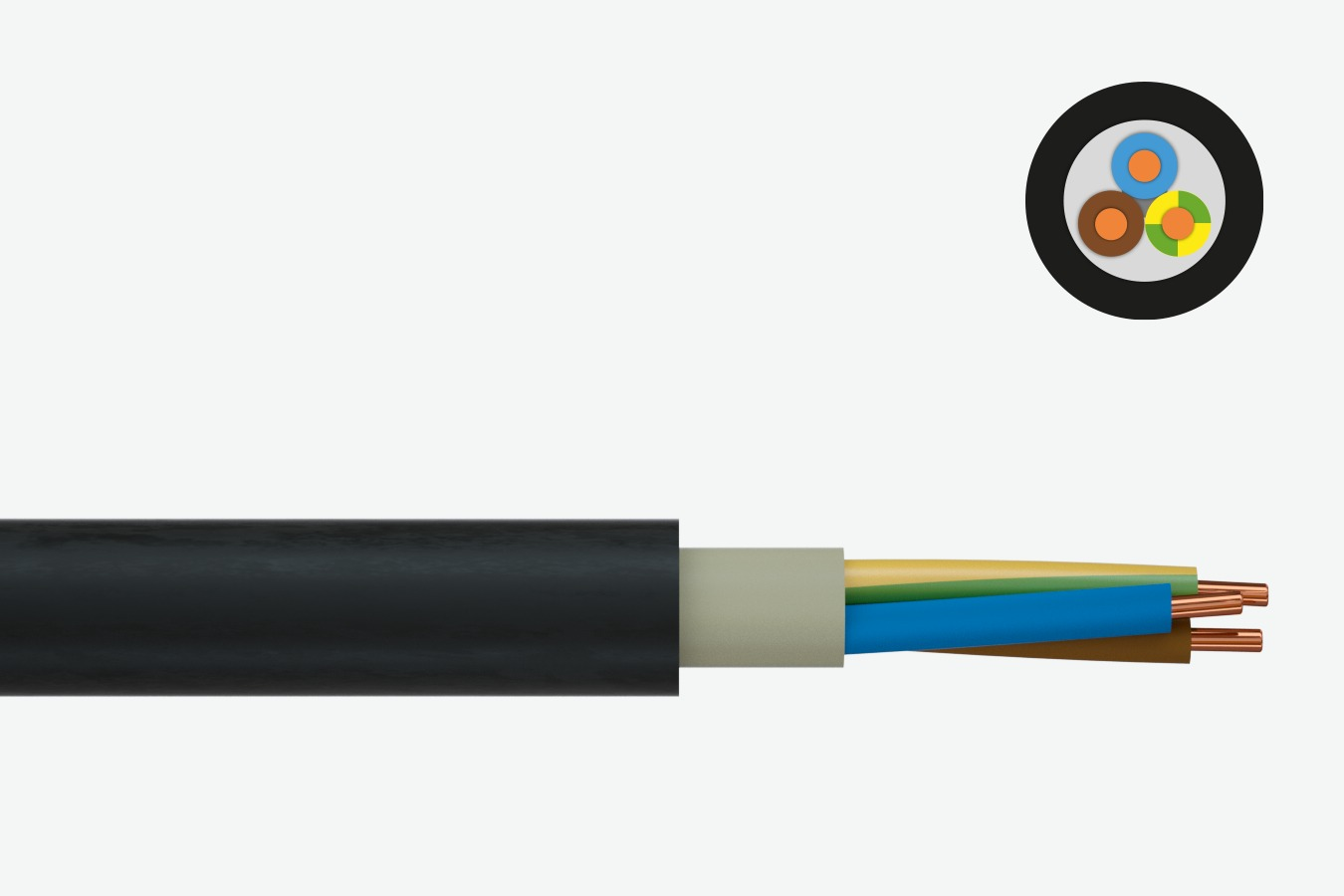

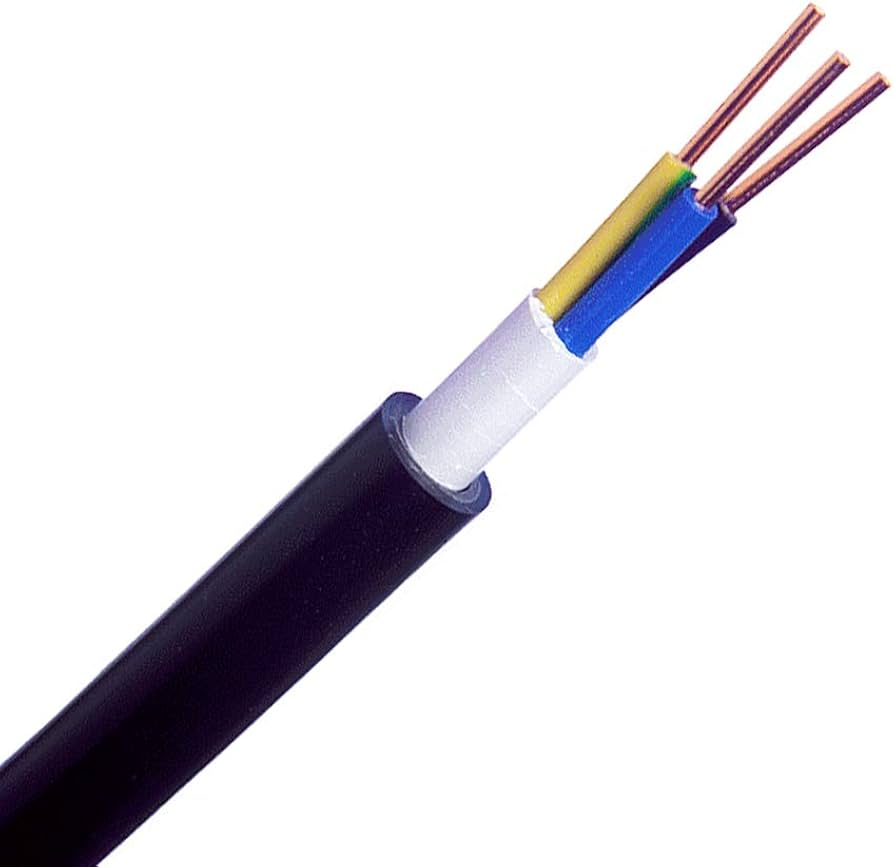

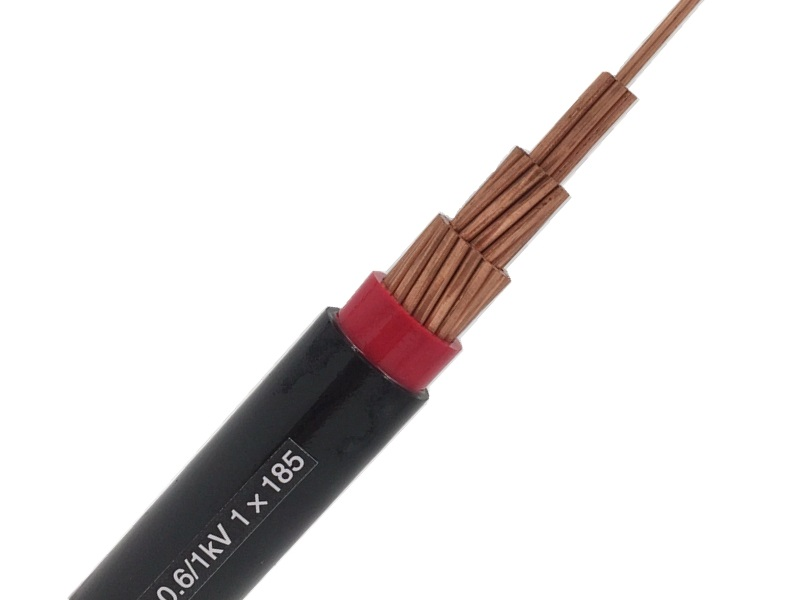

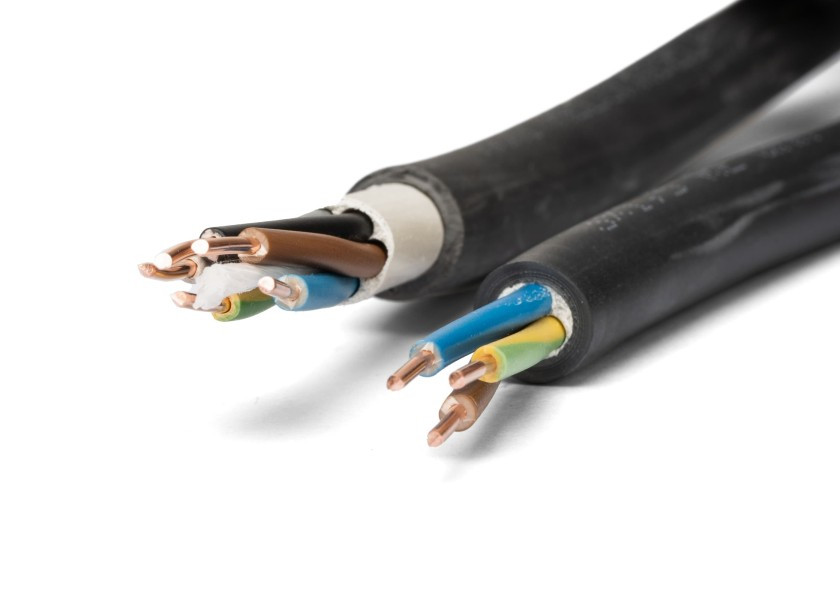

NYY-J & NYY-O PVC 0.6/1kV Power Cable
Application：
For installation exposed, or in raceway,dry location, or direct burial in ground.
Model No.：NYY-J & NYY-O Power Cable
Voltage: 0.6/1kV
Material：Copper/PVC/PVC
Brand：KINGYEAR
Standard：IEC 60502-1, VDE 0276-603, HD 603, IEC 60228 Flame retardant according to IEC/EN 60332-1-2
Place of Origin：China
Package：Exported Wooden Drum
Range of Application：Ground
Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment
Certification：ISO,CE and other certifications.
Production Capacity：30000m/week
Construction
1. Conductor : Circular stranded copper
2. Insulation : Cross-linked polyethylene (XLPE)
3.Inner sheath: Polyvinyl chloride (PVC)
4.Armor:Steel Wire Armor
5. Outer sheath : Polyvinyl chloride (PVC),
The armour provides additional protection where mechanical stress has the potential to cause damage to the cable, such as direct burial, outdoors or underground. The armour also enables the cable to withstand higher pulling loads. It should be noted, however, that the armour provides no protection for climatic conditions.
Cables' range of armoured cable is available with a Copper (Cu) or Aluminium (Al) conductor and with a Polyvinyl Chloride (PVC) or Low Smoke Zero Halogen (LSZH) sheathing, LSZH sheathings are recommended for use in high density enclosed areas, and are mandatory in some public places.
Commonly known as SWA cable, the steel wire armoured cable is a power and auxiliary control cable, designed for use in mains supply electricity. Used for underground systems, cable networks, power networks, outdoor and indoor applications, and cable ducting. The SWA cable can also be referred to mains cable, power cable, armoured cable and booklet-armoured cable. With copper wiring creating the perfect conductors for the core with a range of types such as 2 core, 3 core and 5 core SWA Cables to name a few.
