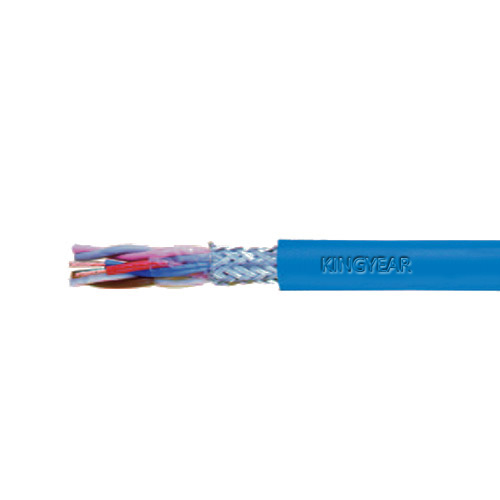

OB-BL-PAAR-CY Cable
Application：
Used for flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control. For explosion-endangered areas marked as intrinsically safe (blue) (ignition protection type -i-) flexible control or measurement cable for intrinsically safe systems in measurement and control technology. These systems are not earthed and have a separate power circuit. These cables are not suitable for burial in the ground. The screening guarantees an exact data transmission. EMC= Electromagnetic Compatibility; in order to optimise EMC properties, we recommend a double-sided and all-round large contact area of the copper braiding.
Model No.：OB-BL-PAAR-CY Cable
Conductor：Copper
Insulation：PVC
Conductor：NGYEA
Wrapping：Foil
Screen：Braided screen of tinned copper wires, approx. coverage 85%
Outer sheath：PVC
Voltage：900V
Brand：KINGYEAR
Standard：IEC/GBT/ASTM/EN/BS and so on
Place of Origin：China
Package：Exported Wooden Drum
Range of Application：Control Cable
Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment
Certification：ISO,CE and other certifications.
Production Capacity：30000m/week
• Special PVC control cable with blue outer sheath for hazardous areas to hazard type -i- for intrinsically safe installation acc. to DIN EN 60079-14 and IEC 60079-14 section 12.2.2. (VDE 0165 part 1)

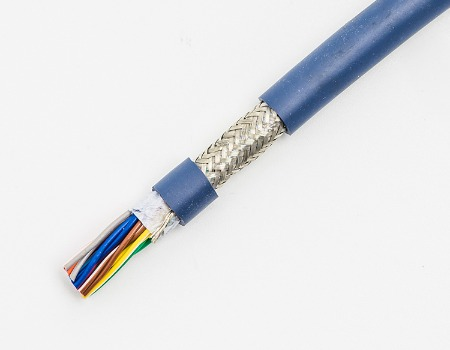

Cable Structure:
• Bare copper-conductor, to DIN VDE 0295 cl.5, fine-wire, BS 6360 cl.5, IEC 60228 cl.5
• Core insulation special PVC compound type TI2 to DIN VDE 0207-363-3 / DIN EN 50363-3
• Core identification (pair) to DIN 47100
• Cores twisted in pairs
• Pairs stranded in layers with optimal lay-length
• Separating foil
• Tinned copper braided screen, approx. 85% coverage
• Outer sheath of special PVC compound type TM2 to DIN VDE 0207-363-4-1/DIN EN 50363-4-1
• Sheath colour blue (RAL 5015)
• With meter marking
KINGYEAR from 2013-2018 are mainly for domestic trading and processing to some export trading companies. The average sales amount are about RMB 320,000,000 per year. For cables oversea market, From last may till now we have expanded our market to Bolivia, Peru, Dominican, Philippines, Vietnam, Thailand, Iraq, Mongolia, Indonesia and some Africa country. With total sales amount over USD10,000,000.
Advantage
FAQ
| awg-no. | no.cores x cross-sec.mm² |
weight app. kg / km |
helukabel part number |
| 20 | 2 X 2 X 0,5 | 89,0 | 14077 |
| 20 | 3 X 2 X 0,5 | 104,0 | 14078 |
| 20 | 4 X 2 X 0,5 | 126,0 | 14079 |
| 20 | 6 X 2 X 0,5 | 171,0 | 14080 |
| 20 | 8 X 2 X 0,5 | 251,0 | 14081 |
| 20 | 10 X 2 X 0,5 | 282,0 | 14082 |
| 20 | 12 X 2 X 0,5 | 261,0 | 14083 |
| 20 | 16 X 2 X 0,5 | 445,0 | 14084 |
| 20 | 20 X 2 X 0,5 | 525,0 | 14085 |
| 20 | 24 X 2 X 0,5 | 590,0 | 14086 |
| 20 | 25 X 2 X 0,5 | 622,0 | 14087 |
| 19 | 2 X 2 X 0,75 | 105,0 | 14089 |
| 19 | 3 X 2 X 0,75 | 128,0 | 14090 |
| 19 | 4 X 2 X 0,75 | 156,0 | 14091 |
| 19 | 6 X 2 X 0,75 | 216,0 | 14092 |
| 19 | 8 X 2 X 0,75 | 309,0 | 14093 |
| 19 | 10 X 2 X 0,75 | 355,0 | 14094 |
| 19 | 12 X 2 X 0,75 | 405,0 | 14095 |
| 19 | 16 X 2 X 0,75 | 560,0 | 14096 |
| 19 | 20 X 2 X 0,75 | 671,0 | 14097 |
| 19 | 24 X 2 X 0,75 | 795,0 | 14098 |
| 19 | 25 X 2 X 0,75 | 803,0 | 14099 |
