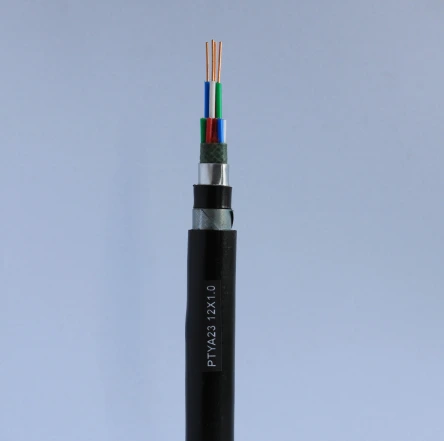

PTYA23 Railway Signal Cable - KINGYEAR
Application：
It is suitable for the control circuit of transmission railway signal, audio signal or automatic signal device with rated voltage of 500V or 1000V DC. The railway signal cable with comprehensive sheath and aluminum sheath has certain shielding performance, which is suitable for laying in electrified section or other areas with strong electric interference.
Model No.：PTYA23 Railway Signal Cable
Conductor：Copper
Brand：KINGYEAR
Standard：IEC/GBT/ASTM/EN/BS and so on
Place of Origin：China
Package：Exported Wooden Drum
Range of Application：Railway Signal Cable
Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment
Certification：ISO,CE and other certifications.
Production Capacity：30000m/week
Usage features
1. The ambient temperature of cable is - 40 ℃ ~ + 60 ℃
2. The long-term working temperature of cable conductor shall not exceed + 70 ℃.
3. The ambient temperature of cable laying: PVC outer sheath cable should not be lower than 0 ℃; PE outer sheath cable should not be lower than - 20 ℃.
4. Allowable bending radius of cable: non armored cable shall not be less than 10 times of cable outer diameter; armored cable shall not be less than 15 times of cable outer diameter.
5. The ideal shielding coefficient of railway signal cable with comprehensive sheath is less than 0.8, and that of aluminum sheath railway signal cable is not more than 0.3.
The delivery length of 500 m and above cables shall not be less than 50% of the total delivery length; the delivery length of 50 ~ 250 m short cable shall not exceed 5% of the total delivery length; the measurement error of cable length shall not exceed ± 0.5%. Delivery according to the length agreed by both parties.
Cable specification
(4 --- 61) core x 1.0mm2
Identification of signal cable type
1. According to the type of sheath, signal cable includes plastic sheath (pty03, pty23), comprehensive sheath (PTYA23, ptya22), aluminum sheath (ptyl23, ptyl22) signal cable;
2. The signal digital cable is divided into plastic sheath (sptyw03, sptyw23), comprehensive sheath (sptywa23) aluminum sheath (sptywl23), internal shielding (sptywp03 or sptywp23, sptywpa23, sptywpl23) digital signal cable.
SP digital signal cable
T-railway
YW - skin - Foam - Leather foamed polyethylene insulation
P-inner shield
L-aluminum sheath
A-composite sheath
23 double steel strip armored polyethylene outer sheath
03 polyethylene sheath
KINGYEAR from 2013-2018 are mainly for domestic trading and processing to some export trading companies. The average sales amount are about RMB 320,000,000 per year. For cables oversea market, From last may till now we have expanded our market to Bolivia, Peru, Dominican, Philippines, Vietnam, Thailand, Iraq, Mongolia, Indonesia and some Africa country. With total sales amount over USD10,000,000.
