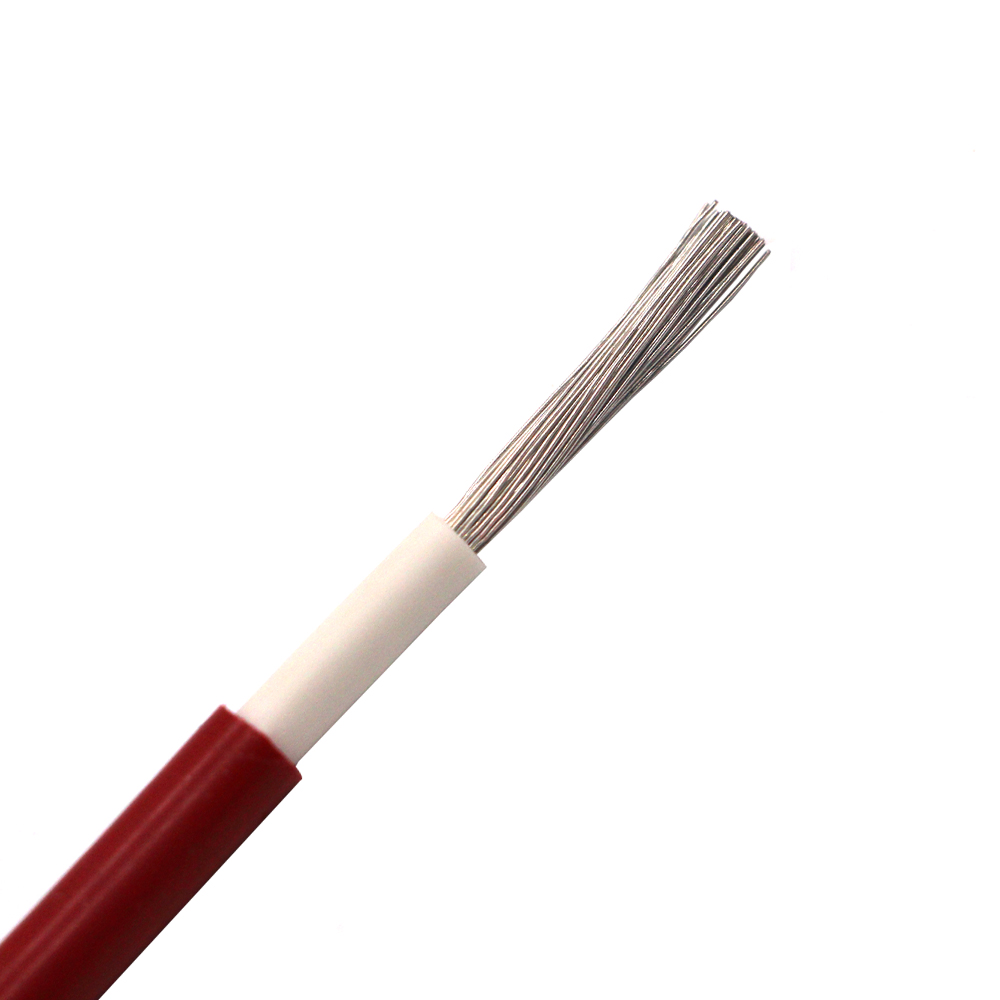

Solar wire/PV wire

Application：

Specifically designed for connecting photovoltaic system components inside and outside of building and equipment with high mechanical requirements and extreme weather conditions .For permanent installations.

Model No.：Solar wire/PV wire

Material：Tinned Copper/HDPE/HDPE

Brand：KINGYEAR

Standard：ASTM/IEC/AS/GBT/BS

Place of Origin：China

Package：Exported Wooden Drum or soft roll

Range of Application：indoor

Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment

Certification：ISO,CE and other certifications.

Production Capacity：30000m/week

Inquiry

Write a Review

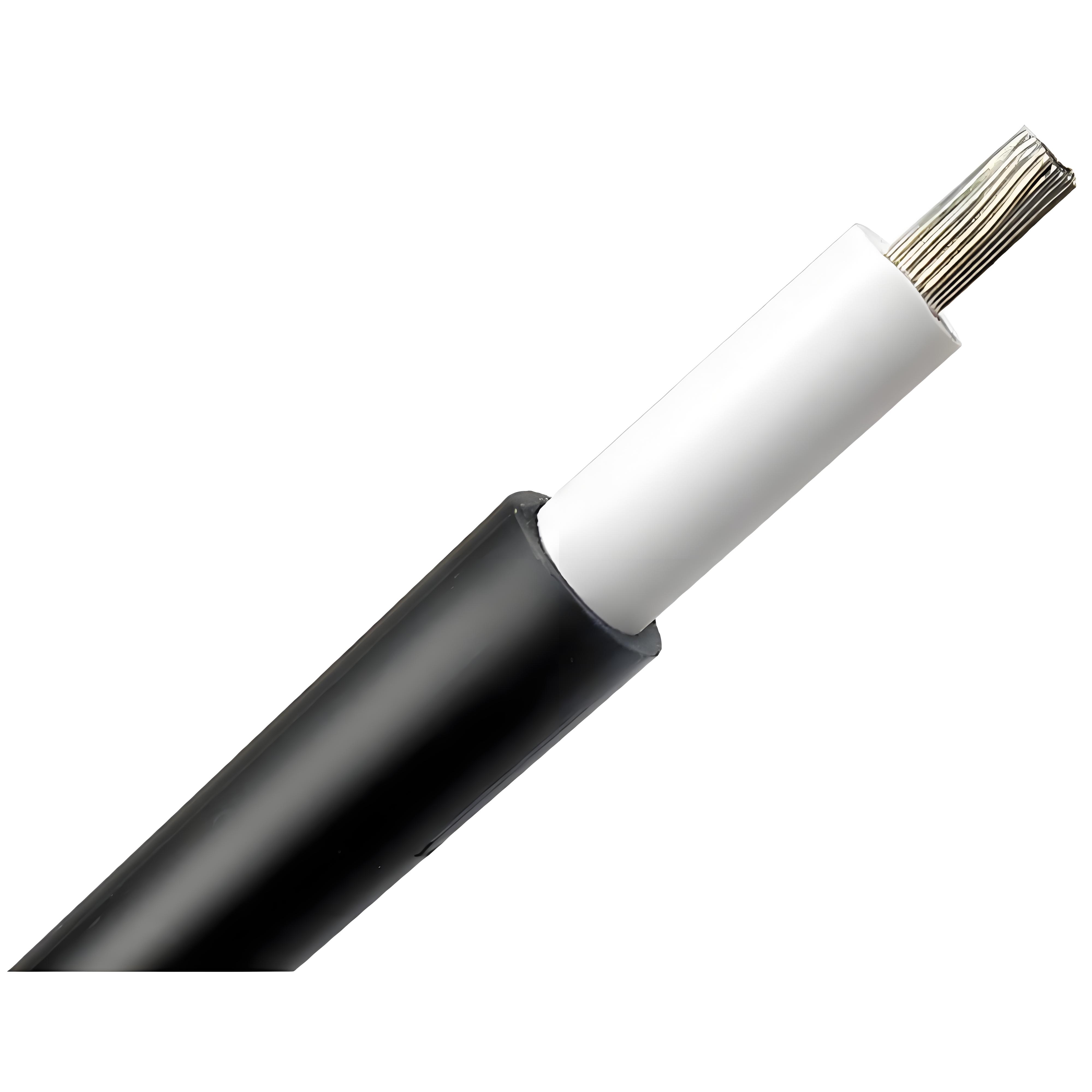

Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone, UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free , flame retardant; flexible, easy to strip, very low space requirement, extremely, extremely mechanically robust, very long lifetime.

Photovoltaic solar (PV) cables are intended for interconnecting power supplies within renewable energy photovoltaic systems such as solar panel arrays in solar energy farms. PV cables are manufactured in accordance with standard BS EN 50618 and are suitable for fixed installations, internal and external with conduit or systems, but not for direct burial applications.

The key advantages of PV cables compared to normal electrical cables include:

1-UV Resistant: PV cables are typically designed to withstand prolonged exposure to sunlight without degradation, as they are installed outdoors in solar installations.

2-Weatherproof: PV cables are constructed to be weatherproof, designed to withstand harsh environmental factors such as moisture, rain, and extreme temperatures.

3-Flexibility: PV cables are often designed to be flexible to facilitate installation and routing around corners and obstacles in the PV system.

4-High-Temperature Rating: PV cables are engineered to withstand high temperatures generated by sunlight and the electrical currents passing through them.

5-Insulation: PV cables are insulated to protect against electrical shock and short circuits. The insulation material used is usually cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR) to provide electrical insulation and resistance to heat and weathering.

6-Low Smoke Zero Halogen (LSZH): Depending on the PV cables, most are manufactured with LSZH insulation and sheathing materials to lessen the emissions of toxic gasses and smoke in the event of a fire, making them safer for indoor installations or heavily populated areas.

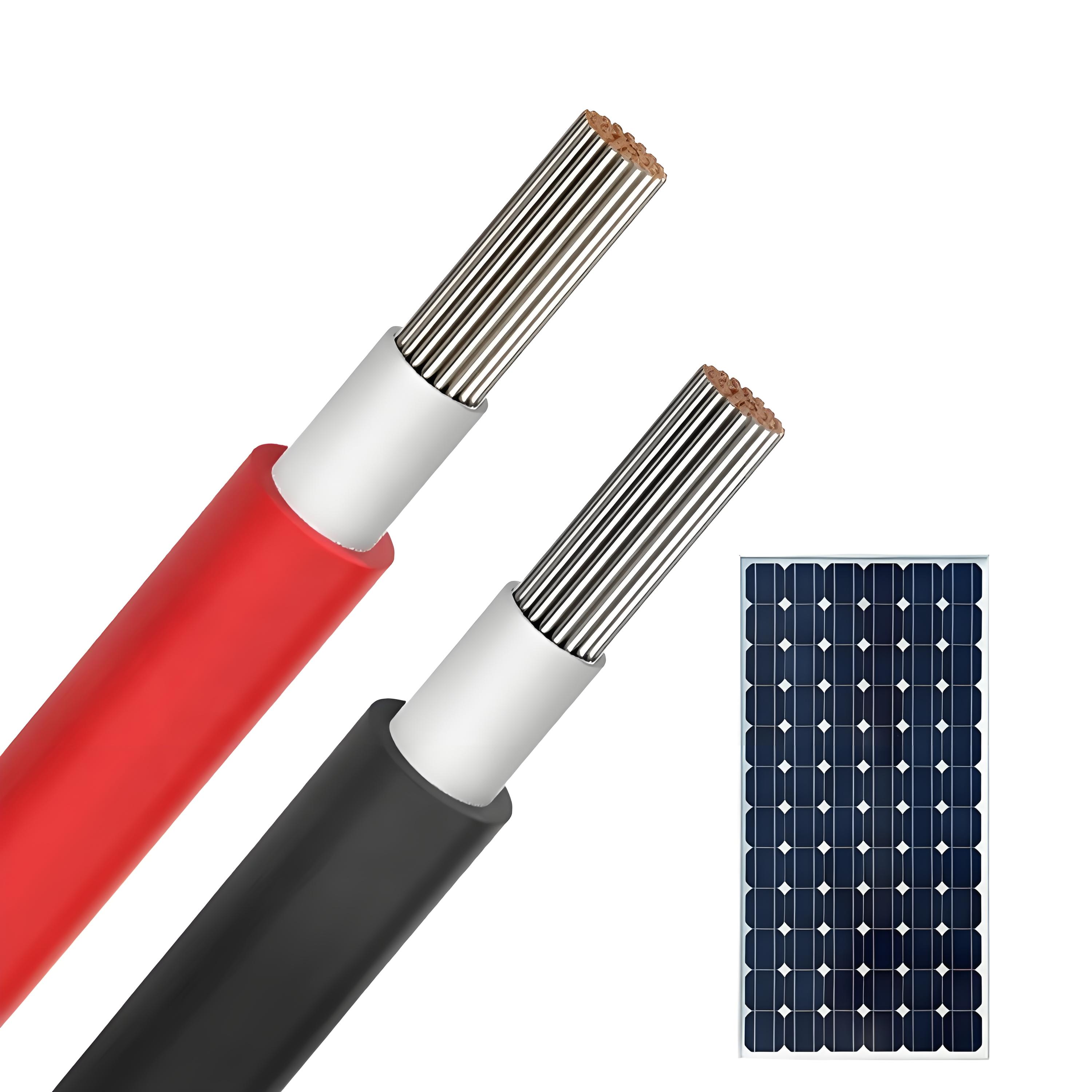

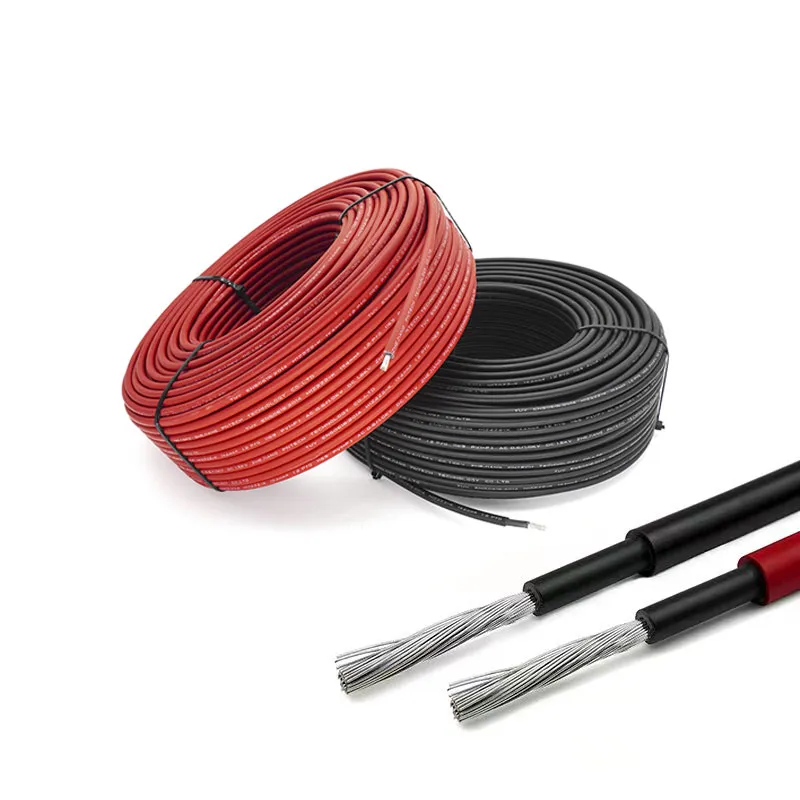

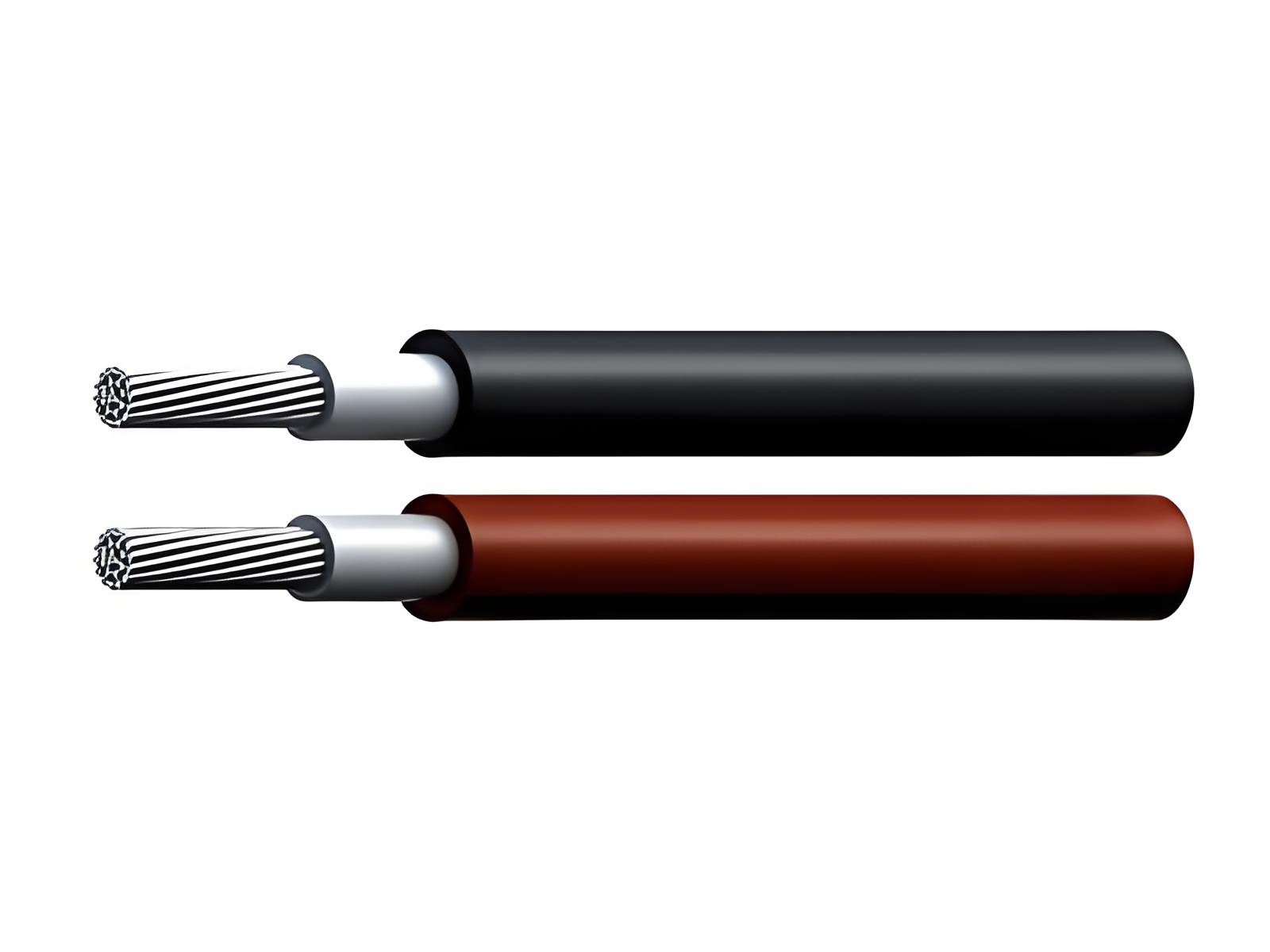

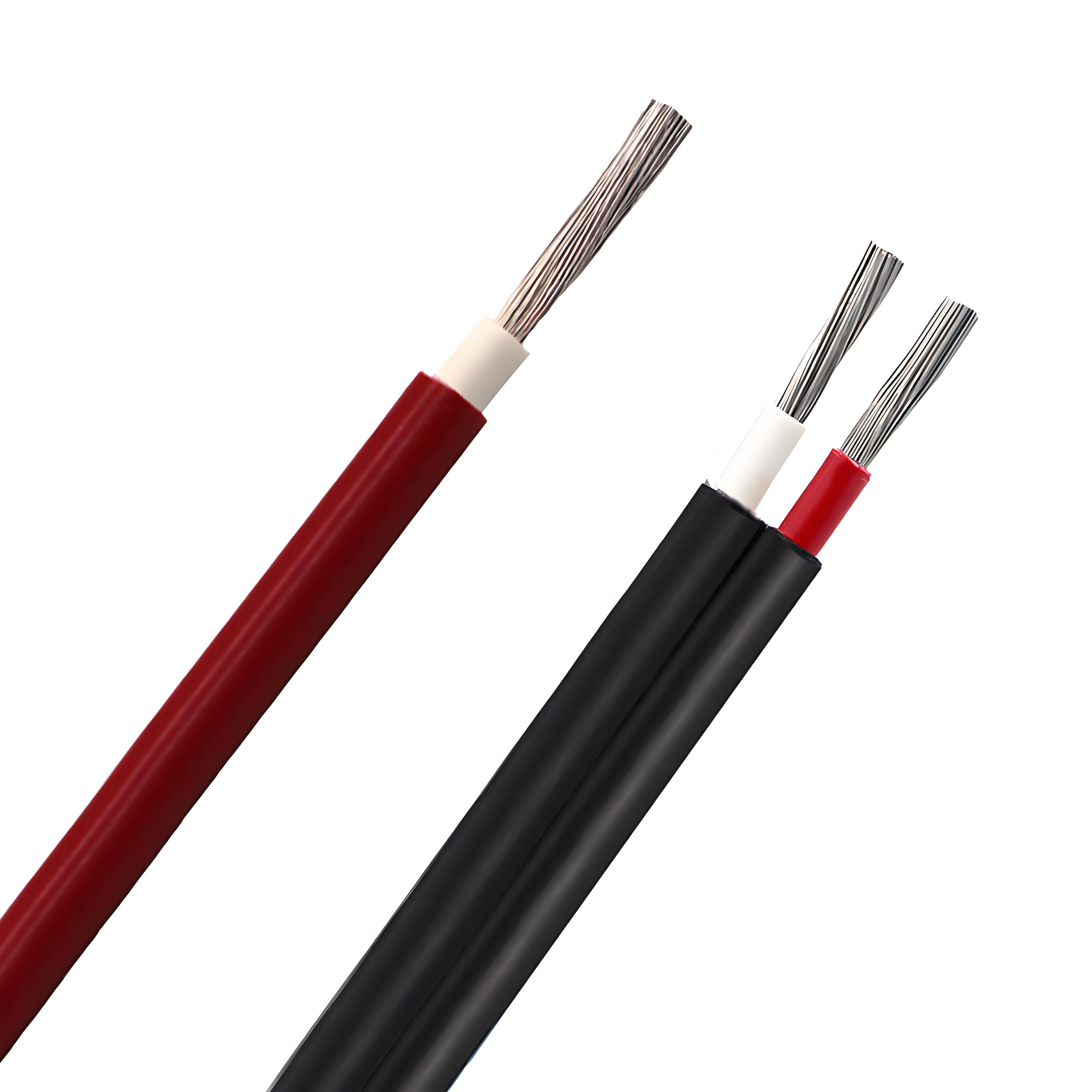

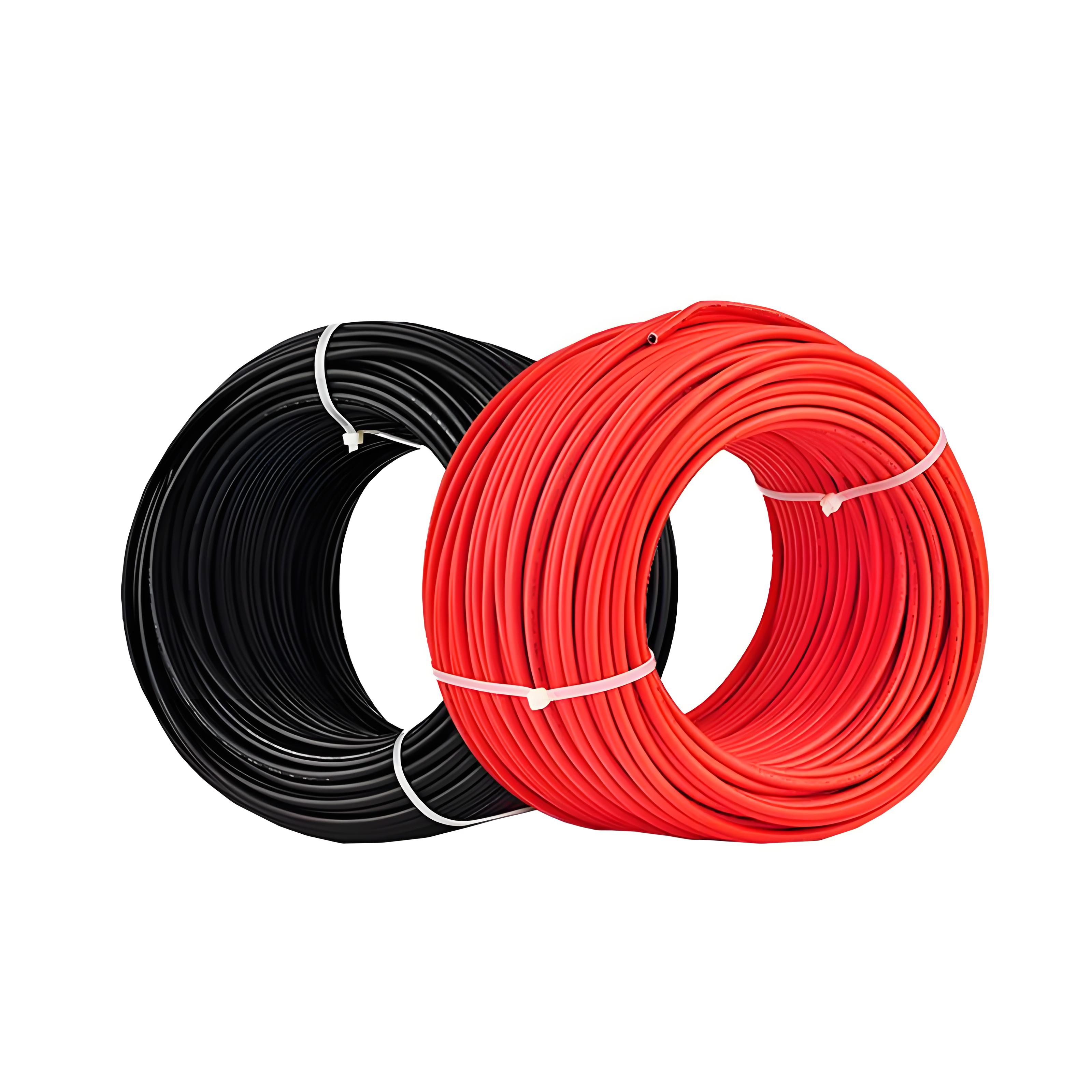

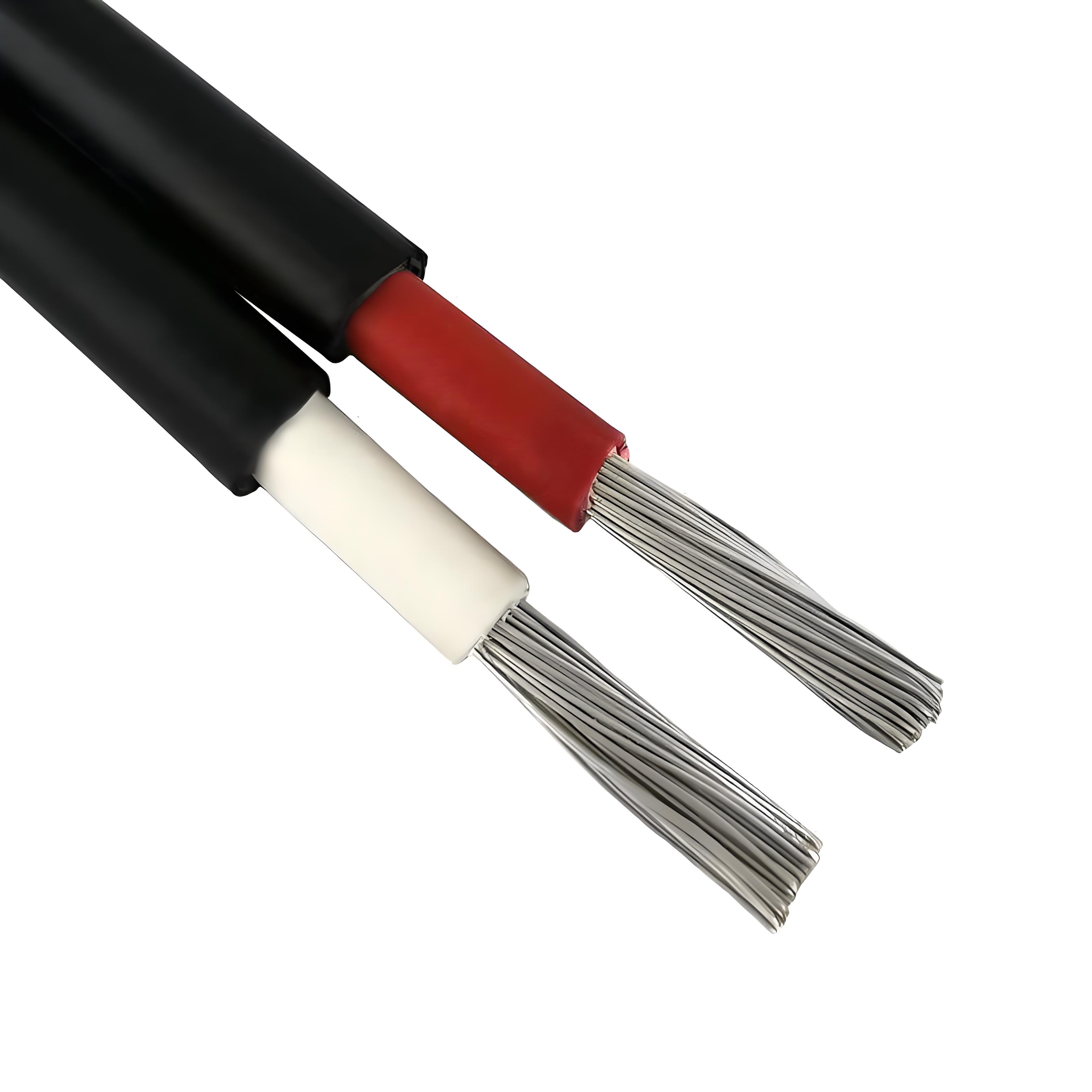

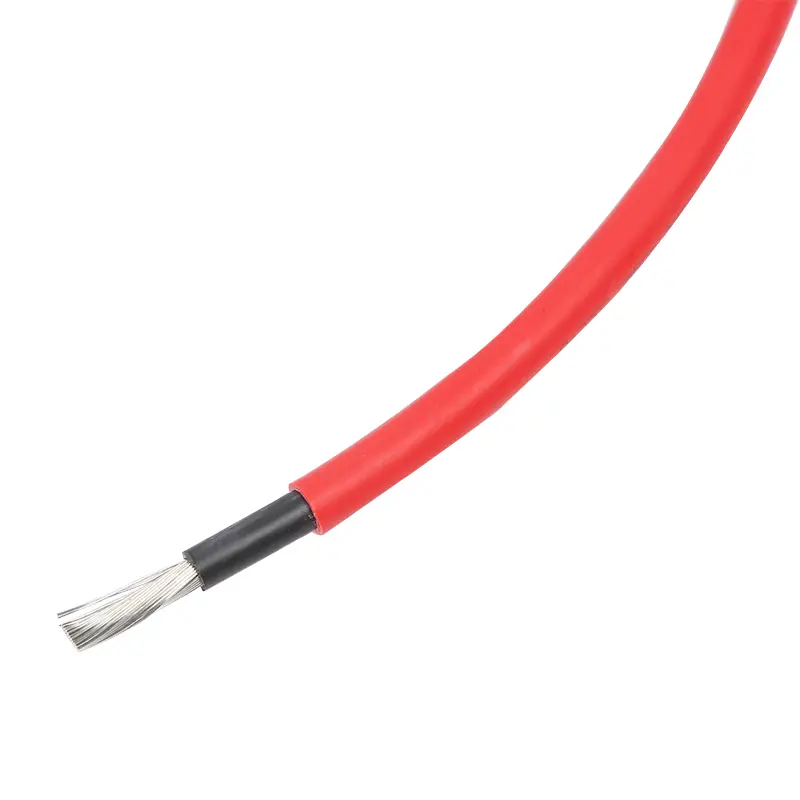

PV cables are also color-coded for easy identification (red for positive (+), black for negative (-)). These features are crucial for ensuring the safety and efficiency of solar power systems.

KINGYEAR from 2013-2018 are mainly for domestic trading and processing to some export trading companies. The average sales amount are about RMB 320,000,000 per year. For cables oversea market, From last may till now we have expanded our market to Bolivia, Peru, Dominican, Philippines, Vietnam, Thailand, Iraq, Mongolia, Indonesia and some Africa country. With total sales amount over USD10,000,000.

Specifications

AAC - BS 215

Code Name	Nominal Aluminum Area	Stranding and Wire Diameter	Sectional Area	Approximate Overall Diameter	Linear Mass	Calculated Breaking Load	Calculated D.C. Resistance at 20 ℃	Current Rating
Code Name	mm 2	mm	mm 2	mm	kg/km	daN	Ω/km	A
Midge	22	7/2.06	23.33	6.18	64	399	1.227	114
Aphis	25	7/3.35	26.4	7.2	73	411	1.081	134
Gnat	25	7/2.21	26.8	6.6	73	459	1.066	135
Weevil	30	3/3.66	31.6	7.9	86	486	0.9082	163
Mosquito	35	7/2.59	37	7.8	101	603	0.7762	188
Ladybird	40	7/2.79	42.8	8.4	117	687	0.6689	210
Ant	50	7/3.10	52.83	9.3	145	828	0.5419	181
Fly	60	7/3.40	63.55	10.2	174	990	0.4505	199
Bluebottle	70	7/3.66	73.7	11	202	1134	0.3881	228
Earwig	75	7/3.78	78.5	11.4	215	1194	0.3644	242
Grasshopper	80	7/3.91	84.1	11.7	230	1278	0.3406	251
Clegg	90	7/4.17	95.6	12.5	262	1453	0.2994	285
Beetle	100	19/2.67	106	13.4	293	1742	0.2704	295
Wasp	100	7/4.39	106	13.17	290	1600	0.2702	271
Bee	125	7/4.90	132	14.7	361	1994	0.2169	330
Cricket	150	7/5.36	157.9	16.1	432	2385	0.1818	395
Hornet	150	19/3.25	157.6	16.25	434	2570	0.1825	346
Caterpillar	175	19/3.53	186	17.7	512	2863	0.1547	410
Chafer	200	19/3.78	213.2	18.9	587	3240	0.1349	414
Spider	225	19/3.99	236.9	20	652	3601	0.1211	462
Cockroach	250	19/4.22	265.7	21.1	731	4040	0.1083	470
Butterfly	300	19/4.65	322.7	23.25	888	4875	0.08916	528
Drone	350	37/3.58	373.3	25.1	1029	5745	0.07741	612
Moth	350	19/5.00	373.2	25	1027	5637	0.07711	612
Centipede	400	37/3.78	415.2	26.46	1145	6310	0.06944	619
Locust	400	19/5.36	428.5	26.8	1179	6473	0.0671	656
Maybug	450	37/4.09	486.9	28.6	1342	7401	0.05931	729
Scorpion	500	37/4.27	529.5	29.9	1460	7998	0.05441	790
Cicada	600	37/4.65	628.6	32.6	1733	9495	0.04588	940
Tarantula	750	37/5.23	794.6	36.6	2191	12010	0.03627	1150

DIN-48201

Nominal Area		Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
Nominal	Teorical	Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
mm^2	mm^2	No.×mm	mm	kg/km	KN	Ω/Km	A
16	15.89	7/1.70	5.1	43	2.84	1.8022	83
25	24.25	7/2.10	6.3	66	4.17	1.181	108
35	34.36	7/2.50	7.5	94	5.78	0.8333	134
50	49.48	7/3.00	9	135	7.94	0.5787	168
50	48.35	19/1.80	9	133	8.45	0.5951	166
70	65.81	19/2.10	10.5	181	11.32	0.4372	200
95	93.27	19/2.50	12.5	256	15.68	0.3085	248
120	116.99	19/2.80	14	322	18.78	0.2459	285
150	147.11	37/2.25	15.8	406	25.3	0.196	328
185	181.62	37/2.50	17.5	500	30.54	0.1588	373
240	242.54	61/2.25	20.3	670	39.51	0.1191	445
300	299.43	61/2.50	22.5	827	47.7	0.0965	506
400	400.14	61/2.89	26	1104	60.86	0.0722	602
500	499.83	61/3.23	29.1	1379	74.67	0.0578	688
625	626.2	91/2.96	32.6	1732	95.25	0.0462	786
800	802.09	91/3.35	36.9	2218	118.39	0.036	907
1000	999.71	91/3.74	41.1	2767	145.76	0.0289	1026

IEC 61089

Code	Nominal Area	Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
Code	mm^2	No.×mm	mm	kg/km	KN	Ω/Km	A
10	10	7/1.35	4.05	27.4	1.95	2.8633	62
16	16	7/1.71	5.13	43.8	3.04	1.7896	84
25	25	7/2.13	6.39	68.4	4.5	1.1453	110
40	40	7/2.70	8.1	109.4	6.8	0.7158	147
63	63	7/3.39	10.17	172.3	10.39	0.4545	195
100	100	19/2.59	12.95	274.8	17	0.2877	259
125	125	19/2.89	14.45	343.6	21.25	0.2302	297
160	160	19/3.27	16.35	439.8	26.4	0.1798	345
200	200	19/3.66	18.3	549.7	32	0.1439	396
250	250	19/4.09	20.45	687.1	40	0.1151	454
315	315	37/3.29	23.03	867.9	51.97	0.0916	522
400	400	37/3.71	25.97	1102	64	0.0721	603
450	450	37/3.94	27.58	1239.8	72	0.0641	647
500	500	37/4.15	29.05	1377.6	80	0.0577	688
560	560	37/4.39	30.73	1542.9	89.6	0.0515	736
630	630	61/3.63	32.67	1738.3	100.8	0.0458	789
710	710	61/3.85	34.65	1959.1	113.6	0.0407	845
800	800	61/4.09	36.81	2207.4	128	0.0361	905
900	900	61/4.33	38.97	2483.3	144	0.0321	967
1000	1000	61/4.57	41.13	2759.2	160	0.0289	1026
1120	1120	91/3.96	43.56	3093.5	179.2	0.0258	1091
1250	1250	91/4.18	45.98	3452.6	200	0.0231	1157
1400	1400	91/4.43	48.73	3866.9	224	0.0207	1226
1500	1500	91/4.58	50.38	4143.1	240	0.0193	1270
