Teck 90 Cable 600V
Application：

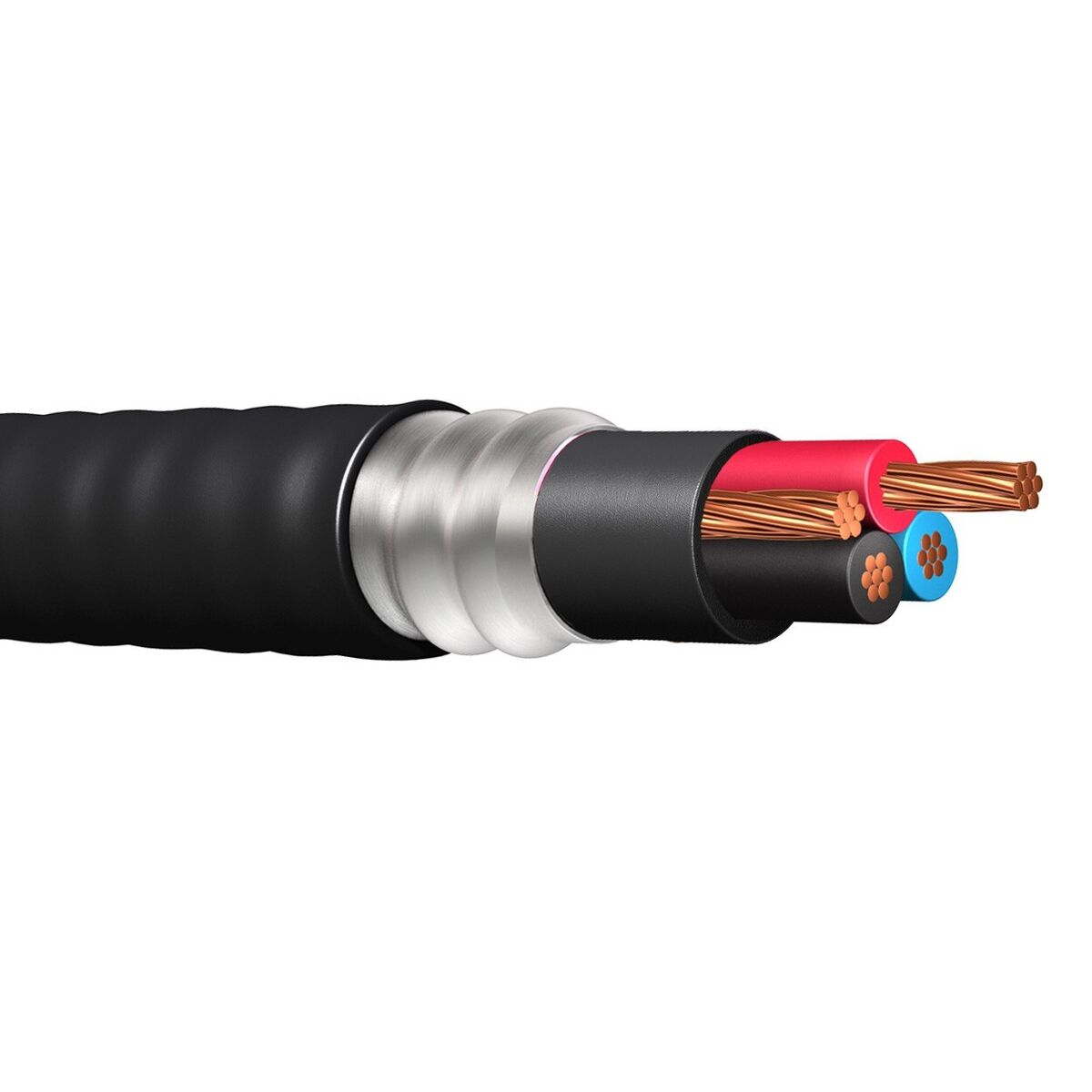

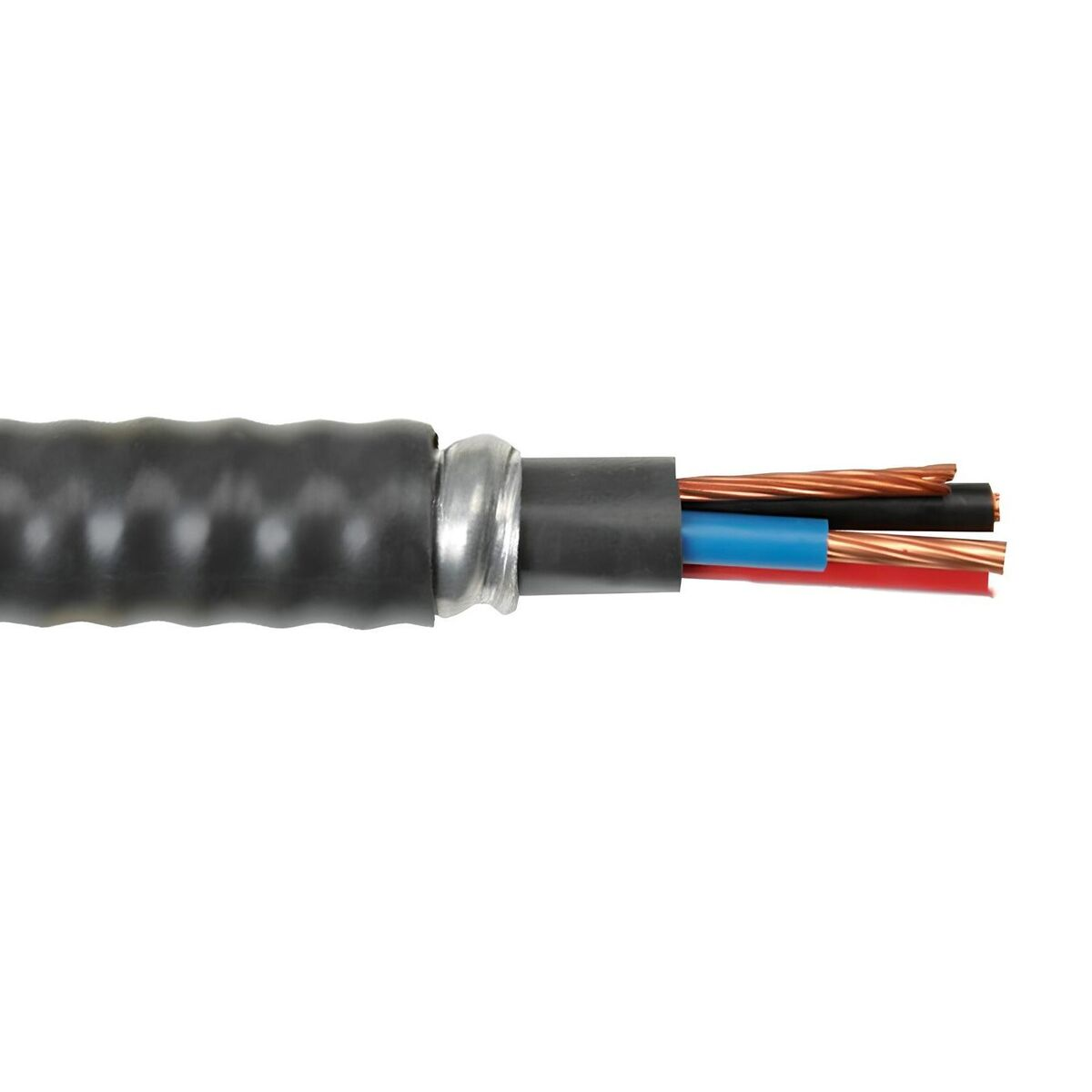

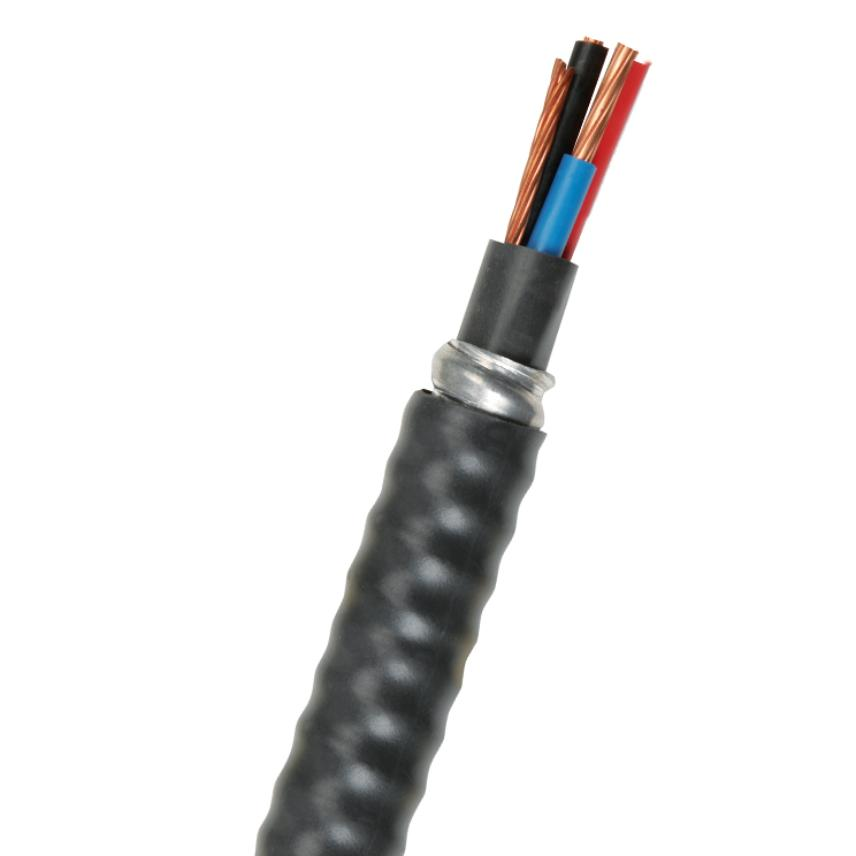

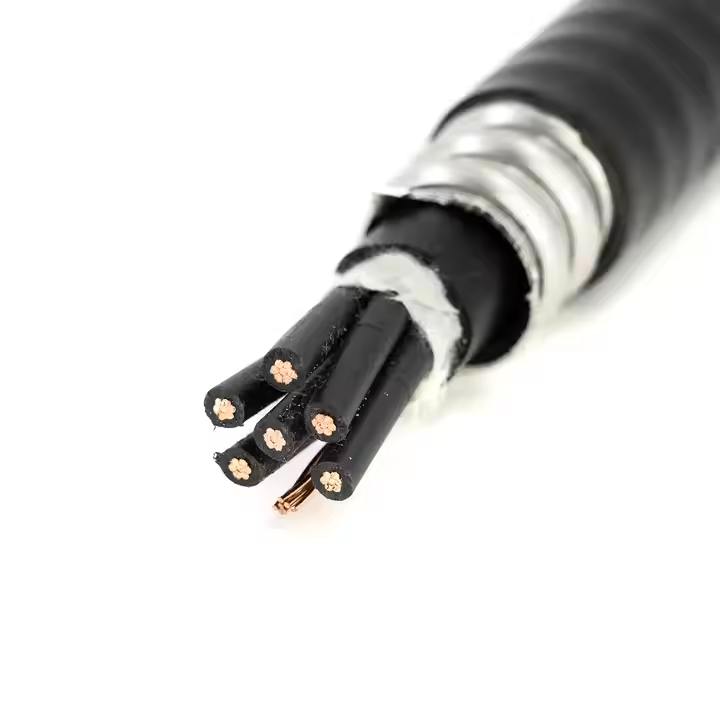

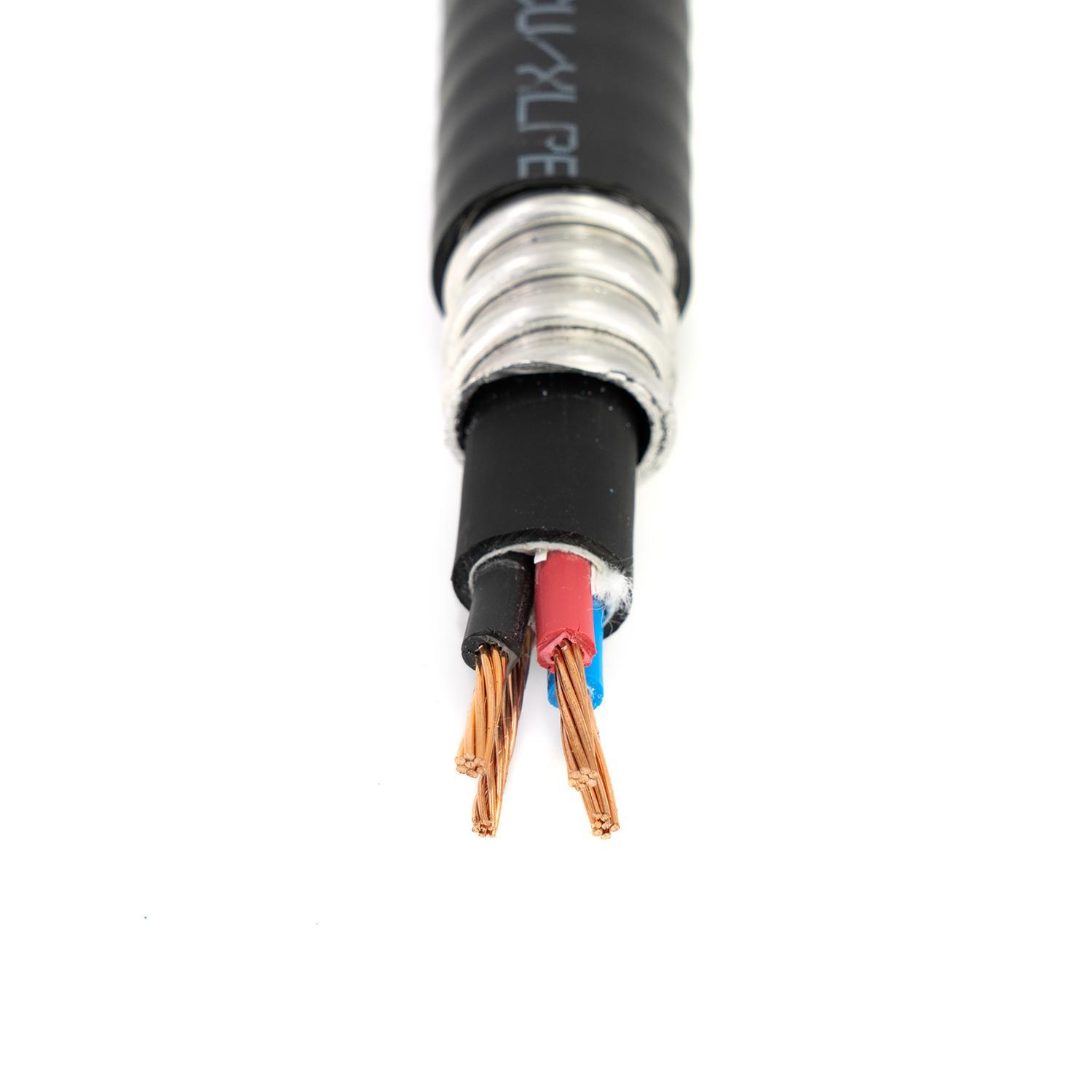

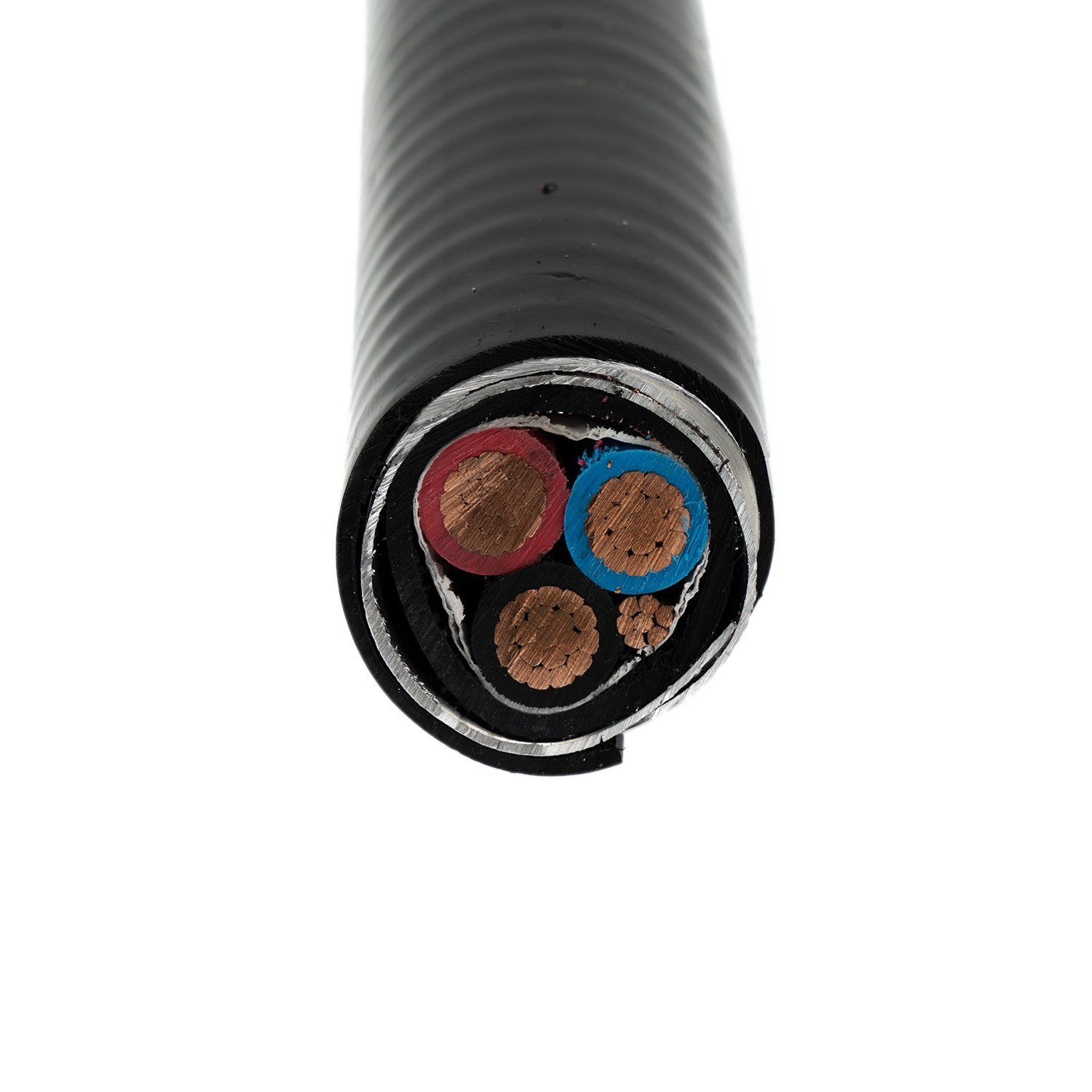

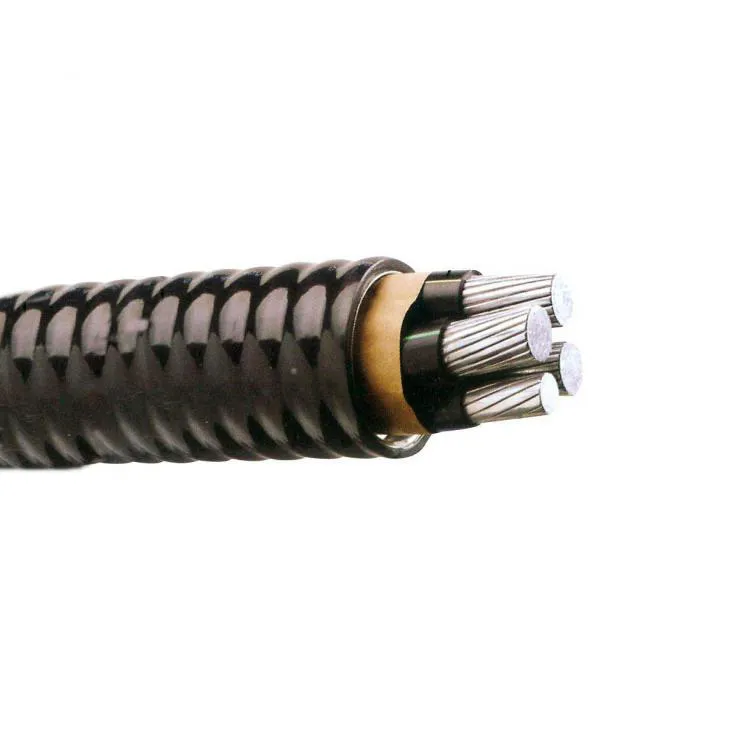

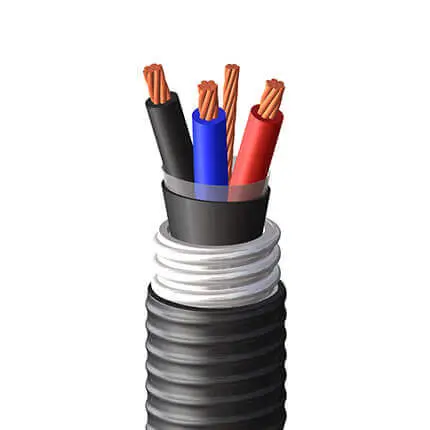

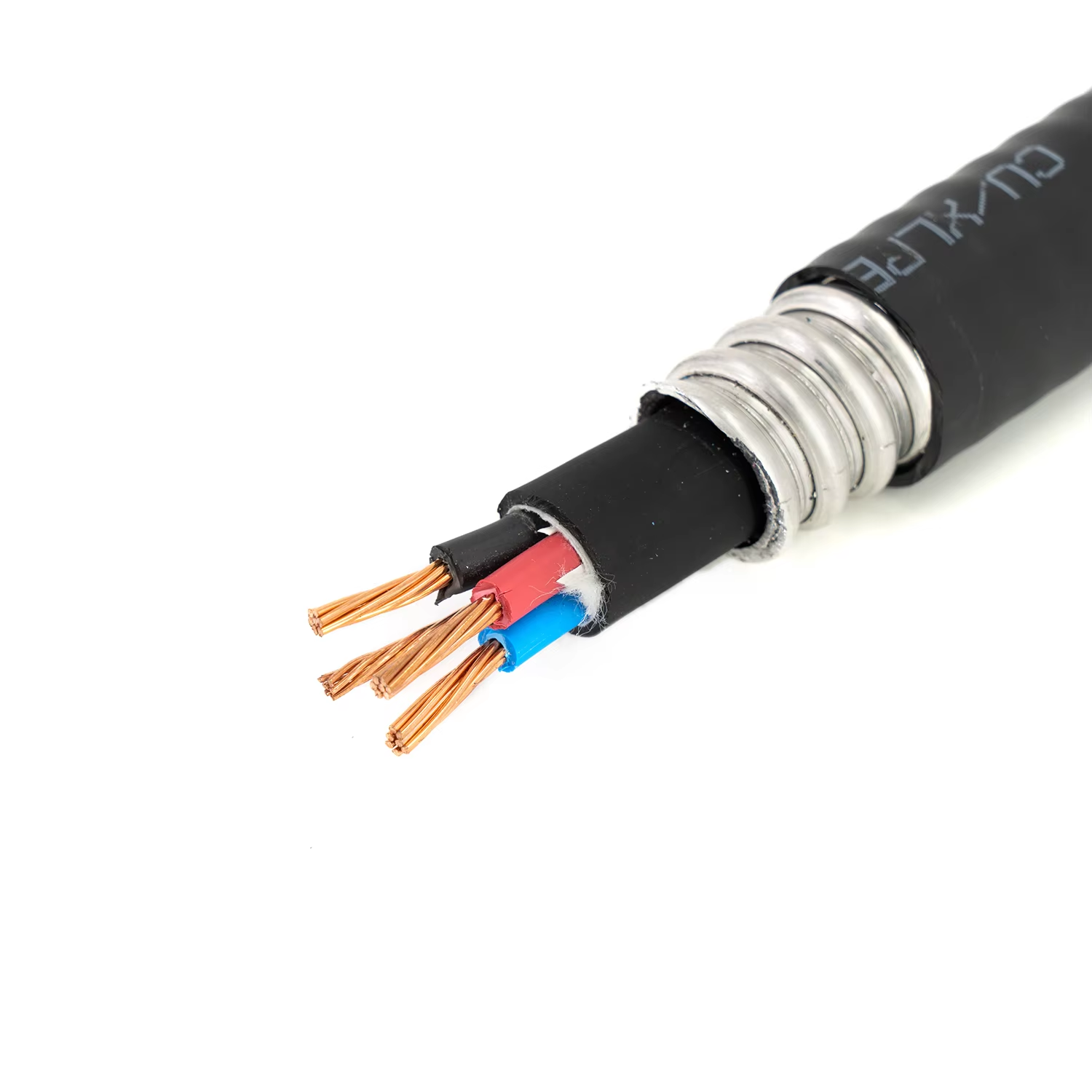

The insulated conductors are made with cross-linked polyethylene and twisted with an uninsulated ground wire. The twisted core is covered with a PVC jacket, then covered with either interlocked aluminum or galvanized steel, and covered with a PVC jacket over the armour.
Model No.：Teck 90 Cable
Voltage：600V
Conductor： round concentric lay class “B” stranded copper
Insulation：Cross-linked Polyethylene (XLPE) Type RW90
Bonding Conductor (Ground)：One (1) bare stranded class “B” copper conductor
Inner jacket：Polyvinyl Chloride (PVC), black
Armour：Aluminum interlocked armour.
Outer Jacket：Low acid gas, flame-retardant, moisture and sunlight resistant Polyvinyl Chloride (PVC), black.
Brand：KINGYEAR
Standard：UL1581.
Place of Origin：China
Package：Exported Wooden Drum
Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment
Certification：ISO,CE and other certifications.
Production Capacity：30000m/week
For concealed wiring in dry or wet locations
For exposed wiring in dry or wet locations
For exposed and wiring in dry, locations where subjected to corrosive action if suitable for corrosive conditions encountered
For exposed wiring where subjected to the weather For use in ventilated, Non-ventilated and ladder-type cable trays in dry or wet locations
For direct earth burial (with protection as required by inspection authority)
For service entrance above or below ground
Features:
Rated at 90°C wet or dry
Excellent crush resistance
Provides long service life
Cost effective alternative to installations in conduit
Meets cold bend and impact tests at (-40°C)
KINGYEAR from 2013-2018 are mainly for domestic trading and processing to some export trading companies. The average sales amount are about RMB 320,000,000 per year. For cables oversea market, From last may till now we have expanded our market to Bolivia, Peru, Dominican, Philippines, Vietnam, Thailand, Iraq, Mongolia, Indonesia and some Africa country. With total sales amount over USD10,000,000.
