Welding Cable 0361TQ BS 638 /H01N2-D EN 50525-2-81
Application:
For the transmission of high currents from the electric welding machine to the welding tool. Suitable for flexible use under rough conditions, on assembly lines and conveyor systems,in machine tool and motor car manufacturing, ship building,for manually and automatically operated line and spot welding machines.
Model No.: Welding Cable
Material: Flexible copper
Brand: KINGYEAR
Standard: BS 638ASTM EN 50525-2-81, EN 60228, HD 22.6, VDE 0282-6
Place of Origin: China

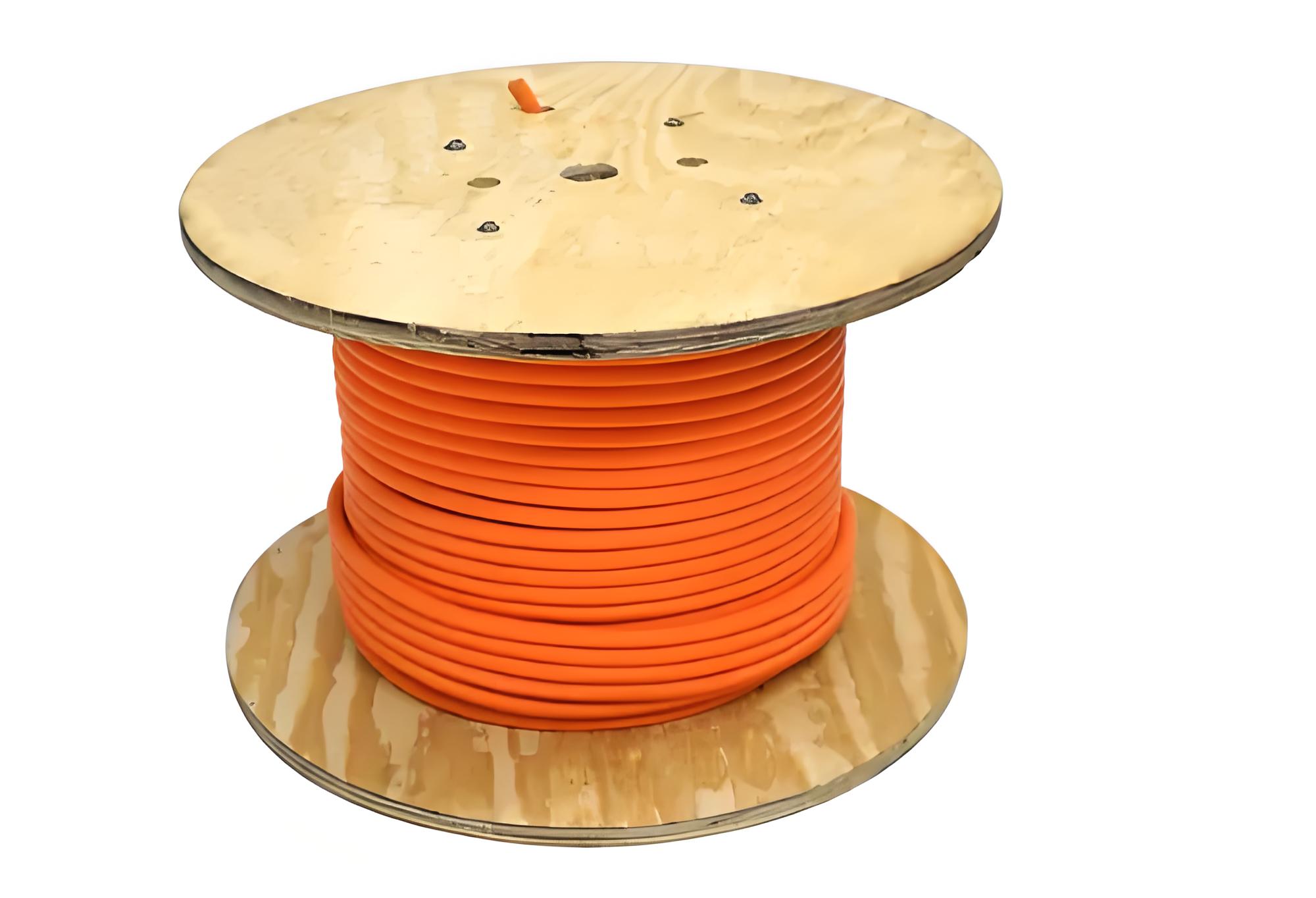

Package: Exported Wooden Drum
Range of Application: Current transmission
Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment
Certification: ISO,CE and other certifications.
Production Capacity: 30000m/week
Product details
These cables are used as a connection to welding robots in the automotive industry, shipyards and for manually/automatically operated lines and spot welding. The robust cable structure makes them resistant to low and high temperatures, ozone and radiation, oils, acids, fats and petrols.
The current carrying capacity of a welding cable depends on the length of the duty cycle. The duty cycle is the length of time during which a loaded current passes through the cable over an operation period of 5 minutes, expressed as a percentage of that period. For example, if the current is flowing for the whole 5 minutes the duty cycle is 100%, and if the current is flowing for 1 minute the duty cycle is 20%. As conductor temperature varies according to the time in use as well as current, ratings shown are given as a guide.

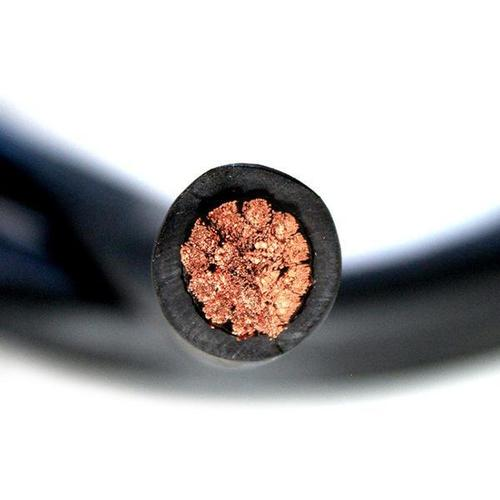

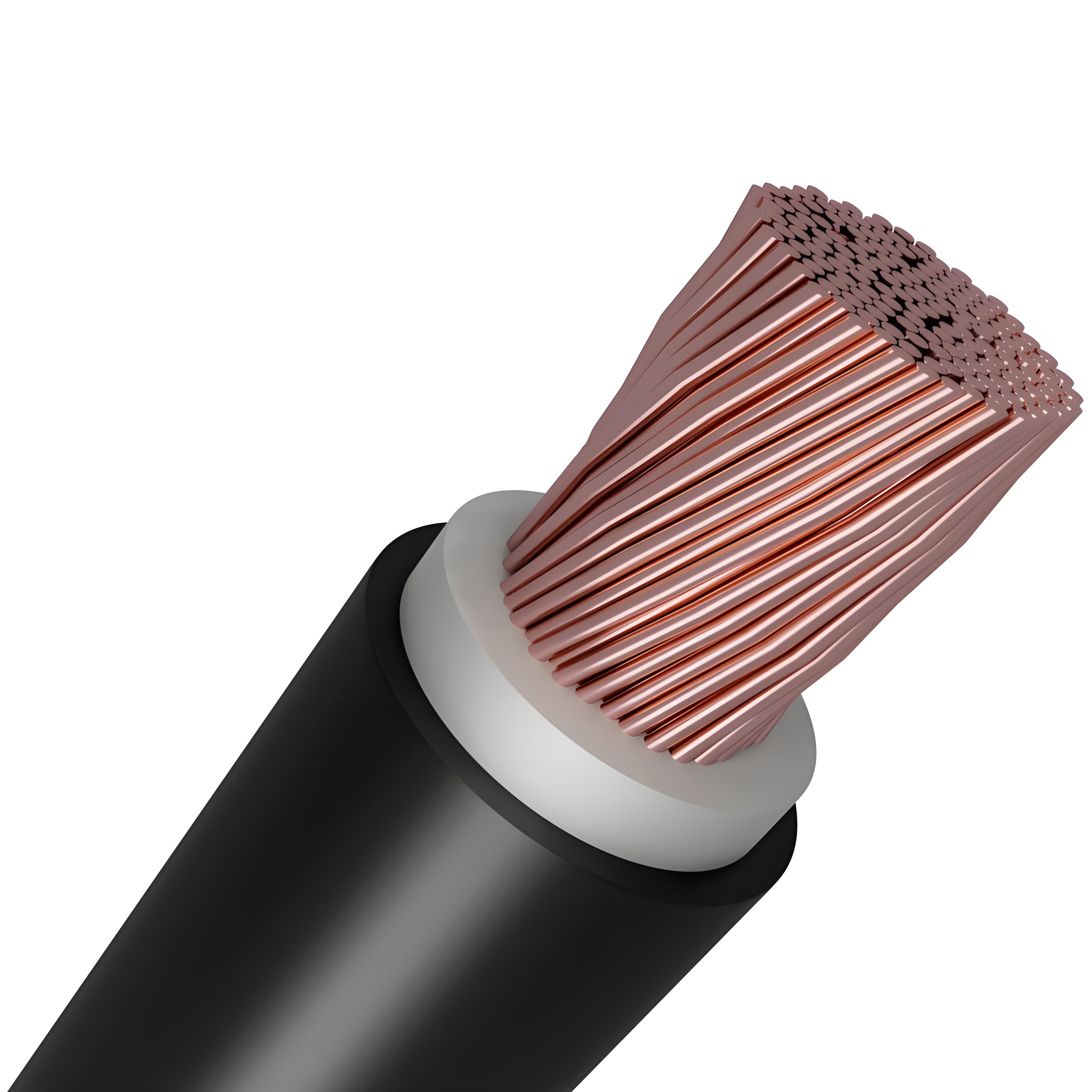

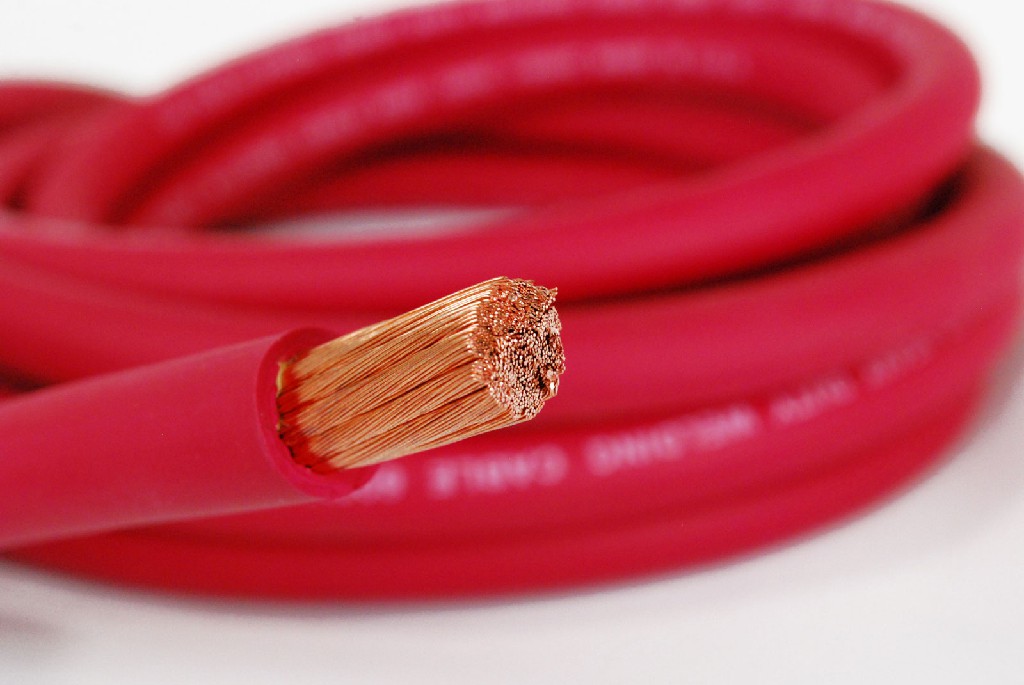

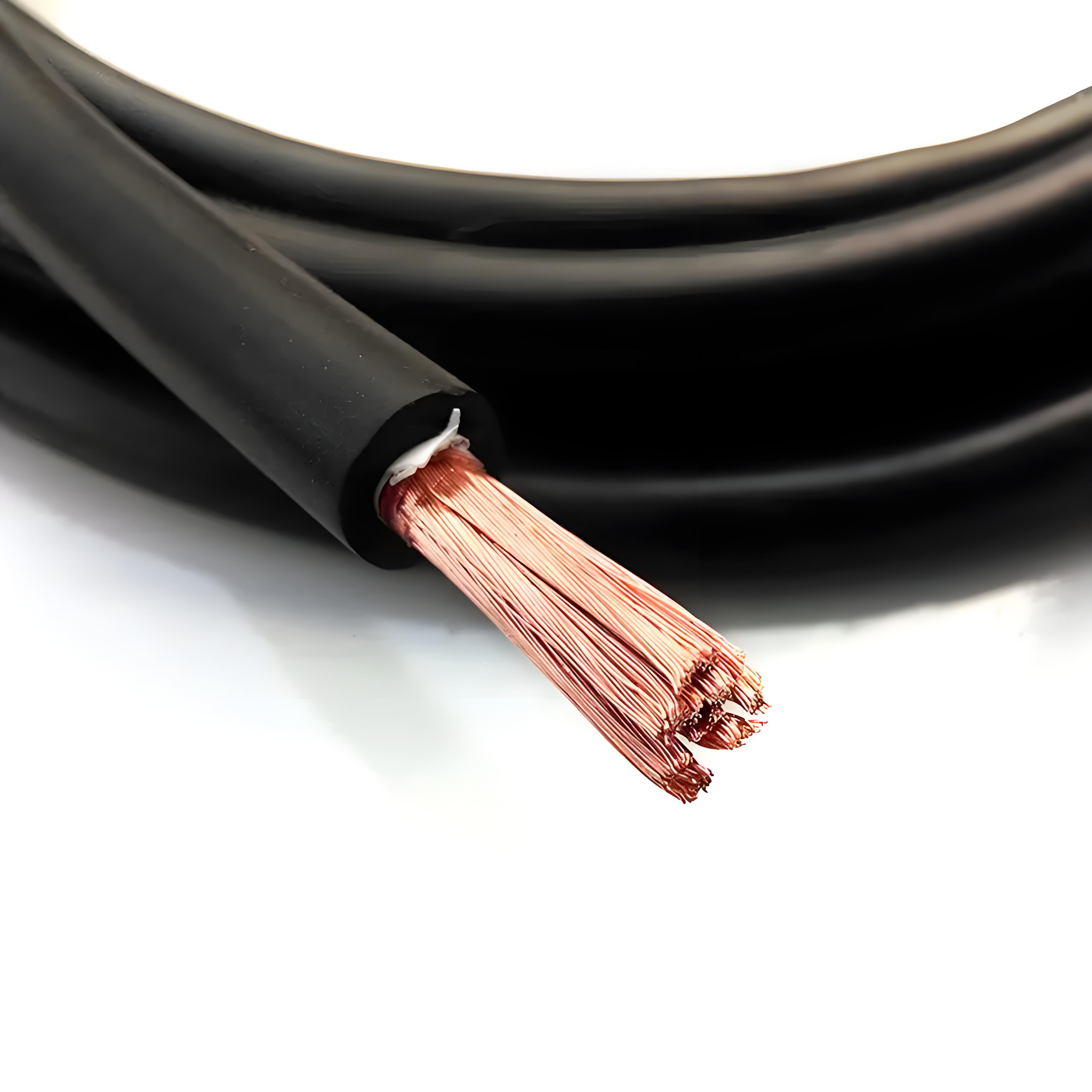

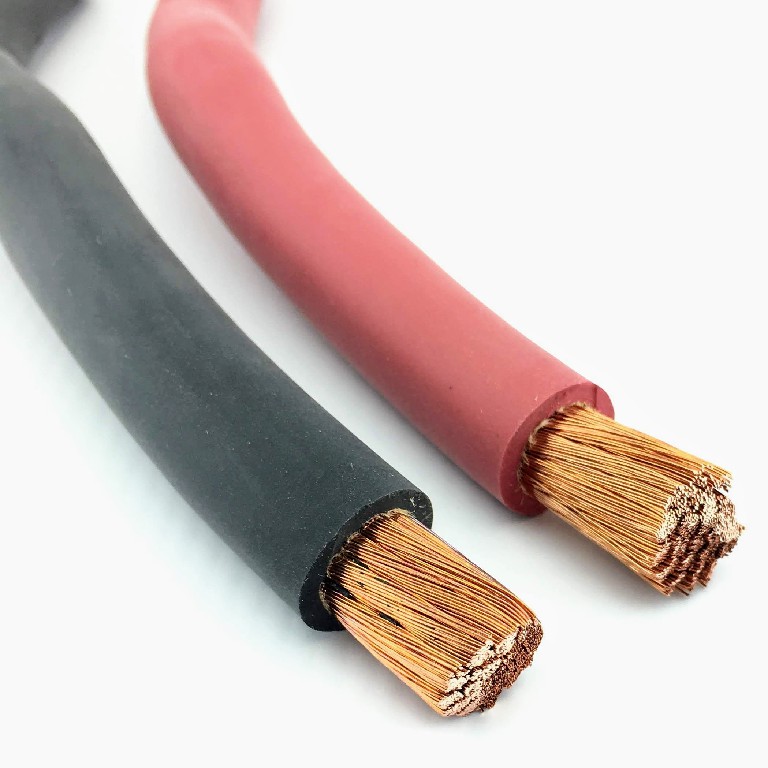

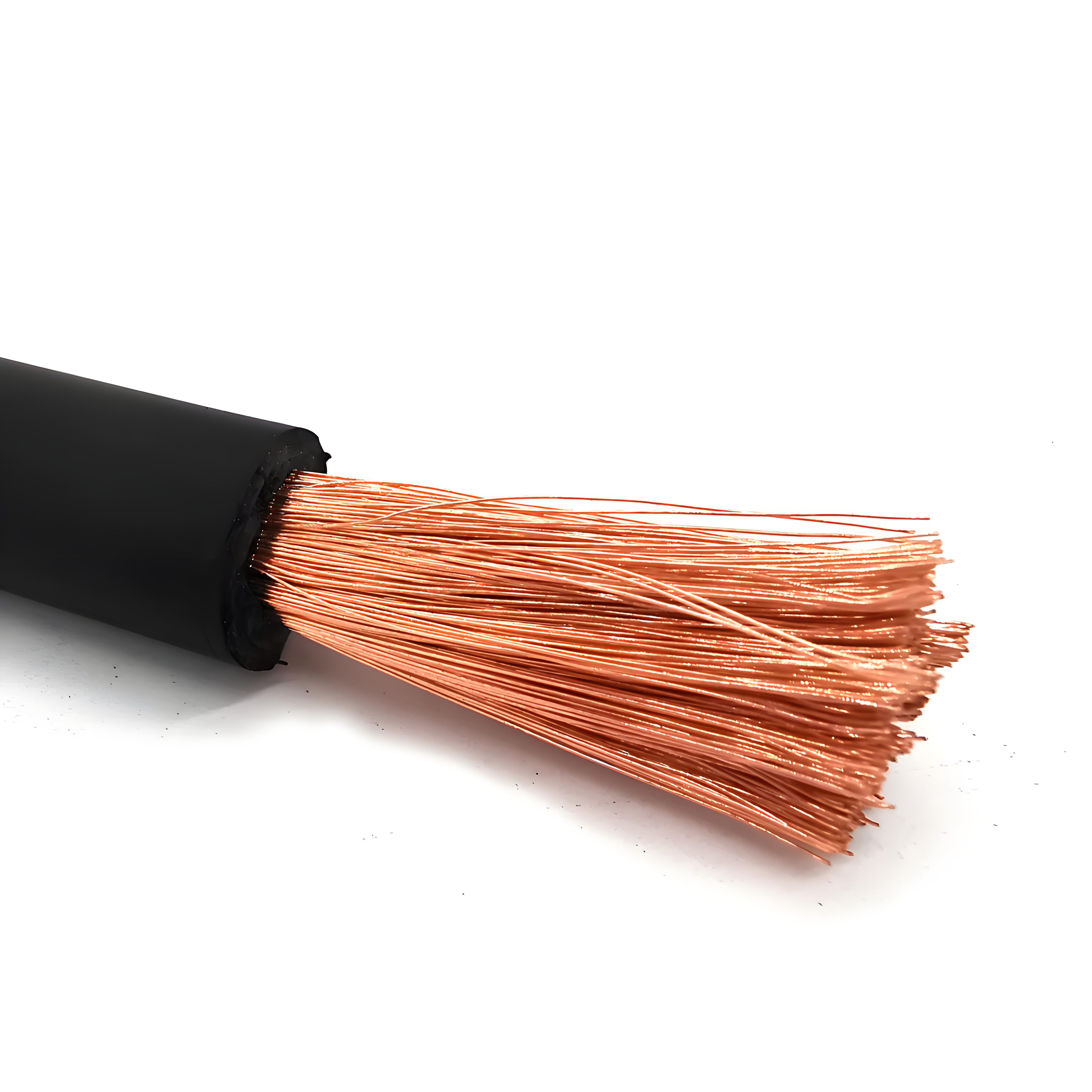

Welding Cable
Welding Cable are designed for welding equipment and accessories,retain their high flexibilty even under influence ofozone, light, oxygen, protective glass, oil & petrolresistant to flame propagation, suitable for use in dryand damp conditions, outdoors and indoors.
KINGYEAR from 2013-2018 are mainly for domestic trading and processing to some export trading companies. The average sales amount are about RMB 320,000,000 per year. For cables oversea market, From last may till now we have expanded our market to Bolivia, Peru, Dominican, Philippines, Vietnam, Thailand, Iraq, Mongolia, Indonesia and some Africa country. With total sales amount over USD10,000,000.
Specifications
0361TQ BS 638 Welding Cable
|
Section |
Conductor |
Nominal Cross Sectional Area |
Total Radial Thickness of Covering |
Nominal Overall Diameter |
Max. Conductor DC Resistance at 20 ℃ |
|
mm^2 |
No. |
mm^2 |
mm |
mm |
Ω/km |
|
1x16 |
6 |
16 |
2 |
9.7 |
1.21 |
|
1x25 |
6 |
25 |
2 |
11.2 |
0.75 |
|
1x35 |
6 |
35 |
2 |
12.4 |
0.554 |
|
1x50 |
6 |
50 |
2.2 |
14.3 |
0.386 |
|
1x70 |
6 |
70 |
2.4 |
16.3 |
0.272 |
|
1x95 |
6 |
95 |
2.6 |
18.6 |
0.206 |
|
1x120 |
6 |
120 |
2.8 |
20.3 |
0.161 |
|
1x150 |
6 |
150 |
3 |
22.6 |
0.129 |
|
1x185 |
6 |
185 |
3.2 |
24.7 |
0.106 |
|
1x240 |
6 |
240 |
3.4 |
27.8 |
0.0817 |
H01N2-D EN 50525-2-81 Welding Cable
|
Section |
Conductor |
Nominal Cross Sectional Area |
Total Radial Thickness of Covering |
Nominal Overall Diameter |
Max. Conductor DC Resistance at 20 ℃ |
|
mm^2 |
No. |
mm^2 |
mm |
mm |
Ω/km |
|
1x10 |
1 |
10 |
2 |
9 |
1.91 |
|
1x16 |
1 |
16 |
2 |
10 |
1.21 |
|
1x25 |
1 |
25 |
2 |
11.5 |
0.75 |
|
1x35 |
1 |
35 |
2 |
12.5 |
0.554 |
|
1x50 |
1 |
50 |
2.2 |
14.5 |
0.386 |
|
1x70 |
1 |
70 |
2.4 |
16.5 |
0.272 |
|
1x95 |
1 |
95 |
2.6 |
18.5 |
0.206 |
|
1x120 |
1 |
120 |
2.8 |
20.5 |
0.161 |
|
1x150 |
1 |
150 |
3 |
23 |
0.129 |
