Application：

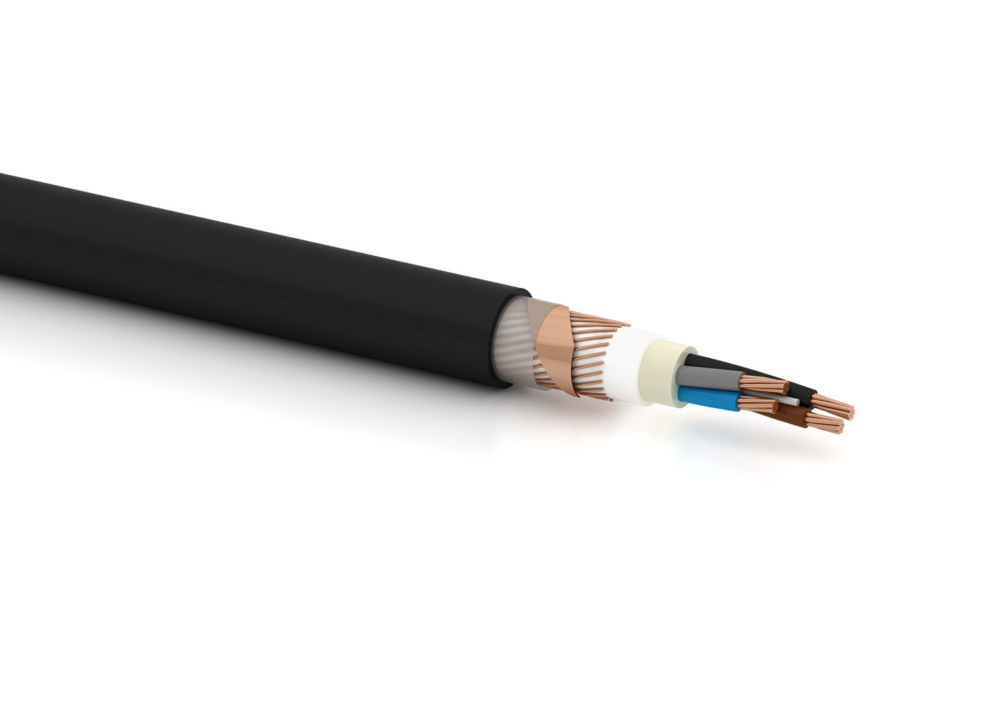

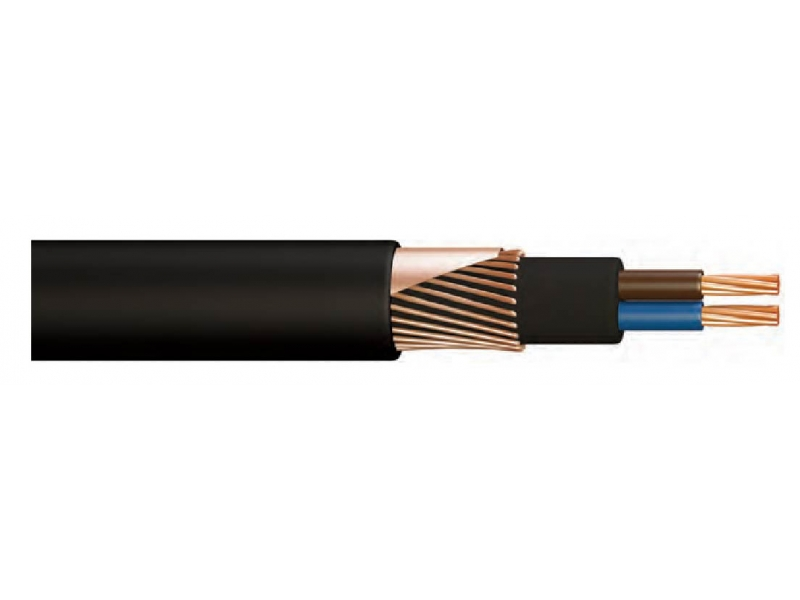

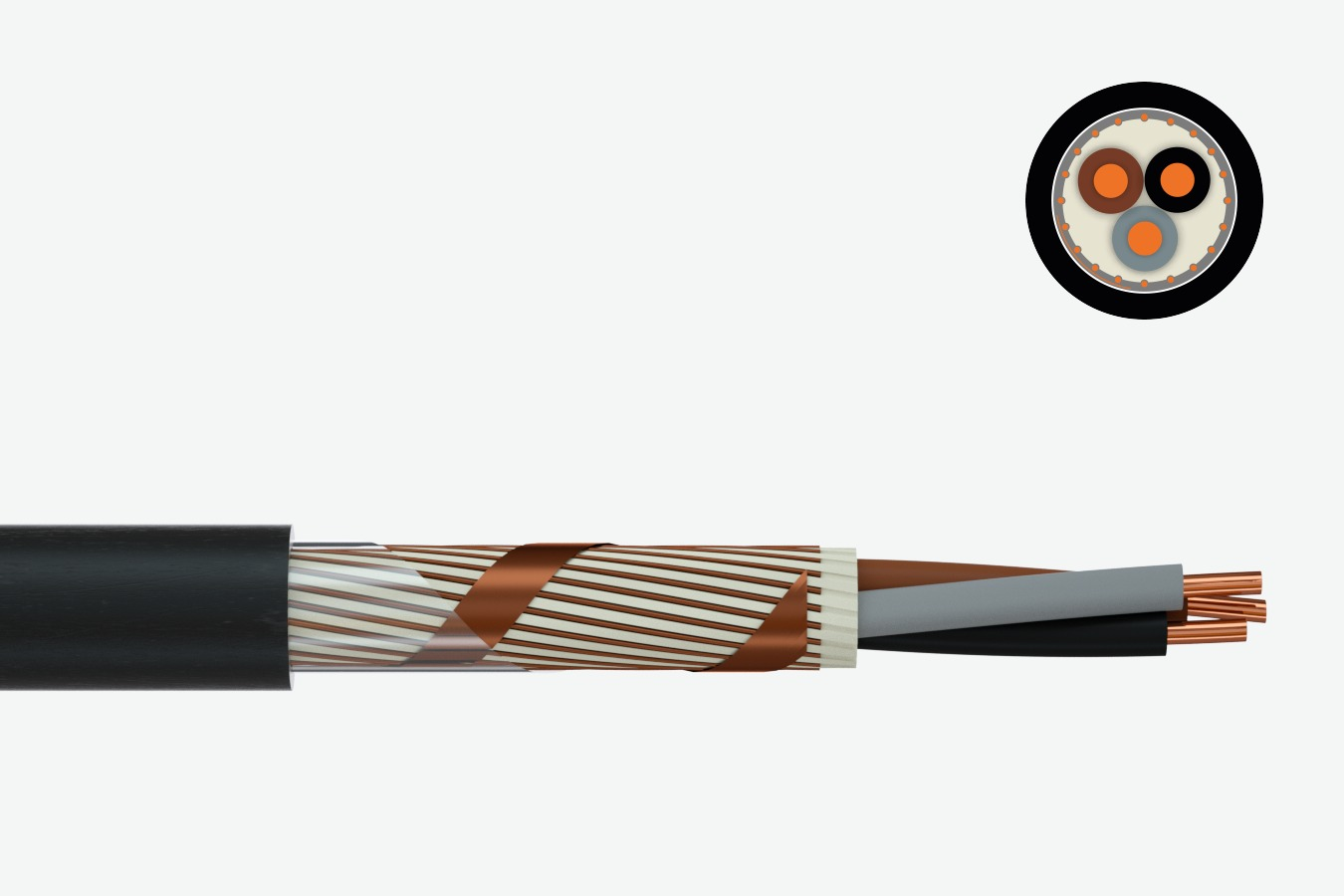

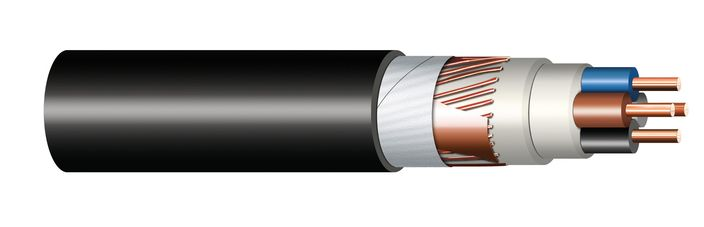

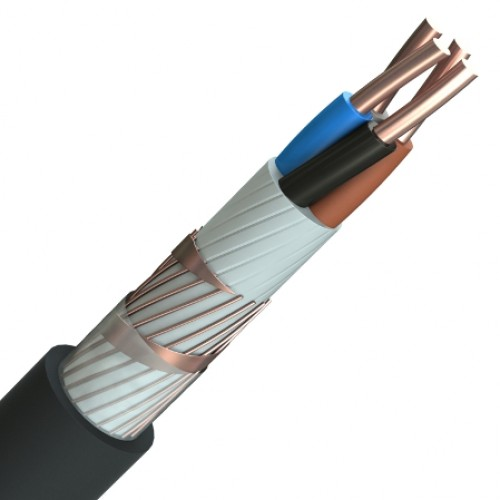

The flame retardant, non-corrosive (FRNC) low smoke zero halogen outer sheath of the N2XCH cable makes it suitable for use in public buildings, in dry and damp environments, on or under plaster, laid on cable trays, in walls and in concrete. The N2XCH cable has copper wires and copper tape which act as a concentric conductor, laid on an inner sheath separating the insulated cores from the outer sheath. These additional layers and the copper wires and tape are not specifically designed to provide additional mechanical protection so it should not be used in direct burial installation environments without further protection from mechanical stress and water ingress.
Model No.：N2XCH Cable
Voltahe：0.6/1kV
Conductor：RE: Class 1 solid copper , RM: Class 2 circular stranded copper , SM: Class 2 sectorial stranded copper
Insulation：XLPE (Cross-Linked Polyethylene)
Inner Sheath：Halogen-free compound
Concentric Conductor：Copper wires with counter helix of copper tape
Outer Sheath：LSZH (Low Smoke Zero Halogen)
Brand：KINGYEAR
Standard：IEC/GBT/ASTM/EN/BS and so on
Place of Origin：China
Package：Exported Wooden Drum
Range of Application：Power Cable
Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment
Certification：ISO,CE and other certifications.
Production Capacity：30000m/week
N2XCH cables are available with or without a green/yellow core. N2XCH-J denoting configurations with the G/Y core.
N2XCH cables with a conductor cross-sectional area size of more than 16mm2 the cores are sectorial shaped rather than circular.
| RE | Class 1 solid - round |
| SE | Class 1 solid - sectorial |
| RM | Class 2 stranded - round |
| SM | Class 2 stranded - sectorial |
In addition to our portfolio of European power cables manufactured in accordance with IEC60502-1, including the N2XH cable, we also supply British standard low voltage power cables including armoured cable BS6724 cable with its LSZH outer sheathing which are suitable for direct burial applications. Our technical has a wealth of experience in providing support in the selection of the right cable for your application. Please call to discuss your specific application.
KINGYEAR from 2013-2018 are mainly for domestic trading and processing to some export trading companies. The average sales amount are about RMB 320,000,000 per year. For cables oversea market, From last may till now we have expanded our market to Bolivia, Peru, Dominican, Philippines, Vietnam, Thailand, Iraq, Mongolia, Indonesia and some Africa country. With total sales amount over USD10,000,000.
