AAC-Aluminum AAC Conductor ASTM B231/AS 1531/BS 215/DIN 48201/IEC 61089
Application：

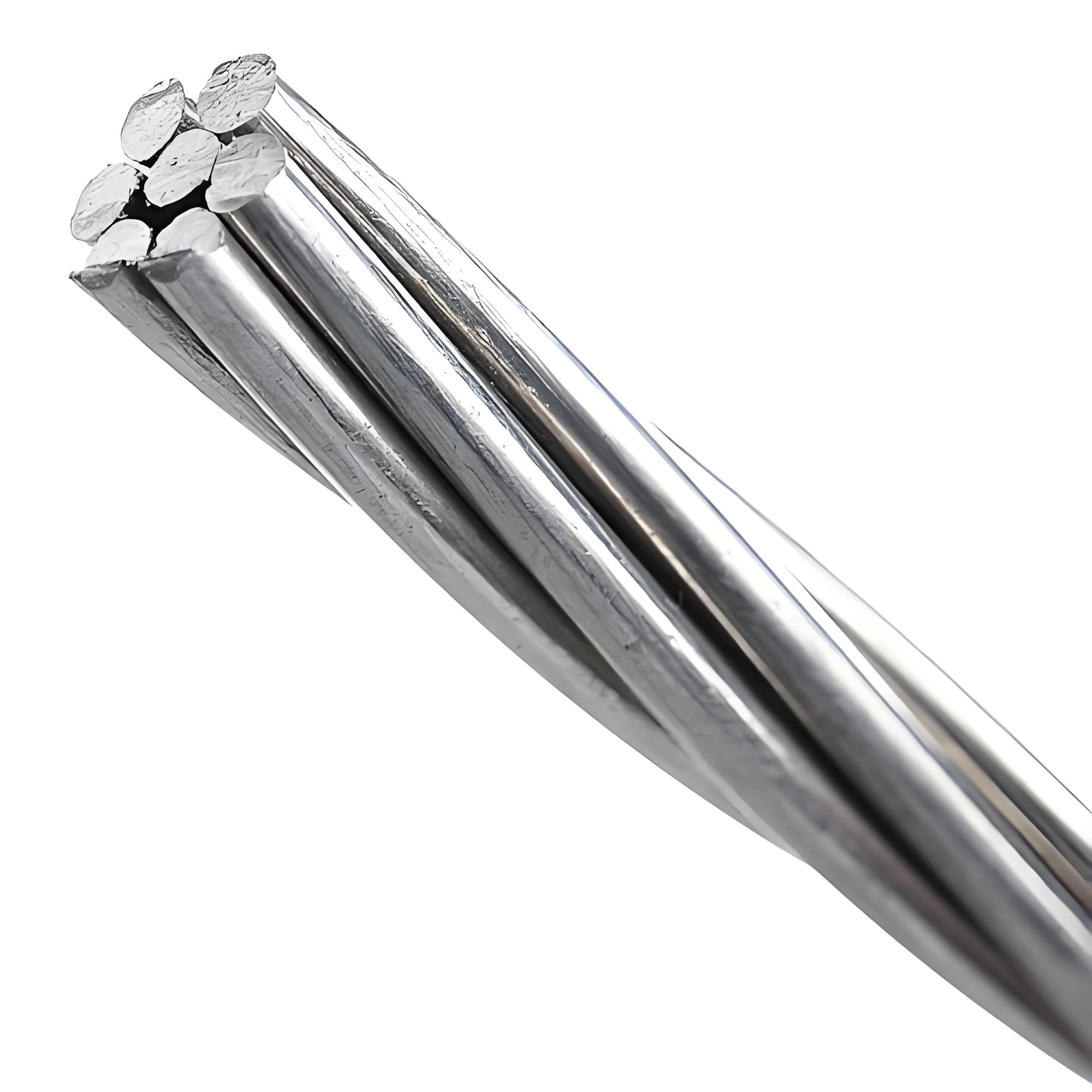

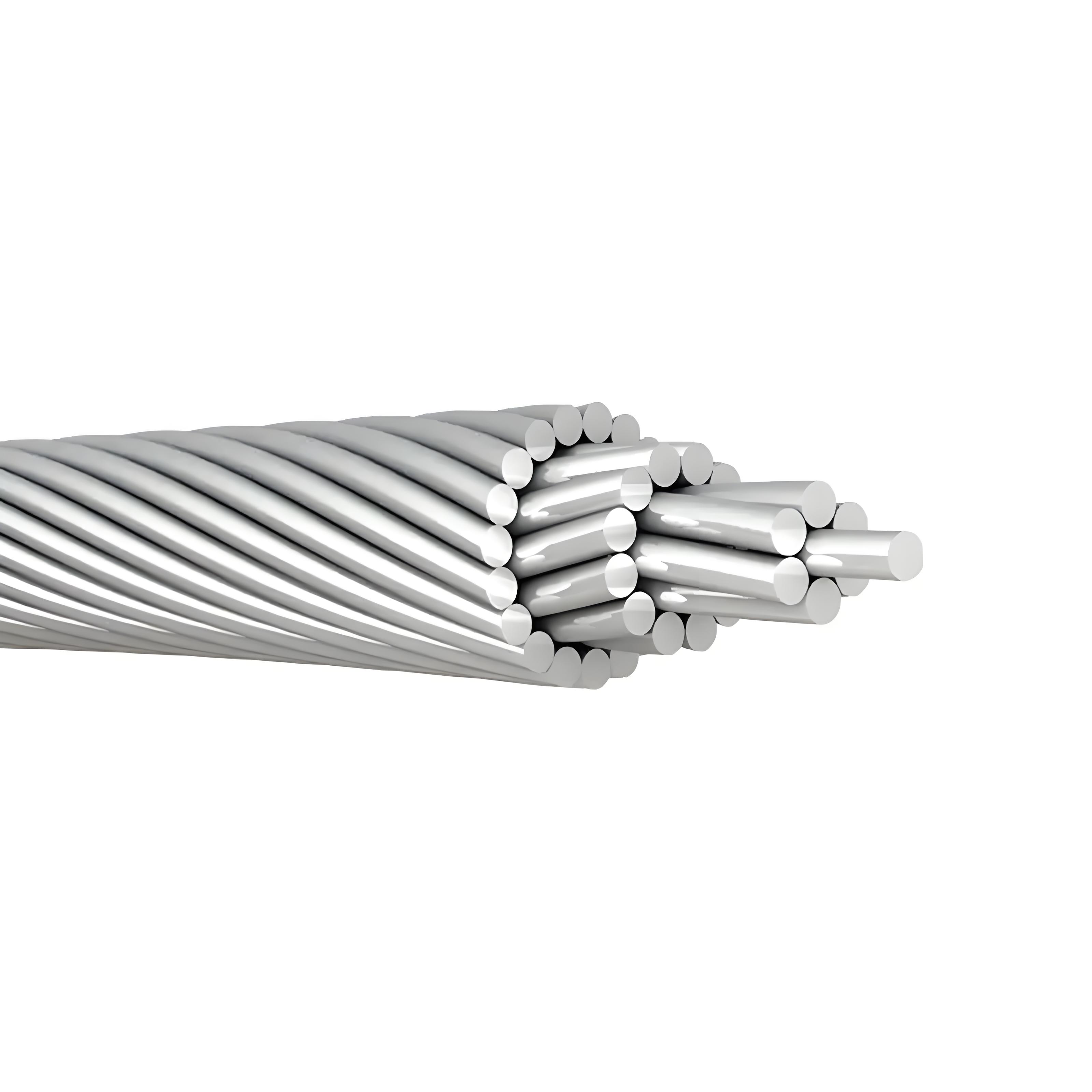

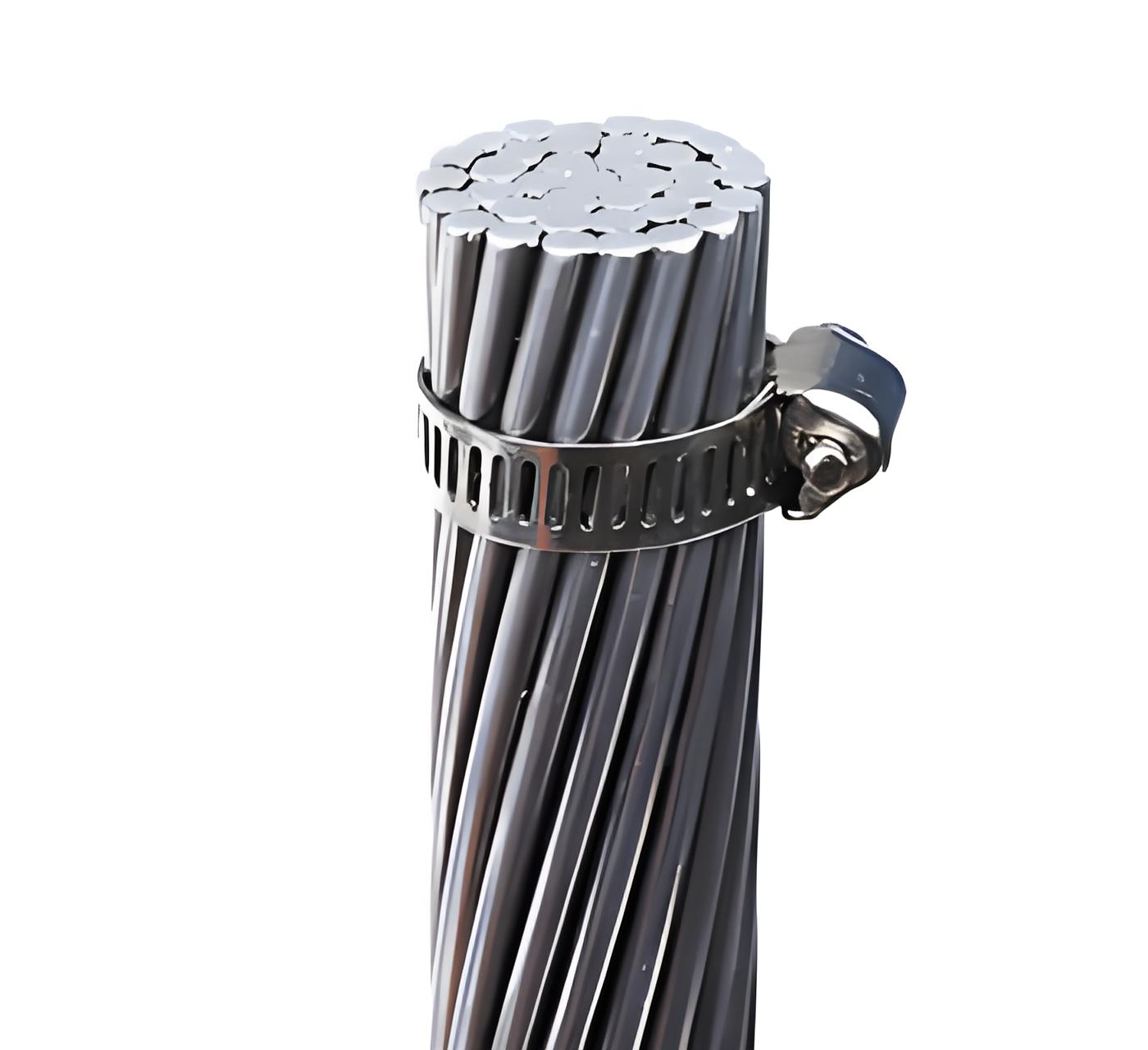

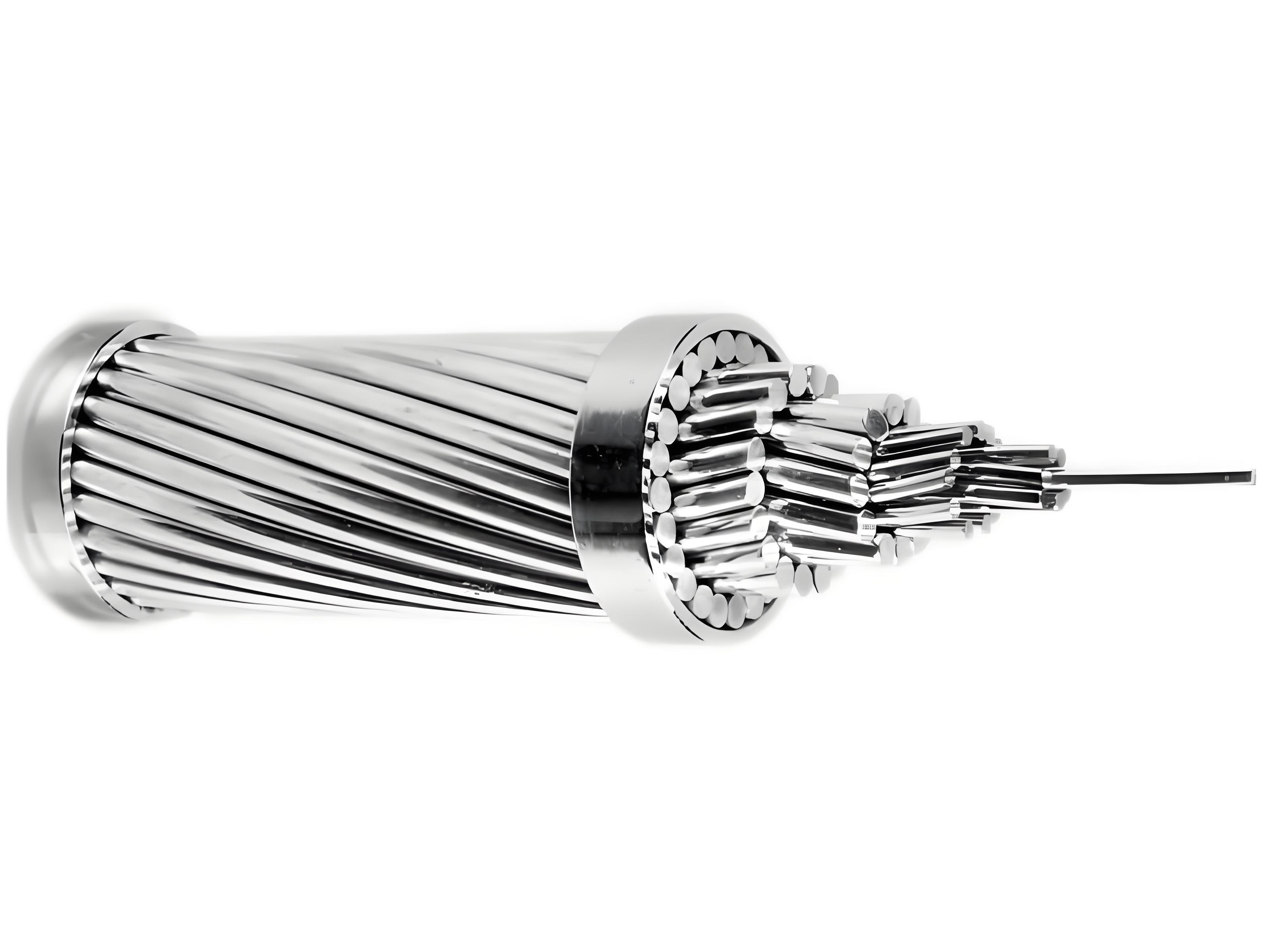

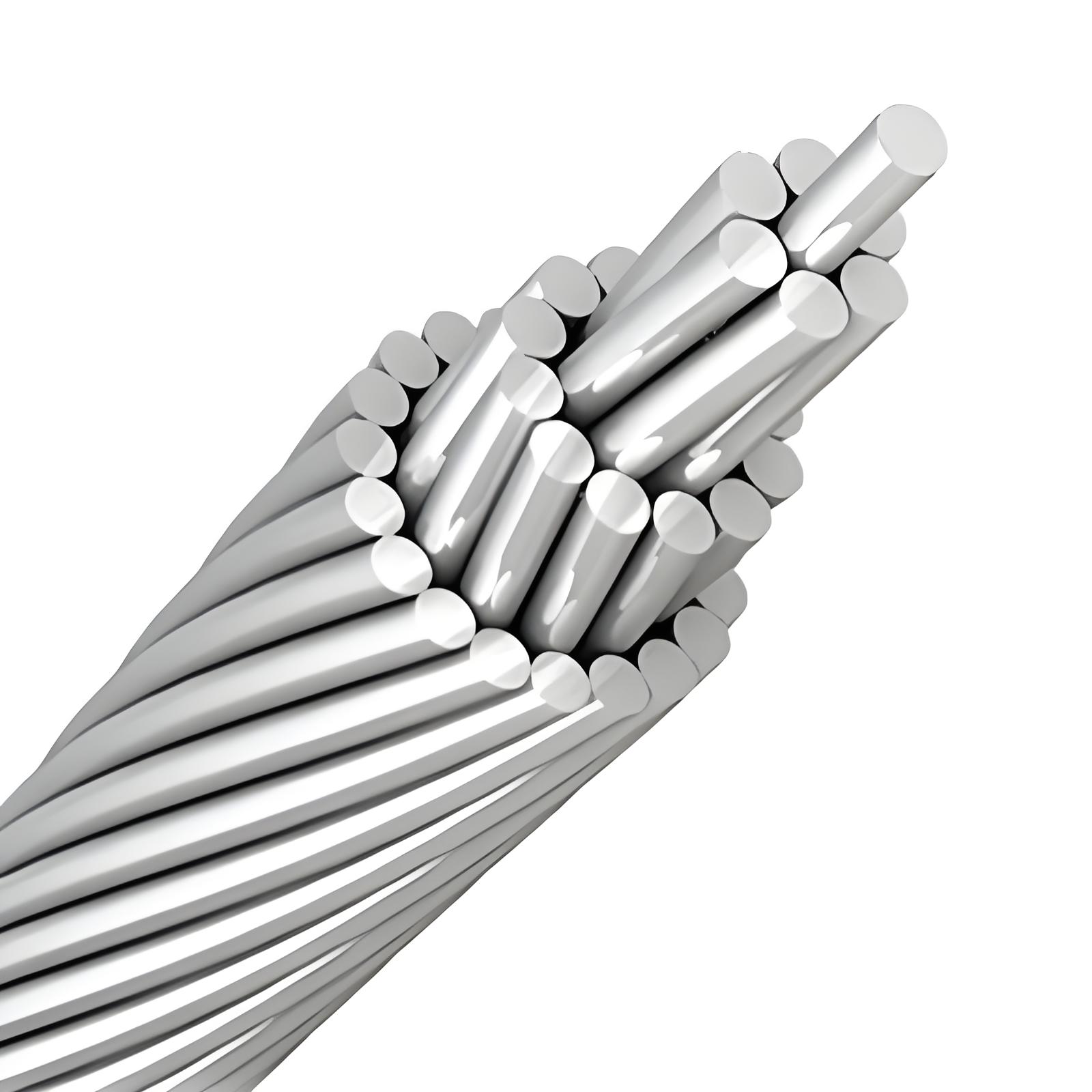

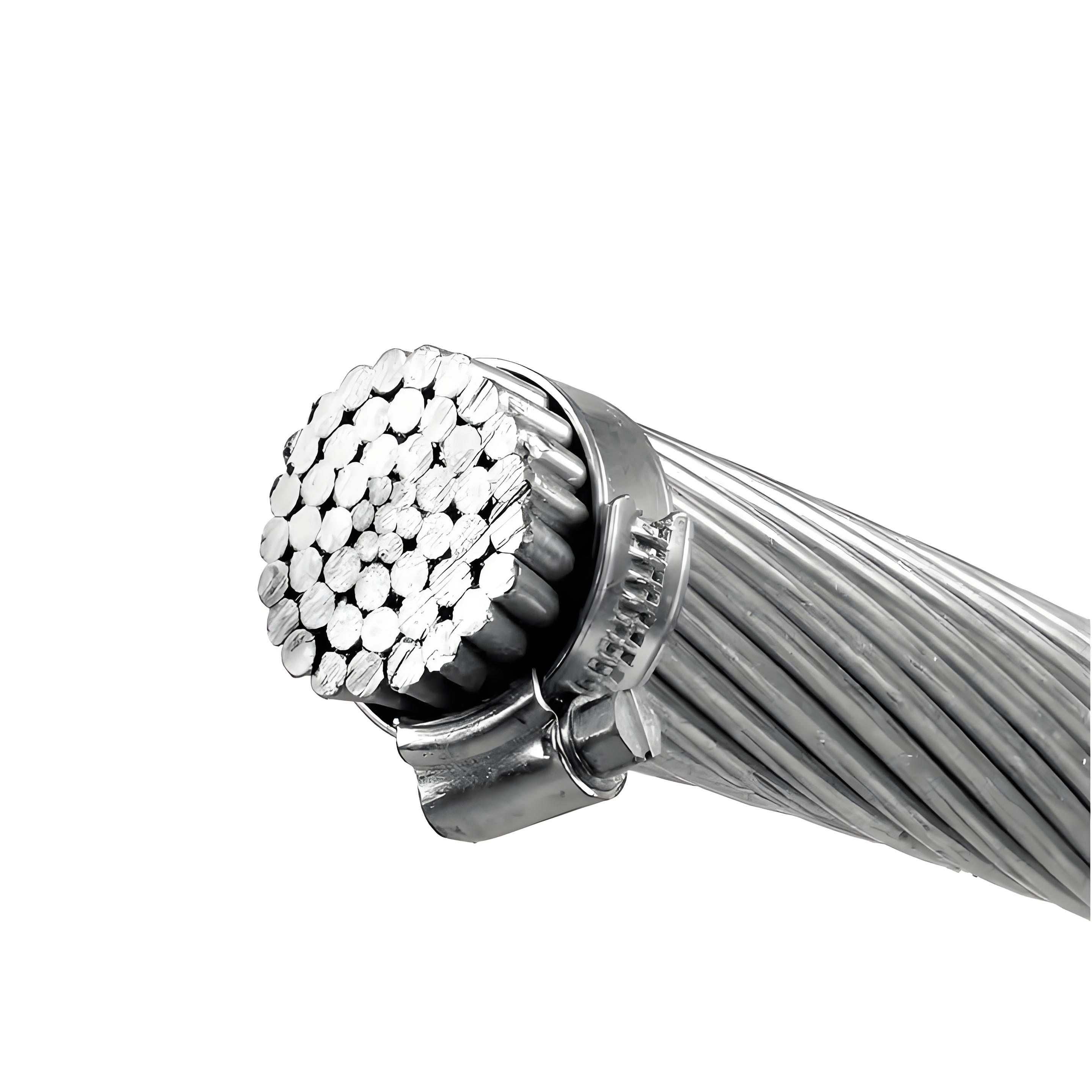

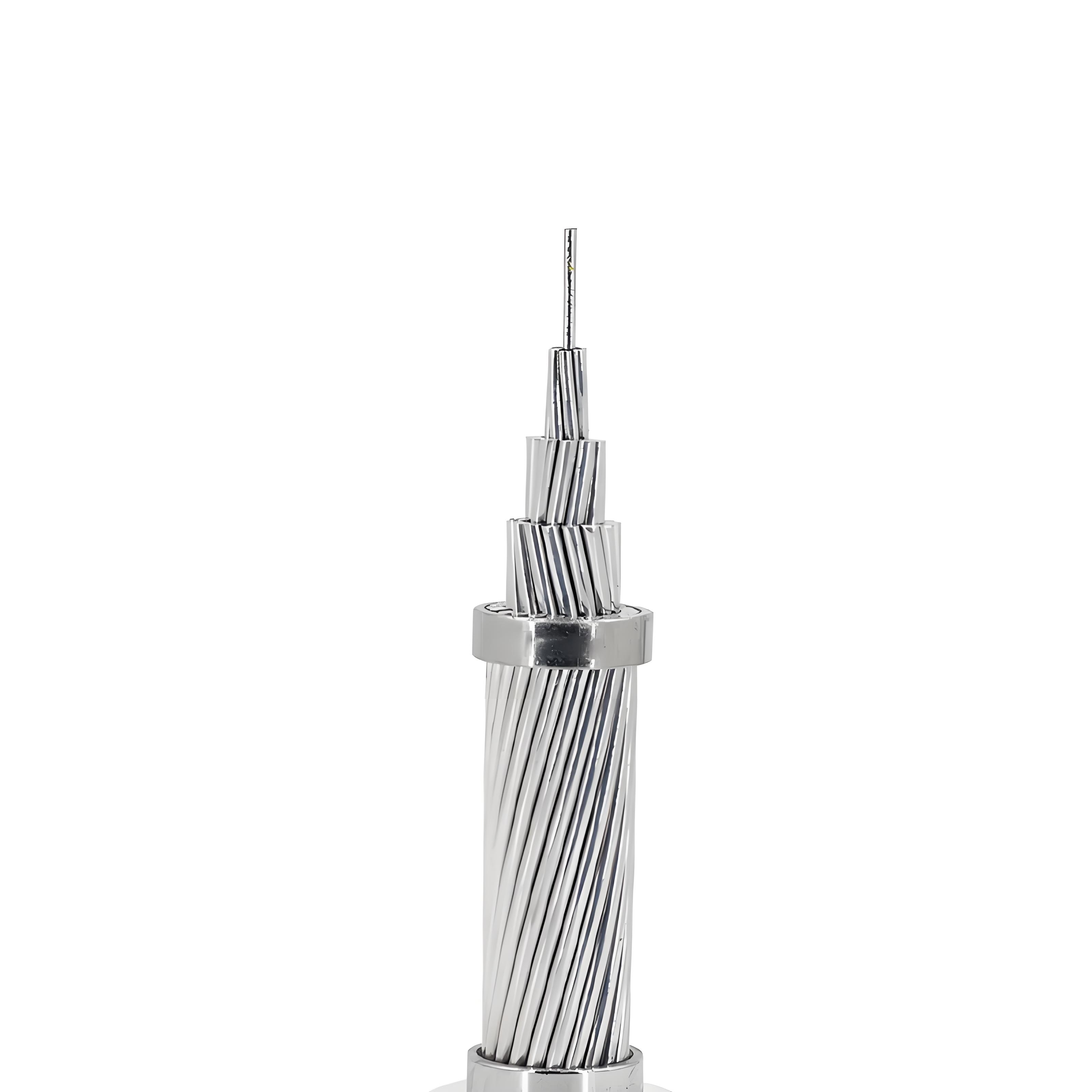

AAC conductor is also known as aluminium stranded conductor. It is manufactured from electrolytically refined aluminium, with a minimum purity of 99.7%. AAC is used mainly in urban areas where the spacing is short and the supports are close. All aluminium conductors are made up of one or more strands of aluminium wire depending on the end usage. AAC is also used extensively in coastal regions because it has a high degree of corrosion resistance
Model No.：AAC
Material：Aluminum
Brand：KINGYEAR
Standard：ASTM B231/AS 1531/BS 215/DIN 48201/IEC 61089
Place of Origin：China
Package：Exported Wooden Drum
Range of Application：Overhead Line
Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment
Certification：ISO,CE and other certifications.
Production Capacity：30000m/week

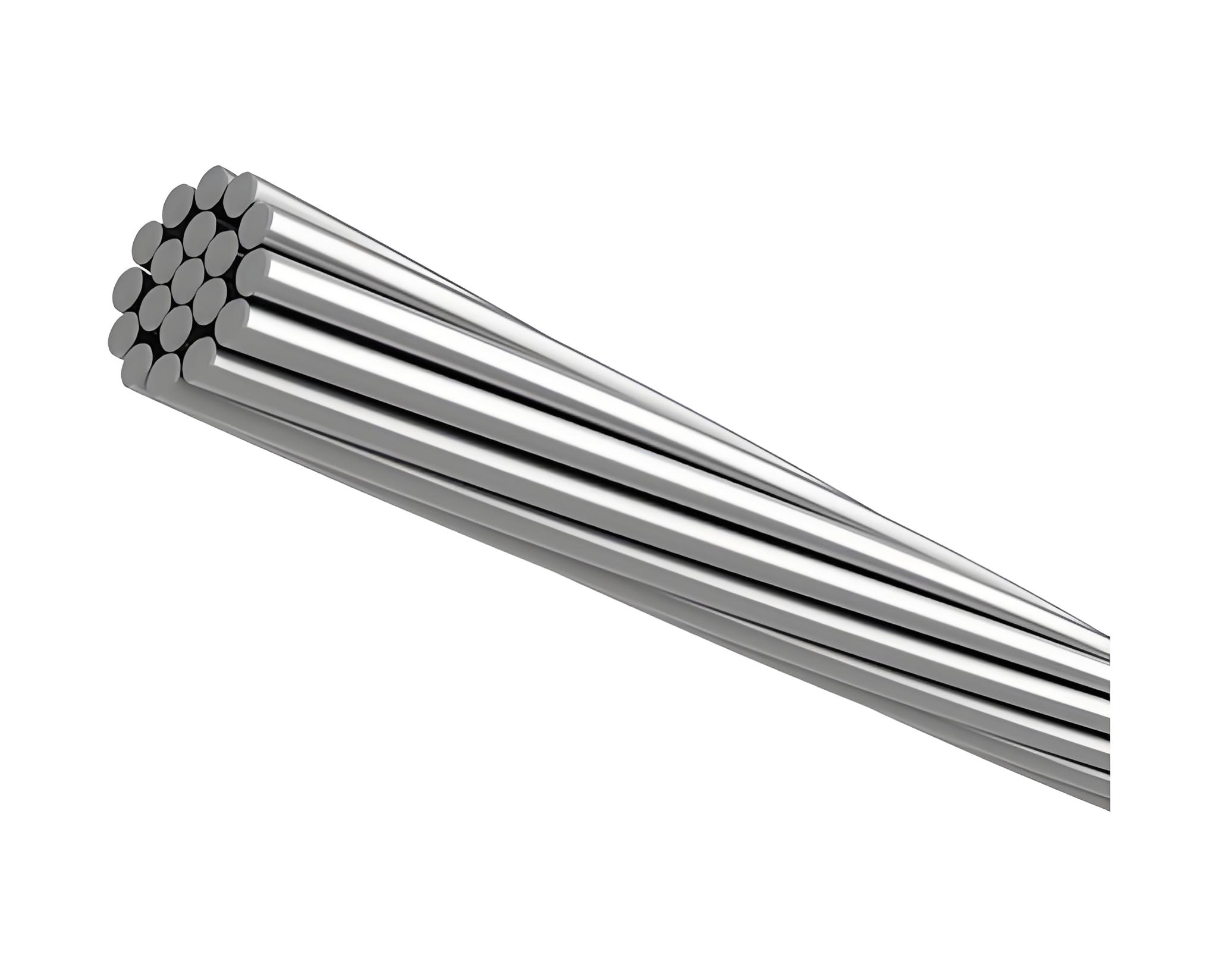

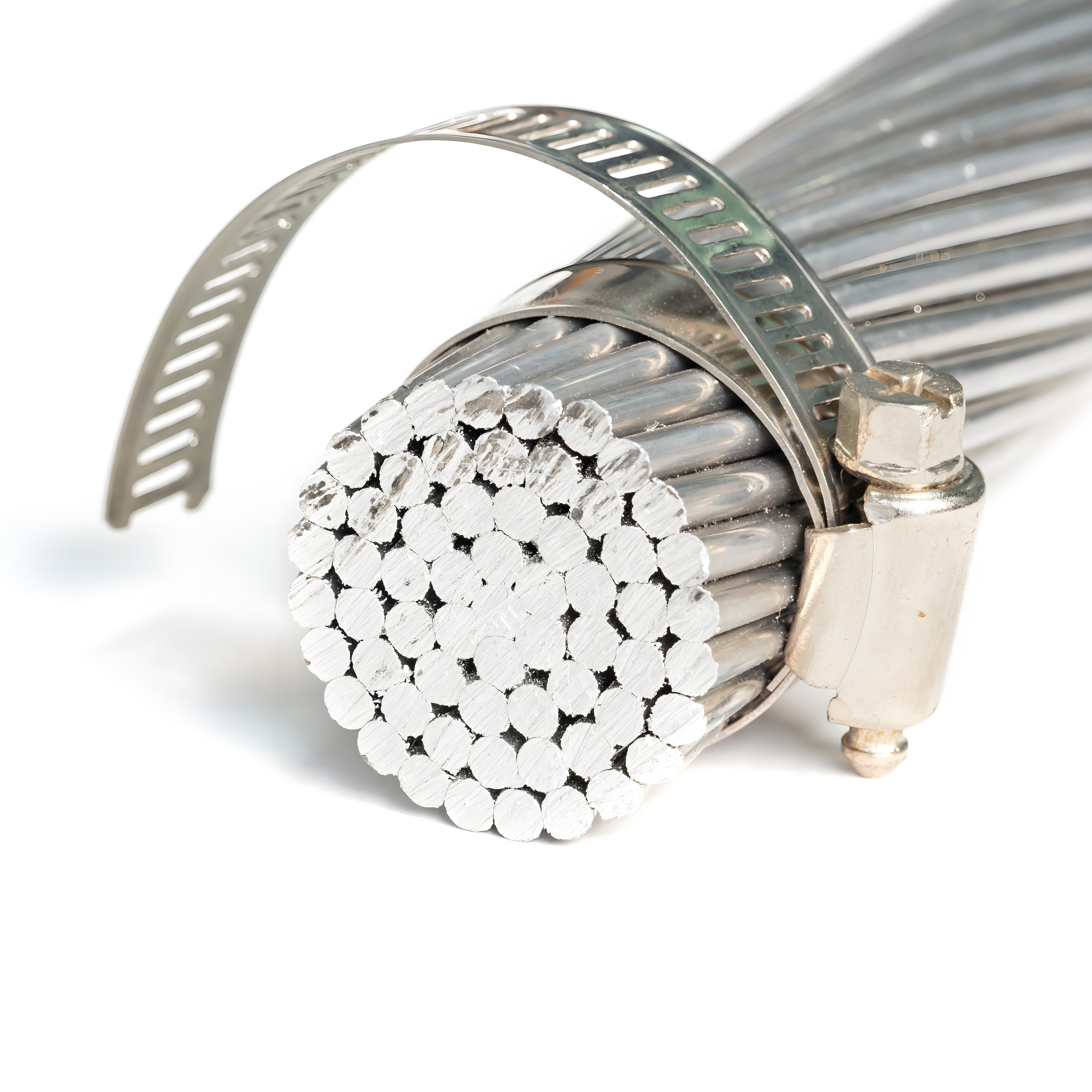

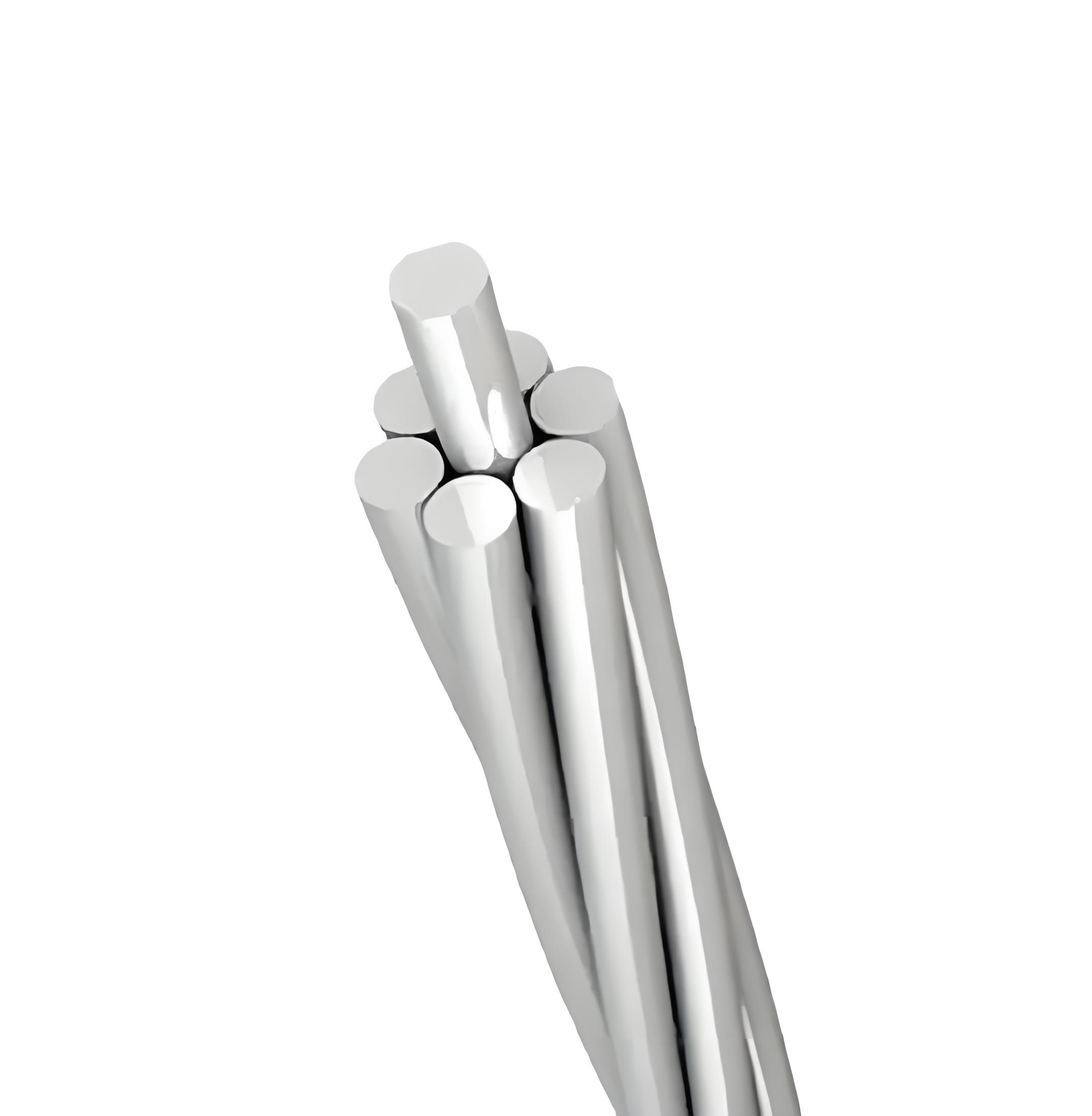

● Concentric lay stranded Aluminium Conductor ( AAC) is made up of one or more strands of hard drawn 1350 aluminum. These conductors are used in low, medium and high voltage overhead lines. AAC has seen extensive use in urban areas where spans are usually short but high conductivity us required. The excellent corrosion resistance of aluminium has made AAC a conductor of choice in coastal areas. Because of its relatively poor strength to weight ratio, AAC had limited use in transmission lines and rural distribution because of long spans utilized.
● AAC All Aluminium Conductors
All-aluminium conductors are the most favored type for use in the construction of Relatively short span distribution schemes and are in common use on lines for voltage up To 60 KV.
Another frequent application for all-aluminium conductor is in flexible busbar Connections.
Although aluminium-to-copper connections can be made, it is better to use aluminium Conductors for service connections, as various forms of covered cable being available For this purpose.
● The data sheets show the most common sizes of conductors but other sizes, to any Recognized standards or customer specification can also be supplied.
AAC insulated with XLPE or PVC can be supplied as per the customers' requirement.
AAC–ASTM-B All Aluminium Conductor
AAC are a refined Aluminium stranded conductor with a minimum metal purity of 99.7%. It is principally used in urban areas where spacing is short and the supports are close. It can be used in coastal regions owing to its high degree of corrosion resistance and is also used extensively within the Railway and Metro industries.
KINGYEAR from 2013-2018 are mainly for domestic trading and processing to some export trading companies. The average sales amount are about RMB 320,000,000 per year. For cables oversea market, From last may till now we have expanded our market to Bolivia, Peru, Dominican, Philippines, Vietnam, Thailand, Iraq, Mongolia, Indonesia and some Africa country. With total sales amount over USD10,000,000.
Specifications
AAC - BS 215
|
Code Name |
Nominal |
Stranding and |
Sectional Area |
Approximate |
Linear Mass |
Calculated |
Calculated |
Current Rating |
|
mm 2 |
mm |
mm 2 |
mm |
kg/km |
daN |
Ω/km |
A |
|
|
Midge |
22 |
7/2.06 |
23.33 |
6.18 |
64 |
399 |
1.227 |
114 |
|
Aphis |
25 |
7/3.35 |
26.4 |
7.2 |
73 |
411 |
1.081 |
134 |
|
Gnat |
25 |
7/2.21 |
26.8 |
6.6 |
73 |
459 |
1.066 |
135 |
|
Weevil |
30 |
3/3.66 |
31.6 |
7.9 |
86 |
486 |
0.9082 |
163 |
|
Mosquito |
35 |
7/2.59 |
37 |
7.8 |
101 |
603 |
0.7762 |
188 |
|
Ladybird |
40 |
7/2.79 |
42.8 |
8.4 |
117 |
687 |
0.6689 |
210 |
|
Ant |
50 |
7/3.10 |
52.83 |
9.3 |
145 |
828 |
0.5419 |
181 |
|
Fly |
60 |
7/3.40 |
63.55 |
10.2 |
174 |
990 |
0.4505 |
199 |
|
Bluebottle |
70 |
7/3.66 |
73.7 |
11 |
202 |
1134 |
0.3881 |
228 |
|
Earwig |
75 |
7/3.78 |
78.5 |
11.4 |
215 |
1194 |
0.3644 |
242 |
|
Grasshopper |
80 |
7/3.91 |
84.1 |
11.7 |
230 |
1278 |
0.3406 |
251 |
|
Clegg |
90 |
7/4.17 |
95.6 |
12.5 |
262 |
1453 |
0.2994 |
285 |
|
Beetle |
100 |
19/2.67 |
106 |
13.4 |
293 |
1742 |
0.2704 |
295 |
|
Wasp |
100 |
7/4.39 |
106 |
13.17 |
290 |
1600 |
0.2702 |
271 |
|
Bee |
125 |
7/4.90 |
132 |
14.7 |
361 |
1994 |
0.2169 |
330 |
|
Cricket |
150 |
7/5.36 |
157.9 |
16.1 |
432 |
2385 |
0.1818 |
395 |
|
Hornet |
150 |
19/3.25 |
157.6 |
16.25 |
434 |
2570 |
0.1825 |
346 |
|
Caterpillar |
175 |
19/3.53 |
186 |
17.7 |
512 |
2863 |
0.1547 |
410 |
|
Chafer |
200 |
19/3.78 |
213.2 |
18.9 |
587 |
3240 |
0.1349 |
414 |
|
Spider |
225 |
19/3.99 |
236.9 |
20 |
652 |
3601 |
0.1211 |
462 |
|
Cockroach |
250 |
19/4.22 |
265.7 |
21.1 |
731 |
4040 |
0.1083 |
470 |
|
Butterfly |
300 |
19/4.65 |
322.7 |
23.25 |
888 |
4875 |
0.08916 |
528 |
|
Drone |
350 |
37/3.58 |
373.3 |
25.1 |
1029 |
5745 |
0.07741 |
612 |
|
Moth |
350 |
19/5.00 |
373.2 |
25 |
1027 |
5637 |
0.07711 |
612 |
|
Centipede |
400 |
37/3.78 |
415.2 |
26.46 |
1145 |
6310 |
0.06944 |
619 |
|
Locust |
400 |
19/5.36 |
428.5 |
26.8 |
1179 |
6473 |
0.0671 |
656 |
|
Maybug |
450 |
37/4.09 |
486.9 |
28.6 |
1342 |
7401 |
0.05931 |
729 |
|
Scorpion |
500 |
37/4.27 |
529.5 |
29.9 |
1460 |
7998 |
0.05441 |
790 |
|
Cicada |
600 |
37/4.65 |
628.6 |
32.6 |
1733 |
9495 |
0.04588 |
940 |
|
Tarantula |
750 |
37/5.23 |
794.6 |
36.6 |
2191 |
12010 |
0.03627 |
1150 |
DIN-48201
|
Nominal Area |
Stranding |
Overall Diameter |
Weight |
Rated Strength |
Electrical Resistance |
Current Rating* |
|
|
Nominal |
Teorical |
||||||
|
mm^2 |
mm^2 |
No.×mm |
mm |
kg/km |
KN |
Ω/Km |
A |
|
16 |
15.89 |
7/1.70 |
5.1 |
43 |
2.84 |
1.8022 |
83 |
|
25 |
24.25 |
7/2.10 |
6.3 |
66 |
4.17 |
1.181 |
108 |
|
35 |
34.36 |
7/2.50 |
7.5 |
94 |
5.78 |
0.8333 |
134 |
|
50 |
49.48 |
7/3.00 |
9 |
135 |
7.94 |
0.5787 |
168 |
|
50 |
48.35 |
19/1.80 |
9 |
133 |
8.45 |
0.5951 |
166 |
|
70 |
65.81 |
19/2.10 |
10.5 |
181 |
11.32 |
0.4372 |
200 |
|
95 |
93.27 |
19/2.50 |
12.5 |
256 |
15.68 |
0.3085 |
248 |
|
120 |
116.99 |
19/2.80 |
14 |
322 |
18.78 |
0.2459 |
285 |
|
150 |
147.11 |
37/2.25 |
15.8 |
406 |
25.3 |
0.196 |
328 |
|
185 |
181.62 |
37/2.50 |
17.5 |
500 |
30.54 |
0.1588 |
373 |
|
240 |
242.54 |
61/2.25 |
20.3 |
670 |
39.51 |
0.1191 |
445 |
|
300 |
299.43 |
61/2.50 |
22.5 |
827 |
47.7 |
0.0965 |
506 |
|
400 |
400.14 |
61/2.89 |
26 |
1104 |
60.86 |
0.0722 |
602 |
|
500 |
499.83 |
61/3.23 |
29.1 |
1379 |
74.67 |
0.0578 |
688 |
|
625 |
626.2 |
91/2.96 |
32.6 |
1732 |
95.25 |
0.0462 |
786 |
|
800 |
802.09 |
91/3.35 |
36.9 |
2218 |
118.39 |
0.036 |
907 |
|
1000 |
999.71 |
91/3.74 |
41.1 |
2767 |
145.76 |
0.0289 |
1026 |
IEC 61089
|
Code |
Nominal Area |
Stranding |
Overall Diameter |
Weight |
Rated Strength |
Electrical Resistance |
Current Rating* |
|
mm^2 |
No.×mm |
mm |
kg/km |
KN |
Ω/Km |
A |
|
|
10 |
10 |
7/1.35 |
4.05 |
27.4 |
1.95 |
2.8633 |
62 |
|
16 |
16 |
7/1.71 |
5.13 |
43.8 |
3.04 |
1.7896 |
84 |
|
25 |
25 |
7/2.13 |
6.39 |
68.4 |
4.5 |
1.1453 |
110 |
|
40 |
40 |
7/2.70 |
8.1 |
109.4 |
6.8 |
0.7158 |
147 |
|
63 |
63 |
7/3.39 |
10.17 |
172.3 |
10.39 |
0.4545 |
195 |
|
100 |
100 |
19/2.59 |
12.95 |
274.8 |
17 |
0.2877 |
259 |
|
125 |
125 |
19/2.89 |
14.45 |
343.6 |
21.25 |
0.2302 |
297 |
|
160 |
160 |
19/3.27 |
16.35 |
439.8 |
26.4 |
0.1798 |
345 |
|
200 |
200 |
19/3.66 |
18.3 |
549.7 |
32 |
0.1439 |
396 |
|
250 |
250 |
19/4.09 |
20.45 |
687.1 |
40 |
0.1151 |
454 |
|
315 |
315 |
37/3.29 |
23.03 |
867.9 |
51.97 |
0.0916 |
522 |
|
400 |
400 |
37/3.71 |
25.97 |
1102 |
64 |
0.0721 |
603 |
|
450 |
450 |
37/3.94 |
27.58 |
1239.8 |
72 |
0.0641 |
647 |
|
500 |
500 |
37/4.15 |
29.05 |
1377.6 |
80 |
0.0577 |
688 |
|
560 |
560 |
37/4.39 |
30.73 |
1542.9 |
89.6 |
0.0515 |
736 |
|
630 |
630 |
61/3.63 |
32.67 |
1738.3 |
100.8 |
0.0458 |
789 |
|
710 |
710 |
61/3.85 |
34.65 |
1959.1 |
113.6 |
0.0407 |
845 |
|
800 |
800 |
61/4.09 |
36.81 |
2207.4 |
128 |
0.0361 |
905 |
|
900 |
900 |
61/4.33 |
38.97 |
2483.3 |
144 |
0.0321 |
967 |
|
1000 |
1000 |
61/4.57 |
41.13 |
2759.2 |
160 |
0.0289 |
1026 |
|
1120 |
1120 |
91/3.96 |
43.56 |
3093.5 |
179.2 |
0.0258 |
1091 |
|
1250 |
1250 |
91/4.18 |
45.98 |
3452.6 |
200 |
0.0231 |
1157 |
|
1400 |
1400 |
91/4.43 |
48.73 |
3866.9 |
224 |
0.0207 |
1226 |
|
1500 |
1500 |
91/4.58 |
50.38 |
4143.1 |
240 |
0.0193 |
1270 |
