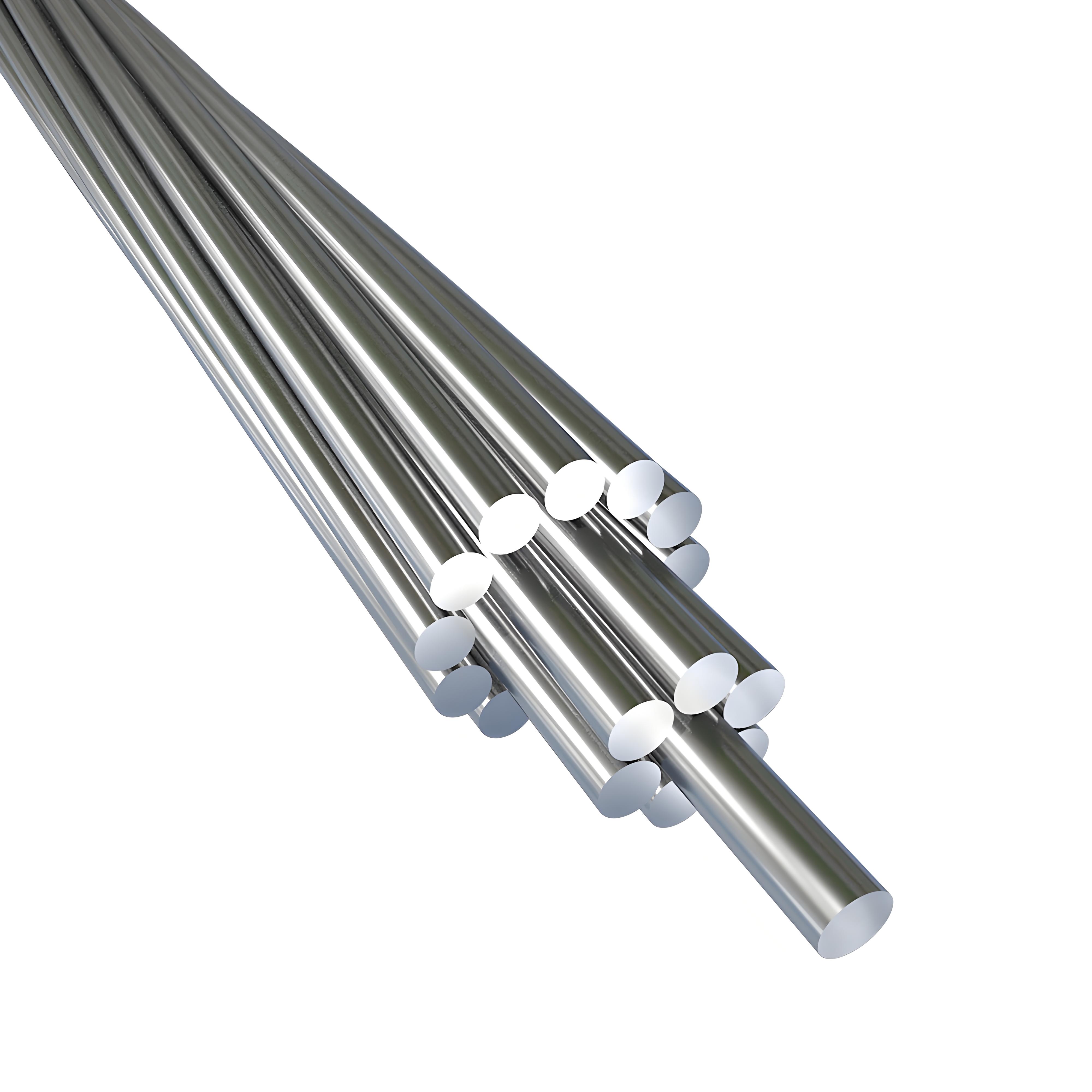

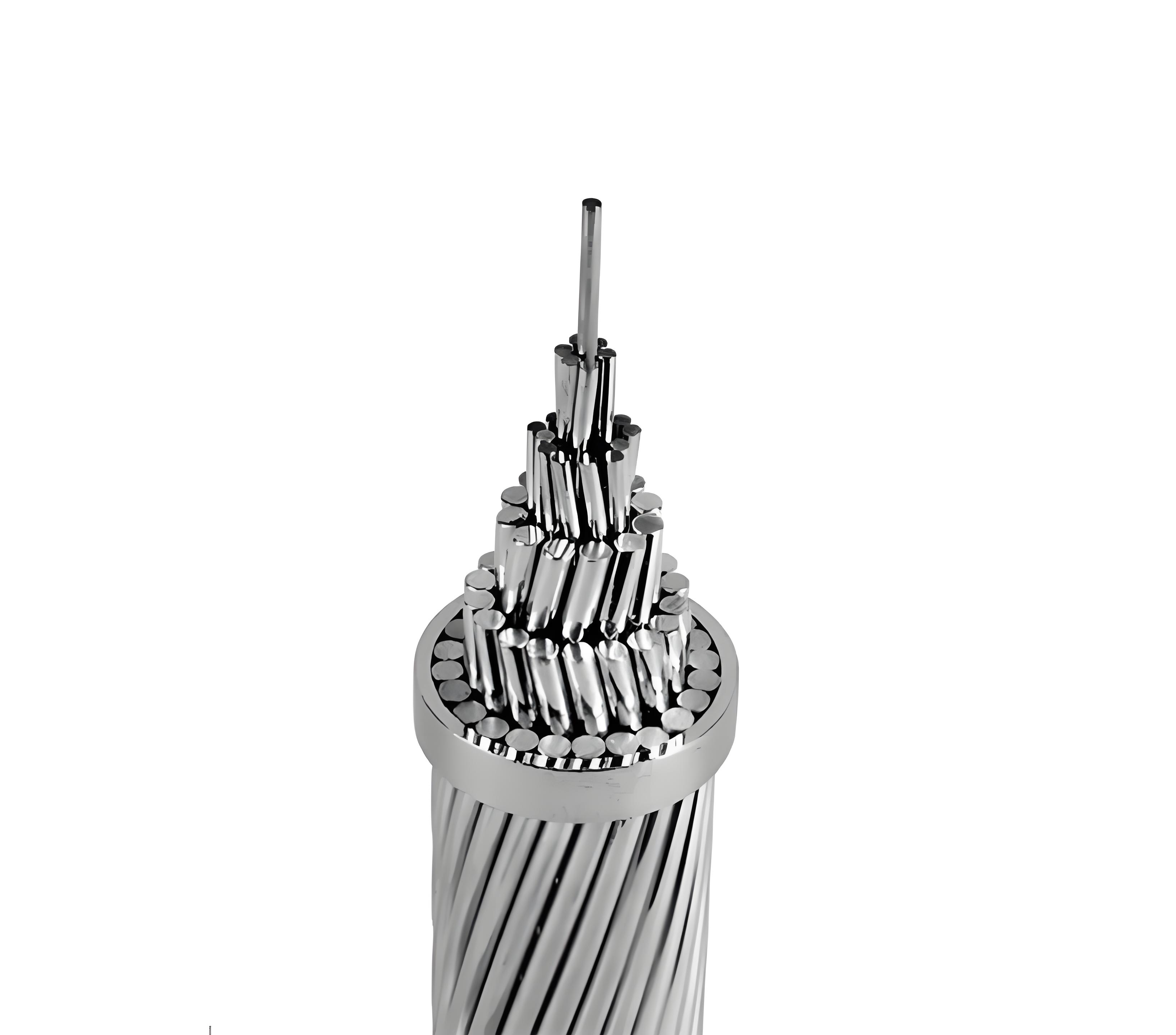

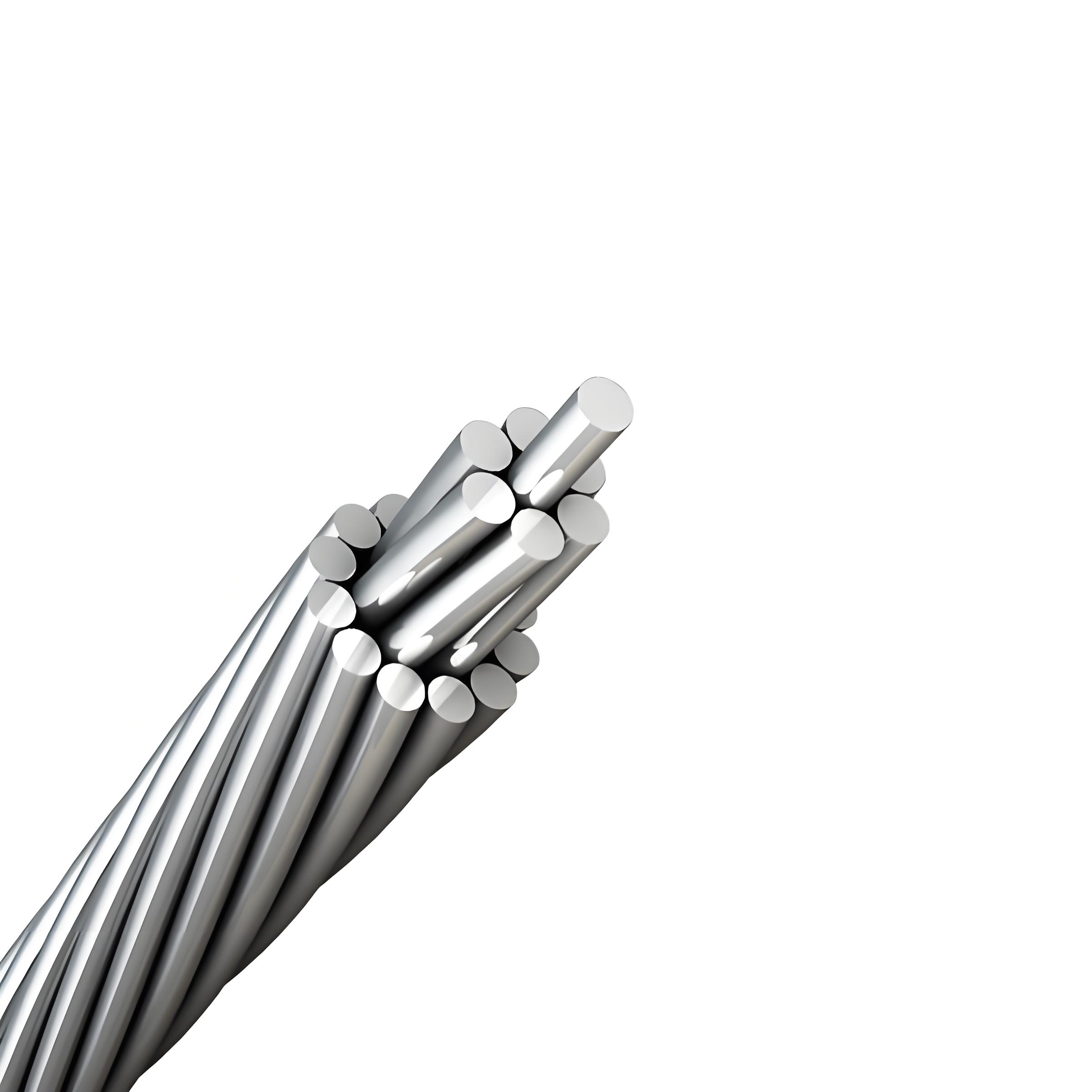

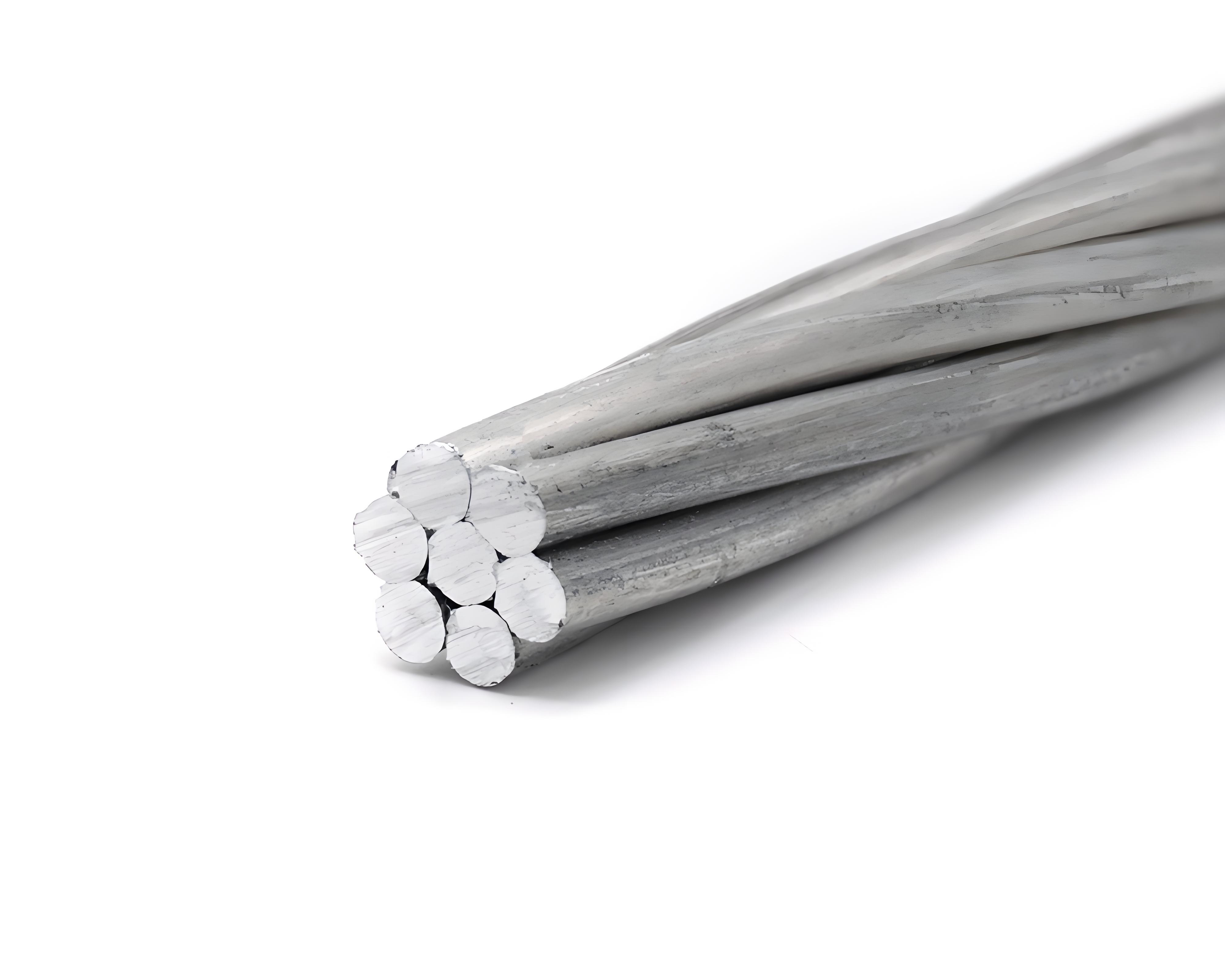

AAAC-Aluminum Alloy AAAC Conductor ASTM B399/AS 1531/BS 3242/DIN 48201/IEC 61089/NFC 34125

Application：

AAAC – All Aluminum Alloy Conductor is used for primary and secondary overhead transmission and distribution services. This has been designed utilizing a high-strength aluminum alloy to achieve a high strength-to-weight ratio and better sag characteristic. The conductor has a higher resistance to corrosion than ACSR.

Model No: AAAC

Material: Aluminum Alloy

Brand: KINGYEAR

Standard: ASTM B399/AS 1531/BS 3242/DIN 48201/IEC 61089/NFC 34125

Place of Origin: China

Package: Exported Wooden Drum

Range of Application: Overhead Line

Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment

Certification: ISO,CE and other certifications.

Production Capacity: 30000m/week

Inquiry

Write a Review

Stranded 6201-T81 high strength aluminum conductors, similar in construction and appearance to 1350 aluminum alloy grade aluminum conductors, and has a greater resistance to abrasion than conductors of 1350 aluminum alloy.
All Aluminium Alloy Conductors (AAAC) are extensively used for primary and secondary transmission in bare overhead distribution and transmission lines (11 kV to 800 kV lines) and HV substations. Also, usable in highly polluted industrial areas and coastal regions due to corrosion resistance.
AAAC has good corrosion resistance, however due to the absence of steel, its resistance is lower than ACSR. AAAC can carry 15-20% extra current and has a higher life span (60 years) as compared to ACSR of equal size (30 years). The surface hardness of AAAC is 80 BHN while ACSR has hardness 35 BHN. This reduces damage to the surface during handling, thereby leading to lesser corona losses and ratio interference at EHV. AAAC can be operated with stable temperature of 85°C against ACSR conductors which are stable upto 75°C. Since AAAC has higher strength-to-weight ratio, span can be increased by 2-15% resulting in overall reduction of cost in tower supports and other accessories in the transmission line system.

AAAC-ASTM-B All Aluminium Alloy Conductor

AAAC are used as a bare conductor cable on aerial circuits that require a larger mechanical resistance than the AAC and a better corrosion resistance than the ACSR. The sag characteristics and the strength-to-weight ratio of the AAAC conductor cable is better than both AAC and ACSR.

KINGYEAR from 2013-2018 are mainly for domestic trading and processing to some export trading companies. The average sales amount are about RMB 320,000,000 per year. For cables oversea market, From last may till now we have expanded our market to Bolivia, Peru, Dominican, Philippines, Vietnam, Thailand, Iraq, Mongolia, Indonesia and some Africa country. With total sales amount over USD10,000,000.

Specifications

AAAC conductor-BS 3242

Code	AL Nominal Area	Cu Nominal Area Equivalent	Total Area	Stranding	Overall Diameter	Weight
	mm^2	mm^2	mm^2	No.Ω/mm	mm	kg/km
-	-	6.45	11.7	7/1.47	4.41	32.2
Box	-	9.68	18.8	7/1.85	5.55	51.7
Acacia	-	12.9	21.9	7/2.08	6.24	66.1
Almond	25	16.1	30.1	7/2.34	7.02	82.9
Ceda	30	19.4	35.5	7/2.54	7.62	97.8
-	40	22.6	42.2	7/2.77	8.31	116.4
Fir	50	25.8	47.8	7/2.95	8.85	131.8
Hazel	100	32.3	59.9	7/3.30	9.9	165
Pine	-	38.7	71.7	7/3.61	10.83	197.7
-	-	45.2	84.1	7/3.91	11.73	231.6
Willow	150	48.4	89.8	7/4.04	12.12	247.5
-	175	51.6	96.5	7/4.19	12.57	266.2
-	300	58.1	108.8	7/4.45	13.35	299.8
Oak	-	64.5	118.9	7/4.65	13.95	327.8
-	-	80.6	118.8	19/2.82	14.1	327.6
Mulberry	-	96.8	151.1	19/3.18	15.9	416.7
Ash	-	113	180.7	19/3.48	17.4	498.1
Elm	-	129	211	19/3.76	18.8	582.1
Poplar	-	145	239	37/2.87	20.09	658.8
-	-	161	270.8	37/3.05	21.35	746.7
Sycamore	-	194	303	37/3.23	22.61	834.9
Upas	-	226	362.1	37/3.53	24.71	998.6
-	-	258	421.8	37/3.81	26.47	1163
Yew	-	-	479.9	37/4.06	28.42	132

AAAC conductor-BS EN 50182

Code	Stranding	Nominal Area	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
Code	No.xmm	mm^2	mm	kg/km	KN	Ω/Km	A
Box	7/1.85	18.8	5.55	51.4	5.55	1.748	87
Acacia	7/2.08	23.8	6.24	64.9	7.02	1.3828	101
Almond	7/2.34	30.1	7.02	82.2	8.88	1.0926	116
Cedar	7/2.54	35.5	7.62	96.8	10.46	0.9273	129
Deodar	7/2.77	42.2	8.31	115.2	12.44	0.7797	143
Fir	7/2.95	47.8	8.85	130.6	14.11	0.6875	155
Hazel	7/3.30	59.9	9.9	163.4	17.66	0.5494	178
Pine	7/3.61	71.6	10.83	195.6	21.14	0.4591	199
Holly	7/3.91	84.1	11.73	229.5	24.79	0.3913	219
Willow	7/4.04	89.7	12.12	245	26.47	0.3665	228
Oak	7/4.65	118.9	13.95	324.5	35.07	0.2767	272
Mulberry	19/3.18	150.9	15.9	414.3	44.52	0.2192	314
Ash	19/3.48	180.7	17.4	496.1	53.31	0.183	351
Elm	19/3.76	211	18.8	579.2	62.24	0.1568	386
Poplar	37/2.87	239.4	20.09	659.4	70.61	0.1387	416
Sycamore	37/3.23	303.2	22.61	835.2	89.4	0.1095	480
Upas	37/3.53	362.1	24.71	997.5	106.82	0.0917	535
Yew	37/4.06	479	28.42	1319.6	141.31	0.0693	633
Totara	37/4.14	498.1	28.98	1372.1	146.93	0.0666	648
Rubus	61/3.50	586.9	31.5	1622	173.13	0.0567	714
Sorbus	61/3.71	659.4	33.39	1822.5	194.53	0.0505	764
Araucaria	61/4.14	821.1	37.26	2269.4	242.24	0.0406	868
Redwood	61/4.56	996.2	41.04	2753.2	293.88	0.0334	970

AAAC conductor-IEC 61089

Code	Nominal Area	Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
	mm^2	No.xmm	mm	kg/km	KN	Ω/Km	A
16	18.4	18.4	5.49	50.4	5.43	1.7896	86
25	28.8	28.8	6.87	78.7	8.49	1.1453	113
40	46	46	8.67	125.9	13.58	0.7158	151
63	72.5	72.5	10.89	198.3	21.39	0.4545	200
100	115	115	13.9	316.3	33.95	0.2877	266
125	144	144	15.5	395.4	42.44	0.2302	305
160	184	184	17.55	506.1	54.32	0.1798	355
200	230	230	19.65	632.7	67.91	0.1439	407
250	288	288	21.95	790.8	84.88	0.1151	466
315	363	363	24.71	998.9	106.95	0.0916	535
400	460	460	27.86	1268.4	135.81	0.0721	618
450	518	518	29.54	1426.9	152.79	0.0641	663
500	575	575	31.15	1585.5	169.76	0.0577	706
560	645	645	33.03	1778.4	190.14	0.0516	755
630	725	725	35.01	2000.7	213.9	0.0458	809
710	817	817	37.17	2254.8	241.07	0.0407	866
800	921	921	39.42	2540.6	271.62	0.0361	928
900*	1036	1036	41.91	2861.1	305.58	0.0321	992
1000*	1151	1151	44.11	3179	339.53	0.0289	1051
1120*	1289	1289	46.75	3560.5	380.27	0.0258	1118
1250*	1439	1439	49.39	3973.7	424.41	0.0231	1185

ALL ALUMINIUM ALLOY CONDUCTORS (AAAC) AS PER IS 398 (PART - IV) : 1994

Equivalent	Actual	Stranding & Wire Diameter		Overall Dia (mm) (Approx)	Mass (Approx) (Kg /Km)	Resistance AT 20 deg C (Ohms/Km) (Max)	Ultimate Breaking Load (Kn)	Current Carrying Capacity
Acsr	Area	Conductor						65 Deg. C	75 Deg. C	90 Deg. C
Code Word	(sq mm)	No.	DIA (mm)					Amps	Amps	Amps
Mole	15	3	2.50	5.39	40.15	2.3040	4.33	73 72	88 87	105 104
Squirrel	22	7	2.00	6	60.16	1.5410	6.45	92 90	110 109	132 130
Weasel	34	7	2.50	7.50	94.00	0.9900	10.11	121 119	146 144	175 173
Rabbit	55	7	3.15	9.45	149.20	0.6210	16.03	160 158	194 191	234 231
Racoon	80	7	3.81	11.43	218.26	0.425	23.41	202 199	246 242	297 293
Dog	100	7	4.26	12.78	272.86	0.3390	29.26	232 229	283 279	343 338
Dog (Up)	125	19	2.89	14.45	342.51	0.2735	36.64	266 262	325 320	394 389
Coyote	148	19	3.15	15.75	406.91	0.2290	43.50	295 291	362 357	440 434
Wolf	173	19	3.40	17.00	474.02	0.1969	50.54	324 320	398 393	485 478
Wolf (Up)	200	19	3.66	18.30	549.40	0.1710	58.66	354 349	436 430	532 524
Panther	232	19	3.94	19.70	636.67	0.1471	68.05	387 382	478 471	584 575
Panther (Up)	288	37	3.15	22.05	794.05	0.1182	84.71	442 436	548 540	670 661
Panther (Up)	346	37	3.45	24.15	952.56	0.0984	101.58	493 487	613 605	752 742
Kundah	400	37	3.71	25.97	1101.63	0.0829	117.40	538 530	670 660	824 811
Zebra	465	37	4.00	28.00	1280.50	0.0734	136.38	589 580	736 725	905 892
Zebra (UP)	525	61	3.31	29.79	1448.39	0.0651	146.03	632 623	792 781	976 963
Moose	570	61	3.45	31.05	1573.71	0.0598	158.66	663 655	833 822	1028 1015
Morculla	604	61	3.55	31.95	1666.00	0.0568	167.99	686 676	862 849	1065 1049
Moose (Up)	642	61	3.66	32.94	1771.36	0.0534	178.43	711 700	894 881	1106 1089
Morculla (Up)	695	61	3.81	34.29	1919.13	0.0492	193.25	745 734	939 925	1162 1145
Bersimis	767	61	4.00	36.00	2115.54	0.0446	213.01	788 777	995 981	1234 1217
