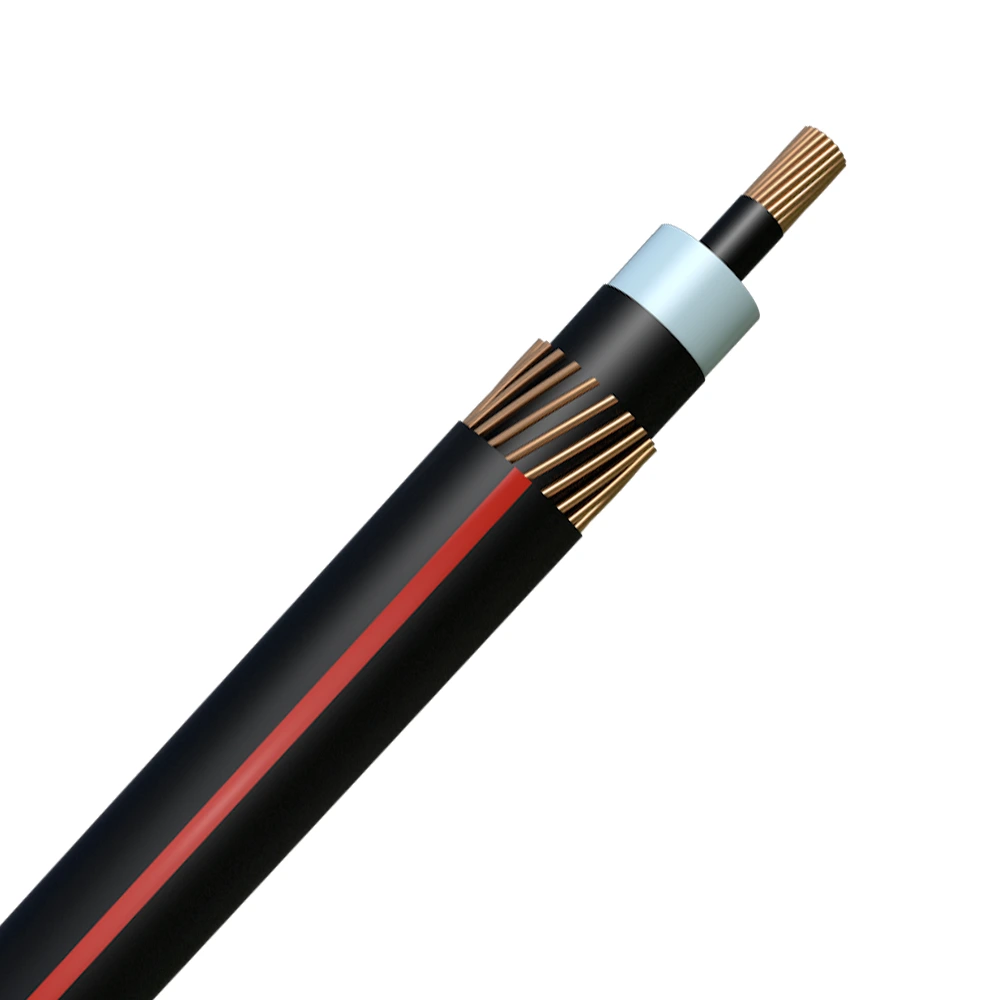

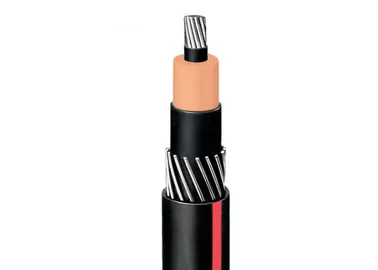

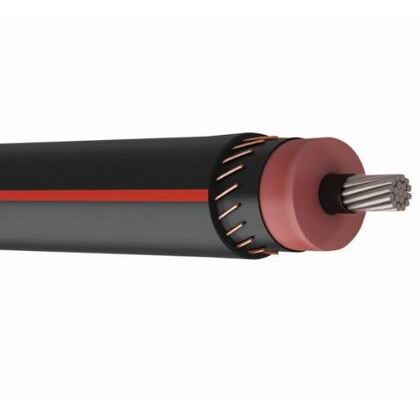

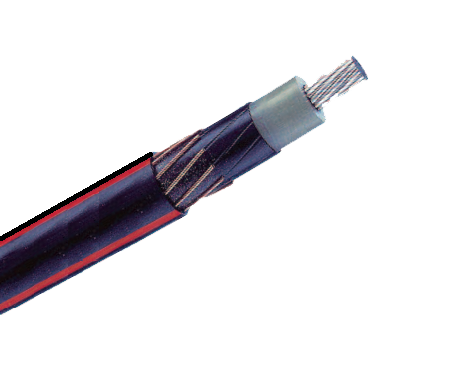

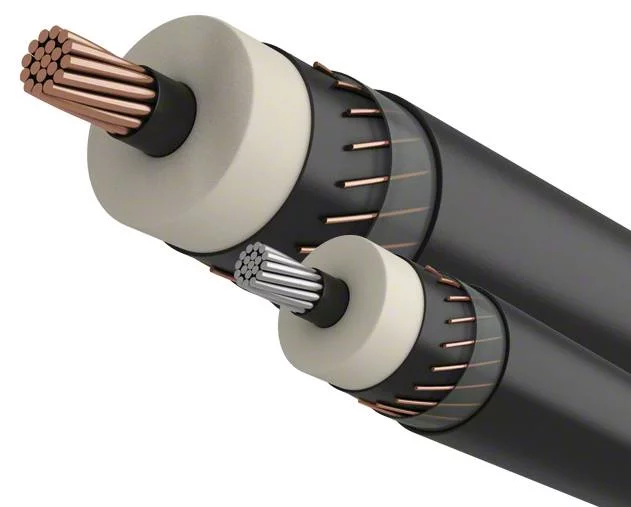

15kV Concentric Cable
Application:
Input or busbar cable to the connection equipment and its output to the service switch or totalizer. In connections for low voltage aerial distribution systems (private service and public lighting). Connection to energy meters.
Model No.: Concentric Cable

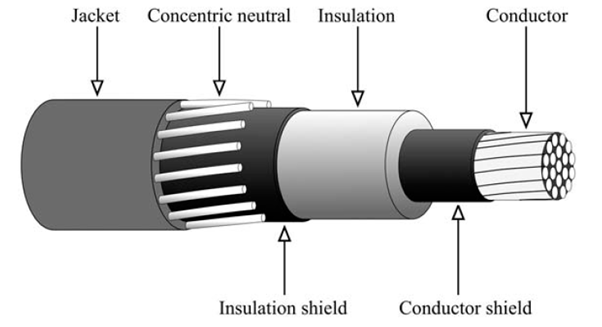

1.Phase Conductor: Annealed Copper Conductor.
2.Insulation: XLPE or PVC
3.Neutral conductor: Plain copper wires.
4.Separator tape: Polyester tape.
5.Sheath: XLPE or PVC
Brand: KINGYEAR
Standard: IEC 60228, IEC 60502-1, BS 7870, NTP 370.255
Place of Origin: China
Package: Exported Wooden Drum
Range of Application: Overhead Line
Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment
Certification: ISO,CE and other certifications.
Production Capacity: 30000m/week
Product details
These cables are used for power supplies with Protective Multiple Earthing (PME) systems, where a combined Protective Earth (PE) and Neutral (N) - together known as the PEN - connects the combined neutral-and-earth to real earth at multiple locations to reduce the risk of electric shock in the event of a broken PEN.
They are manufactured in accordance with BS7870-3.10 (PVC insulation and sheathing), BS7870-3.11 (XLPE insulation / PVC sheathing) and BS7870-3.12 (XLPE insulation / LSZH sheathing).
KINGYEAR from 2013-2018 are mainly for domestic trading and processing to some export trading companies. The average sales amount are about RMB 320,000,000 per year. For cables oversea market, From last may till now we have expanded our market to Bolivia, Peru, Dominican, Philippines, Vietnam, Thailand, Iraq, Mongolia, Indonesia and some Africa country. With total sales amount over USD10,000,000.
Specifications
|
COPPER CONCENTRIC CABLE 0.6/1kV |
||||||
|
Size |
Phase Conductor |
Neutral concentric conductor |
Approx. Cable Diameter |
Approx. Cable Weight |
||
|
Approx. conductor diameter |
Max. DC Resistance at 20℃ |
Insulation thickness |
||||
|
mm2 |
mm |
Ω/km |
mm |
No. x mm |
mm |
kg/km |
|
2 x 4 |
2.24 |
4.61 |
1 |
33 x 0.40 |
9 |
146 |
|
2 x 6 |
2.76 |
3.08 |
1 |
31 x 0.51 |
9.5 |
191 |
|
2 x 10 |
3.57 |
1.83 |
1 |
23 x 0.81 |
11.2 |
281 |
|
3 x 6 |
2.76 |
3.08 |
1 |
58 x 0.45 |
16.3 |
410 |
|
3 x 10 |
3.57 |
1.83 |
1 |
59 x 0.51 |
18.4 |
583 |
|
ALUMINUM CONCENTRIC CABLE 0.6/1kV |
|||||
|
Size |
Phase Conductor |
|
|||
|
|
Number of phase conductor |
Approx. conductor diameter |
Max. DC Resistance at 20℃ |
Insulation thickness |
Approx. Cable Diameter |
|
mm2 |
pcs |
mm |
Ω/km |
mm |
mm |
|
2 x 6 |
1 |
3.2 |
4.61 |
0.7 |
9.5 |
|
2 x 10 |
1 |
4.05 |
3.08 |
0.7 |
11 |
|
3 x 10 |
2 |
4.05 |
3.08 |
0.7 |
14.3 |
|
2 x 16 |
1 |
4.8 |
1.91 |
0.7 |
12 |
|
3 x 16 |
2 |
5 |
1.91 |
0.7 |
16.5 |
|
4 x 16 |
3 |
5 |
1.91 |
0.7 |
17.5 |
