VVG,VVGng,VVGngd Power Cable 660/1000V
Application：
They are designed for the transmission and distribution of electrical energy in stationary installations for a rated alternating voltage of 660 V and 1000 V with a frequency of 50 Hz.
Model No.：VVG,VVGng,VVGngd Power Cable 660/1000V
Conductor：Copper/Aluminum
Insulation:PVC
Sheath:PVC
Brand：KINGYEAR
Standard：IEC 60502/Gost
Place of Origin：China
Package：Exported Wooden Drum
Range of Application：Power Cable
Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment
Certification：ISO,CE and other certifications.
Production Capacity：30000m/week

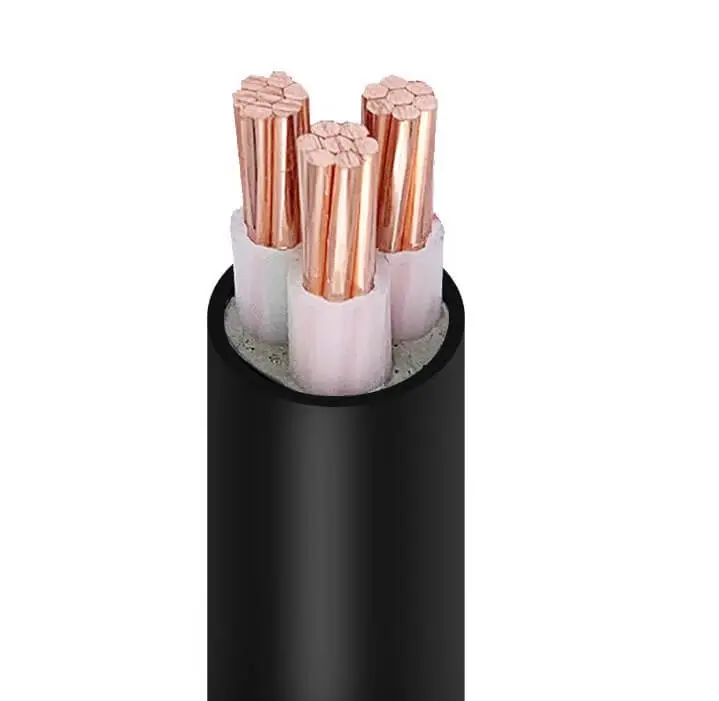

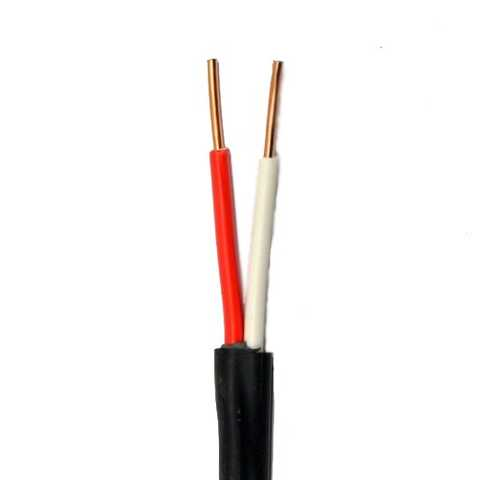

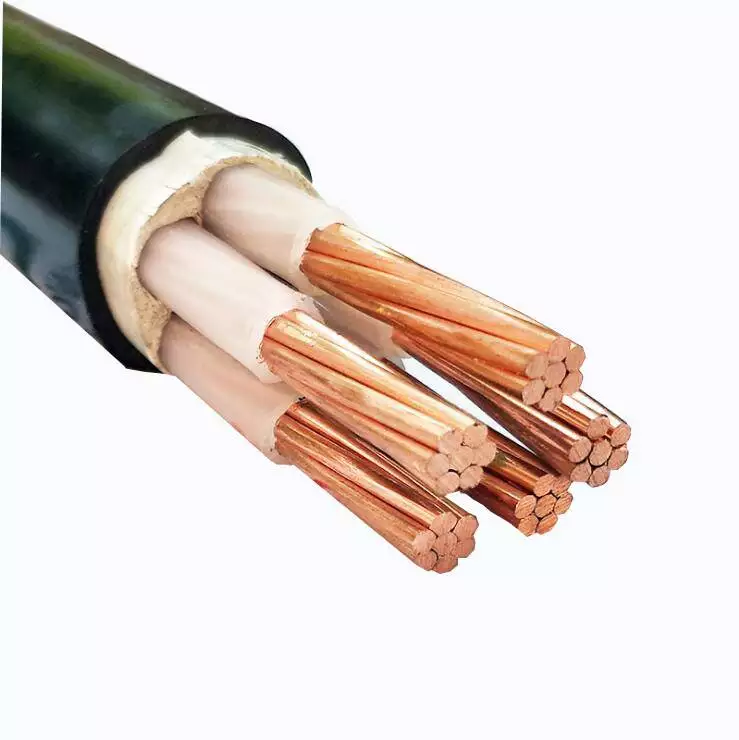

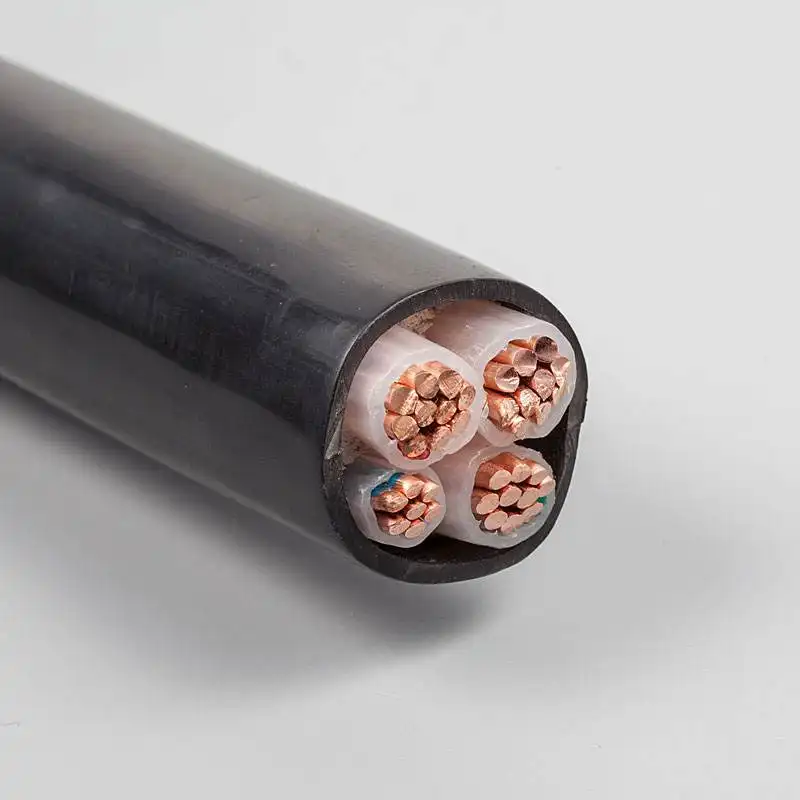

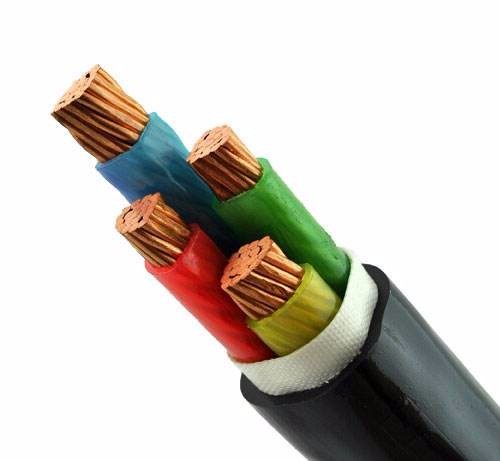

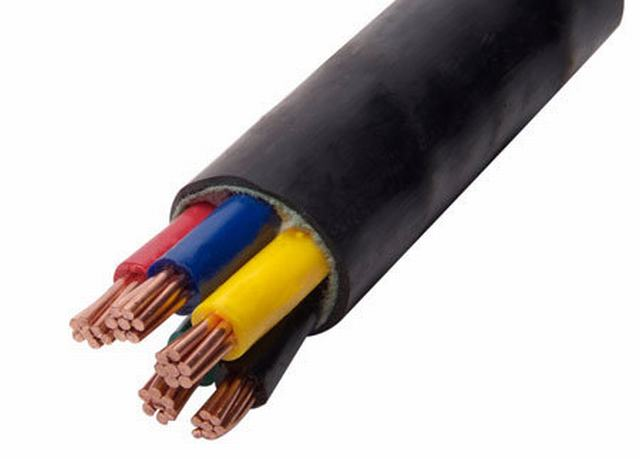

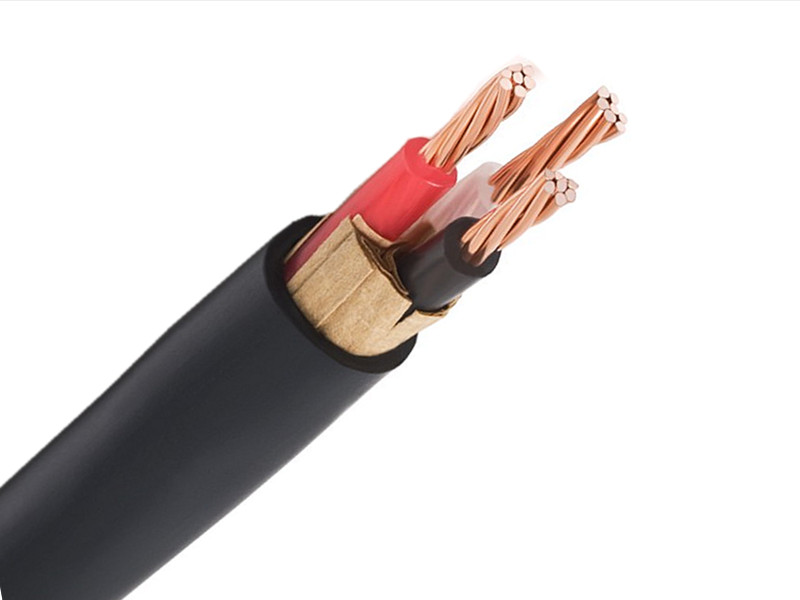

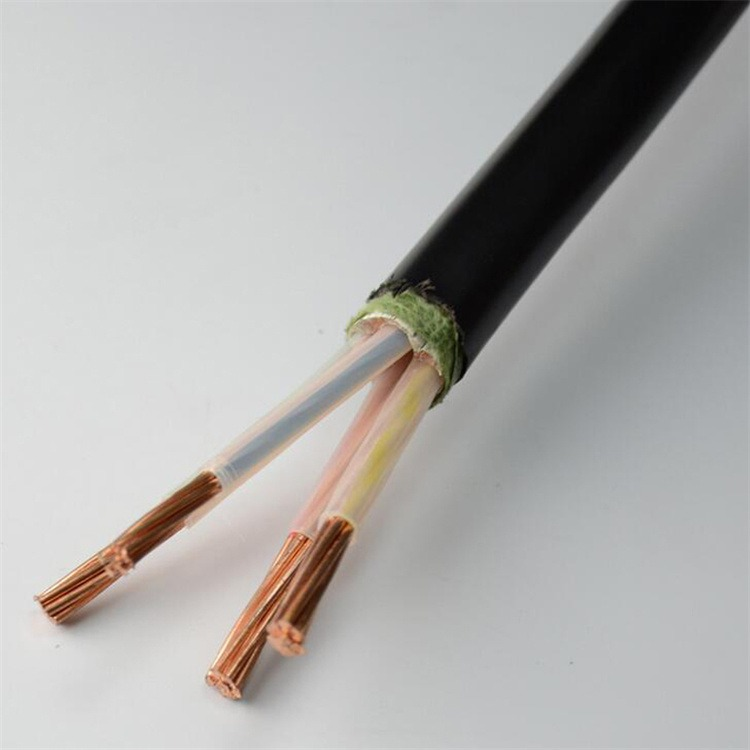

- VVG, VVGng, VVGngd are power cables with copper conductors, PVC insulation and sheath.
- They are designed for the transmission and distribution of electrical energy in stationary installations for a rated alternating voltage of 660 V and 1000 V with a frequency of 50 Hz.
- They are used when laying in blocks, on specialized cable tray systems, can be used in industrial premises, distribution and lighting devices, as well as in ordinary residential premises as electrical wiring.
- Special protection is needed for the laying in the ground.
Interpretation of cables VVG, VVGng, VVGngd
V – PVC insulation;
V – PVC compound sheath;
G – no armor;
«ng» – does not support combustion;
«ngd» – does not support combustion, with reduced smoke and gas emission.
KINGYEAR from 2013-2018 are mainly for domestic trading and processing to some export trading companies. The average sales amount are about RMB 320,000,000 per year. For cables oversea market, From last may till now we have expanded our market to Bolivia, Peru, Dominican, Philippines, Vietnam, Thailand, Iraq, Mongolia, Indonesia and some Africa country. With total sales amount over USD10,000,000.
Specifications
Advantage
FAQ
|
Number of conductors and nominal cross-section, mm2 |
Nominal outer diameter, mm |
Estimated weight of 1 km of cables, kg |
| 1 x 1,5 | 5,0 | 40 |
| 1 x 2,5 | 5,4 | 52 |
| 1 x 4,0 | 6,0 | 71 |
| 1 x 6,0 | 6,6 | 94 |
| 1 x 10 | 7,8 | 142 |
| 1 x 16 | 9,9 | 229 |
| 1 x 25 | 11,6 | 336 |
| 1 x 35 | 12,7 | 438 |
| 1 x 50 | 14,7 | 606 |
| 2 x 1,5 | 7,6 | 73 |
| 2 x 2,5 | 8,4 | 98 |
| 2 x 4,0 | 10,3 | 151 |
| 2 x 6,0 | 11,3 | 198 |
| 2 x 10 | 13,7 | 299 |
| 2 x 16 | 16,8 | 453 |
| 2 x 25 | 20,6 | 691 |
| 2 x 35 | 22,9 | 900 |
| 2 x 50 | 27,2 | 1269 |
| 3 x 1,5 | 7,9 | 94 |
| 3 x 2,5 | 9,4 | 141 |
| 3 x 4,0 | 10,8 | 199 |
| 3 x 6,0 | 11,9 | 267 |
| 3 x 10 | 14,5 | 412 |
| 3 x 16 | 17,8 | 634 |
| 3 x 25 | 21,9 | 972 |
| 3 x 35 | 24,7 | 1301 |
| 3 x 50 | 29,0 | 1807 |
| 3 x 2,5 + 1 x 1,5 | 10,2 | 166 |
| 3 x 4,0 + 1 x 2,5 | 11,8 | 234 |
| 3 x 6,0 + 1 x 4,0 | 13,0 | 319 |
| 3 x 10 + 1 x 6,0 | 15,4 | 482 |
| 3 x 16 + 1 x 10 | 19,3 | 766 |
| 3 x 25 + 1 x 16 | 24,5 | 1185 |
| 3 x 35 + 1 x 16 | 26,3 | 1488 |
| 3 x 50 + 1 x 25 | 30,8 | 2094 |
| 4 x 1,5 | 9,2 | 129 |
| 4 x 2,5 | 10,2 | 176 |
| 4 x 4,0 | 11,8 | 250 |
| 4 x 6,0 | 13,0 | 339 |
| 4 x 10 | 15,9 | 528 |
| 4 x 16 | 20,0 | 838 |
| 4 x 25 | 24,5 | 1282 |
| 4 x 35 | 27,2 | 1689 |
| 4 x 50 | 32,0 | 2356 |
| 5 x 1,5 | 10,0 | 156 |
| 5 x 2,5 | 11,0 | 215 |
| 5 x 4,0 | 12,8 | 310 |
| 5 x 6,0 | 14,2 | 422 |
| 5 x 10 | 17,4 | 662 |
| 5 x 16 | 22,0 | 1053 |
| 5 x 25 | 27,0 | 1616 |
| 5 x 35 | 30,1 | 2133 |
| 5 x 50 | 35,8 | 3018 |
