Power cable and Electric wire manufacturer with 15 years of experience.

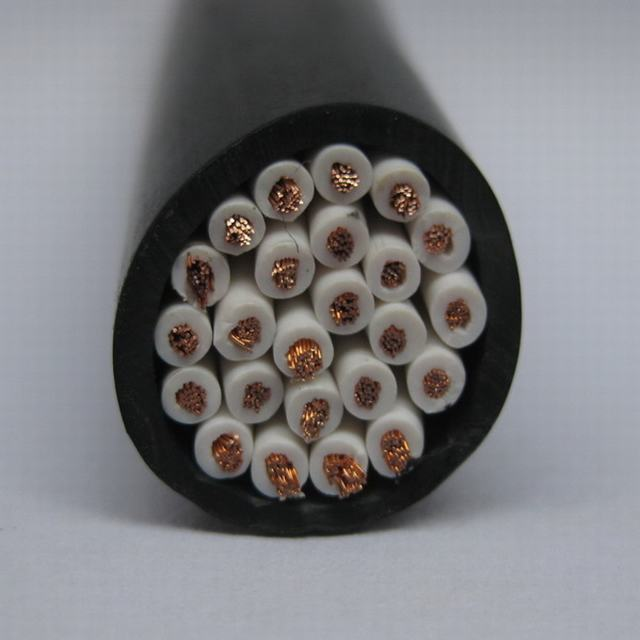

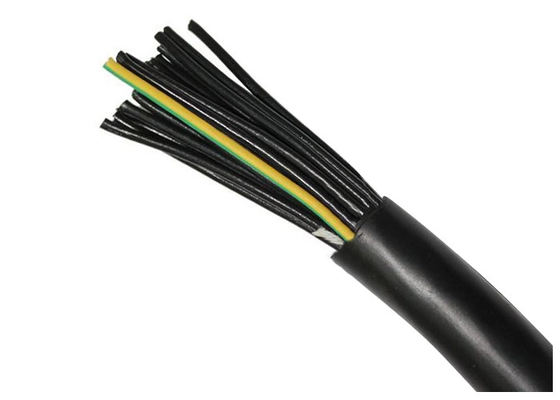

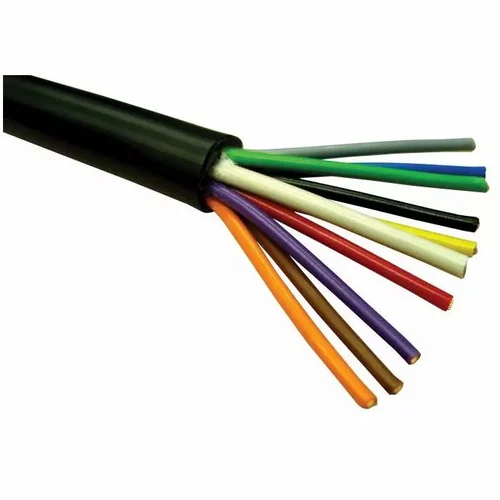

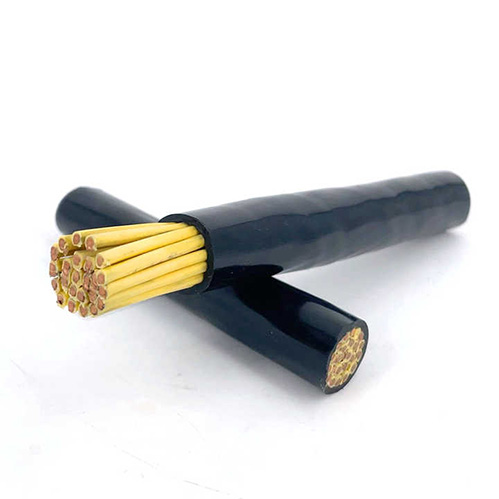

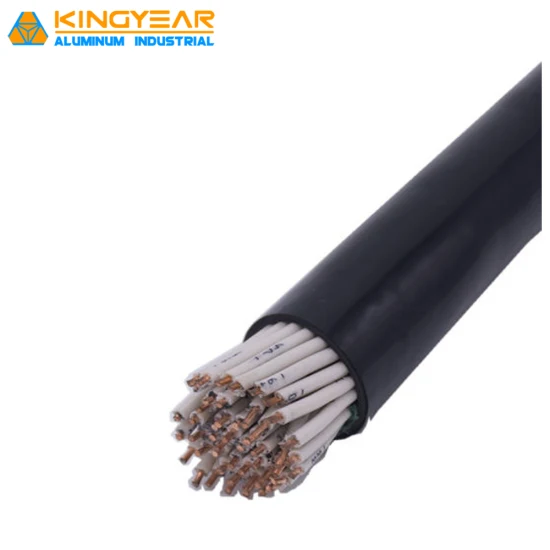

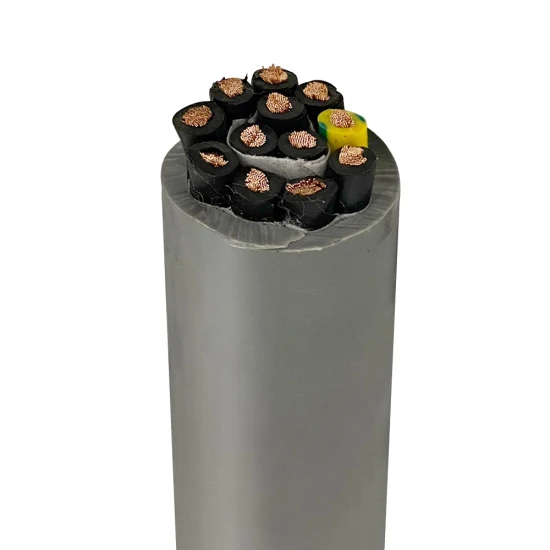

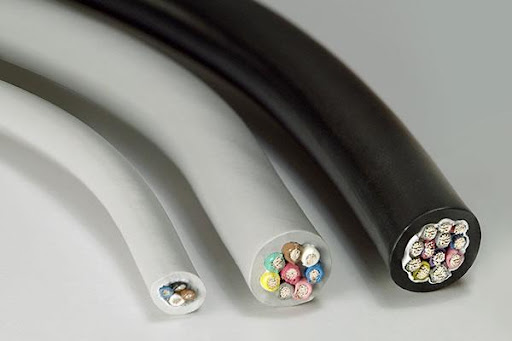

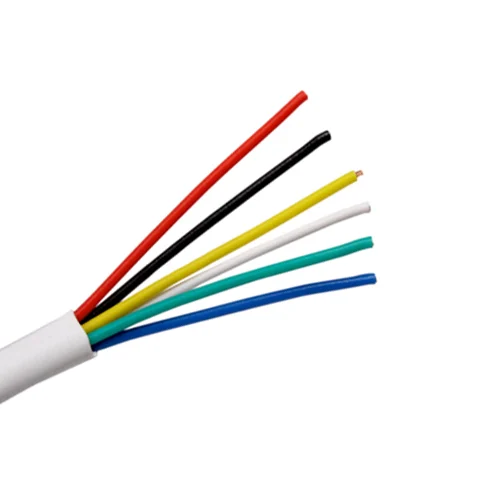

XLPE Insulated Control Cable 0.6/1kV

Application：

XLPE insulated and PVC sheathed control cable, features flexible conductor and non-screen single core or multi -cores cables for power and signal transmission.. XLPE insulated and sheath control cable is widely used in engineering, plant installations, vehicle manufacturing, bottling plants and many other fields. It is used indoors in dry and moist situations. Provided protected from sunlight or some other mechanical damage, control cable could be used outdoor.

Model No.：XLPE Insulated Control Cable

Voltage：0.6/1kV

Material：Copper

Brand：KINGYEAR

Standard：IEC/ASTM/BS/GBT/DIN

Place of Origin：China

Package：Exported Wooden Drum

Range of Application：Control Cable

Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment

Certification：ISO,CE and other certifications.

Production Capacity：30000m/week

Inquiry

Write a Review

Applicable Standard:

GB/T9330-2020，IEC60502-1，BS EN 50525-2-11，VDE0250

Flame Retardant to IEC 60332-1 Vertical Flame Propagation Test

KINGYEAR from 2013-2018 are mainly for domestic trading and processing to some export trading companies. The average sales amount are about RMB 320,000,000 per year. For cables oversea market, From last may till now we have expanded our market to Bolivia, Peru, Dominican, Philippines, Vietnam, Thailand, Iraq, Mongolia, Indonesia and some Africa country. With total sales amount over USD10,000,000.

Specifications

umber of Pairs	Number and Diameter of Wires	Nominal Conductor Cross-Sectional Area	Nominal Thickness of Insulation	Nominal Thickness of Sheath	Nominal Diameter of Cable	Approx. Weight
umber of Pairs	no./mm	mm2	mm	mm	mm	kg/km
2	1/0.8	0.5	0.5	0.9	9.7	95
5	1/0.8	0.5	0.5	1.2	13	180
10	1/0.8	0.5	0.5	1.2	16.9	310
15	1/0.8	0.5	0.5	1.3	19.7	440
20	1/0.8	0.5	0.5	1.3	22.3	560
30	1/0.8	0.5	0.5	1.5	27.1	820
50	1/0.8	0.5	0.5	2	35	1370
2	16/0.2	0.5	0.6	1.1	11.2	110
5	16/0.2	0.5	0.6	1.2	14.5	250
10	16/0.2	0.5	0.6	1.3	19.3	480
15	16/0.2	0.5	0.6	1.5	22.6	570
20	16/0.2	0.5	0.6	1.5	25.7	780
30	16/0.2	0.5	0.6	1.7	31	1020
50	16/0.2	0.5	0.6	2.2	39.9	1680
2	1/1.13	1	0.6	1.1	11.9	200
5	1/1.13	1	0.6	1.2	15.4	290
10	1/1.13	1	0.6	1.3	20.5	580
15	1/1.13	1	0.6	1.5	24.1	780
20	1/1.13	1	0.6	1.7	27.7	1010
30	1/1.13	1	0.6	2	33.7	1430
50	1/1.13	1	0.6	2.2	42.5	2360
2	7/0.53	1.5	0.6	1.2	13.6	250
5	7/0.53	1.5	0.6	1.3	17.7	460
10	7/0.53	1.5	0.6	1.5	23.9	760
15	7/0.53	1.5	0.6	1.7	28	1020
20	7/0.53	1.5	0.6	2	31.7	1350
30	7/0.53	1.5	0.6	2.2	38.6	1900
50	7/0.53	1.5	0.6	2.2	48.9	3060

Advantage

Customization

Providing tailored designs to meet specific requirements.

After-Sales Service

Ensuring continuous support and satisfaction post-purchase.

Timely Delivery

Committing to prompt and reliable delivery schedules.

Training and Documentation

Providing detailed documentation for easy operation and maintenance.
