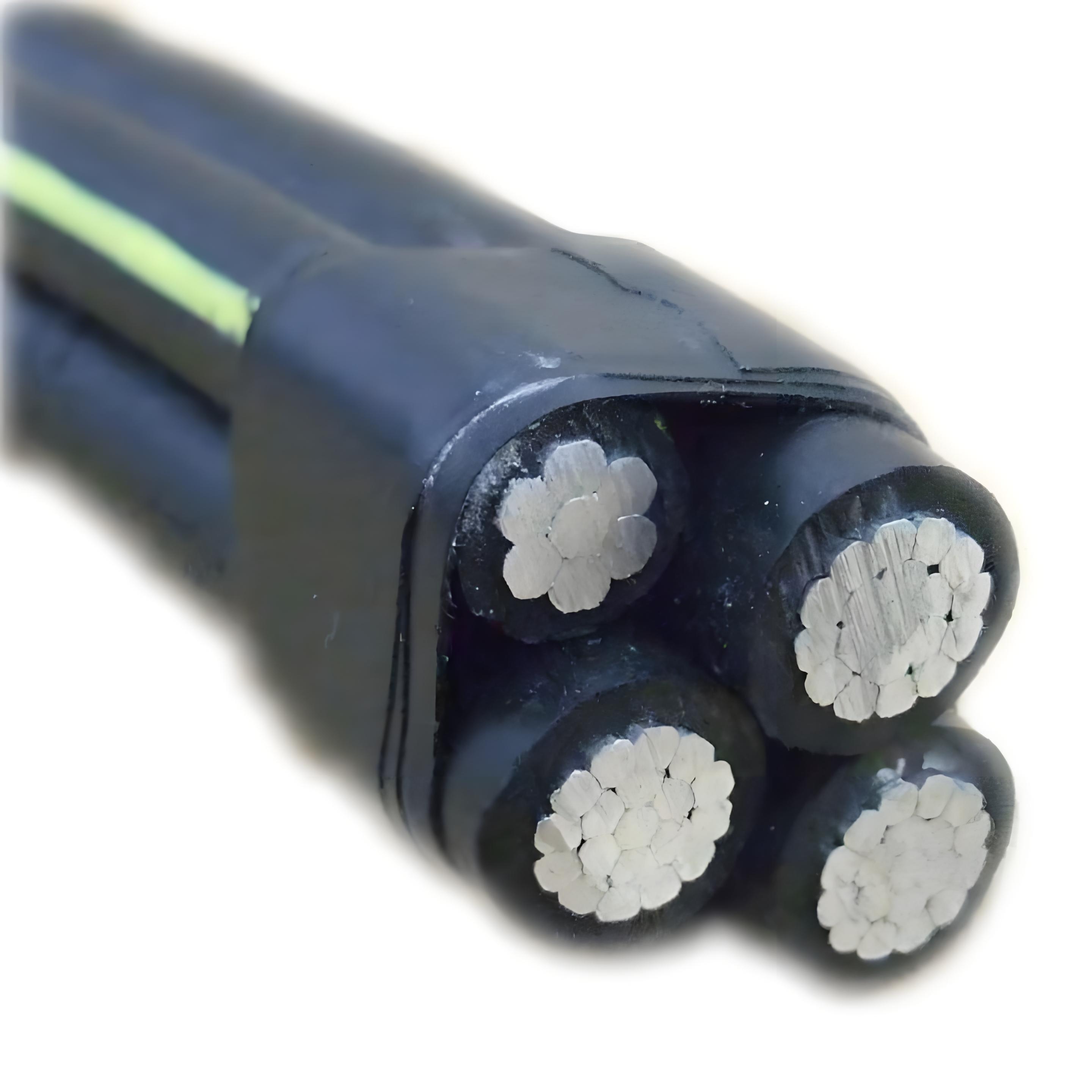

BS 7870-5 - ABC LV Cable - Aerial Bundled Cables Low Voltage 2

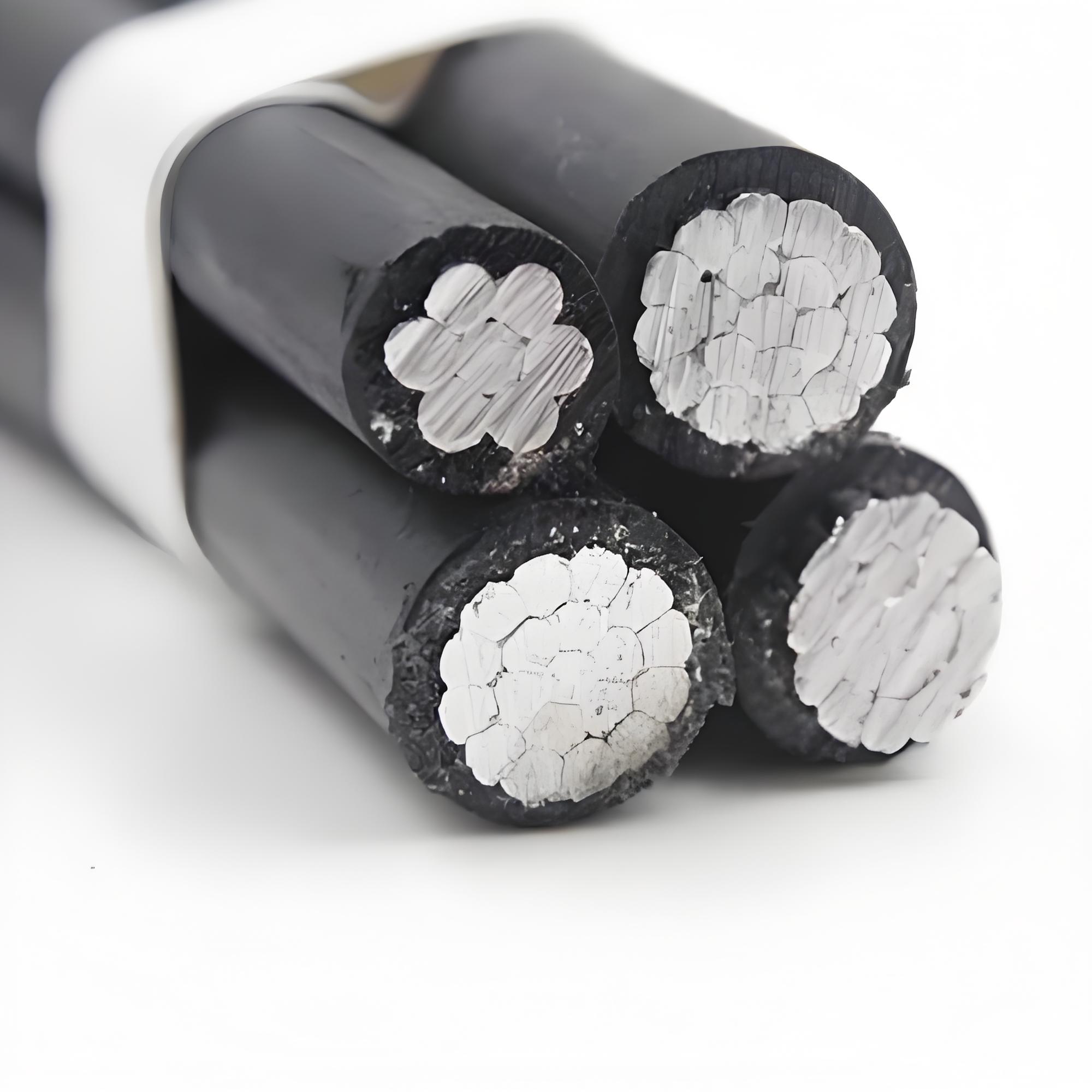

BS 7870-5 - ABC LV Cable - Aerial Bundled Cables Low Voltage 3

BS 7870-5 - ABC LV Cable - Aerial Bundled Cables Low Voltage 4

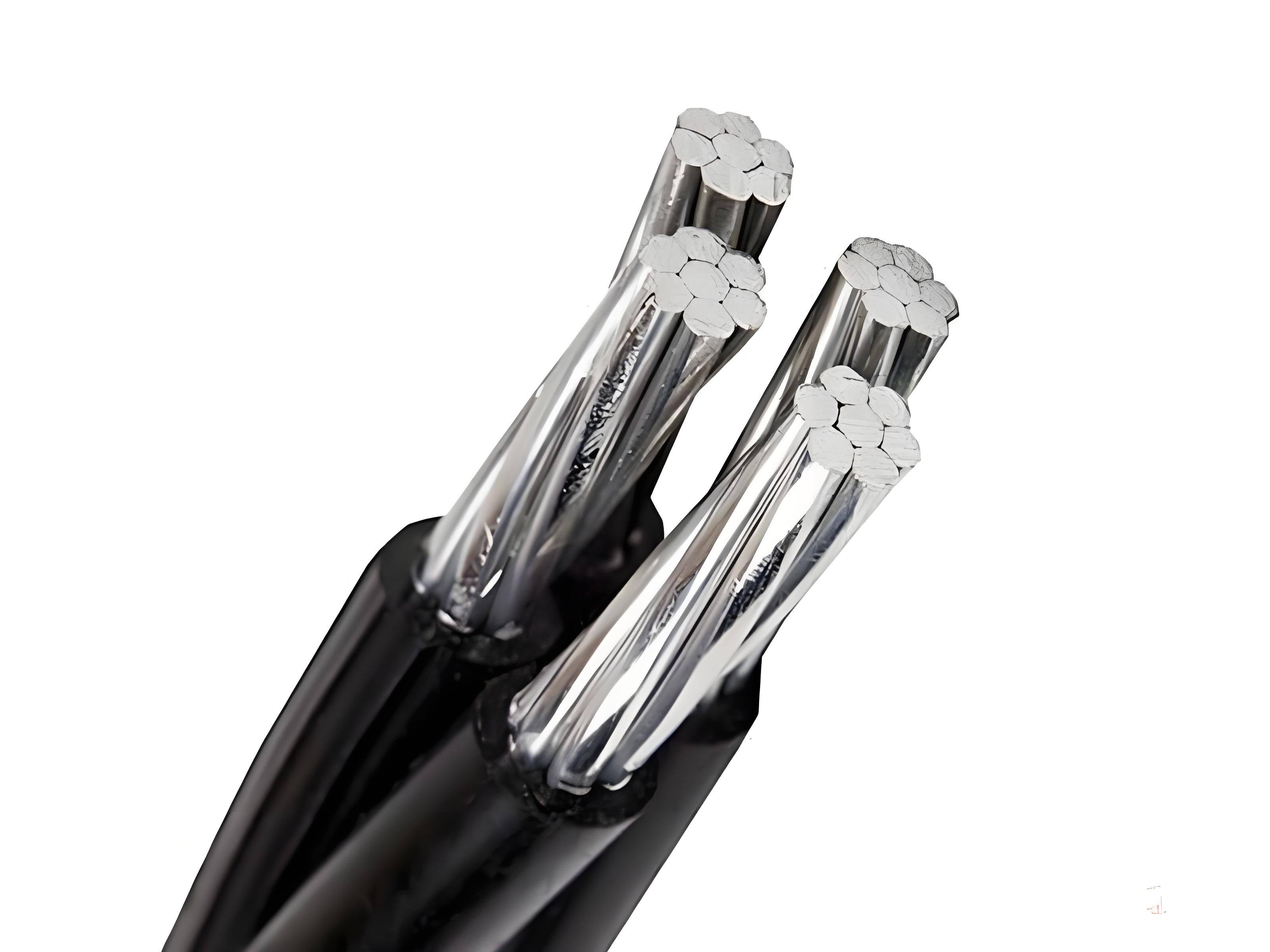

BS 7870-5 - ABC LV Cable - Aerial Bundled Cables Low Voltage 5

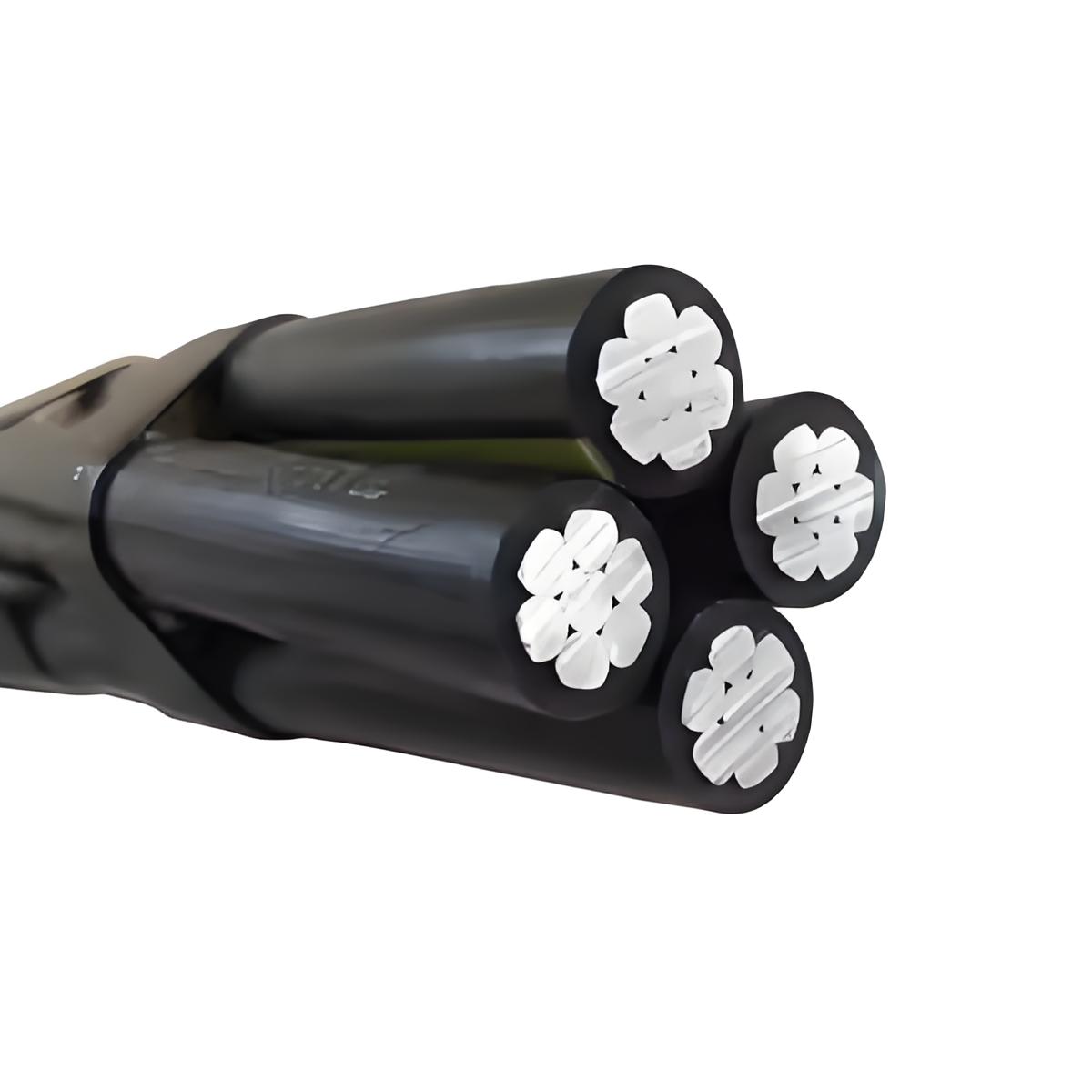

BS 7870-5 - ABC LV Cable - Aerial Bundled Cables Low Voltage 6

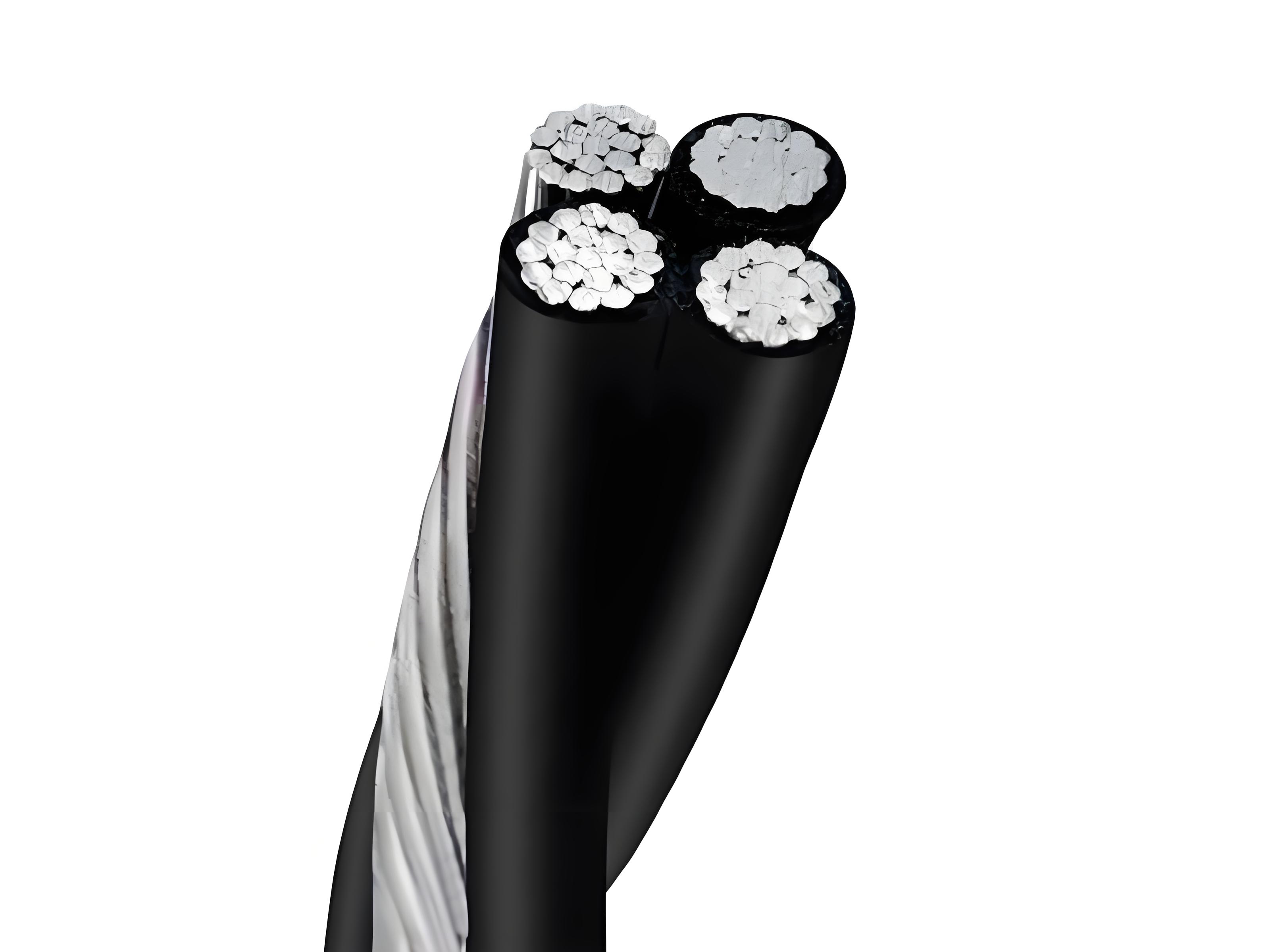

BS 7870-5 - ABC LV Cable - Aerial Bundled Cables Low Voltage 7

BS 7870-5 - ABC LV Cable - Aerial Bundled Cables Low Voltage 8

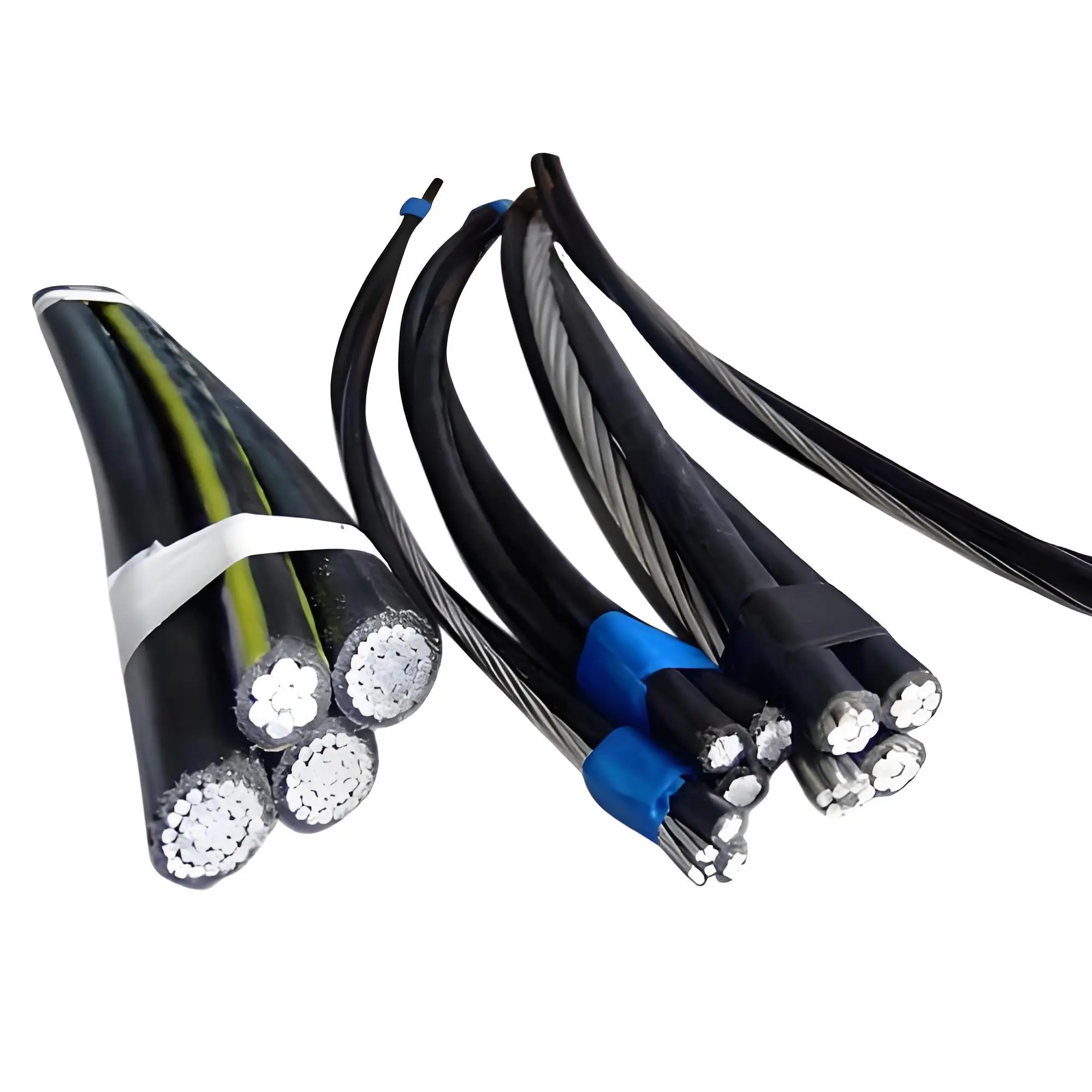

BS 7870-5 - ABC LV Cable - Aerial Bundled Cables Low Voltage

Application：

The aerial bundled cables designed for overhead distribution lines have all conductors made of aluminium 1350 and insulated with XLPE. Can be used for fixed installation as overhead power lines up to 1000 V incl.

Model No.：LV ABC Cable BS 7870-5

Material：Aluminum

Brand：KINGYEAR

Standard：BS 7870-5

Place of Origin：China

Package：Exported Wooden Drum

Range of Application：Overhead Line

Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment

Certification：ISO,CE and other certifications.

Production Capacity：30000m/week

Inquiry

Write a Review

Our standard of Low Voltage ABC (lv ABC cable) is m BS7870 and has a voltage rating of 0.6/1kV. With the insulation, it also meets Class II according to IEC 61140 in protecting against electric shock.

Phase Conductor: Concentric strand or compressed 1350-H19 conductor Neutral

Conductors: aluminum alloy 1350-H19,6201-T81, or ACSR conductors

Insulation: high density polyethylene (HDPE) or cross-linked polyethylene (XLPE).

KINGYEAR from 2013-2018 are mainly for domestic trading and processing to some export trading companies. The average sales amount are about RMB 320,000,000 per year. For cables oversea market, From last may till now we have expanded our market to Bolivia, Peru, Dominican, Philippines, Vietnam, Thailand, Iraq, Mongolia, Indonesia and some Africa country. With total sales amount over USD10,000,000.

Specifications

BS 7870-5 Standard ABC Cable
Number of cores x nominal cross section	Max. conductor- resistance	Min. breaking load of conductor strand	Current rating in the air	Outer diameter	Total weight
mm^2	Ohm/km	KN	A	mm	kg/km
1x 16 RM	1,910	2,5	72	80	74
1x 25 RM	1,200	4,0	107	90	106
1x 35 RM	0,868	5,5	132	105	138
1x 50 RM	0,641	8,0	165	118	182
1x 70 RM	0,443	10,7	205	130	252
1x 95 RM	0,320	13,7	240	154	333
1x 120 RM	0,253	18,6	290	170	408
1x 150 RM	0,206	23,2	334	190	502
1x 185 RM	0,164	28,7	389	210	611
1x 240 RM	0,125	37,2	467	240	801
2x 16 RM	1,910	2,5	72	156	147
2x 25 RM	1,200	4,0	107	180	208
2x 35 RM	0,868	5,5	132	200	277
2x 50 RM	0,641	8,0	165	235	361
2x 70 RM	0,443	10,7	205	254	505
2x 95 RM	0,320	13,7	240	303	666
2x 150 RM	0,206	23,2	334	380	1004
4x 16 RM	1,910	2,5	72	188	286
4x 25 RM	1,200	4,0	107	212	430
4x 35 RM	0,868	5,5	132	241	553
4x 50 RM	0,641	8,0	165	278	746
4x 70 RM	0,443	10,7	205	318	1009
4x 95 RM	0,320	13,7	240	378	1332
4x 120 RM	0,253	18,6	290	544	1632
4x 50 + 1x 25 RM	0,641/1,200	8,0/4,0	165/107	319	814
4x 50 + 1x 35 RM	0,641/0,868	8,5/5,5	165/132	319	845
4x 70 + 1x 25 RM	0,443/1,200	10,7/4,0	205/107	360	1105
4x 70 + 2x 25 RM	0,443/1,200	10,7/4,0	205/107	400	1217
4x 95 + 1x 25 RM	0,320/1,200	13,7/4,0	240/107	418	1438
4x 95 + 2x 25 RM	0,320/1,200	13,7/4,0	240/107	420	1544
4x120 + 1x 25 RM	0,253/1,200	18,6/4,0	290/107	590	2050
