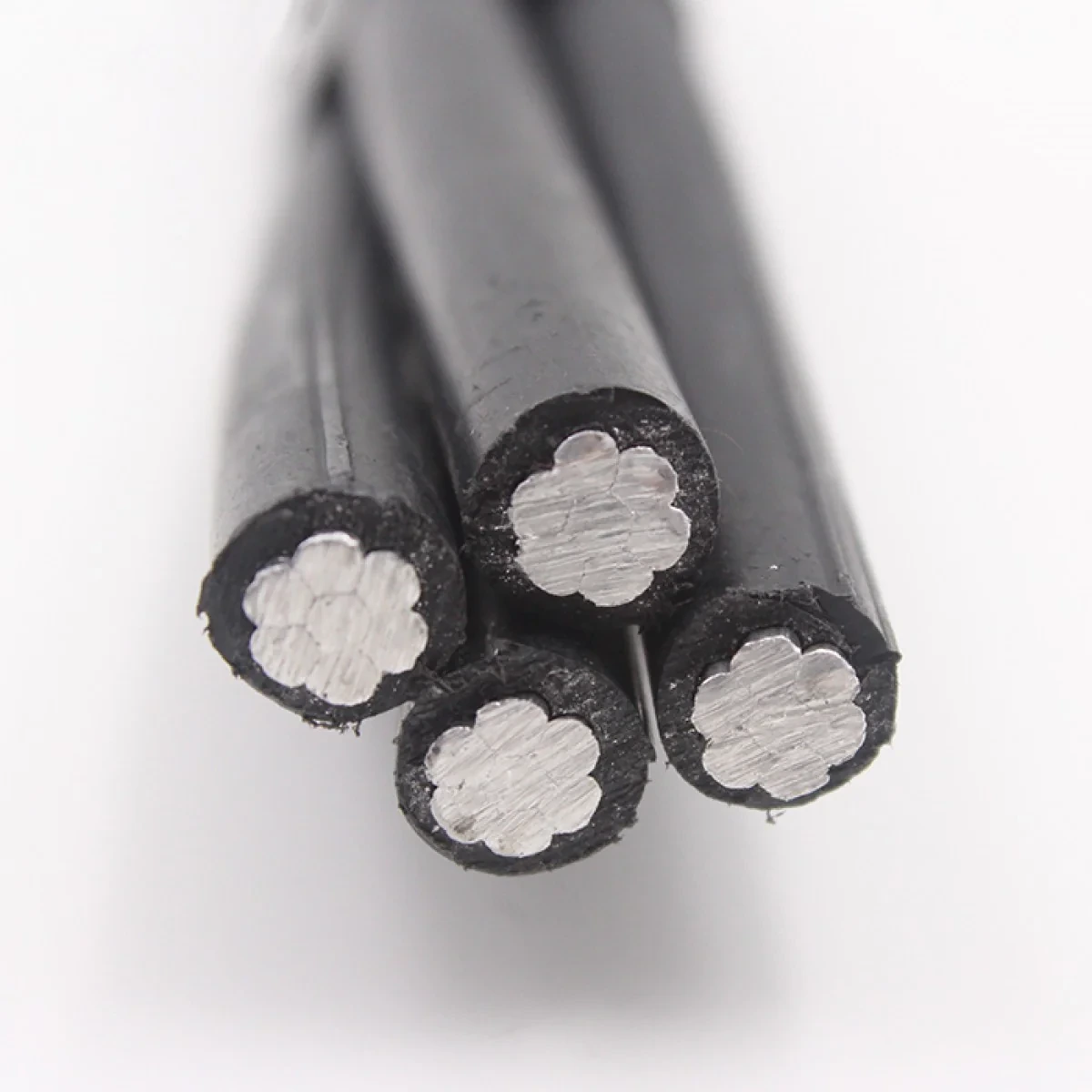

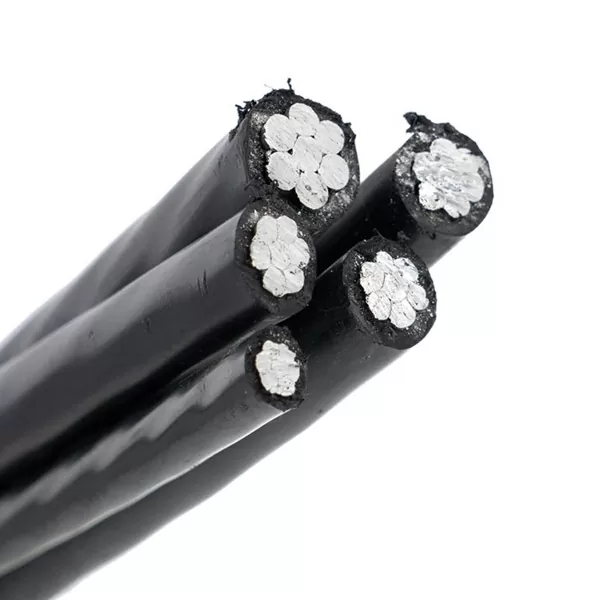

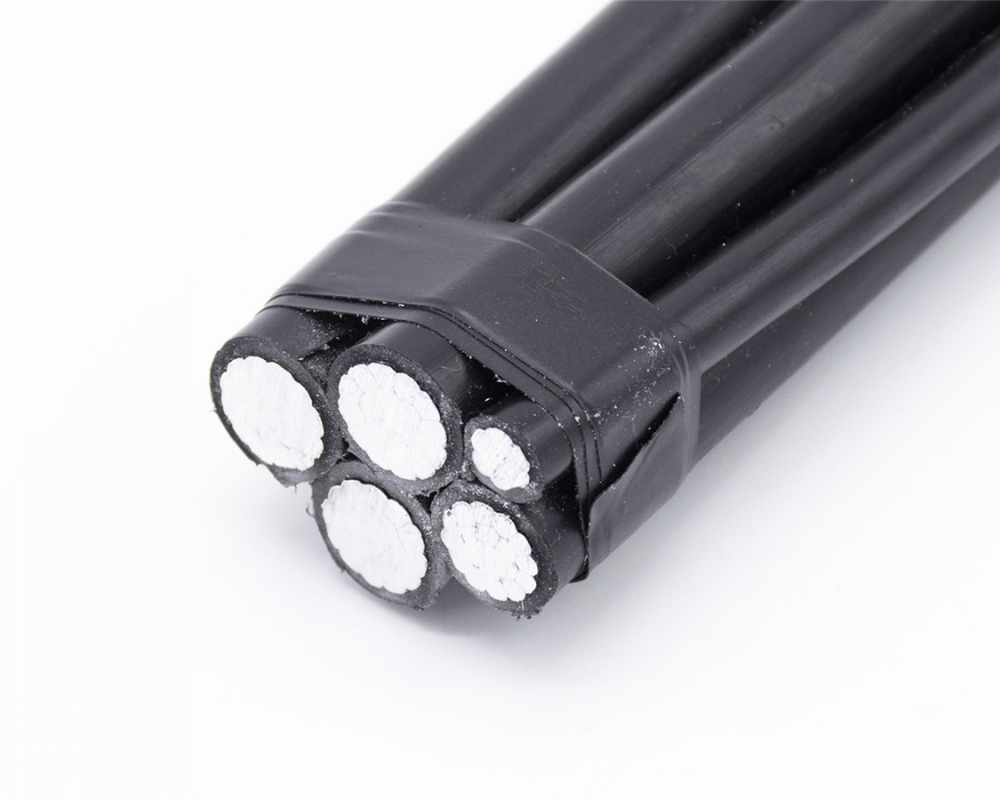

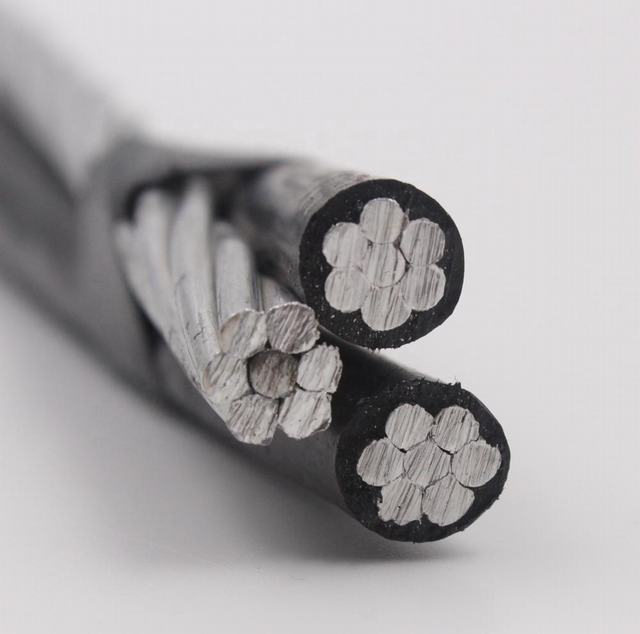

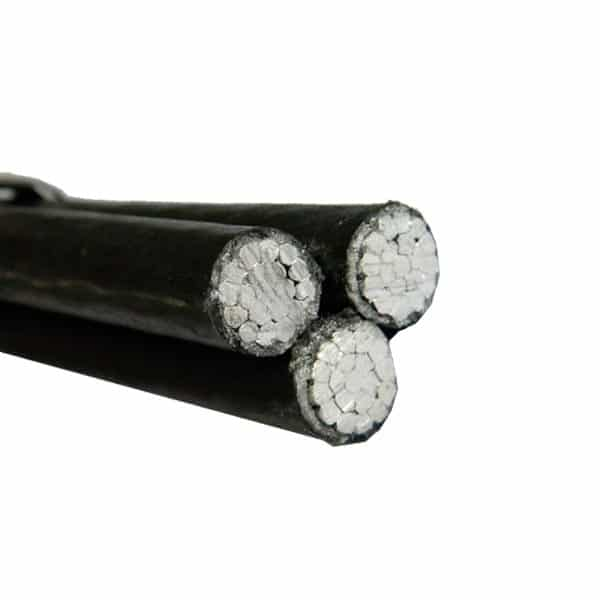

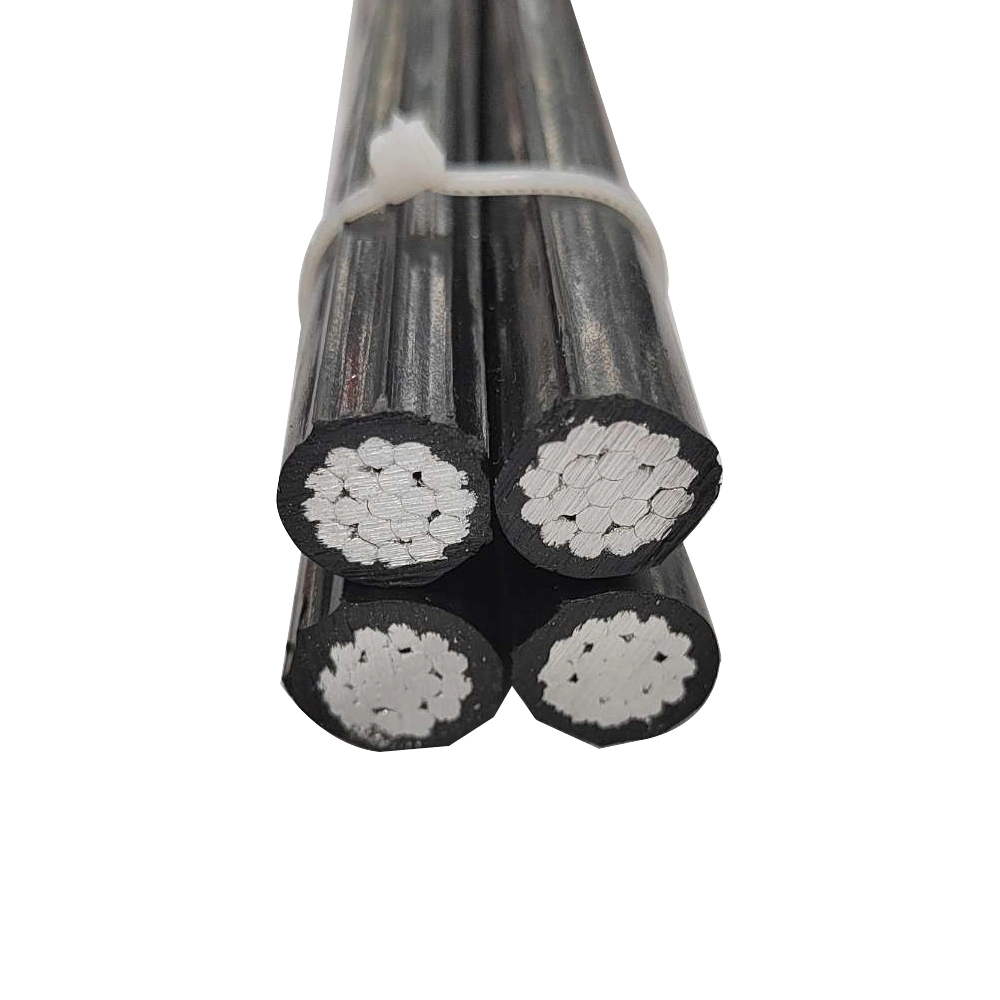

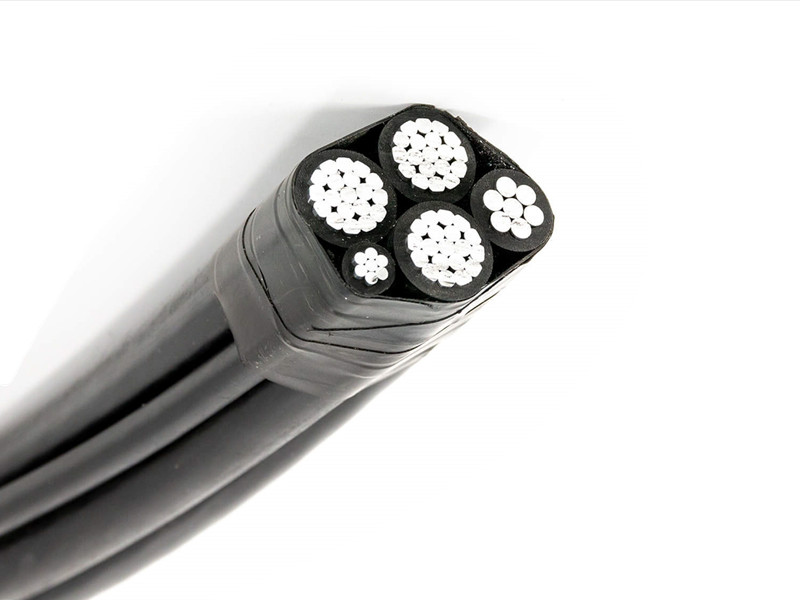

CAAI Cable 0.6/1kV
Application：
For air networks of secondary distribution of low-cost electricity in urban and rural areas.
They are installed both in posts and attached to walls, in both cases, with the appropriate accessories.They do not require the use of insulators.
Model No.：CAAI Cable
Voltage：0.6/1kV
Material：Aluminum
Brand：KINGYEAR
Standard：NTP 370.254,ICEA S-76-474
Place of Origin：China
Package：Exported Wooden Drum
Range of Application：Overhead Line
Terms of Payment: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment
Certification：ISO,CE and other certifications.
Production Capacity：30000m/week
Rated voltage 0.6/1KV & below
Extruded weather-resistant XLPE insulation
Max. conductor working temperature 90℃
1. 1350 aluminum phase and lighting conductor
2. 6201 aluminum alloy neutral conductor
3. XLPE Insulation
KINGYEAR from 2013-2018 are mainly for domestic trading and processing to some export trading companies. The average sales amount are about RMB 320,000,000 per year. For cables oversea market, From last may till now we have expanded our market to Bolivia, Peru, Dominican, Philippines, Vietnam, Thailand, Iraq, Mongolia, Indonesia and some Africa country. With total sales amount over USD10,000,000.
Specifications
| Size | Phase Core | Neutral Core | Lighting Core | Approx. Weight | Max. Cond. DC Resist. @ 20℃ | Min. Breaking Load of Neutral | |||||
| Conductor Wire No. | Insulation Thickness | Conductor Wire No. | Insulation Thickness | Conductor Wire No. | Insulation Thickness | Phase Core | Neutral Core | Lighting Core | |||
| mm² | / | mm | / | mm | / | mm | Kg/km | Ω/km | Ω/km | Ω/km | kN |
| 1x16+NA25 | 7 | 1.14 | 7 | 1.14 | / | / | 159 | 1.91 | 1.3189 | / | 6.44 |
| 1x25+NA25 | 7 | 1.14 | 7 | 1.14 | / | / | 186 | 1.20 | 1.3189 | / | 6.44 |
| 1x16+1x16+NA25 | 7 | 1.14 | 7 | 1.14 | 7 | 1.14 | 224 | 1.91 | 1.3189 | 1.91 | 6.44 |
| 2x16+NA25 | 7 | 1.14 | 7 | 1.14 | / | / | 224 | 1.91 | 1.3189 | / | 6.44 |
| 2x16+1x16+NA25 | 7 | 1.14 | 7 | 1.14 | 7 | 1.14 | 289 | 1.91 | 1.3189 | 1.91 | 6.44 |
| 2x25+1x16+NA25 | 7 | 1.14 | 7 | 1.14 | 7 | 1.14 | 343 | 1.20 | 1.3189 | 1.91 | 6.44 |
| 2x35+1x16+NA25 | 7 | 1.14 | 7 | 1.14 | 7 | 1.14 | 401 | 0.868 | 1.3189 | 1.91 | 6.44 |
| 2x25+NA25 | 7 | 1.14 | 7 | 1.14 | / | / | 278 | 1.20 | 1.3189 | / | 6.44 |
| 3x16+1x16+NA25 | 7 | 1.14 | 7 | 1.14 | 7 | 1.14 | 354 | 1.91 | 1.3189 | 1.91 | 6.44 |
| 3x25+1x16+NA25 | 7 | 1.14 | 7 | 1.14 | 7 | 1.14 | 435 | 1.20 | 1.3189 | 1.91 | 6.44 |
| 3x35+1x16+NA25 | 7 | 1.14 | 7 | 1.14 | 7 | 1.14 | 522 | 0.868 | 1.3189 | 1.91 | 6.44 |
| 3x50+1x16+NA35 | 7 | 1.52 | 7 | 1.14 | 7 | 1.14 | 712 | 0.641 | 0.9421 | 1.91 | 9.13 |
| 3x70+1x16+NA50 | 19 | 1.52 | 7 | 1.14 | 7 | 1.52 | 952 | 0.443 | 0.6516 | 1.91 | 13.14 |
| 3x95+1x16+NA70 | 19 | 1.52 | 7 | 1.14 | 19 | 1.52 | 1253 | 0.320 | 0.4840 | 1.91 | 17.47 |
| 3x120+1x16+NA70 | 19 | 2.03 | 7 | 1.14 | 19 | 1.52 | 1535 | 0.253 | 0.4840 | 1.91 | 17.47 |
